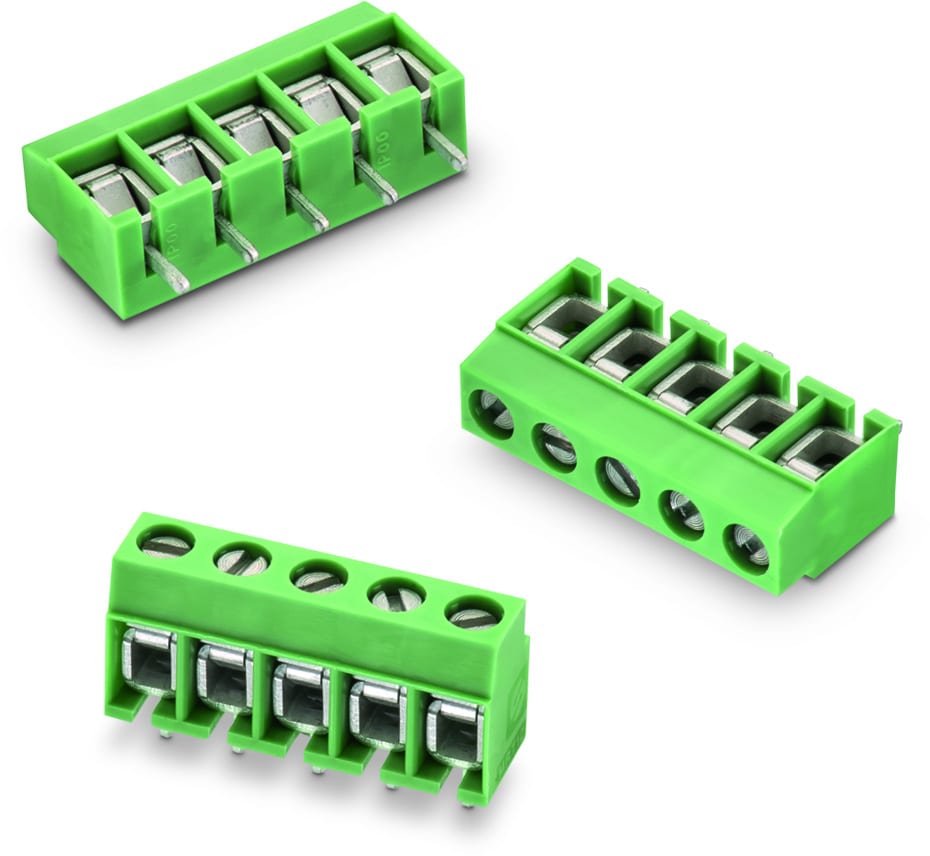

WR-TBL Series 1377 - Wire Protector 5.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +110 °C
Pitch	5 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy with Tin

Electrical Properties
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
cULus Approval	E150931
VDE Approval	40021397

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691137710002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710002 (rev1).pdf \| 131.5 KB IGS 691137710002 (rev1).iges \| 1.7 MB STP 691137710002 (rev1).stp \| 603.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	612690 691001
691137710003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710003 (rev1).pdf \| 131.7 KB IGS 691137710003 (rev1).iges \| 1.7 MB STP 691137710003 (rev1).stp \| 604.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	–
691137710004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710004 (rev1).pdf \| 131.9 KB IGS 691137710004 (rev1).iges \| 1.7 MB STP 691137710004 (rev1).stp \| 605.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	–
691137710005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710005 (rev1).pdf \| 132.1 KB IGS 691137710005 (rev1).iges \| 1.7 MB STP 691137710005 (rev1).stp \| 606.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	–
691137710006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710006 (rev1).pdf \| 132.2 KB IGS 691137710006 (rev1).iges \| 1.7 MB STP 691137710006 (rev1).stp \| 607.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	–
691137710008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 691137710008 (rev1).pdf \| 132.6 KB IGS 691137710008 (rev1).iges \| 1.7 MB STP 691137710008 (rev1).stp \| 608.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Wire Protector	PCB	No	Horizontal	12 to 30 (AWG) 0.5 to 2.5 (mm²)	–

Order Code	Datasheet
691137710002	SPEC
691137710003	SPEC
691137710004	SPEC
691137710005	SPEC
691137710006	SPEC
691137710008	SPEC
