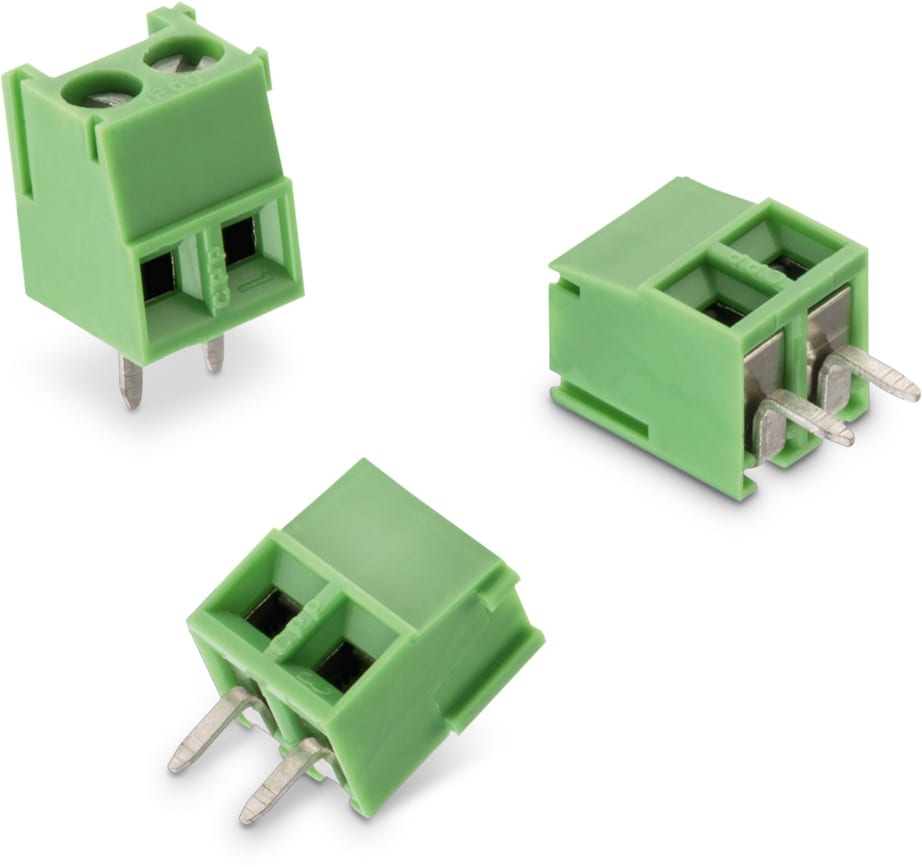

WR-TBL Series 2141 - 3.50 mm Horiz. Entry Modular

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Copper over Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Brass

Electrical Properties
I_R[cULus]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	1600 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	5 up to 6 (mm)
Screw	M2

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
691214110002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691214110002 (rev1).pdf \| 137.6 KB IGS 691214110002 (rev1).igs \| 938.8 KB STP 691214110002 (rev1).stp \| 354.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Horizontal	24 to 16 (AWG) 0.2 to 1 (mm²)	691001
691214110003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691214110003 (rev1).pdf \| 151.4 KB IGS 691214110003 (rev1).igs \| 1.1 MB STP 691214110003 (rev1).stp \| 423.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	Yes	Horizontal	24 to 16 (AWG) 0.2 to 1 (mm²)	–

Order Code	Datasheet
691214110002	SPEC
691214110003	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

WR-TBL Screw Types

Würth Elektronik screw type terminal blocks are available in different pitches and pincounts and offer large and modular terminal block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.

Use with

WR-TBL Adhesive Marker Card Horizontally Printed

Assortments

Articles from this product series can be found in the following assortments:

Design Kit SINGLE BLOCK / WR-TBL
