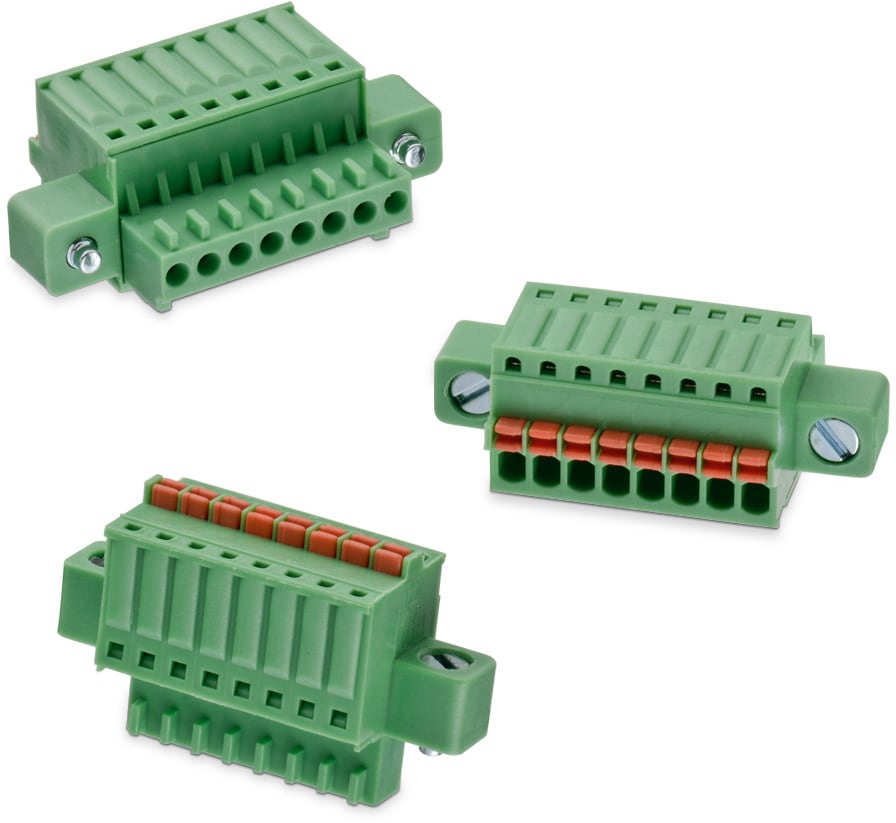

WR-TBL Series 381 - 2.50 mm Vertical CAB Entry Plug Screwless with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Spring Material	Stainless Steel

Electrical Properties
I_R	4 A
I_R[cULus]	4 A
Working Voltage	160 V (AC)
Working Voltage [cULus]	160 V (AC)
Withstanding Voltage	1320 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	28 to 20 (AWG)
Solid Wire Section (Metric)	0.08 to 0.5 (mm²)
Stranded Wire Section (AWG)	28 to 20 (AWG)
Stranded Wire Section (Metric)	0.08 to 0.5 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691381030002	SPEC	3 files CAD files ZIP 3D 691381030002_1 (rev1).pdf \| 246.3 KB IGS 691381030002 (rev1).iges \| 2.7 MB STP 691381030002 (rev1).stp \| 590.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	691002
691381030003	SPEC	3 files CAD files ZIP 3D 691381030003_1 (rev1).pdf \| 293.3 KB IGS 691381030003 (rev1).iges \| 3.4 MB STP 691381030003 (rev1).stp \| 749.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030004	SPEC	3 files CAD files ZIP 3D 691381030004_1 (rev1).pdf \| 336.6 KB IGS 691381030004 (rev1).iges \| 4 MB STP 691381030004 (rev1).stp \| 899.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030005	SPEC	3 files CAD files ZIP 3D 691381030005_1 (rev1).pdf \| 388.5 KB IGS 691381030005 (rev1).iges \| 4.7 MB STP 691381030005 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030006	SPEC	3 files CAD files ZIP 3D 691381030006_1 (rev1).pdf \| 445.3 KB IGS 691381030006 (rev1).iges \| 5.4 MB STP 691381030006 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030007	SPEC	3 files CAD files ZIP 3D 3D_691381030007 (rev1).pdf \| 494.2 KB IGS Download_IGES_691381030007 (rev1).iges \| 6 MB STP Download_STP_691381030007 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030008	SPEC	3 files CAD files ZIP 3D 691381030008_1 (rev1).pdf \| 535 KB IGS 691381030008 (rev1).iges \| 6.7 MB STP 691381030008 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–
691381030012	SPEC	3 files CAD files ZIP 3D 3D_691381030012 (rev1).pdf \| 704.9 KB IGS Download_IGES_691381030012 (rev1).iges \| 9.4 MB STP Download_STP_691381030012 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Vertical	28 to 20 (AWG) 0.08 to 0.5 (mm²)	–

Order Code	Datasheet
691381030002	SPEC
691381030003	SPEC
691381030004	SPEC
691381030005	SPEC
691381030006	SPEC
691381030007	SPEC
691381030008	SPEC
691381030012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
