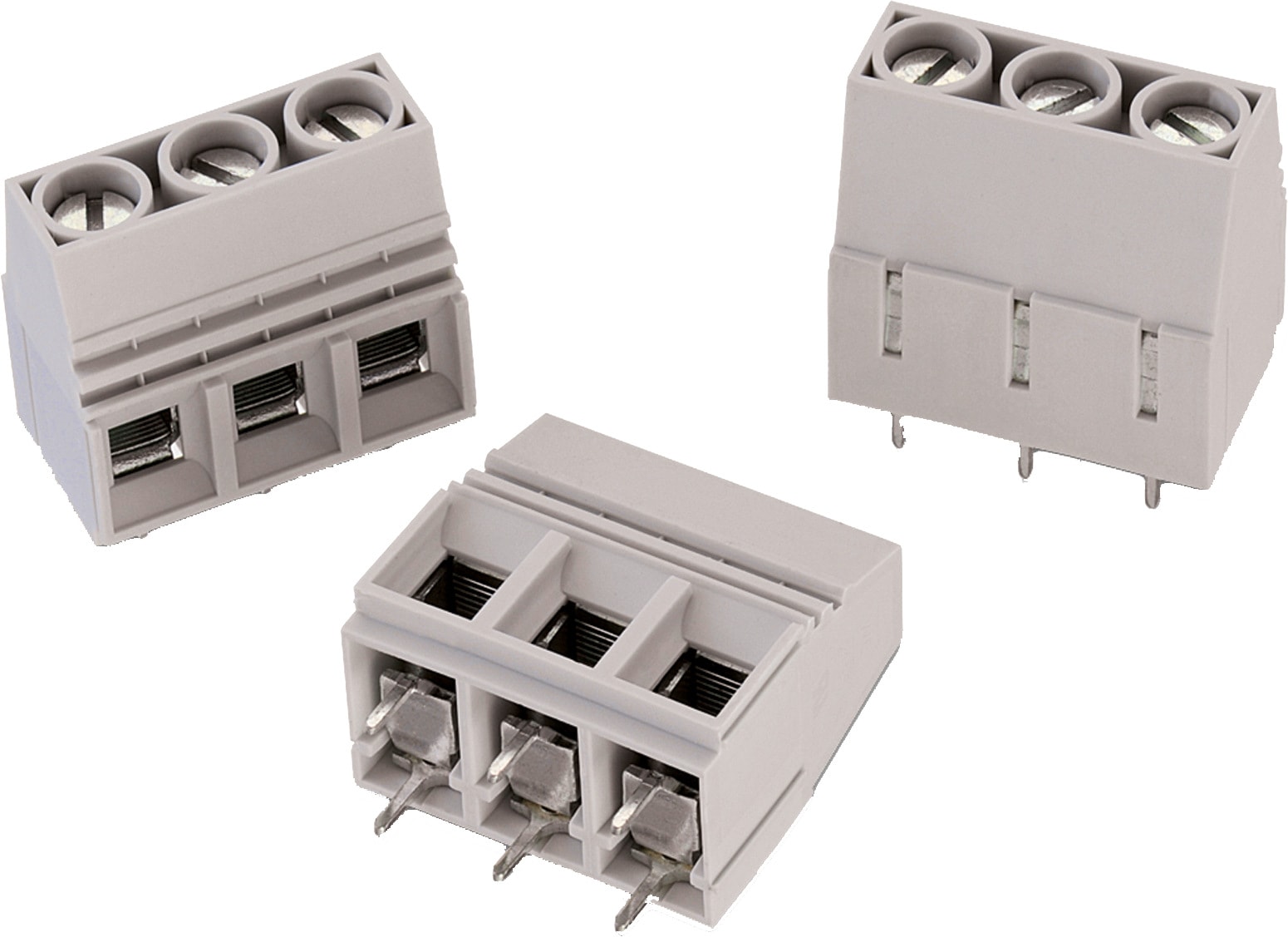

WR-TBL Series 2196 - 10.16 mm Horiz. Entry Modular | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	10.16 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Stainless Steel

Electrical Properties
I_R[cULus]	57 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	10 up to 11 (mm)
Screw	M4.5

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
691219610002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 691219610002_1 (rev1).pdf \| 259 KB IGS 691219610002 (rev1).igs \| 2.2 MB STP 691219610002 (rev1).stp \| 860.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	Horizontal	8 to 22 (AWG) 8.37 to 0.326 (mm²)	612690 691001
691219610003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP IGS 691219610003 (rev1).igs \| 2.6 MB STP 691219610003 (rev1).stp \| 1001 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	Yes	Horizontal	8 to 22 (AWG) 8.37 to 0.326 (mm²)	–

Order Code	Datasheet
691219610002	SPEC
691219610003	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
