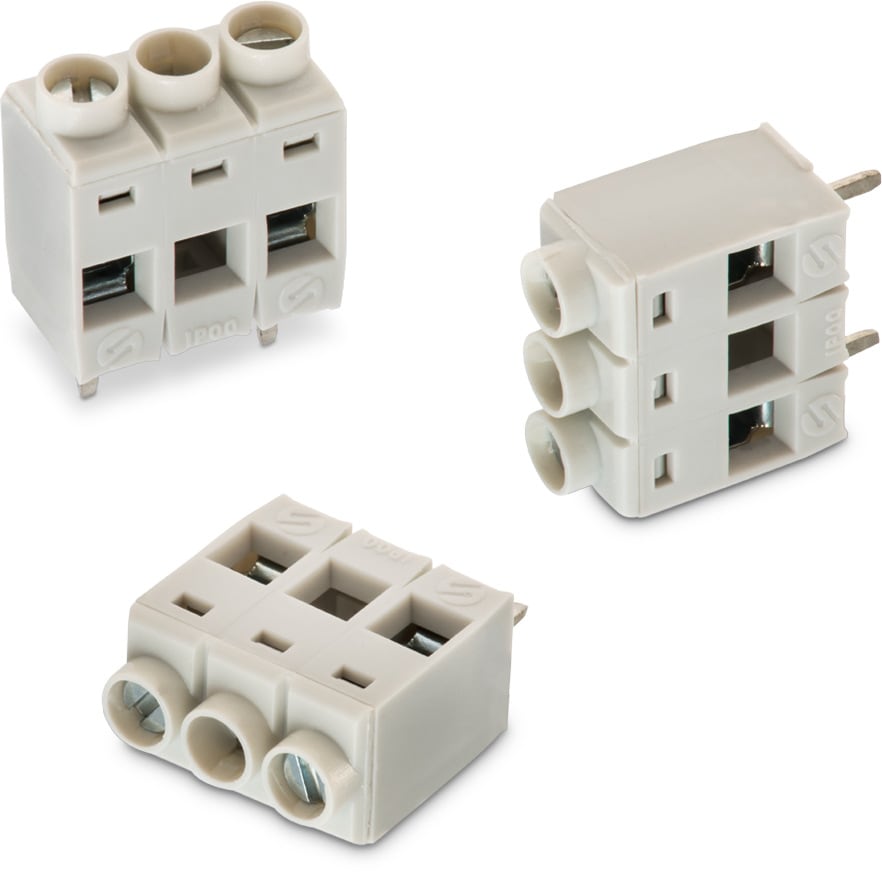

WR-TBL Series 1318 - Rising Cage Clamp 10.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	10 mm

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Steel
Contact Plating	Zinc
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R	16 A
I_R[cULus]	16 A
I_R[VDE]	22 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [UL]	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [UL]	1600 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
cULus Approval	E150931
UL Approval	E150931 CAT N: CUU (2)
VDE Approval	40021359
VDE Approval	40021359 TYPE: CUU

Packaging Properties
Packaging	Box

Application Notes

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691131810002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131810002 (rev1).pdf \| 91.9 KB IGS Download_IGES_691131810002 (rev1).iges \| 1.2 MB STP Download_STP_691131810002 (rev1).stp \| 396.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	691001
691131810003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131810003 (rev1).pdf \| 134.6 KB IGS Download_IGES_691131810003 (rev1).iges \| 1.7 MB STP Download_STP_691131810003 (rev1).stp \| 552.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–
691131810004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131810004 (rev1).pdf \| 174.2 KB IGS Download_IGES_691131810004 (rev1).iges \| 2.2 MB STP Download_STP_691131810004 (rev1).stp \| 711.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pressure Clamp	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–

Order Code	Datasheet
691131810002	SPEC
691131810003	SPEC
691131810004	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
