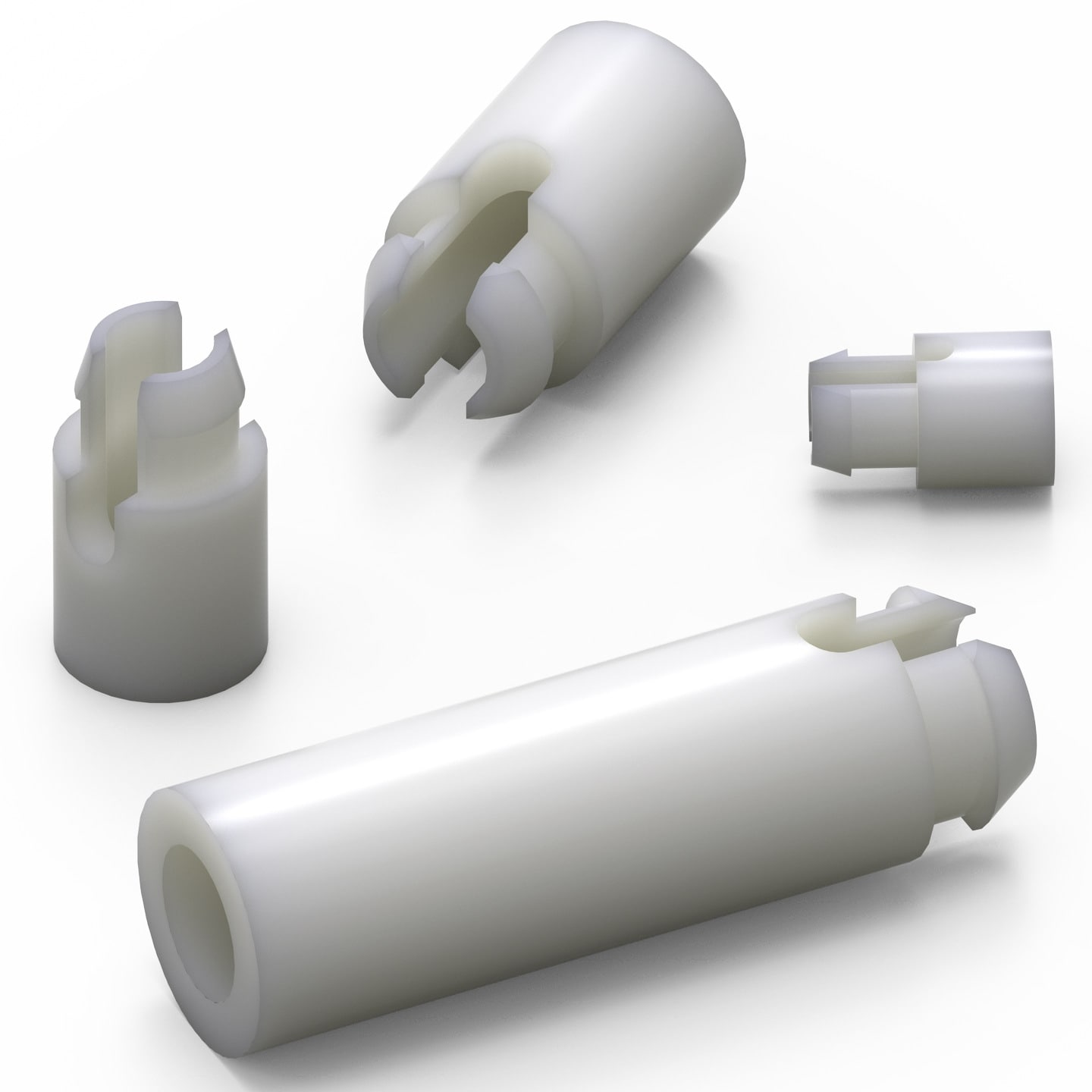

WA-SNSR Self-Retaining Spacer

WA-SNSR Self-Retaining Spacer

Applications

  • The clip is used to keep the part in position while fastening
  • An ideal solution for panels where little space is available
General Information
MaterialPA66
ColorNatural
Flammability RatingUL94 V-2
Operating Temperature-30 °C up to +85 °C
t min1.2 mm; 1.6 mm

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
L(mm)
f(mm)
Design Kit
Board
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WA-SNSR Self-Retaining Spacer
702911000
SPEC2 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length2 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702912000
SPEC2.5 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length2.5 mm
Drilling in Panel3 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702921000
SPEC2.5 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length2.5 mm
Drilling in Panel4 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702913000
SPEC3 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length3 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702922000
SPEC3 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length3 mm
Drilling in Panel4 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702914000
SPEC3.5 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length3.5 mm
Drilling in Panel3 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702915000
SPEC4 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length4 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702923000
SPEC4 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length4 mm
Drilling in Panel4 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702930000
SPEC4 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length4 mm
Drilling in Panel4.8 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702916000
SPEC4.5 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length4.5 mm
Drilling in Panel3 mm
Design Kit –
Board
700990
–Check availability
WA-SNSR Self-Retaining Spacer
702917000
SPEC5 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length5 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702924000
SPEC5 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length5 mm
Drilling in Panel4 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702925000
SPEC5.4 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length5.4 mm
Drilling in Panel4 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702918000
SPEC5.5 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length5.5 mm
Drilling in Panel3 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702919000
SPEC6 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length6 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702926000
SPEC6 mm, 4 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length6 mm
Drilling in Panel4 mm
Design Kit
700999
Board
700990
–Check availability
WA-SNSR Self-Retaining Spacer
702931000
SPEC6.4 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length6.4 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702940500
SPEC6.4 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length6.4 mm
Drilling in Panel5.9 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702932000
SPEC7.9 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length7.9 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702941000
SPEC7.9 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length7.9 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702910000
SPEC8 mm, 3 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length8 mm
Drilling in Panel3 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702933000
SPEC9.5 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length9.5 mm
Drilling in Panel4.8 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702941500
SPEC9.5 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length9.5 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702934000
SPEC11.1 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length11.1 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702942000
SPEC11.1 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length11.1 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702935000
SPEC12.7 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length12.7 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702942500
SPEC12.7 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length12.7 mm
Drilling in Panel5.9 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702935500
SPEC14.2 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length14.2 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702936000
SPEC15.9 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length15.9 mm
Drilling in Panel4.8 mm
Design Kit
700999744998
Board
700990
–Check availability
WA-SNSR Self-Retaining Spacer
702943000
SPEC15.9 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length15.9 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702943500
SPEC17 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length17 mm
Drilling in Panel5.9 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702937000
SPEC19.1 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length19.1 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702944000
SPEC19.1 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length19.1 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702938000
SPEC22.2 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length22.2 mm
Drilling in Panel4.8 mm
Design Kit
700999
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702944500
SPEC22.2 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length22.2 mm
Drilling in Panel5.9 mm
Design Kit –
Board
700990
–Check availability
WA-SNSR Self-Retaining Spacer
702939000
SPEC25.4 mm, 4.8 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length25.4 mm
Drilling in Panel4.8 mm
Design Kit –
Board –
–Check availability
WA-SNSR Self-Retaining Spacer
702945000
SPEC25.4 mm, 5.9 mm
Availability
–
Downloads3 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Length25.4 mm
Drilling in Panel5.9 mm
Design Kit –
Board –
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Design Your EMC-Filter
Board ASSEMBLY Spacer
Design Kit Assembly Technology - Plastic
