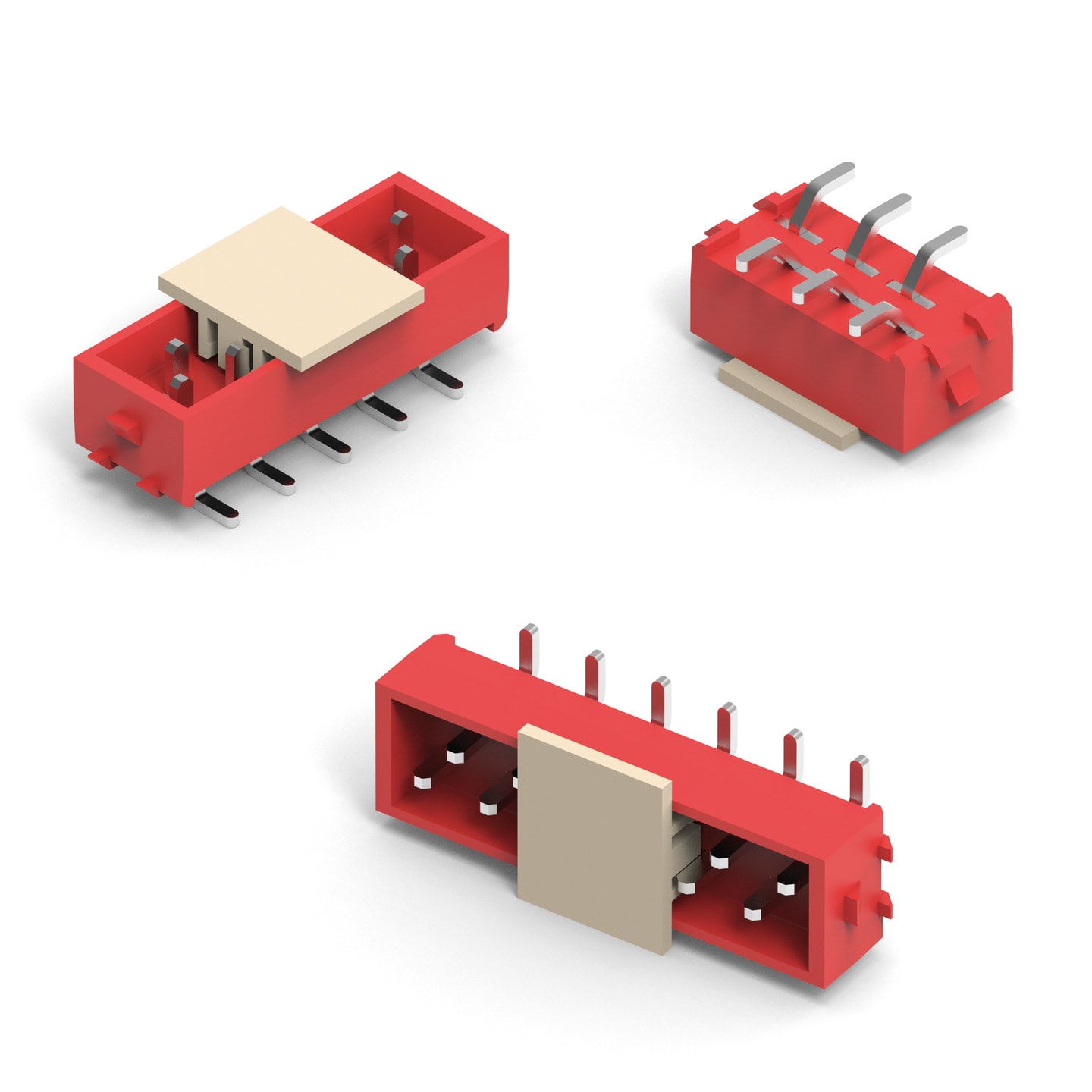

WR-MM Male SMT Connector w/o Latch & w/o Polarization

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Male

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Packaging Properties
cULus Approval	E323964
Packaging	Tape and Reel

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	690357280476	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357280476 (rev1).pdf \| 57.5 KB IGS 690357280476 (rev1).iges \| 872.7 KB STP 690357280476 (rev1).stp \| 216 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357280676	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357280676 (rev1).pdf \| 71.1 KB IGS 690357280676 (rev1).iges \| 990.9 KB STP 690357280676 (rev1).stp \| 246.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357280876	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357280876 (rev1).pdf \| 76.8 KB IGS 690357280876 (rev1).iges \| 1.1 MB STP 690357280876 (rev1).stp \| 277.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357281076	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357281076 (rev1).pdf \| 83.8 KB IGS 690357281076 (rev1).iges \| 1.2 MB STP 690357281076 (rev1).stp \| 307 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	per Row	Male	Straight	1.5	Tape and Reel	612690 690001
	690357281276	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357281276 (rev1).pdf \| 91.1 KB IGS 690357281276 (rev1).iges \| 1.3 MB STP 690357281276 (rev1).stp \| 336.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357281476	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357281476 (rev1).pdf \| 99 KB IGS 690357281476 (rev1).iges \| 1.4 MB STP 690357281476 (rev1).stp \| 367.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357281676	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357281676 (rev1).pdf \| 107.3 KB IGS 690357281676 (rev1).iges \| 1.5 MB STP 690357281676 (rev1).stp \| 397.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357281876	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357281876 (rev1).pdf \| 114.4 KB IGS 690357281876 (rev1).iges \| 1.6 MB STP 690357281876 (rev1).stp \| 426.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357282076	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357282076 (rev1).pdf \| 122.6 KB IGS 690357282076 (rev1).iges \| 1.8 MB STP 690357282076 (rev1).stp \| 458.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357282276	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357282276 (rev1).pdf \| 128.6 KB IGS 690357282276 (rev1).iges \| 1.9 MB STP 690357282276 (rev1).stp \| 488.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357282476	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357282476 (rev1).pdf \| 136.6 KB IGS 690357282476 (rev1).iges \| 2 MB STP 690357282476 (rev1).stp \| 518.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	per Row	Male	Straight	1.5	Tape and Reel	690001
	690357282676	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690357282676 (rev1).pdf \| 144.6 KB IGS 690357282676 (rev1).iges \| 2.1 MB STP 690357282676 (rev1).stp \| 550.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	per Row	Male	Straight	1.5	Tape and Reel	690001

	Order Code	Datasheet
	690357280476	SPEC
	690357280676	SPEC
	690357280876	SPEC
	690357281076	SPEC
	690357281276	SPEC
	690357281476	SPEC
	690357281676	SPEC
	690357281876	SPEC
	690357282076	SPEC
	690357282276	SPEC
	690357282476	SPEC
	690357282676	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-MM Female Angled Connector with Latch & with Polarization

WR-MM Female Angled Connector w. Polarization and w/o Latch

WR-MM Female SMT Connector with Latch & Polarization

WR-MM Female Angled Connector w/o Latch & w/o Polarization

WR-MM Female SMT Connector with Polarization

WR-MM Female Connector with Latch & w/o Polarization

WR-MM Female Connector w/o Latch & w/o Polarization

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MM MiniModule Connectors
