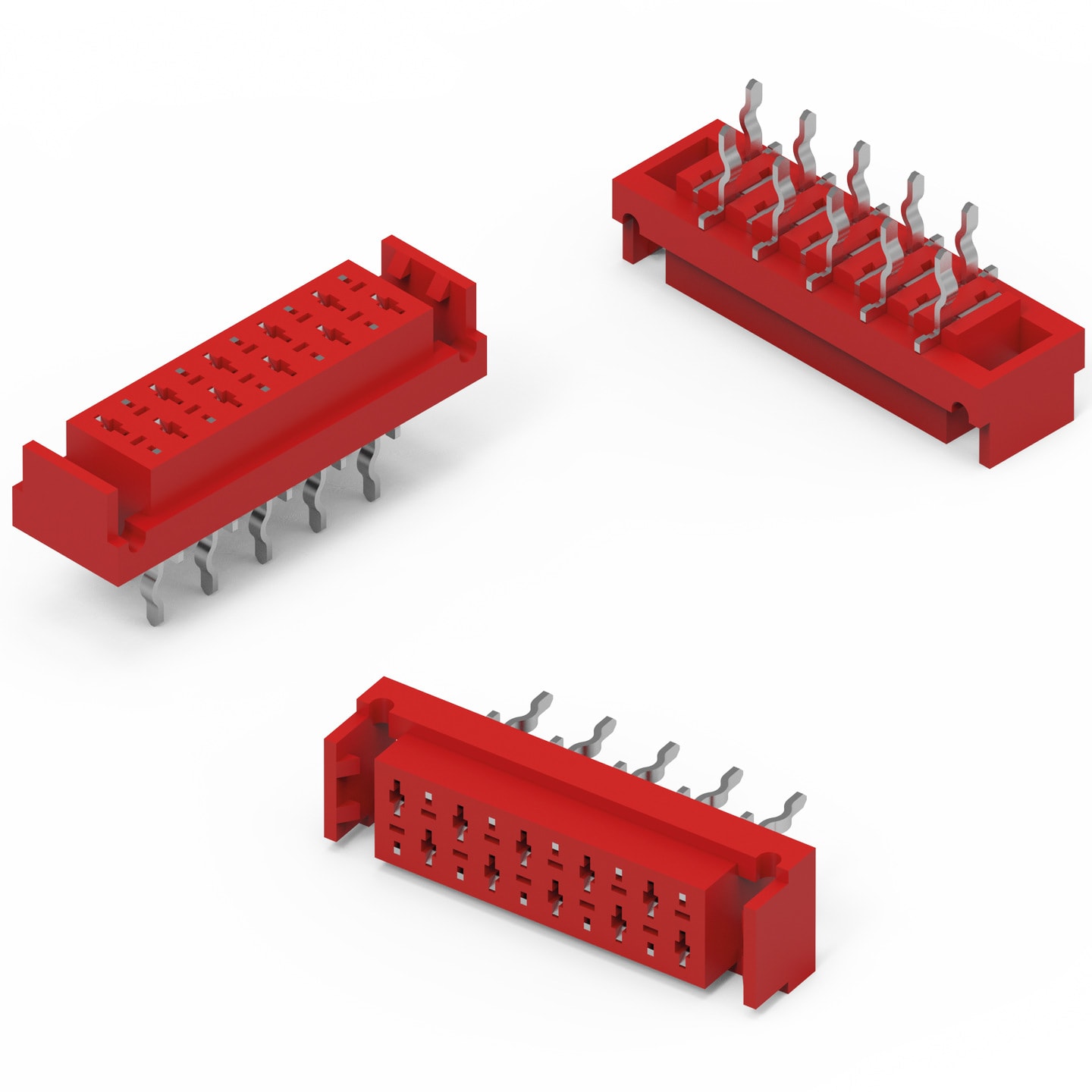

WR-MM Female Connector with Latch & w/o Polarization

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Female

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Packaging Properties
cULus Approval	E323964
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	690367190472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367190472 (rev1).pdf \| 90.3 KB IGS 690367190472 (rev1).igs \| 1.6 MB STP 690367190472 (rev1).stp \| 530.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	per Row	Female	Straight	1.5	Tube	690001
	690367190672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367190672 (rev1).pdf \| 110.6 KB IGS 690367190672 (rev1).igs \| 1.9 MB STP 690367190672 (rev1).stp \| 662 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	per Row	Female	Straight	1.5	Tube	690001
	690367190872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367190872 (rev1).pdf \| 125.6 KB IGS 690367190872 (rev1).igs \| 2.3 MB STP 690367190872 (rev1).stp \| 794.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	per Row	Female	Straight	1.5	Tube	690001
	690367191072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367191072 (rev1).pdf \| 147.9 KB IGS 690367191072 (rev1).igs \| 2.6 MB STP 690367191072 (rev1).stp \| 927.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	per Row	Female	Straight	1.5	Tube	612690 690001
	690367191272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367191272 (rev1).pdf \| 164.8 KB IGS 690367191272 (rev1).igs \| 3 MB STP 690367191272 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	per Row	Female	Straight	1.5	Tube	690001
	690367191472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367191472 (rev1).pdf \| 183.1 KB IGS 690367191472 (rev1).igs \| 3.3 MB STP 690367191472 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	per Row	Female	Straight	1.5	Tube	690001
	690367191672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367191672 (rev1).pdf \| 200.1 KB IGS 690367191672 (rev1).igs \| 3.6 MB STP 690367191672 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	per Row	Female	Straight	1.5	Tube	690001
	690367191872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367191872 (rev1).pdf \| 228.4 KB IGS 690367191872 (rev1).igs \| 4 MB STP 690367191872 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	per Row	Female	Straight	1.5	Tube	690001
	690367192072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367192072 (rev1).pdf \| 247 KB IGS 690367192072 (rev1).igs \| 4.4 MB STP 690367192072 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	per Row	Female	Straight	1.5	Tube	690001
	690367192272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367192272 (rev1).pdf \| 262.5 KB IGS 690367192272 (rev1).igs \| 4.7 MB STP 690367192272 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	per Row	Female	Straight	1.5	Tube	690001
	690367192472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367192472 (rev1).pdf \| 281.4 KB IGS 690367192472 (rev1).igs \| 5.1 MB STP 690367192472 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	per Row	Female	Straight	1.5	Tube	690001
	690367192672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev25a).zip \| 12.4 MB EAG Eagle_WR-MM (rev25a).lbr \| 1 MB CAD files ZIP 3D 690367192672 (rev1).pdf \| 301.4 KB IGS 690367192672 (rev1).igs \| 5.4 MB STP 690367192672 (rev1).stp \| 1.9 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	per Row	Female	Straight	1.5	Tube	690001

	Order Code	Datasheet
	690367190472	SPEC
	690367190672	SPEC
	690367190872	SPEC
	690367191072	SPEC
	690367191272	SPEC
	690367191472	SPEC
	690367191672	SPEC
	690367191872	SPEC
	690367192072	SPEC
	690367192272	SPEC
	690367192472	SPEC
	690367192672	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Test Condition P	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-MM Male SMT Connector w/o Latch & w/o Polarization

WR-MM Male Connector w/o Latch & w. Polarization

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MM MiniModule Connectors
