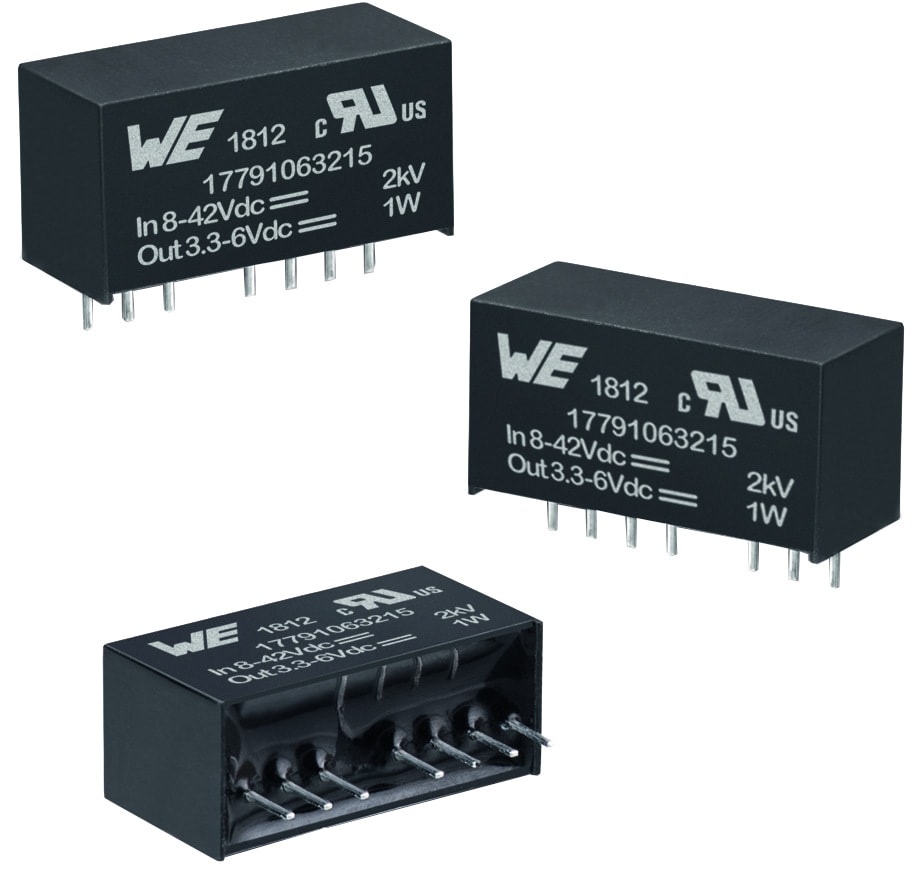

MagI³C-VISM Variable Isolated SIP Module

Regulated output voltage

MagI³C-VISM Variable Isolated SIP Module
SizeDimen­sions3DL
(mm)		W
(mm)		H
(mm)		Mount
SIP-8
 21.8 9.2 11.1 THT

Characteristics

  • Simplest design (no transformer design know how required)
  • Leaded through-hole package for easy manufacturing and prototyping
  • Stand alone solution (CIN and COUT integrated, no external components)
  • Only one external resistor required to set the VOUT
  • ON / OFF control Pin
  • Static and dynamic power Boost
  • Simple functional isolation for overvoltage protection, avoiding ground loops, ground shift and noise in signal path or sensor systems
  • Industrial standard package and pin configuration
  • Low conducted and radiated EMI (compliant to EN55032 class B / CISPR-32)
  • IEC/EN/UL60950 & IEC/EN/UL62368 approval

Applications

  • Data acquisition
  • Test and measurement systems
  • Interface and microcontroller supply
  • Industrial control

Application Notes

MagI³C Power Module Designer

Enables quick & easy design-in of a power module without DC/DC converter knowledge.

Power Module Designer in REDEXPERT

Altium Design Example

Performance optimized layouts via copy & paste. Learn more about Altium design examples to speed up your design-in.

Watch tutorial

Products

SIP-8
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Simu­lation
Downloads
Status
VIN(V)
VOUT(V)
PO(W)
VISO(V (DC))
L(mm)
W(mm)
H(mm)
Evaluation Kit
SamplesAvailability & Sample
MagI³C-VISM Variable Isolated SIP Module
17791063215
SPEC8 - 42, 3.3 - 6, 1 W
Simu­lation
Availability
–
Downloads4 files

EDA models: Components ZIP

Download all 4 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Input Voltage 8 - 42
Output Voltage 3.3 - 6
Total Output Power1 W
Isolation Voltage2000 V (DC)
Length21.8 mm
Width9.2 mm
Height11.1 mm
Evaluation Kit
17800VISM
–Check availability
