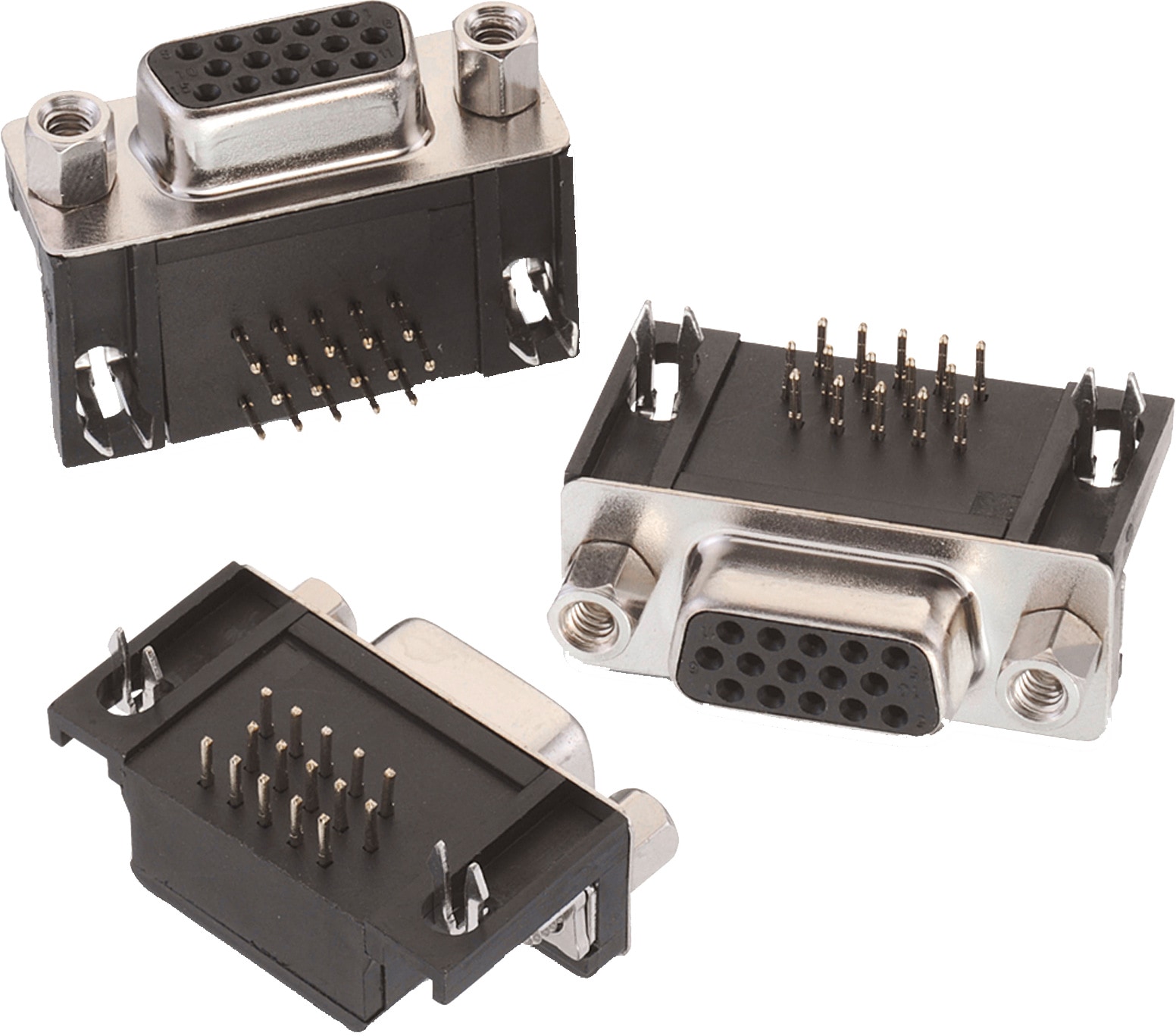

WR-DSUB Female High Density Angled PCB Connector w. Hex Screw

General Information
Operating Temperature	-55 °C up to +105 °C
Gender	Female
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Tin

Electrical Properties
Working Voltage	60 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))
618015330923	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 3D_618015330923 (rev1).pdf \| 869.6 KB IGS IGES_618015330923 (rev1).iges \| 5.9 MB STP STP_618015330923 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Female	Angled	-55 °C up to +105 °C	60
618026330923	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618026330923_1 (rev1).pdf \| 1000 KB IGS 618026330923 (rev1).iges \| 7.6 MB STP 618026330923 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	Female	Angled	-55 °C up to +105 °C	60
618044330923	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618044330923_1 (rev1).pdf \| 1.2 MB IGS 618044330923 (rev1).iges \| 10.3 MB STP 618044330923 (rev1).stp \| 2.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	Female	Angled	-55 °C up to +105 °C	60
618062330923	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618062330923_1 (rev1).pdf \| 1.4 MB IGS 618062330923 (rev1).iges \| 13 MB STP 618062330923 (rev1).stp \| 2.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	62	Female	Angled	-55 °C up to +105 °C	60
