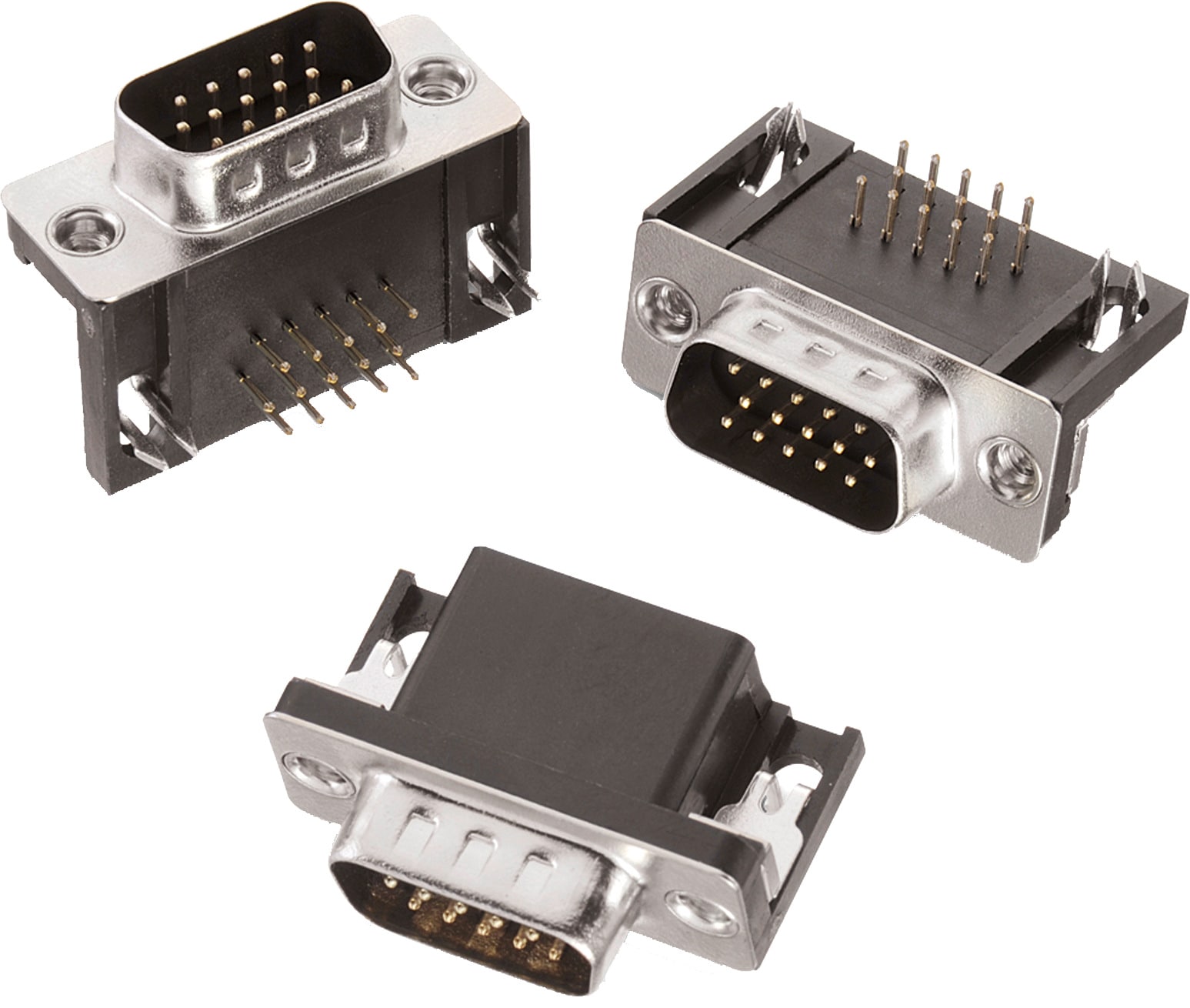

WR-DSUB Male High Density Angled PCB Connector w/o Hex Screw

Kind Properties
Quality Class	3 as per CECC 75 301-802
Gender	Male
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Nickel

General Information
Operating Temperature	-55 up to +105 °C
Compliance	RoHS

Order Code	Datasheet	Downloads	Pins	Gender	Type	Operating Temperature	Working Voltage (V (AC))
618015325323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618015325323 (rev1).pdf \| 729.6 KB IGS 618015325323 (rev1).iges \| 4.9 MB STP 618015325323 (rev1).stp \| 1.1 MB	15	Male	Angled	-55 up to +105 °C	60
618026325323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618026325323 (rev1).pdf \| 853.7 KB IGS 618026325323 (rev1).iges \| 6.8 MB STP 618026325323 (rev1).stp \| 1.5 MB	26	Male	Angled	-55 up to +105 °C	60
618044325323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618044325323 (rev1).pdf \| 1 MB IGS 618044325323 (rev1).iges \| 9.7 MB STP 618044325323 (rev1).stp \| 2.1 MB	44	Male	Angled	-55 up to +105 °C	60
618062325323	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618062325323 (rev1).pdf \| 1.2 MB IGS 618062325323 (rev1).iges \| 12.8 MB STP 618062325323 (rev1).stp \| 2.8 MB	62	Male	Angled	-55 up to +105 °C	60
