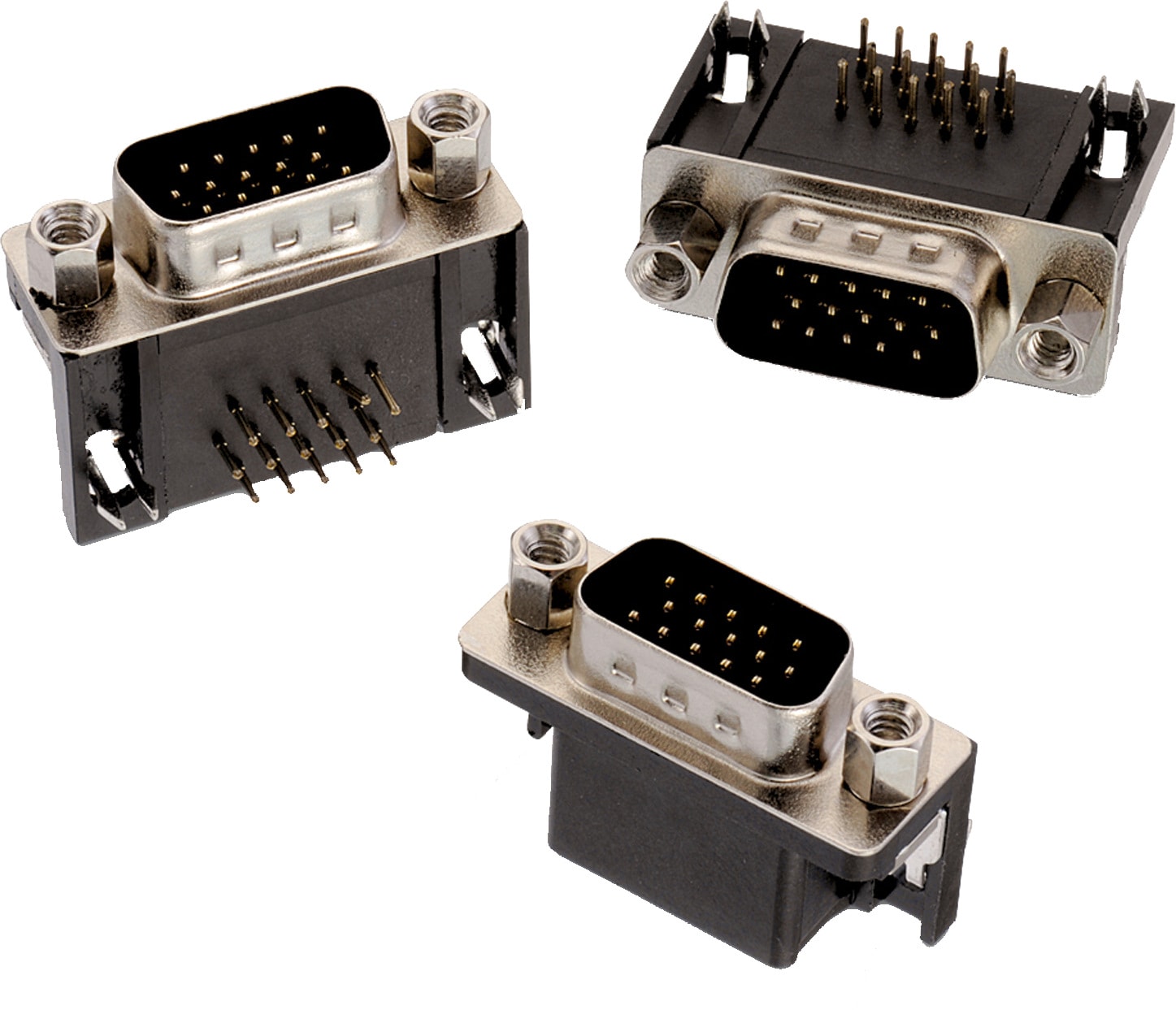

WR-DSUB Male High Density Angled PCB Connector w. Hex Screw

General Information
Operating Temperature	-55 °C up to +105 °C
Compliance	RoHS
Quality Class	3 as per CECC 75 301-802
Gender	Male
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Nickel (Ni)

Electrical Properties
I_R	3 A
Working Voltage	60 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit
618015331023	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618015331023 (rev1).pdf \| 745.5 KB IGS 618015331023 (rev1).iges \| 5 MB STP 618015331023 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	Angled	-55 °C up to +105 °C	60	612690
618026331023	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618026331023 (rev1).pdf \| 869.5 KB IGS 618026331023 (rev1).iges \| 6.8 MB STP 618026331023 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	Male	Angled	-55 °C up to +105 °C	60	–
618044331023	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618044331023 (rev1).pdf \| 1 MB IGS 618044331023 (rev1).iges \| 9.8 MB STP 618044331023 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	Male	Angled	-55 °C up to +105 °C	60	–
618062331023	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618062331023 (rev1).pdf \| 1.3 MB IGS 618062331023 (rev1).iges \| 12.9 MB STP 618062331023 (rev1).stp \| 2.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	62	Male	Angled	-55 °C up to +105 °C	60	–
