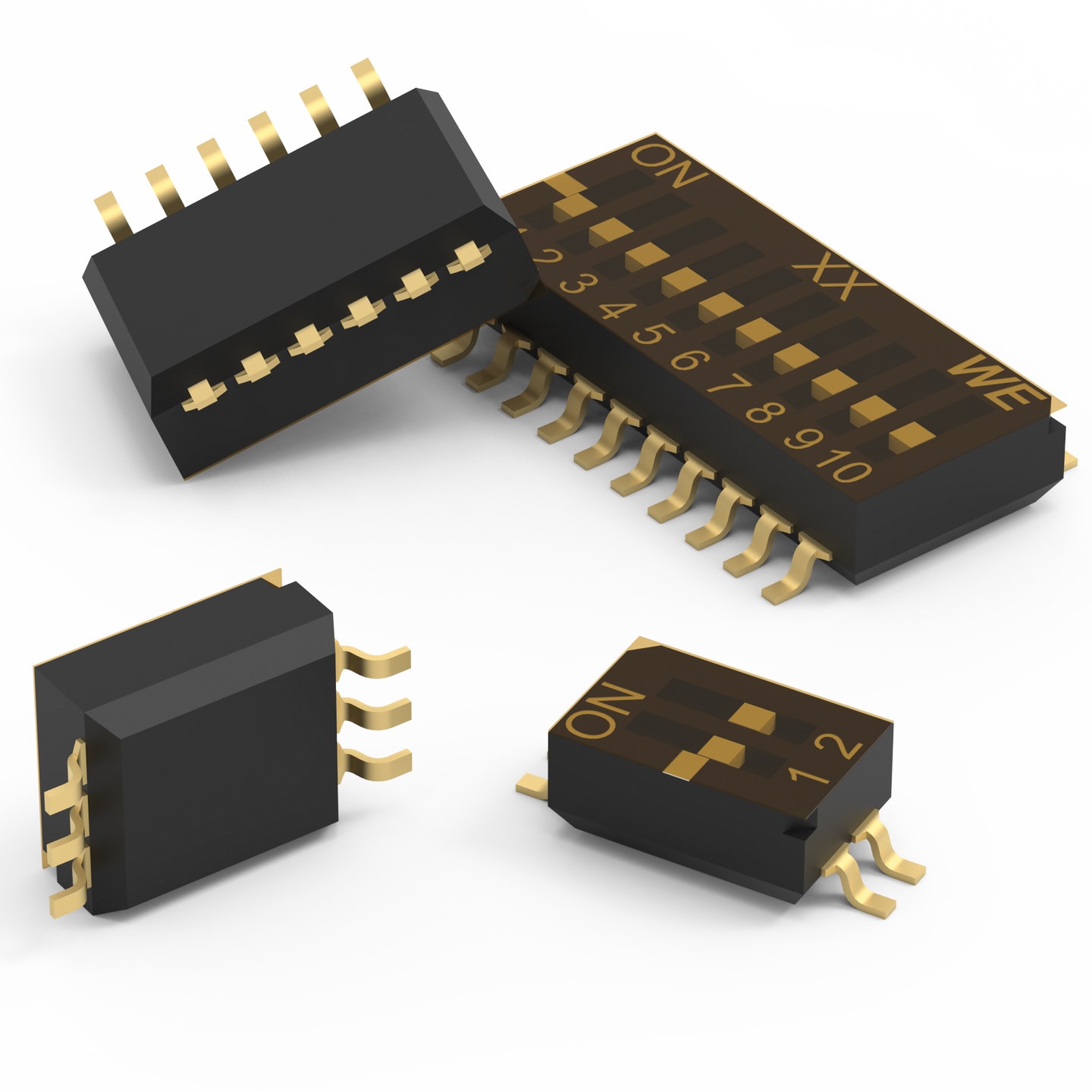

WS-DISV Small Compact SMT Flat Actuator with Top Tape 1.27 mm

Material Properties
Cover Material	PPA
Cover Flammability Rating	UL94 V-0
Base Material	PPA
Base Flammability Rating	UL94 V-0
Actuator Material	PA46
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	300 V (AC)

Mechanical Properties
Operation Force	500 g
Electrical Life	1000 Cycles
Actuator Type	Flat Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes

Packaging Properties
Packaging	Tape and Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Poles	L(mm)	Vaporphase process	Design Kit	Samples
416131160801	1, 2.44 mm, Yes	Downloads6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP IGS 416131160801 (rev1).iges \| 1.2 MB STP 416131160801 (rev1).stp \| 437.2 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles1	Length2.44 mm	Vaporphase processYes	Design Kit –
416131160802	2, 3.71 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160802 (rev1).pdf \| 99.5 KB IGS Downloads_IGES_416131160802 (rev1).iges \| 600.1 KB STP 416131160802 (rev1).stp \| 363.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles2	Length3.71 mm	Vaporphase processYes	Design Kit 499001
416131160803	3, 4.98 mm, Yes	Downloads6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP IGS 416131160803 (rev1).igs \| 1.6 MB STP 416131160803 (rev1).stp \| 654 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles3	Length4.98 mm	Vaporphase processYes	Design Kit 499001
416131160804	4, 6.25 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160804 (rev1).pdf \| 146.9 KB IGS Download_IGES_416131160804 (rev1).iges \| 909.5 KB STP 416131160804 (rev1).stp \| 898.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles4	Length6.25 mm	Vaporphase processYes	Design Kit 499001
416131160805	5, 7.52 mm, Yes	Downloads6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP IGS 416131160805 (rev1).igs \| 2.9 MB STP 416131160805 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles5	Length7.52 mm	Vaporphase processYes	Design Kit 499001
416131160806	6, 8.79 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160806 (rev1).pdf \| 186.4 KB IGS Download_IGES_416131160806 (rev1).iges \| 1.1 MB STP 416131160806 (rev1).stp \| 1.1 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles6	Length8.79 mm	Vaporphase processYes	Design Kit 499001
416131160808	8, 11.33 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160808 (rev1).pdf \| 223.4 KB IGS Download_IGES_416131160808 (rev1).iges \| 1.3 MB STP 416131160808 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles8	Length11.33 mm	Vaporphase processYes	Design Kit 499001
416131160810	10, 13.87 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160810 (rev1).pdf \| 269.4 KB IGS Download_IGES_416131160810 (rev1).iges \| 1.6 MB STP 416131160810 (rev1).stp \| 1.6 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles10	Length13.87 mm	Vaporphase processYes	Design Kit 499001
416131160812	12, 16.41 mm, Yes	Downloads7 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB KIC KiCad_WS-DISV (rev26a).zip \| 9.4 MB CAD files ZIP 3D 3D_416131160812 (rev1).pdf \| 303.2 KB IGS Download_IGES_416131160812 (rev1).iges \| 1.8 MB STP 416131160812 (rev1).stp \| 1.9 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Poles12	Length16.41 mm	Vaporphase processYes	Design Kit –
