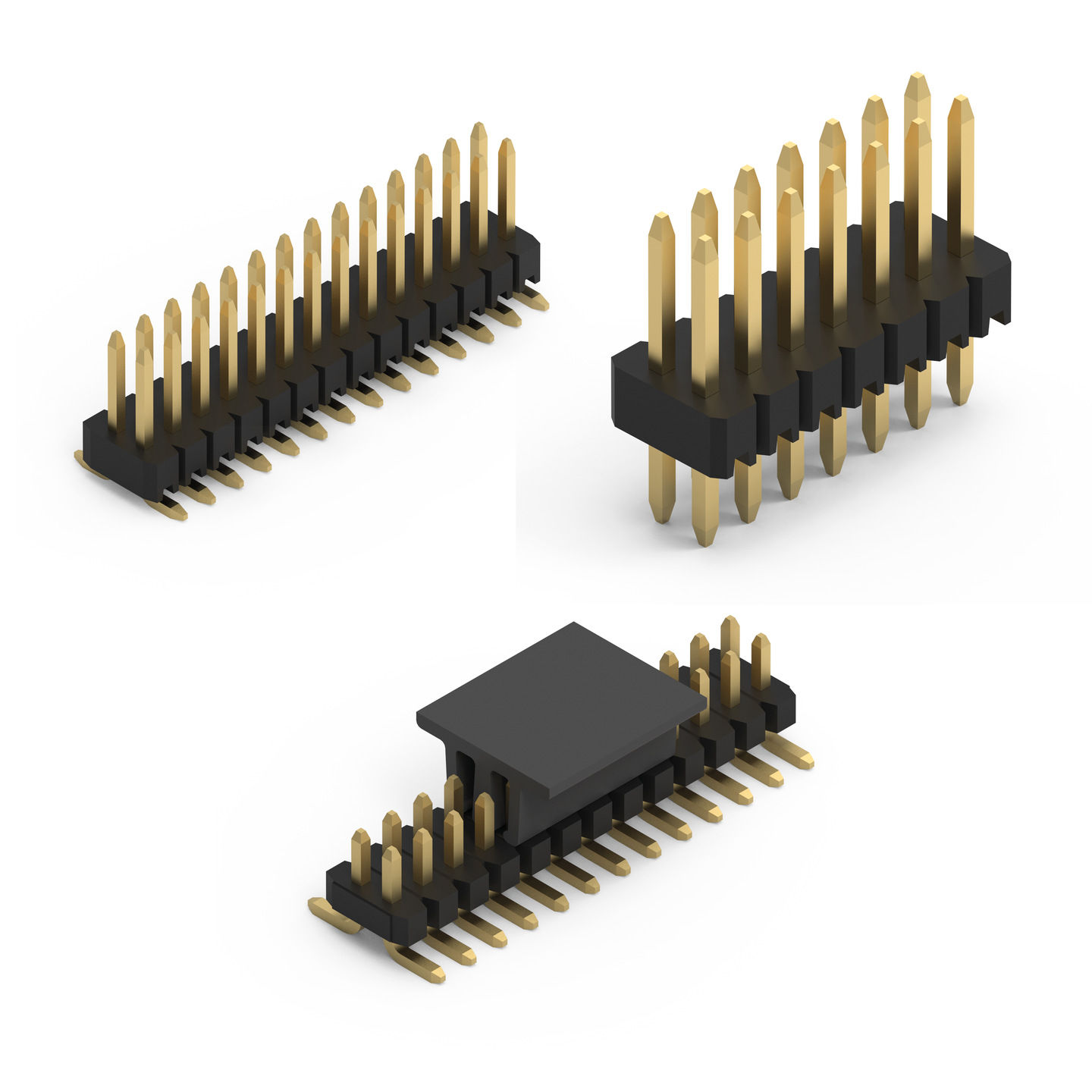

WR-PHD Pin Header
| Size | Dimensions | Mount | |
|---|---|---|---|
Dual - THT Straight | THT | ||
Dual - SMT Straight, H=1.80 mm | SMT | ||
Dual - SMT Straight, H=3.80 mm | SMT |
Characteristics
- Pitch: 1.27 mm
- Reference Designs
- RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems
Products
All
Dual - THT Straight
Dual - SMT Straight, H=1.80 mm
Dual - SMT Straight, H=3.80 mm
Filter by
show in
article in 3 product lines
Reset allOrder Code | Datasheet | Downloads | Status | Pins | Type | Mount | L(mm) | IR(A) | Working Voltage(V (AC)) | Operating Temperature | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 62100421021 | 4, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins4 | TypeStraight | MountSMT | Length2.54 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62130421021 | 4, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins4 | TypeStraight | MountSMT | Length2.54 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | |
 | 62200421121 | 4, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins4 | TypeStraight | MountTHT | Length2.54 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
| 62130621021 | 6, Straight, SMT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins6 | TypeStraight | MountSMT | Length3.81 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | ||
 | 62100821021 | 8, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins8 | TypeStraight | MountSMT | Length5.08 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62130821021 | 8, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins8 | TypeStraight | MountSMT | Length5.08 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | |
 | 62200821121 | 8, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins8 | TypeStraight | MountTHT | Length5.08 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
| 62131021021 | 10, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins10 | TypeStraight | MountSMT | Length6.35 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | |
 | 62201021121 | 10, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins10 | TypeStraight | MountTHT | Length6.35 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
 | 623310235521 | 10, Straight, SMT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins10 | TypeStraight | MountSMT | Length6.35 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | |||
 | 62101021021 | 10, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins10 | TypeStraight | MountSMT | Length6.35 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62101421021 | 14, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins14 | TypeStraight | MountSMT | Length8.89 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62131421021 | 14, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins14 | TypeStraight | MountSMT | Length8.89 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | |
 | 62201421121 | 14, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins14 | TypeStraight | MountTHT | Length8.89 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
 | 62101621021 | 16, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins16 | TypeStraight | MountSMT | Length10.16 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62131621021 | 16, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins16 | TypeStraight | MountSMT | Length10.16 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62201621121 | 16, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins16 | TypeStraight | MountTHT | Length10.16 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
| 62102021021 | 20, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins20 | TypeStraight | MountSMT | Length12.7 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62132021021 | 20, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins20 | TypeStraight | MountSMT | Length12.7 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | |
 | 62202021121 | 20, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins20 | TypeStraight | MountTHT | Length12.7 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
 | 623326235521 | 26, Straight, SMT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins26 | TypeStraight | MountSMT | Length16.51 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
 | 62102821021 | 28, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins28 | TypeStraight | MountSMT | Length17.78 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62132821021 | 28, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins28 | TypeStraight | MountSMT | Length17.78 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62202821121 | 28, Straight, THT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins28 | TypeStraight | MountTHT | Length17.78 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit | ||
 | 62104021021 | 40, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins40 | TypeStraight | MountSMT | Length25.4 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62134021021 | 40, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins40 | TypeStraight | MountSMT | Length25.4 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62104421021 | 44, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins44 | TypeStraight | MountSMT | Length27.94 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62134421021 | 44, Straight, – | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins44 | TypeStraight | – | Length27.94 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 62105021021 | 50, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins50 | TypeStraight | MountSMT | Length31.75 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
| 62135021021 | 50, Straight, SMT | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Pins50 | TypeStraight | MountSMT | Length31.75 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit – | |
 | 623350235521 | 50, Straight, SMT | Status Activei| Production is active. Expected lifetime: >10 years. | Pins50 | TypeStraight | MountSMT | Length31.75 mm | Rated Current1 A | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | Design Kit |
