Overview
| Topology | Flyback Converter |
| Input voltage | 90-264 V |
| Output 1 | 5.25 V |
| IC revision | 001 |
Description
This IC outputs the AC voltage zero cross timing detection with high accuracy. By eliminating the need for photocoupler and external components required in conventional applications, it is possible to reduce the number of parts drastically and realize compact and highly reliable power supply applications. In addition, this IC can reduce standby power largely in comparison with an existing photocoupler control.
Features
- VCC Input Power Supply Voltage Range: -0.3 V to +29.0 V
- VH_AC1 and VH_AC2 Pins Operation Voltage: 600 V (Max)
- Circuit Current at Standby: 50 μA (Typ)
- Circuit Current at Operation: 160 μA (Typ)
- Operating Temperature Range: -40 °C to +105 °C
More information
All technical functions in detail
Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | VR(V (AC)) | Safety Class | dV/dt(V/µs) | DF @ 1 kHz(%) | RISO | Pitch(mm) | L(mm) | W(mm) | H(mm) | Packaging | L(µH) | IR(A) | ISAT(A) | RDC max.(mΩ) | fres(MHz) | Mount | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | DF(%) | Ø D(mm) | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

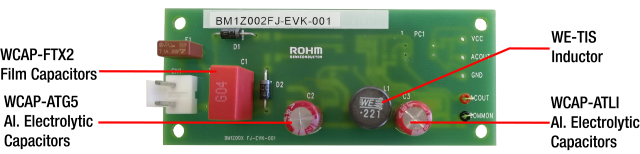

 | WCAP-FTX2 Film Capacitors, Across the mains, 100 nF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-FTX2 Film Capacitors | Capacitance100 nF | Rated Voltage275 V (AC) | Safety ClassX2 | Rate of Voltage Rise300 V/µs | Dissipation Factor0.1 % | Insulation Resistance30 GΩ | Pitch10 mm | Length13 mm | Width7 mm | Height13 mm | PackagingCarton | – | – | – | – | – | MountBoxed THT | – | – | – | – | – | ||||
 | WE-TIS Radial Leaded Wire Wound Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TIS Radial Leaded Wire Wound Inductor | – | – | – | – | – | – | – | Length11 mm | Width11 mm | Height11.5 mm | – | Inductance220 µH | Rated Current1 A | Saturation Current1.4 A | DC Resistance510 mΩ | Self Resonant Frequency2.6 MHz | MountTHT | – | – | – | – | – | ||||
 | WCAP-ATG5 Aluminum Electrolytic Capacitors, –, 4.7 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG5 Aluminum Electrolytic Capacitors | Capacitance4.7 µF | Rated Voltage400 V (AC) | – | – | – | – | Pitch3.5 mm | Length11.5 mm | – | – | PackagingAmmopack | – | – | – | – | – | – | Endurance 2000 | Ripple Current48 mA | Leakage Current56.4 µA | Dissipation Factor15 % | Diameter8 mm | ||||
 | WCAP-ATLI Aluminum Electrolytic Capacitors, –, 220 µF | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATLI Aluminum Electrolytic Capacitors | Capacitance220 µF | Rated Voltage25 V (AC) | – | – | – | – | Pitch3.5 mm | Length11.5 mm | – | – | PackagingAmmopack | – | – | – | – | – | – | Endurance 3000 | Ripple Current750 mA | Leakage Current55 µA | Dissipation Factor10 % | Diameter8 mm |
