reference designISL85415 | Demoboard JP167-PLCDCPOCKITZ

Renesas ISL85415 | Demoboard JP167-PLCDCPOCKITZ

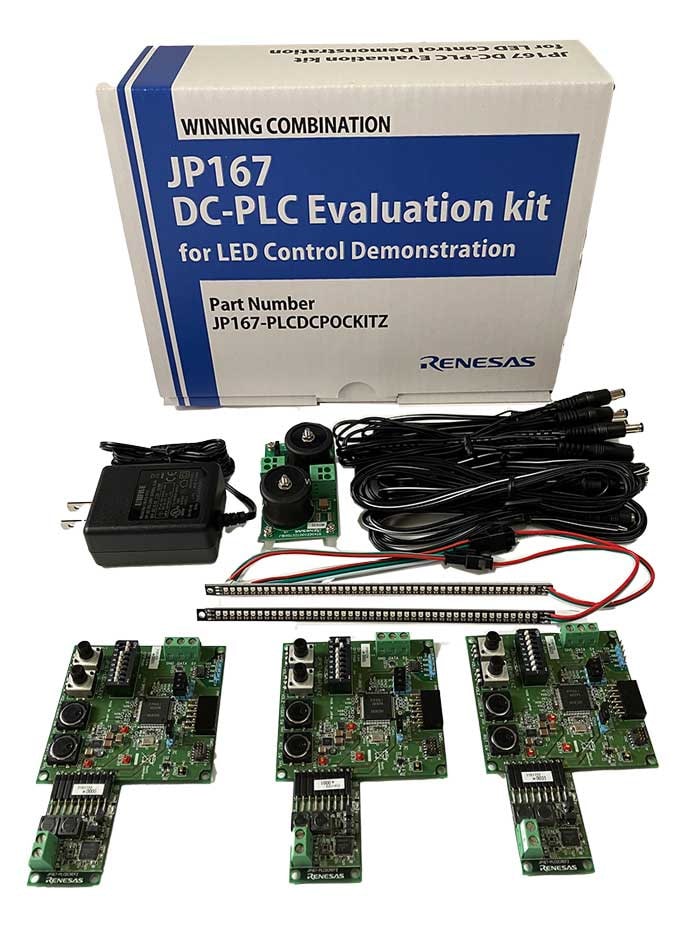

DC-Power Line Communication (PLC) Evaluation Kit with LED Lighting

Overview

TopologyBuck Converter
Input voltage3-36 V
Switching frequency300-2000 kHz
Output 13.3 V / 0.5 A
IC revision1.00

Description

The JP167-PLCDCPOCKITZ kit enables quick prototyping and demonstration of an LED lighting system controlled over the DC power lines. PLC makes it possible to transmit control signals over power lines, thereby reducing the amount of wiring needed in the system and correspondingly lowering the associated costs and installation time. The Renesas PLC solution provides flexible protocol and frequency band control for varying countries thanks to its CPU + DSP dual core and allows long-distance communication of over 1km without a relay. Communication speeds up to 1Mbps are supported, and the AES128 cryptographic hardware engine provides high-level security if needed.

Features

  • Superior robustness and long-distance communication over 1km, with speeds up to 1Mbps;
  • PLC communication reduces costs by saving wiring or other physical deployment;
  • Small module reference design (30mm x 40mm) for easy integration into developing systems;
  • Users can add on sensors or control via PMOD for additional PLC applications

Typical applications

  • Hi-Speed and Long Distance Power Line Communication Unit for AC Line/DC Line

More information

Products

Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Product series
C
Tol. C
VR(V (DC))
Size
Operating Temperature
Q
DF(%)
RISO
Ceramic Type
L(mm)
W(mm)
H(mm)
Fl(mm)
Packaging
L(µH)
IR(A)
ISAT(A)
RDC(mΩ)
fres(MHz)
RDC max.(mΩ)
Version
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
885012006057
SPECWCAP-CSGP MLCCs 50 V(DC), 100 pF, ±5%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 50 V(DC)
Capacitance100 pF
Capacitance±5%
Rated Voltage50 V (DC)
Size0603
Operating Temperature -55 °C up to +125 °C
Q-Factor1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012006061
SPECWCAP-CSGP MLCCs 50 V(DC), 470 pF, ±5%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 50 V(DC)
Capacitance470 pF
Capacitance±5%
Rated Voltage50 V (DC)
Size0603
Operating Temperature -55 °C up to +125 °C
Q-Factor1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012206095
SPECWCAP-CSGP MLCCs 50 V(DC), 100 nF, ±10%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 50 V(DC)
Capacitance100 nF
Capacitance±10%
Rated Voltage50 V (DC)
Size0603
Operating Temperature -55 °C up to +125 °C
–
Dissipation Factor3 %
Insulation Resistance5 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012206076
SPECWCAP-CSGP MLCCs 25 V(DC), 1 µF, ±10%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 25 V(DC)
Capacitance1 µF
Capacitance±10%
Rated Voltage25 V (DC)
Size0603
Operating Temperature -55 °C up to +125 °C
–
Dissipation Factor10 %
Insulation Resistance0.5 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012109012
SPECWCAP-CSGP MLCCs 25 V(DC), 4.7 µF, ±20%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 25 V(DC)
Capacitance4.7 µF
Capacitance±20%
Rated Voltage25 V (DC)
Size1210
Operating Temperature -55 °C up to +85 °C
–
Dissipation Factor3.5 %
Insulation Resistance0.1 GΩ
Ceramic TypeX5R Class II
Length3.2 mm
Width2.5 mm
Height2 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012209073
SPECWCAP-CSGP MLCCs 50 V(DC), 10 µF, ±10%
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 50 V(DC)
Capacitance10 µF
Capacitance±10%
Rated Voltage50 V (DC)
Size1210
Operating Temperature -55 °C up to +125 °C
–
Dissipation Factor10 %
Insulation Resistance0.01 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height2.5 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
885012109015
SPECWCAP-CSGP MLCCs 25 V(DC), 22 µF, ±10%
Simu­lation
Availability
–
Downloads8 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 8 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWCAP-CSGP MLCCs 25 V(DC)
Capacitance22 µF
Capacitance±10%
Rated Voltage25 V (DC)
Size1210
Operating Temperature -55 °C up to +85 °C
–
Dissipation Factor10 %
Insulation Resistance0.005 GΩ
Ceramic TypeX5R Class II
Length3.2 mm
Width2.5 mm
Height2.5 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
–
–
–
–
–
–
–
–Check availability
74404032100
SPECWE-LQS SMT Power Inductor, –, –
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-LQS SMT Power Inductor
–
–
–
Size3015
Operating Temperature -40 °C up to +125 °C
–
–
–
–
Length3 mm
Width3 mm
Height1.5 mm
–
–
Inductance10 µH
Rated Current0.84 A
Saturation Current0.87 A
DC Resistance230 mΩ
Self Resonant Frequency37 MHz
–
–
–Check availability
74404032220
SPECWE-LQS SMT Power Inductor, –, –
Simu­lation
Availability
–
Downloads9 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 9 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-LQS SMT Power Inductor
–
–
–
Size3015
Operating Temperature -40 °C up to +125 °C
–
–
–
–
Length3 mm
Width3 mm
Height1.5 mm
–
–
Inductance22 µH
Rated Current0.6 A
Saturation Current0.6 A
DC Resistance450 mΩ
Self Resonant Frequency25 MHz
–
–
–Check availability
7447773102
SPECWE-PD SMT Power Inductor, –, –
Simu­lation
Availability
–
Downloads11 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 11 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-PD SMT Power Inductor
–
–
–
Size7345
Operating Temperature -40 °C up to +150 °C
–
–
–
–
Length7.3 mm
Width7.3 mm
Height4.5 mm
–
–
Inductance1000 µH
Rated Current0.3 A
Saturation Current0.38 A
–
Self Resonant Frequency1.9 MHz
DC Resistance3300 mΩ
VersionPerformance
–Check availability
