Overview
| Topology | Boost Converter |
Description

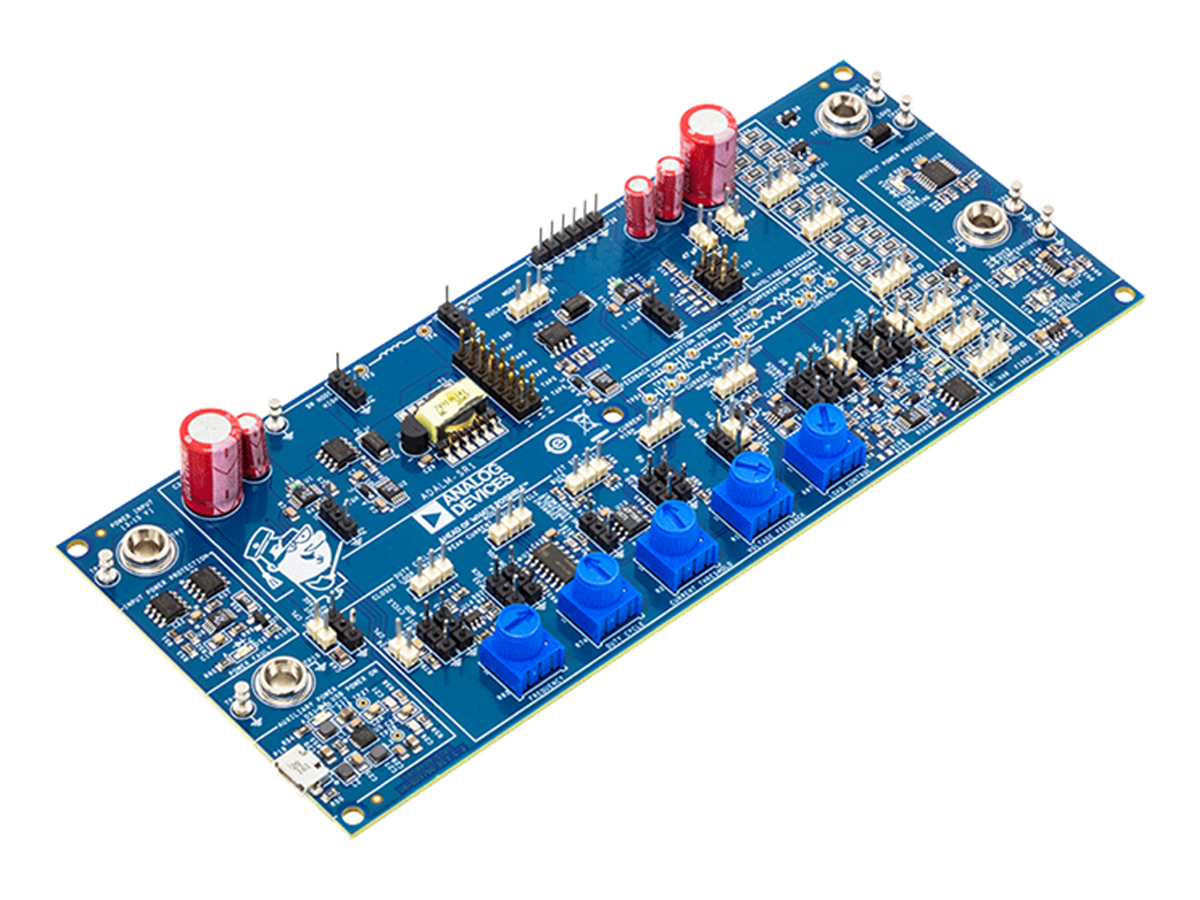

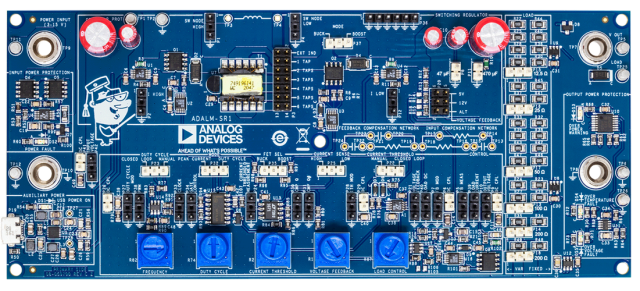

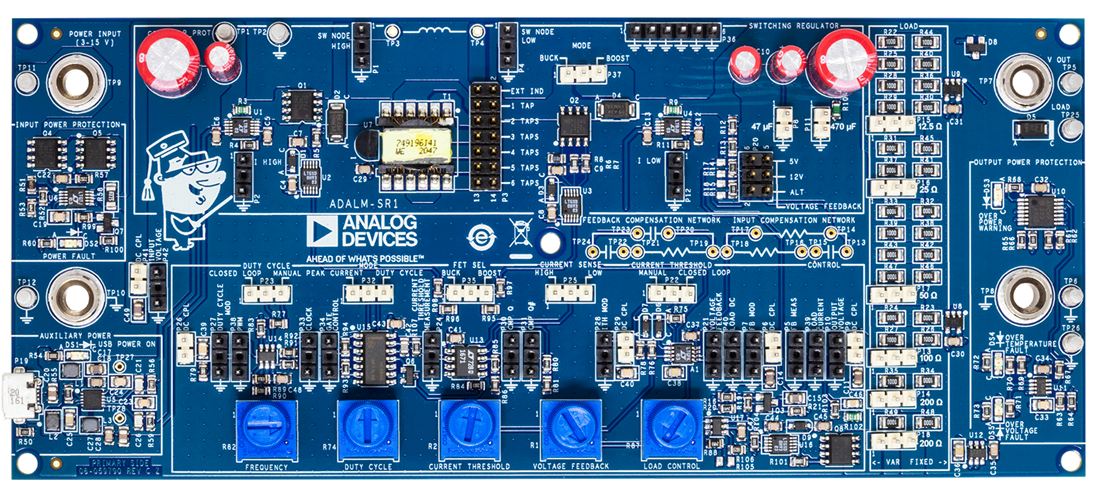

The ADALM-SR1 (Analog Devices Active Learning Module, Switching Regulator #1) board is a companion module for several switching regulator exercises covering buck and boost regulators:Boost and Buck converter elements and open-loop operation / Buck Converters: closed loop operation/Boost Converters: closed loop operation.
Features
- Companion module for Active Learning labs on buck and boost power converters
- Illustrates important concepts related to buck and boost converters:-Continuous vs. Discontinuous Conduction Modes-Open loop operation-Voltage mode control-Current mode control
- Independently adjustable parameters: frequency, duty cycle, voltage/current mode
- Onboard current sense amplifiers and adjustable load minimize equipment requirements.
More information
All technical functions in detail
Products

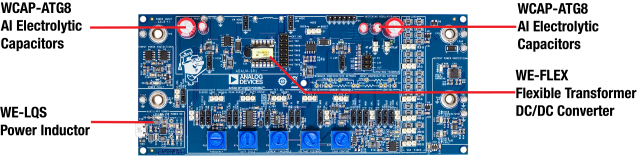

Order Code | Datasheet | Simulation | Downloads | Status | Product series | L(µH) | IR(A) | ISAT(A) | RDC(mΩ) | fres(MHz) | C | VR(V (DC)) | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | DF(%) | Pitch(mm) | Ø D(mm) | L(mm) | Packaging | LBASE(µH) | IR BASE(A) | ISAT BASE(A) | n | VT(V (AC)) | ∫Udt Base(µVs) | RDC BASE(mΩ) | Size | Type | Mount | SamplesAvailability & Sample | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | SPECWE-LQS SMT Power Inductor, 22 µH, 0.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-LQS SMT Power Inductor | Inductance22 µH | Rated Current0.45 A | Saturation Current0.55 A | DC Resistance910 mΩ | Self Resonant Frequency22 MHz | – | – | – | – | – | – | – | – | Length2.5 mm | – | – | – | – | – | – | – | – | Size2512 | – | MountSMT | –Check availability | |||
| SPECWE-LQS SMT Power Inductor, 47 µH, 0.33 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-LQS SMT Power Inductor | Inductance47 µH | Rated Current0.33 A | Saturation Current0.35 A | DC Resistance1650 mΩ | Self Resonant Frequency12 MHz | – | – | – | – | – | – | – | – | Length2.5 mm | – | – | – | – | – | – | – | – | Size2512 | – | MountSMT | –Check availability | |||
 | SPECWE-FLEX Flexible Transformer for DC/DC Converter, –, – | Simulation– | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-FLEX Flexible Transformer for DC/DC Converter | – | – | – | – | – | – | – | – | – | – | – | – | – | Length12.9 mm | – | Inductance Base8.5 µH | Rated Current Base0.55 A | Saturation Current Base0.96 A | Turns Ratio1:1:1:1:1:1 | Insulation Test Voltage500 V (AC) | Voltage-µSecond Base32.9 µVs | DC Resistance Base344 mΩ | SizeER11/5 | Typegapped | – | –Check availability | ||
 | SPECWCAP-ATG8 Aluminum Electrolytic Capacitors, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG8 Aluminum Electrolytic Capacitors | – | – | – | – | – | Capacitance4.7 µF | Rated Voltage35 V (DC) | Endurance 2000 | Ripple Current44 mA | Leakage Current3 µA | Dissipation Factor12 % | Pitch2 mm | Diameter5 mm | Length11 mm | PackagingAmmopack | – | – | – | – | – | – | – | – | – | – | –Check availability | |||
| SPECWCAP-ATG8 Aluminum Electrolytic Capacitors, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG8 Aluminum Electrolytic Capacitors | – | – | – | – | – | Capacitance47 µF | Rated Voltage35 V (DC) | Endurance 2000 | Ripple Current143 mA | Leakage Current16.45 µA | Dissipation Factor12 % | Pitch2 mm | Diameter5 mm | Length11 mm | PackagingAmmopack | – | – | – | – | – | – | – | – | – | – | –Check availability | |||
| SPECWCAP-ATG8 Aluminum Electrolytic Capacitors, –, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATG8 Aluminum Electrolytic Capacitors | – | – | – | – | – | Capacitance470 µF | Rated Voltage35 V (DC) | Endurance 2000 | Ripple Current693 mA | Leakage Current164.5 µA | Dissipation Factor12 % | Pitch5 mm | Diameter10 mm | Length16 mm | PackagingAmmopack | – | – | – | – | – | – | – | – | – | – | –Check availability |
Availability Forecast
WE item number Packaging unitsLead time
––– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
There is no forecast for this quantity request.
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.Contact us
ADALM-SR1 Unboxing and Getting Started Video
ADALM-SR1 Unboxing and Getting Started Video
