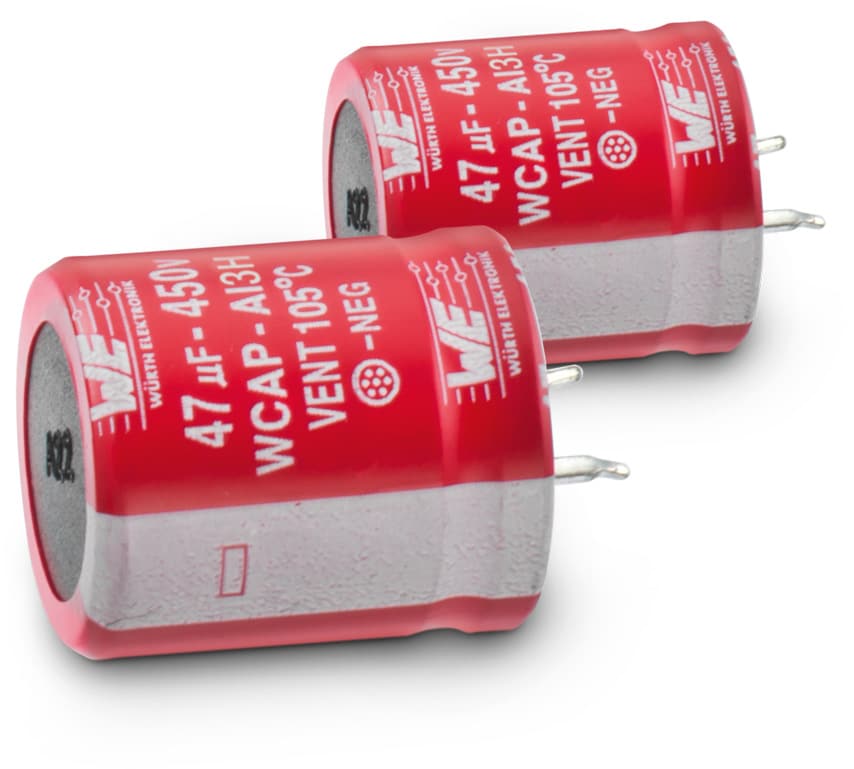

WCAP-AI3H Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-AI3H (rev25a).zip
|
2.9 KB

Characteristics

Long life product series
Mounting style: Snap-In
Recommended soldering: Wave soldering

Applications

Long life & high operating temperature applications
Filtering
Smoothing
Energy storage
e.g. Personal and industrial computer power supply, server power supply, drive circuit, DC/AC inverter

Application Notes

ANP071 Aluminum Electrolytic vs. Aluminum Polymer Capacitor and how its benefits are used properly
PDF
ANP109 Impedance Spectra of Different Capacitor Technologies
PDF
ANP117 Impact of output capacitor on feedback loop stability of a power supply
PDF
ANP125 Acoustic Effect of Harmonic Distortions caused by Aluminum Electrolytic Capacitors
PDF
SN008 Expected Lifetime of Aluminum Electrolytic and Aluminum Polymer Capacitor
PDF
SN019 Afraid of aging? The effects of time on electrolytic capacitors
PDF

Products

All

⌀ 22 mm

⌀ 25 mm

⌀ 30 mm

⌀ 35 mm

Order Code	Datasheet	Downloads	Status	C	V_R (V (DC))	Endurance (h)	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Packaging	Design Kit
861141483001	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68 µF	450	3000	520	524.79	20	10	22	26	Tray	–
861141483002	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82 µF	450	3000	640	576.28	20	10	22	31	Tray	–
861141484008	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82 µF	450	3000	640	576.28	20	10	25	26	Tray	861142
861141483003	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100 µF	450	3000	690	636.4	20	10	22	36	Tray	–
861141484009	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100 µF	450	3000	690	636.4	20	10	25	31	Tray	861142
861141483004	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120 µF	450	3000	800	697.14	20	10	22	41	Tray	–
861141484010	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120 µF	450	3000	800	697.14	20	10	25	31	Tray	–
861141485014	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	120 µF	450	3000	800	697.14	20	10	30	26	Tray	861142
861141483005	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150 µF	450	3000	880	779.42	20	10	22	46	Tray	–
861141484011	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150 µF	450	3000	880	779.42	20	10	25	36	Tray	–
861141485015	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150 µF	450	3000	880	779.42	20	10	30	31	Tray	861142
861141483006	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180 µF	450	3000	1000	853.81	20	10	22	51	Tray	–
861141484012	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180 µF	450	3000	1000	853.81	20	10	25	41	Tray	–
861141485016	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180 µF	450	3000	1000	853.81	20	10	30	31	Tray	861142
861141483007	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 µF	450	3000	1000	943.93	20	10	22	51	Tray	–
861141484013	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 µF	450	3000	1120	943.93	20	10	25	46	Tray	–
861141485017	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 µF	450	3000	1120	943.93	20	10	30	36	Tray	861142
861141486020	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 µF	450	3000	1120	943.93	20	10	35	32	Tray	861142
861141485018	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	270 µF	450	3000	1280	1045.71	20	10	30	41	Tray	–
861141486021	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	270 µF	450	3000	1280	1045.71	20	10	35	37	Tray	861142
861141485019	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330 µF	450	3000	1450	1156.07	20	10	30	51	Tray	–
861141486022	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330 µF	450	3000	1450	1156.07	20	10	35	42	Tray	861142
861141486023	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	390 µF	450	3000	1500	1256.78	20	10	35	42	Tray	861142
861141486024	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470 µF	450	3000	1850	1379.67	20	10	35	52	Tray	861142
861141486025	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560 µF	450	3000	2150	1505.99	20	10	35	57	Tray	861142
861141486026	SPEC	2 files EDA models: Components ZIP ALT Altium_WCAP-AI3H (rev25a).IntLib \| 9.1 MB CDS Cadence_WCAP-AI3H (rev25a).zip \| 55 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680 µF	450	3000	2200	1659.52	20	10	35	57	Tray	861142

Order Code	Datasheet	Simulation
861141483001	SPEC
861141483002	SPEC
861141484008	SPEC
861141483003	SPEC
861141484009	SPEC
861141483004	SPEC
861141484010	SPEC
861141485014	SPEC
861141483005	SPEC
861141484011	SPEC
861141485015	SPEC
861141483006	SPEC
861141484012	SPEC
861141485016	SPEC
861141483007	SPEC
861141484013	SPEC
861141485017	SPEC
861141486020	SPEC
861141485018	SPEC
861141486021	SPEC
861141485019	SPEC
861141486022	SPEC
861141486023	SPEC
861141486024	SPEC
861141486025	SPEC
861141486026	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R (V (DC))	Endurance (h)	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-AI3H Aluminium Electrolytic Capacitors

Videos

#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

Webinar: Introduction to the capacitor technologies and how to use them

Long Life +105 °C
