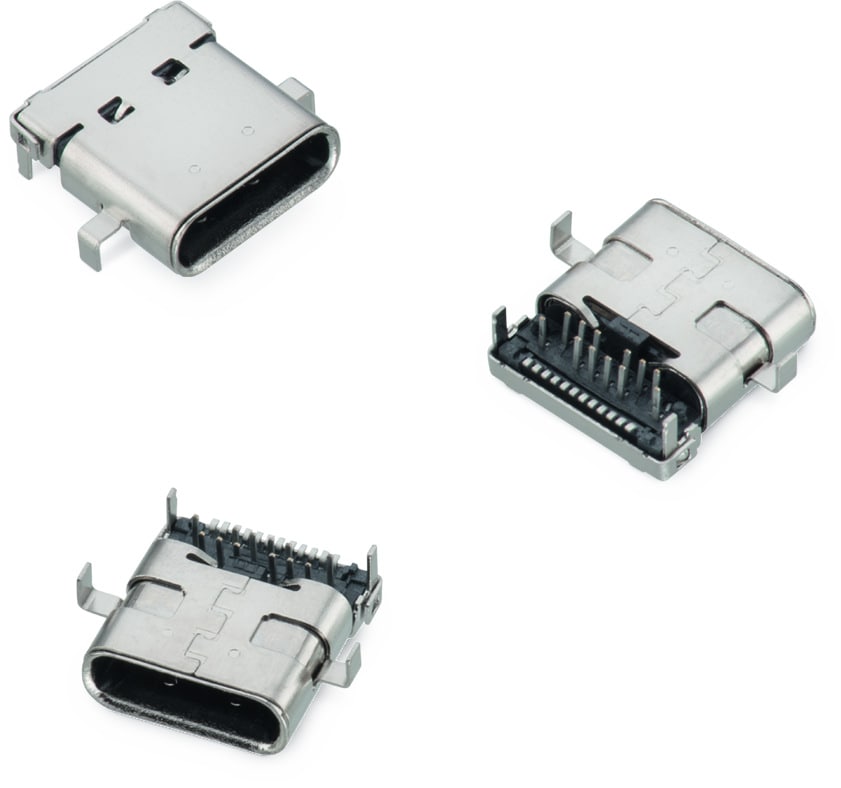

WR-COM USB 3.1 Type C Receptacle Horizontal Mid-Mount THR / SMT 1.6 mm

Kind Properties
Durability 10 000 Mating cycles
Gender Receptacle
Type Horizontal
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Contact Type Stamped
Shielding Material Stainless Steel
Shielding Plating Nickel
General Information
Operating Temperature -40 up to +85 °C
Electrical Properties
Working Voltage 20 V (DC)
Withstanding Voltage 100 V (AC)
Contact Resistance 40 mΩ

Products

Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount Working Voltage
(V (DC))
Packaging Samples
632723130112
IGE STE 3D ALT EAG CAD USB 3.1 Type C Horizontal Receptacle 24 THR 20 Tape and Reel
Order Code SPEC
632723130112
