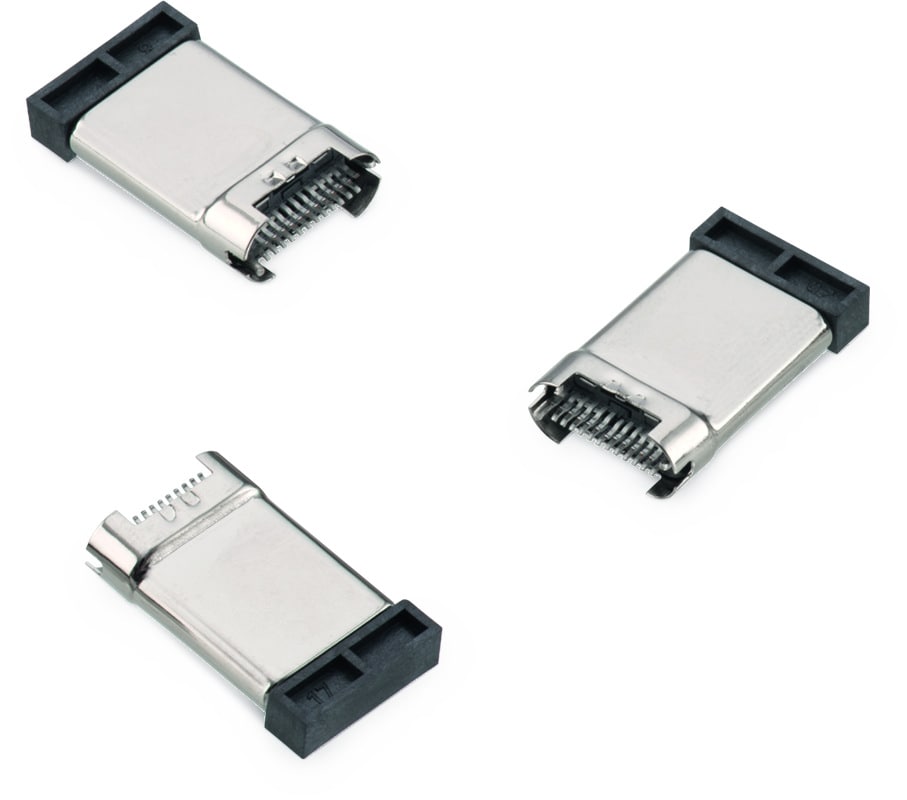

WR-COM USB 3.1 Type C Plug Horizontal 0.8 mm

WR-COM USB 3.1 Type C Plug Horizontal 0.8 mm. High durability of 10,000 mating cycles. Dielectric strength of 100 V (AC).
General Information
Operating Temperature-40 °C up to +85 °C
ComplianceLead free / RoHS
Durability10 000 Mating cycles
GenderPlug
TypeHorizontal
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold over Nickel
Contact TypeStamped
Shielding MaterialStainless Steel
Shielding PlatingNickel (Ni)
Electrical Properties
IR5 A
Working Voltage20 V (DC)
Withstanding Voltage100 V (AC)
Contact Resistance40 mΩ

Application Notes

Products

Order Code Data­sheet Downloads StatusApplicationInterface TypeTypeGenderPins
(pcs)		MountIR
(A)		Working Voltage
(V (DC))		Packaging Samples
632712000112SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. USB 3.1 Type C Horizontal Plug 24 SMT 5 20 Tray
Order Code Data­sheet
632712000112SPEC
Samples
Order Code Data­sheet Downloads StatusApplicationInterface TypeTypeGenderPins
(pcs)		MountIR
(A)		Working Voltage
(V (DC))		Packaging Samples

USB-C
