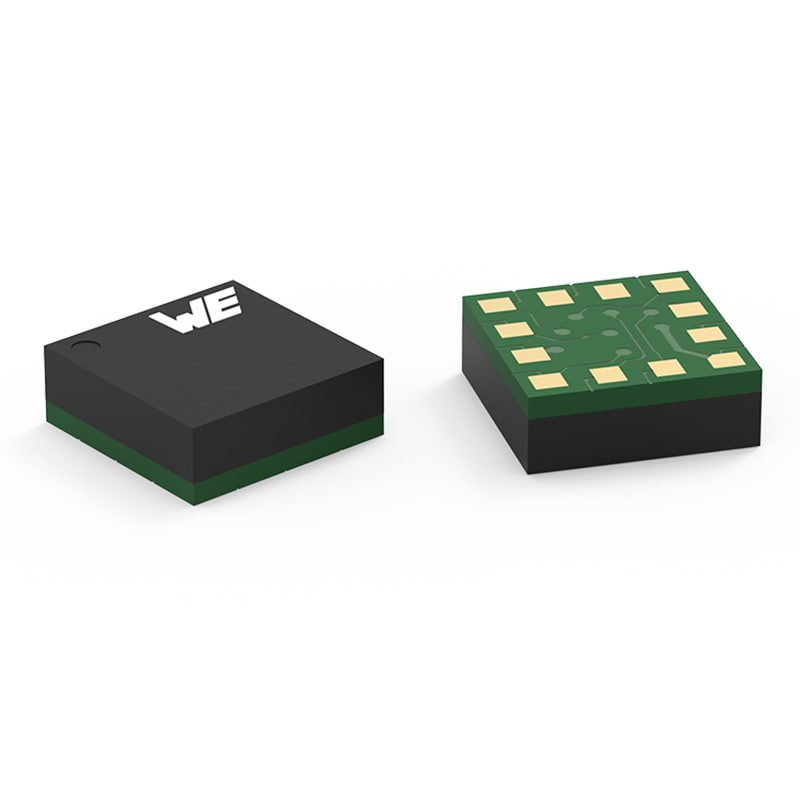

Characteristics
- MEMS based capacitive sensing principle
- Fully calibrated 14 bit output
- Full scale ±2 g, ±4 g, ±8 g, ±16 g
- Output data rate up to 1600 Hz
- 32 level FIFO buffer
- Embedded temperature sensor
- I²C and SPI digital communication interface
- Application specific functionality: Free-fall, wake-up, tap, activity, motion and orientation detection
- Temperature range: -40 °C up to +85 °C
- Sensor Software Development Kit
- Sensor SDK User Manual
- Sensor Arduino Libraries via GitHub
Applications
- Industrial IoT and connected devices
- Impact recognition and logging
- Vibration monitoring
- Predictive maintenance
- Activity tracking
Products
| Order Code | Datasheet | Manual | Downloads | Status | Description | RESa (bits) | Min. Operating Temperature (°C) | Max. Operating Temperature (°C) | Packaging | Offer |
|---|---|---|---|---|---|---|---|---|---|---|
| 2533203301691 | – | – | Active i| Production is active. Expected lifetime: >10 years. | EV-Board for 3 axis acceleration sensor | – | – | – | – | ||
| 2501000201291 | – | – | Active i| Production is active. Expected lifetime: >10 years. | Sensor FeatherWing | – | – | – | – | ||
| 2501000101291 | – | – | Active i| Production is active. Expected lifetime: >10 years. | Sensor Shield for Arduino | – | – | – | – | ||
| 2533020201601 | SPEC | 5 files | Active i| Production is active. Expected lifetime: >10 years. | WSEN-ITDS | 14 | -40 | 85 | 7'' Reel | ||
| 25330202016011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 5 files | Active i| Production is active. Expected lifetime: >10 years. | WSEN-ITDS | 14 | -40 | 85 | 13'' Reel |
| Order Code | Datasheet |
|---|---|
| 2533203301691 | – |
| 2501000201291 | – |
| 2501000101291 | – |
| 2533020201601 | SPEC |
| 25330202016011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| Offer |
|---|
| Order Code | Datasheet | Manual | Downloads | Status | Description | RESa (bits) | Min. Operating Temperature (°C) | Max. Operating Temperature (°C) | Packaging | Offer |
|---|
More Information
Software Downloads
The Würth Elektronik range of sensors provide advanced sensing capabilities to any embedded application. The built-in digital interface enables easy integration with any of the most commonly used host MCUs through industry standard serial communication interfaces like I²C. This also allows complete configuration and control of the sensor via software running on the host MCU.
The Sensors Software Development Kit (SDK) is a set of software tools that enable quick software integration of Würth Elektronik eiSos sensors to application software on the host MCU. It consists of a set of platform-independent drivers for the sensors and sample applications developed on the Raspberry Pi platform written in C.
