Characteristics

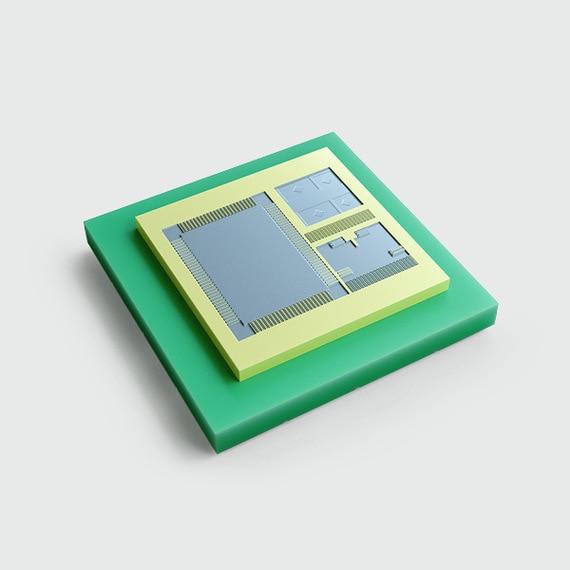

- MEMS based capacitive sensing principle
- Fully calibrated 14 bit output
- Full scale ±2 g, ±4 g, ±8 g, ±16 g
- Output data rate up to 1600 Hz
- 32 level FIFO buffer
- Embedded temperature sensor
- I²C and SPI digital communication interface

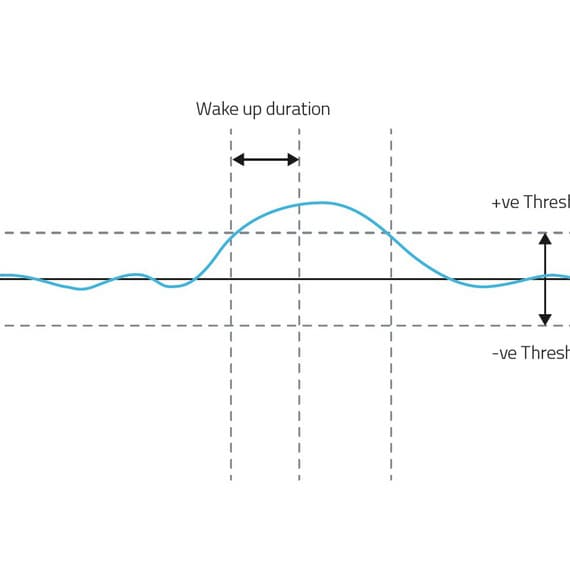

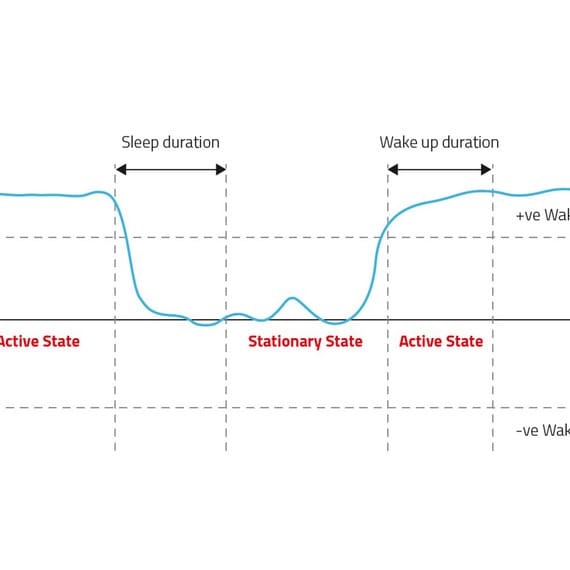

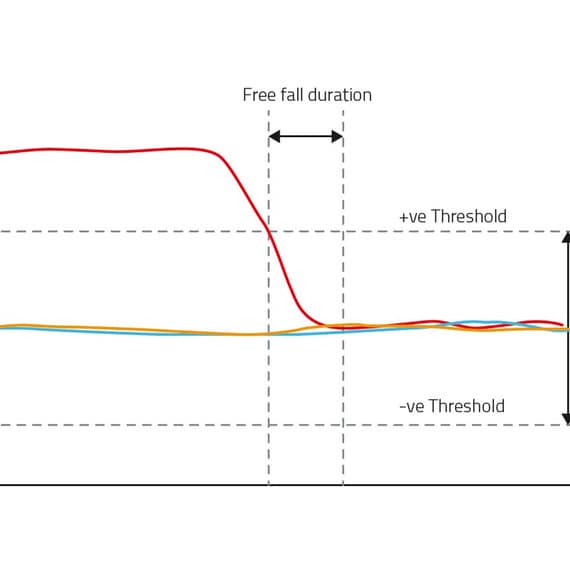

- Application specific functionality: Free-fall, wake-up, tap, activity, motion and orientation detection
- Temperature range: -40 °C up to +85 °C
- Sensor Software Development Kit
- Sensor SDK User Manual
- Sensor Arduino Libraries via GitHub
Applications
- Industrial IoT and connected devices
- Impact recognition and logging

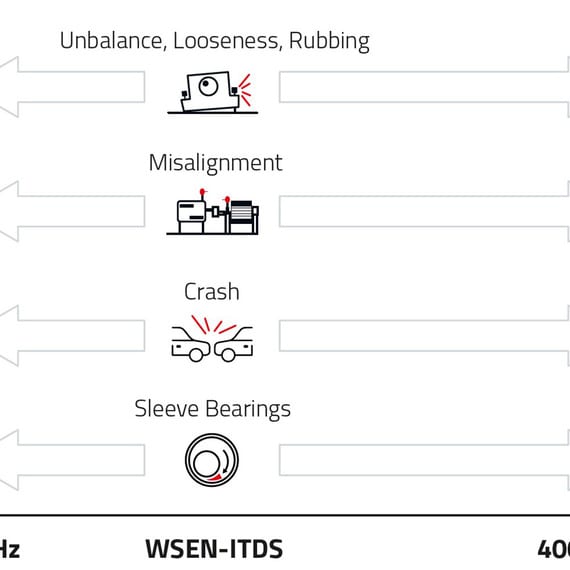

- Vibration monitoring
- Predictive maintenance
- Activity tracking
Products
| Order Code | Datasheet | Manual | Downloads | Description | RESa (bits) | Min. Operating Temperature (°C) | Max. Operating Temperature (°C) | Packaging | Offer |
|---|---|---|---|---|---|---|---|---|---|
| 2533203301691 | – | EV-Board for 3 axis acceleration sensor | – | – | – | – | |||
| 2501000201291 | – | Sensor FeatherWing | – | – | – | – | |||
| 2501000101291 | – | Sensor Shield for Arduino | – | – | – | – | |||
| 2533020201601 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 5 files | WSEN-ITDS | 14 | -40 | 85 | 7'' Reel | ||
| 25330202016011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 5 files | WSEN-ITDS | 14 | -40 | 85 | 13'' Reel |
| Order Code | Datasheet |
|---|---|
| 2533203301691 | – |
| 2501000201291 | – |
| 2501000101291 | – |
| 2533020201601 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| 25330202016011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| Offer |
|---|
| Order Code | Datasheet | Manual | Downloads | Description | RESa (bits) | Min. Operating Temperature (°C) | Max. Operating Temperature (°C) | Packaging | Offer |
|---|
More Information
Software Downloads
The Würth Elektronik range of sensors provide advanced sensing capabilities to any embedded application. The built-in digital interface enables easy integration with any of the most commonly used host MCUs through industry standard serial communication interfaces like I²C. This also allows complete configuration and control of the sensor via software running on the host MCU.
The Sensors Software Development Kit (SDK) is a set of software tools that enable quick software integration of Würth Elektronik eiSos sensors to application software on the host MCU. It consists of a set of platform-independent drivers for the sensors and sample applications developed on the Raspberry Pi platform written in C.
Download now
Advantages at a glance
Videos
#askLorandt explains: MEMS acceleration Sensor‘s embedded tap function detection
Videos
#askLorandt explains: Environmental sensors for pressure, temperature and acceleration
Videos
Würth Elektronik Webinar: Accelerate your IoT development project with our MEMS 3-axis sensor
Videos
WE meet @ Digital Days 2020: Sensors in Change From a Simple Sensor Cell to a Complex Sensor System
Videos
WE meet @ Digital Days 2021: Hardware Design-In Hints for Sensors
