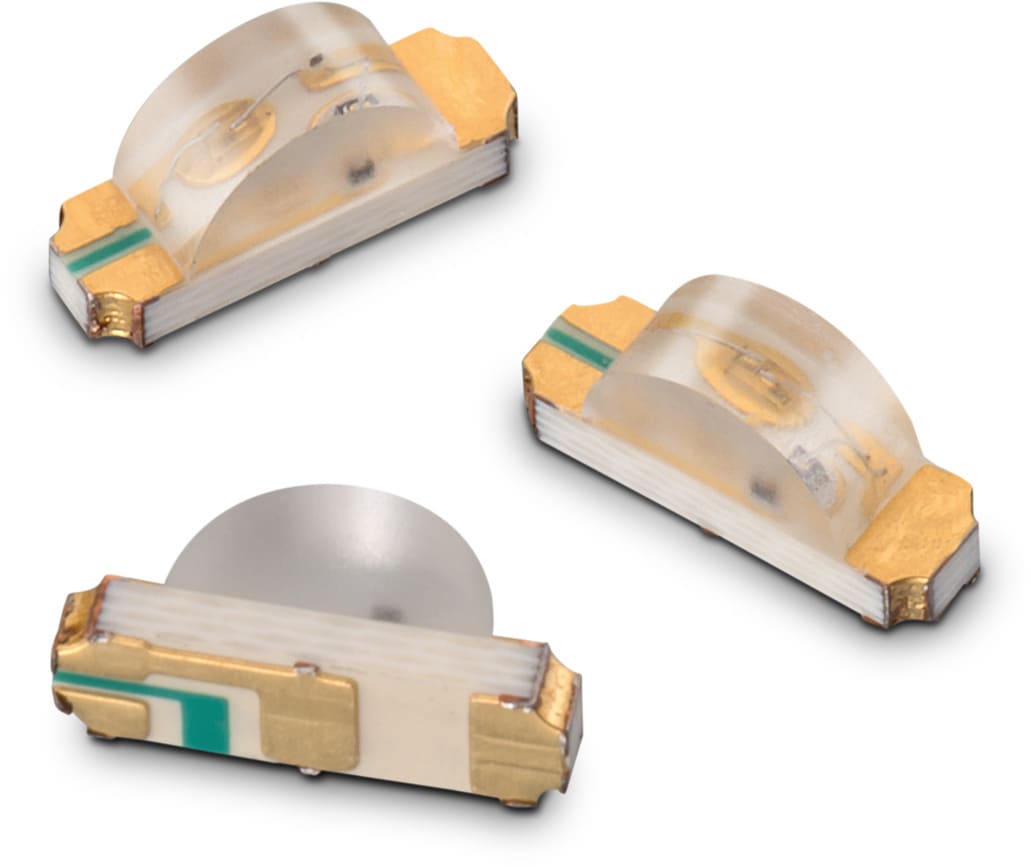

WL-SBSW SMT Bi-color Side View Waterclear

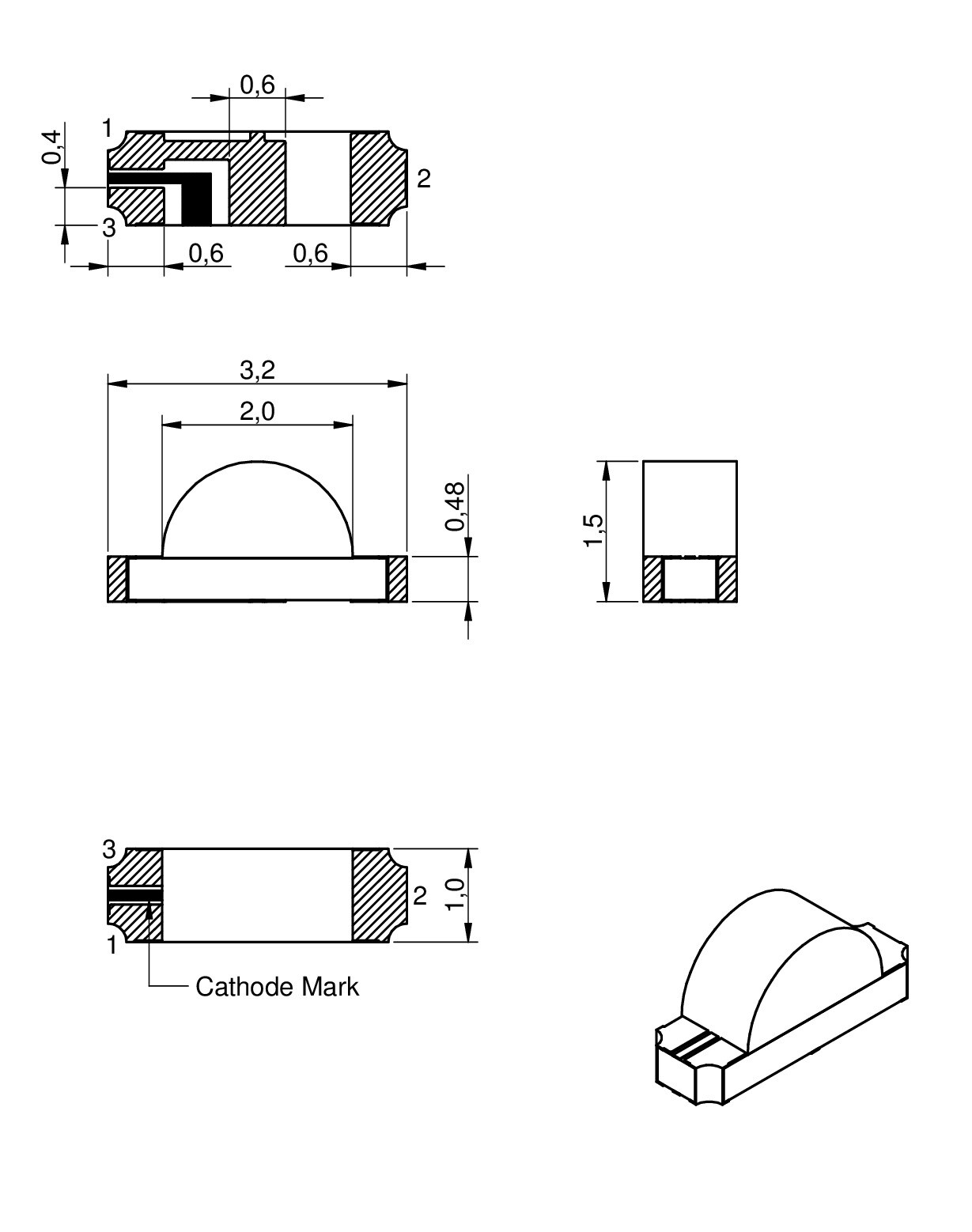

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1204		3.2	1.5	1	SMT

LTSpice files

LT
LTSpice_WL-SBSW (rev22a).zip
|
2.6 KB

Characteristics

Dual color chips LED
Low current requirement
Fast switching
Side view
Compact package outline, very small package for exceptional brightness

Applications

Indicator
LCD illumination as in PDAs, MP3-Players, LCD monitors, LCD televisions
LED Display: Full color video notice board
Industry white goods: Oven, Microwave, Refrigerator…
Interior applications: switches, telematics, climate control system, dashboard

Products

1204

Filter article data

show article in 1 product lines

article in 1 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Peak V typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	λ_{Dom V typ.}(nm)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	I_{V V typ.}(mcd)	V_{F G typ.}(V)	V_{F R typ.}(V)	V_{F V typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Demoboard	Samples
	155124RG73200	Red & Green, 520 nm, 632 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SBSW (rev22c).IntLib \| 66.5 KB CDS Cadence_WL-SBSW (rev19a).zip \| 254.3 KB EAG Eagle_WL-SBSW (rev22a).lbr \| 17.3 KB CAD files ZIP IGS Download_IGS_WL-SBSW-1204 (rev1).igs \| 1.1 MB STP Download_STP_WL-SBSW-1204 (rev1).stp \| 244.2 KB Electric models ZIP PSP PSpice_WL-SBSW (rev22a).zip \| 3.1 KB Certificates ZIP CER IR_LED_certificate_WL-SBSW-1204_155124RG73200 (rev1).pdf \| 1.1 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	–	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	–	Luminous Intensity (Green) [typ.]160 mcd	Luminous Intensity (Red) [typ.]60 mcd	–	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	–	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150156	Demoboard 9999003
	155124RV73200	Red & Bright Green, –, 632 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SBSW (rev22c).IntLib \| 66.5 KB CDS Cadence_WL-SBSW (rev19a).zip \| 254.3 KB EAG Eagle_WL-SBSW (rev22a).lbr \| 17.3 KB CAD files ZIP IGS Download_IGS_WL-SBSW-1204 (rev1).igs \| 1.1 MB STP Download_STP_WL-SBSW-1204 (rev1).stp \| 244.2 KB Electric models ZIP PSP PSpice_WL-SBSW (rev22a).zip \| 3.1 KB Certificates ZIP CER IR_LED_certificate_WL-SBSW-1204_155124RV73200 (rev1).pdf \| 1.1 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Bright Green	–	Peak Wavelength (Red) [typ.]632 nm	Peak Wavelength (Bright Green) [typ.]573 nm	–	Dominant Wavelength (Red) [typ.]624 nm	Dominant Wavelength (Bright Green) [typ.]571 nm	–	Luminous Intensity (Red) [typ.]60 mcd	Luminous Intensity (Bright Green) [typ.]30 mcd	–	Forward Voltage (Red) [typ.]2 V	Forward Voltage (Bright Green) [typ.]2.1 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150156	Demoboard 9999003

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED - Reverse Mount & Side View

Demoboard Visible LEDs
