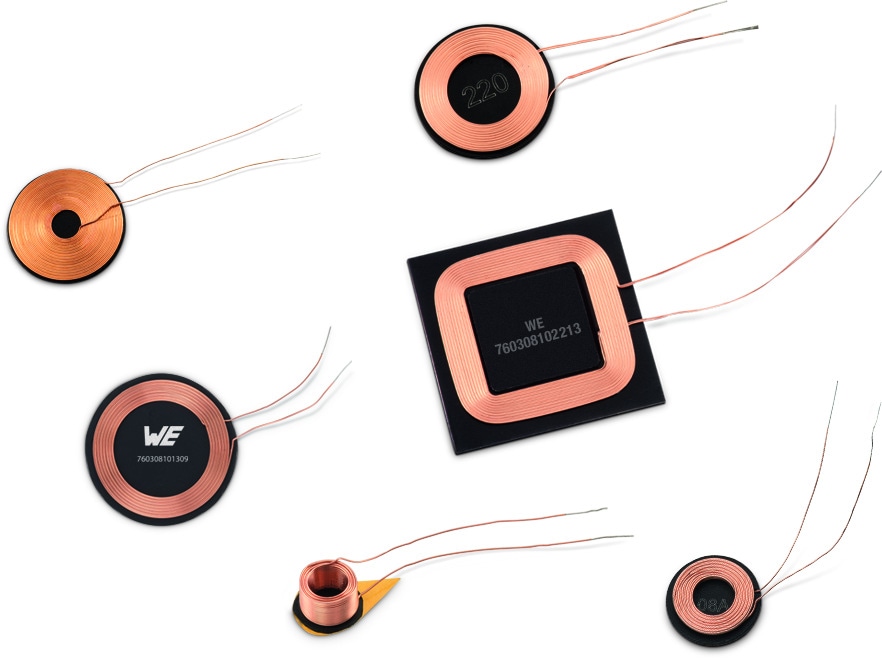

WE-WPCC Wireless Power Transfer Receiver Coil

Characteristics

  • Qi standard compliant
  • highest Q-value available on market
  • Today there are two inductive wireless power standards; the Qi standard of WPC and the PMA standard of Power Matters Alliance. We offer a dual standard receiver coil - 760308102210. The advantage of this high quality coil with litz wire and ferrite fortification in the center is that devices using this solution can be charged on charging stations of both standards.
  • Mix and match your tool to find the perfect coil combination: Mix and Match

Applications

Wireless Power Transfer Coils WE-WPCC

Wireless Power Transfer Coils WE-WPCC offer the best performance with highest Q-factor and lowest RDC values.

Product video and more information here

Products

Order Code SPEC Simu­lation Downloads Compliance Size L
(µH)
IR
(A)
ISAT
(A)
RDC max.
(mΩ)
fres
(MHz)
Q Samples
760308103205
STE 3D ALT EAG IGS Qi 34 x 26 x 0.9 mm 11 2.5 4 200 16 30
760308103206
STE 3D ALT EAG IGS Qi - Airfuel Alliance 28 x 15 x 0.7 mm 7.5 1.55 3 380 23 16
760308102210
STE 3D ALT EAG IGS Qi - Airfuel Alliance 37 x 37 x 1.8 mm 7.5 3 6 180 22 45
760308103211
STE 3D ALT EAG IGS Qi - Airfuel Alliance 46 x 36 x 0.5 mm 7.3 2.5 5 200 12.7 28
760308102213
STE 3D ALT EAG IGS Qi - Airfuel Alliance 29 x 29 x 0.6 mm 7.9 1.7 4 330 21 18
760308103305
STE 3D ALT EAG CAD IGS Qi - Airfuel Alliance - NFC 45 x 44 x 0.7 mm
760308102306
STE 3D ALT EAG CAD IGS Qi - Airfuel Alliance - NFC 44 x 44 x 1 mm
760308103307
STE 3D ALT EAG CAD IGS Qi - Airfuel Alliance - NFC 40 x 27 x 1 mm
760308201
STE 3D ALT EAG IGS works with Qi Rx IC's 37 x 37 x 1.8 mm 10 3.5 8 200 15 50
760308103202
STE 3D ALT EAG IGS works with Qi Rx IC's 48 x 32 x 0.9 mm 12 3 6 200 13 33
760308103203
STE 3D ALT EAG IGS works with Qi Rx IC's 48 x 32 x 0.8 mm 12 1.55 3 360 11 21
760308103204
STE 3D ALT EAG IGS works with Qi Rx IC's 38 x 30 x 0.8 mm 16.7 2 4 430 11 32
760308102207
STE 3D ALT EAG IGS works with Qi Rx IC's 40 x 40 x 1.2 mm 8 5 80 16 30
760308101208
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 10 x 1.6 mm 13 0.8 2 500 26 17
760308101303
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 26 x 1.3 mm 47 1.5 3 500 8 25
760308102212
STE 3D ALT EAG IGS works with Qi Rx IC's 29 x 29 x 0.6 mm 5.4 2 4 240 25 18
760308101214
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 19 x 0.8 mm 26 1.1 2 520 11 25
760308103215
STE 3D ALT EAG IGS works with Qi Rx IC's 48 x 32 x 1 mm 14.3 3 8 190 8.8 40
760308101216
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 6 x 2 mm 7.2 0.8 1 440 32 10
760308101217
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 10 x 1.8 mm 24.2 0.4 1 1400 17.5 13
760308101219
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 15 x 0.6 mm 11.8 0.7 1.5 750 22 13
760308101220
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 17 x 0.8 mm 12.6 1.1 2.5 340 19 20
760308101208A
STE 3D ALT EAG IGS CAD works with Qi Rx IC's Ø 10 x 1.6 mm 18 0.7 2 650 24 18
760308101309
STE 3D ALT EAG CAD IGS works with Qi Rx IC's Ø 26 x 0.5 mm 10 1.5 5 450 19 20
760308101221
STE 3D ALT EAG CAD IGS works with Qi Rx IC's Ø 6 x 4.3 mm 24 0.4 1 1150 10 16
760308105309
STE 3D ALT EAG CAD IGS works with Qi Rx IC's Ø 26 x 0.5 mm 10.5 1.5 3 450 18.5 19
760308105214
STE 3D ALT EAG CAD IGS works with Qi Rx IC's Ø 19 x 0.8 mm 6.3 1.5 3 350 25 15
