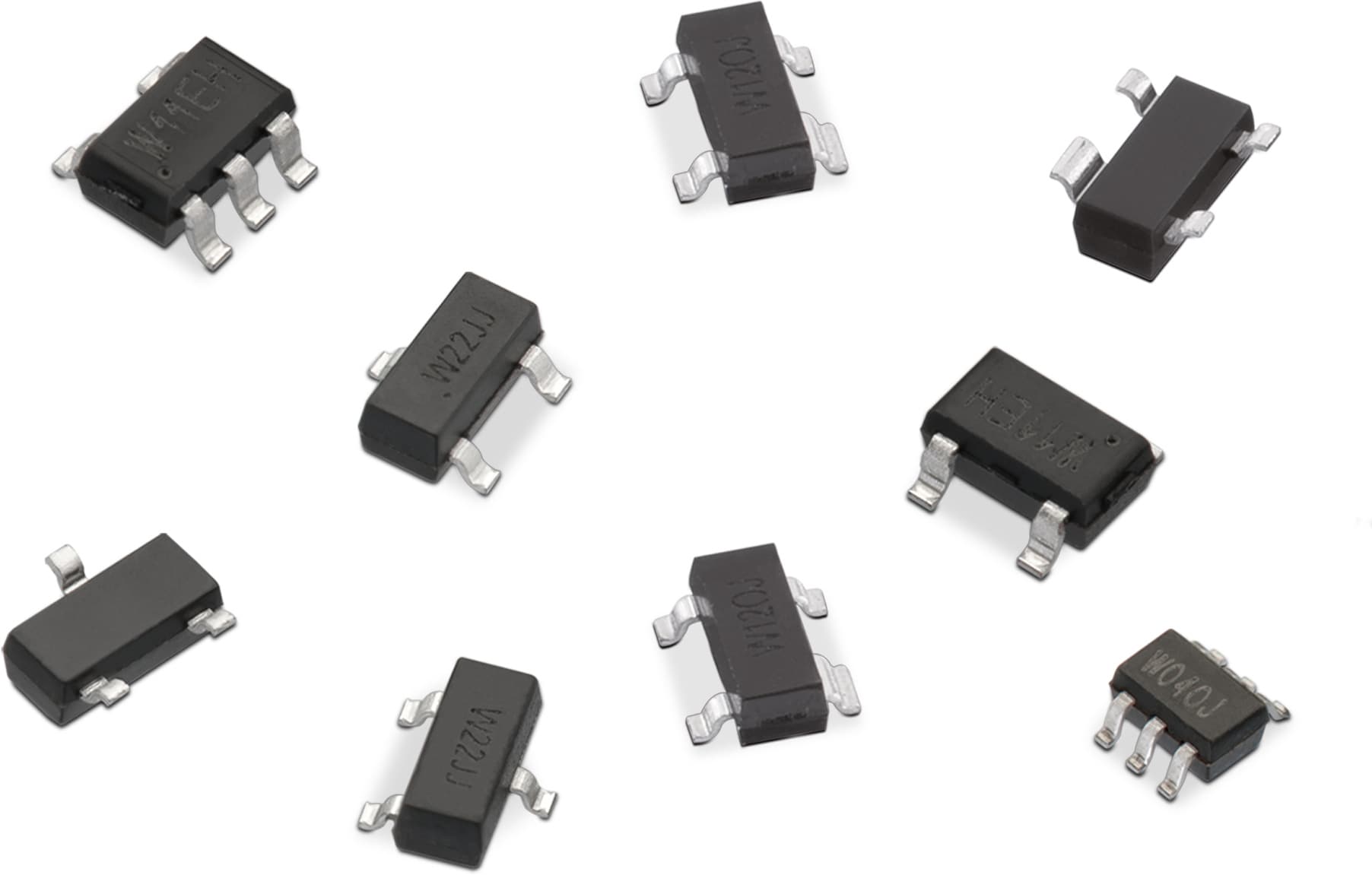

WE-TVS TVS Diode – High Speed Series

WE-TVS TVS Diode – High Speed Series. Low clamping voltage. Rail to Rail protection. Very fast data lines.
SizeDimen­sions3DL
(mm)		W
(mm)		H
(mm)		Mount

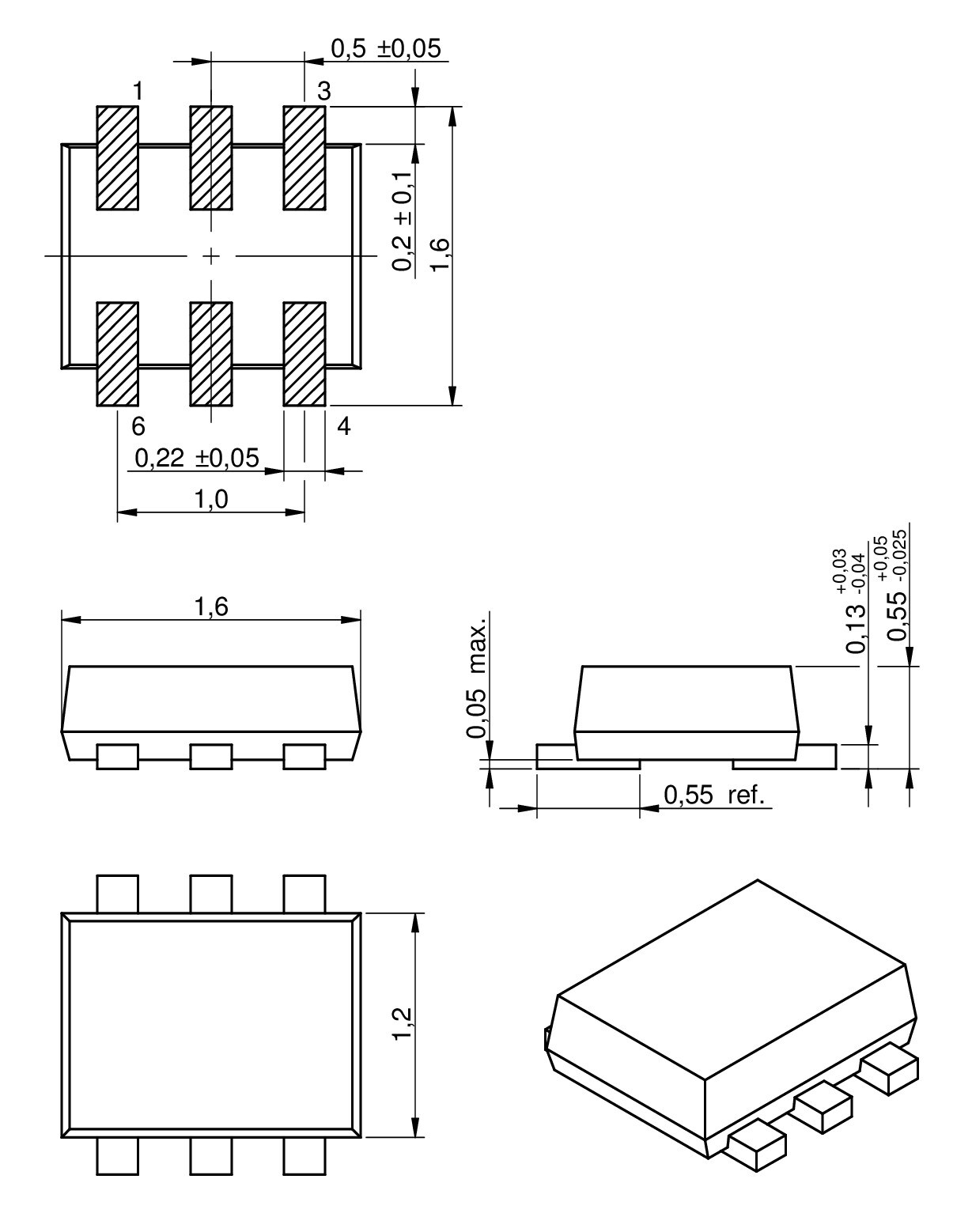

SOT563
 1.6 1.6 0.55 SMT
SC70-6L
 2 2.2 1 SMT
SOT23-6L
 2.9 2.8 1.16 SMT

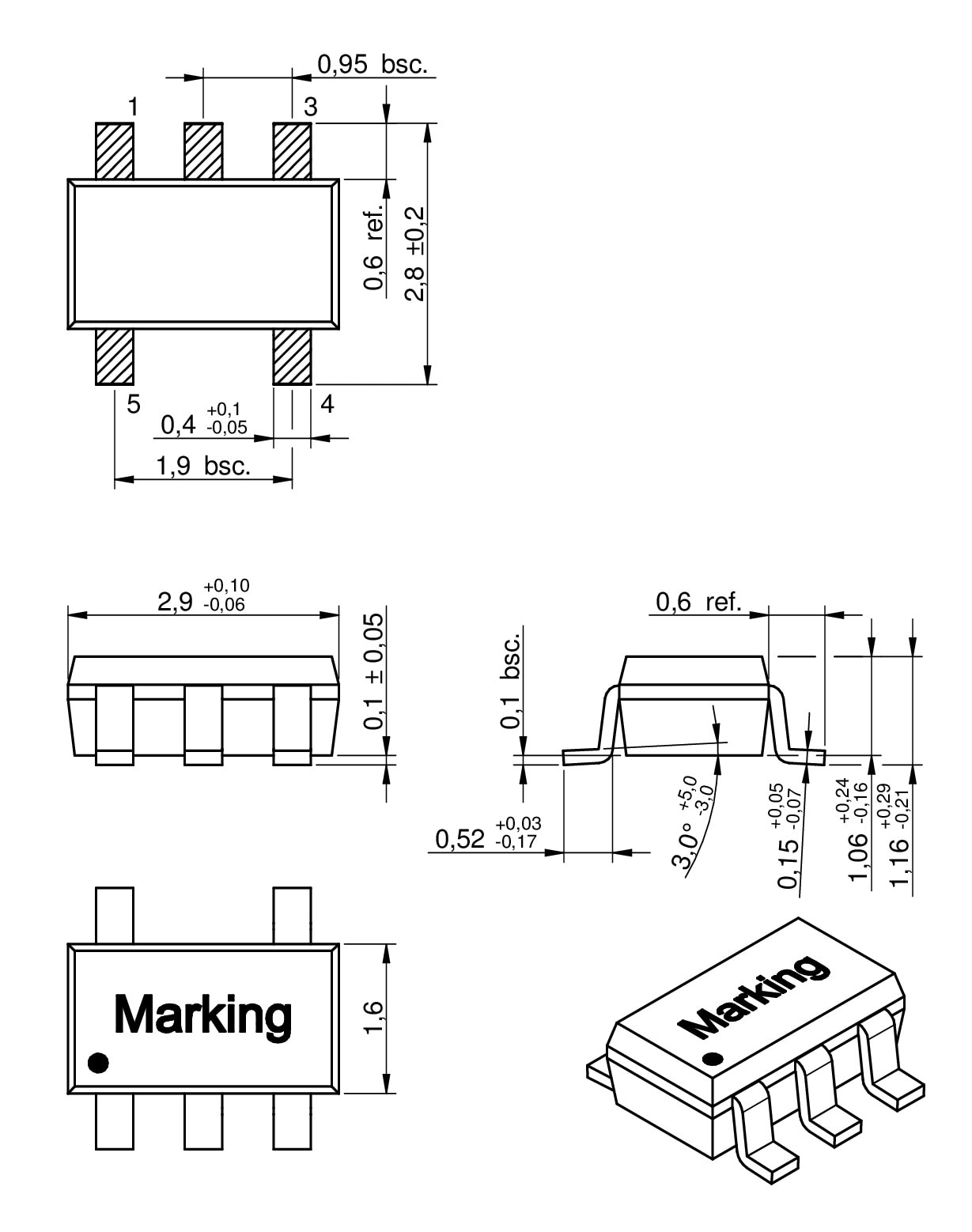

SOT23-5L
 2.9 2.8 1.16 SMT

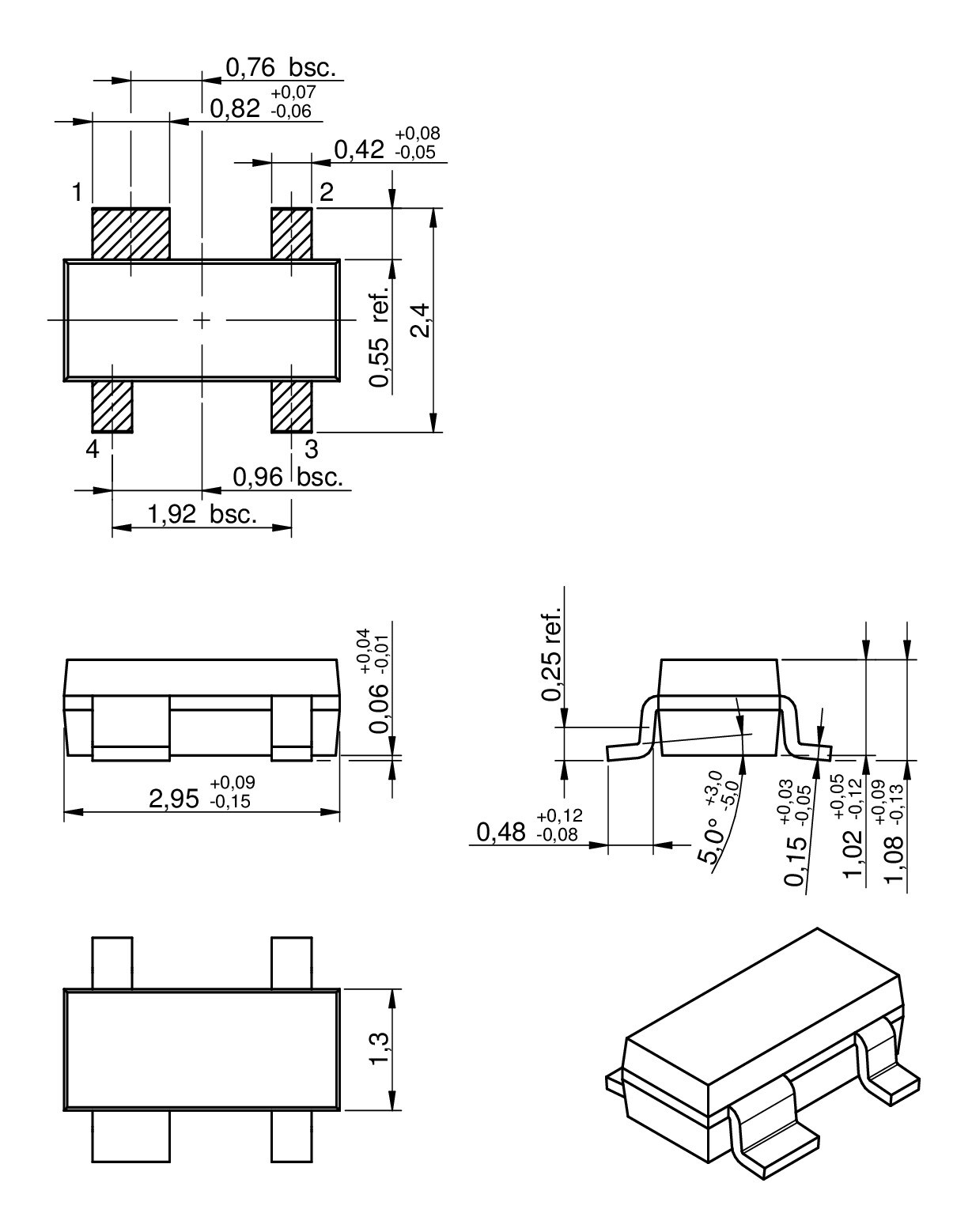

SOT143-4L
 2.92 2.4 1.06 SMT

LTSpice files

Characteristics

  • Low clamping voltage
  • Sturdy design
  • Very low capacitance
  • Flow Thru Design for a simple layout
  • Rail to Rail protection
  • Epoxy flame resistant UL94-V0
  • RoHS, REACH and free of halogens
  • Reference Designs
  • RD016 Reference Design Gigabit Ethernet Front End
  • RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

  • Very fast data lines
  • USB 2.0
  • Ethernet
  • PoE
  • VGA
  • Sim Cards
  • Keypads

Application Notes

Products

All
SOT563
SC70-6L
SOT23-6L
SOT23-5L
SOT143-4L
Reset all
Filter article data
Filter by
Delete all
 show  article in 5 product lines
 article in 5 product lines
Reset all
Order Code
Data­sheet
Simu­lation
Downloads
Status
Channels
Polarity
VCh max.(V)
ICh Leak max.(µA)
VBR min.(V)
CCh typ.(pF)
IPeak(A)
VCh Clamp ESD typ.(V)
VESD Contact(kV)
Design Kit
Filter Stick
Filter Bag
Samples
82400152
2+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6 V
(Channel) Input Capacitance [typ.]2 pF
(Reverse) Peak Pulse Current6 A
Channel ESD Clamping Voltage [typ.]10 V
ESD Contact Discharge Capability8 kV
Design Kit
823999
Filter Stick –
Filter Bag –
82400102
2+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6 V
(Channel) Input Capacitance [typ.]2 pF
(Reverse) Peak Pulse Current7 A
Channel ESD Clamping Voltage [typ.]10 V
ESD Contact Discharge Capability8 kV
Design Kit
823999
Filter Stick
829999STICK
Filter Bag
829999BAG
824011
2+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6.1 V
(Channel) Input Capacitance [typ.]2 pF
(Reverse) Peak Pulse Current13 A
Channel ESD Clamping Voltage [typ.]13 V
ESD Contact Discharge Capability16 kV
Design Kit
823999
Filter Stick –
Filter Bag –
8240136
2+1, Unidirectional, 3.3 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]3.3 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]4.5 V
(Channel) Input Capacitance [typ.]3 pF
(Reverse) Peak Pulse Current12 A
Channel ESD Clamping Voltage [typ.]9 V
ESD Contact Discharge Capability24 kV
Design Kit
823999
Filter Stick –
Filter Bag –
8240116
2+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6.1 V
(Channel) Input Capacitance [typ.]2 pF
(Reverse) Peak Pulse Current12 A
Channel ESD Clamping Voltage [typ.]13 V
ESD Contact Discharge Capability12 kV
Design Kit
823999
Filter Stick –
Filter Bag –
8240026
2+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels2+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6 V
(Channel) Input Capacitance [typ.]1.2 pF
(Reverse) Peak Pulse Current6 A
Channel ESD Clamping Voltage [typ.]12.5 V
ESD Contact Discharge Capability12 kV
Design Kit –
Filter Stick –
Filter Bag –
82400274
4+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels4+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6 V
(Channel) Input Capacitance [typ.]1.2 pF
(Reverse) Peak Pulse Current6 A
Channel ESD Clamping Voltage [typ.]12.5 V
ESD Contact Discharge Capability12 kV
Design Kit
823999
Filter Stick –
Filter Bag –
824015
4+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels4+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]6.1 V
(Channel) Input Capacitance [typ.]1 pF
(Reverse) Peak Pulse Current12 A
Channel ESD Clamping Voltage [typ.]13 V
ESD Contact Discharge Capability12 kV
Design Kit
823999
Filter Stick –
Filter Bag –
824001
4+1, Unidirectional, 5 V
Simu­lation
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Electric models ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels4+1
PolarityUnidirectional
Channel Operating Voltage [max.]5 V
Channel (Reverse) Leakage Current [max.]2 µA
(Reverse) Breakdown Voltage [min.]6.2 V
(Channel) Input Capacitance [typ.]1 pF
(Reverse) Peak Pulse Current5 A
Channel ESD Clamping Voltage [typ.]14 V
ESD Contact Discharge Capability8 kV
Design Kit
823999
Filter Stick –
Filter Bag –
824015043
4+1, Unidirectional, 3.3 V
Simu­lation
Downloads4 files

EDA models: Components ZIP

Electric models ZIP

Download all 4 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Channels4+1
PolarityUnidirectional
Channel Operating Voltage [max.]3.3 V
Channel (Reverse) Leakage Current [max.]1 µA
(Reverse) Breakdown Voltage [min.]4.5 V
(Channel) Input Capacitance [typ.]2 pF
(Reverse) Peak Pulse Current30 A
Channel ESD Clamping Voltage [typ.]7.5 V
ESD Contact Discharge Capability30 kV
Design Kit
823999
Filter Stick –
Filter Bag –

Assortments

Articles from this product series can be found in the following assortments:

Design Kit ESD PROTECTION
Filter Stick USB 2.0 Type A EMC
Filter Bag USB 2.0 Type A EMC

Comments

  • The High Speed Series is your best choice to protect high speed data lines like USB 2.0, DVI or LAN from over-voltage caused by Electrostatic Discharge (ESD), Electrical Fast Transients (EFT) and lightning strikes (Surge) with a very small capacitance.The Power Line Series is your preferred component to protect power lines or low speed data lines from Electrostatic Discharge (ESD), Electrical Fast Transients (EFT) and lightning strikes (Surge) with a very small capacitance. There are uni- and bidirectional components available. The WE-TVS series exceeds the requirements outlined in IEC 61000-4-2. The different available pin configurations and case sizes let you get your suitable part.
    • >
  • The standard series is the preferred component when it comes to power supplies or slow data cables to protect from electrostatic discharge (ESD), fast transients (burst) or power surges (surge). They are available as a uni - and bi-directional components
    • >
