Characteristics
- Super small size
- 1.5 kV isolation voltage
- 350 µH OCL as per IEEE 802.3
- Operating temperature: -40 °C up to +105 °C
Reference Designs
- RD016 Reference Design Gigabit Ethernet Front End
Applications
- Ethernet 10/100/1000 Base-T
- Ethernet 2.5/5G and 10G Base-T
- Single Pair Ethernet
- Ultrasonic sensors
- g.fast
Products

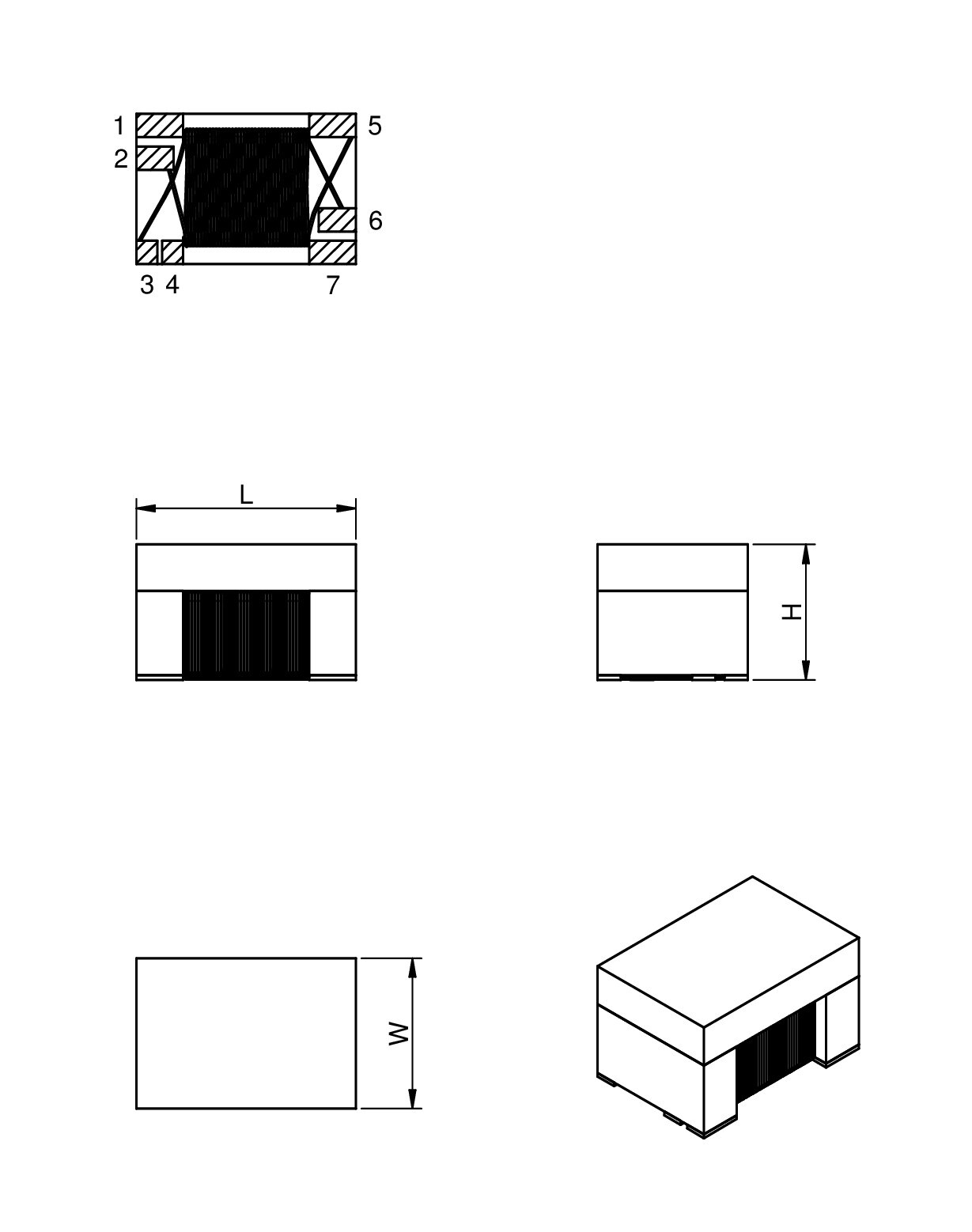

Order Code | Datasheet | Downloads | Data rate | Application | L (µH) | VT (V (RMS)) | n | PoE | Operating Temperature | L (mm) | W (mm) | H (mm) | Samples | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74930000 | SPEC | 9 files | 10/100/1000 Base-T, 10/100 Base-T1 | Ethernet, Single Pair Ethernet | 350 | 1500 | 1:1 | – | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
74930100 | SPEC | 8 files | 10G Base-T, 1000 Base-T1 | Ethernet, Single Pair Ethernet | 120 | 1500 | 1:1 | – | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
74930130 | SPEC | 7 files | 10/100/1G/10GBase-T | Ethernet, PoE | 110 | 1500 | 1:1 | PoE (up to 350 mA) | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
74930030 | SPEC | 7 files | 10/100/1GBase-T | Ethernet, PoE | 350 | 1500 | 1:1 | PoE (up to 350 mA) | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
74930120 | SPEC | 7 files | 10/100/1G/10GBase-T | Ethernet, PoE+ | 110 | 1500 | 1:1 | PoE+ (up to 600 mA) | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
749302010 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 7 files | – | Short distance sensing at high frequency | 300 | 400 | 1:4.5:4.5:1 | – | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 | ||
749302011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 7 files | – | Long distance sensing at low frequency | 2000 | 400 | 1:4.5:4.5:1 | – | -40 °C up to +105 °C | 4.7 | 3.22 | 2.9 |
Order Code | Datasheet | |
---|---|---|
74930000 | SPEC | |
74930100 | SPEC | |
74930130 | SPEC | |
74930030 | SPEC | |
74930120 | SPEC | |
749302010 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
749302011 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
Samples |
---|
Order Code | Datasheet | Downloads | Data rate | Application | L (µH) | VT (V (RMS)) | n | PoE | Operating Temperature | L (mm) | W (mm) | H (mm) | Samples |
---|
