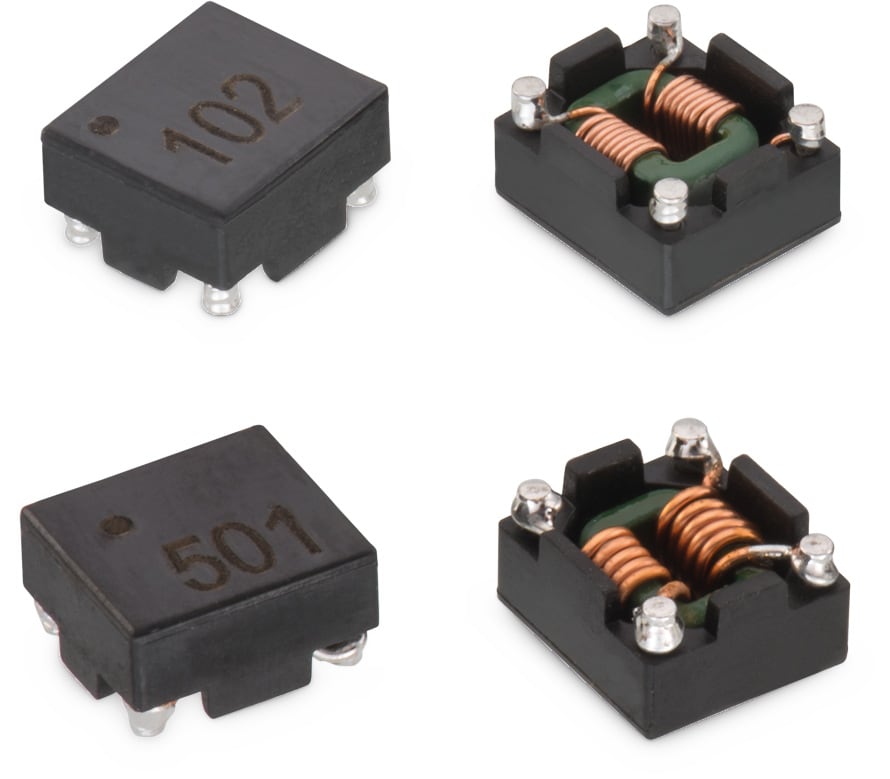

WE-SL5 HC SMT Common Mode Line Filter

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
WE-SL5-HC 9.5 8.3 5 SMT

Characteristics

  • Low profile, only 5.3 mm
  • High Impedance up to 2200 Ohm
  • High current up to 5 A
  • Rated voltage: 80 VDC (42 VAC)
  • Flammability corresponding to UL 94 V-0
  • Climatic category 40/125/21

Applications

  • Current compensated choke for data and signal lines
  • Power supply system
  • Signal and sensor lines
  • Suppression of common mode noise

Products

WE-SL5-HC
Order Code Data­sheet Simu­lation DownloadsWinding StyleNumber of windingsL1
(µH)
Z
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
Design Kit Samples
744273501SPEC
8 files sectional 2 5 500 5000 0.0055 80744725
744273801SPEC
8 files sectional 2 9 800 3500 0.011 80
744273102SPEC
8 files sectional 2 11 1000 2500 0.03 80
744273222SPEC
8 files sectional 2 30 2200 1400 0.06 80744725
Order Code Data­sheet Simu­lation
744273501SPEC
744273801SPEC
744273102SPEC
744273222SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsWinding StyleNumber of windingsL1
(µH)
Z
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
