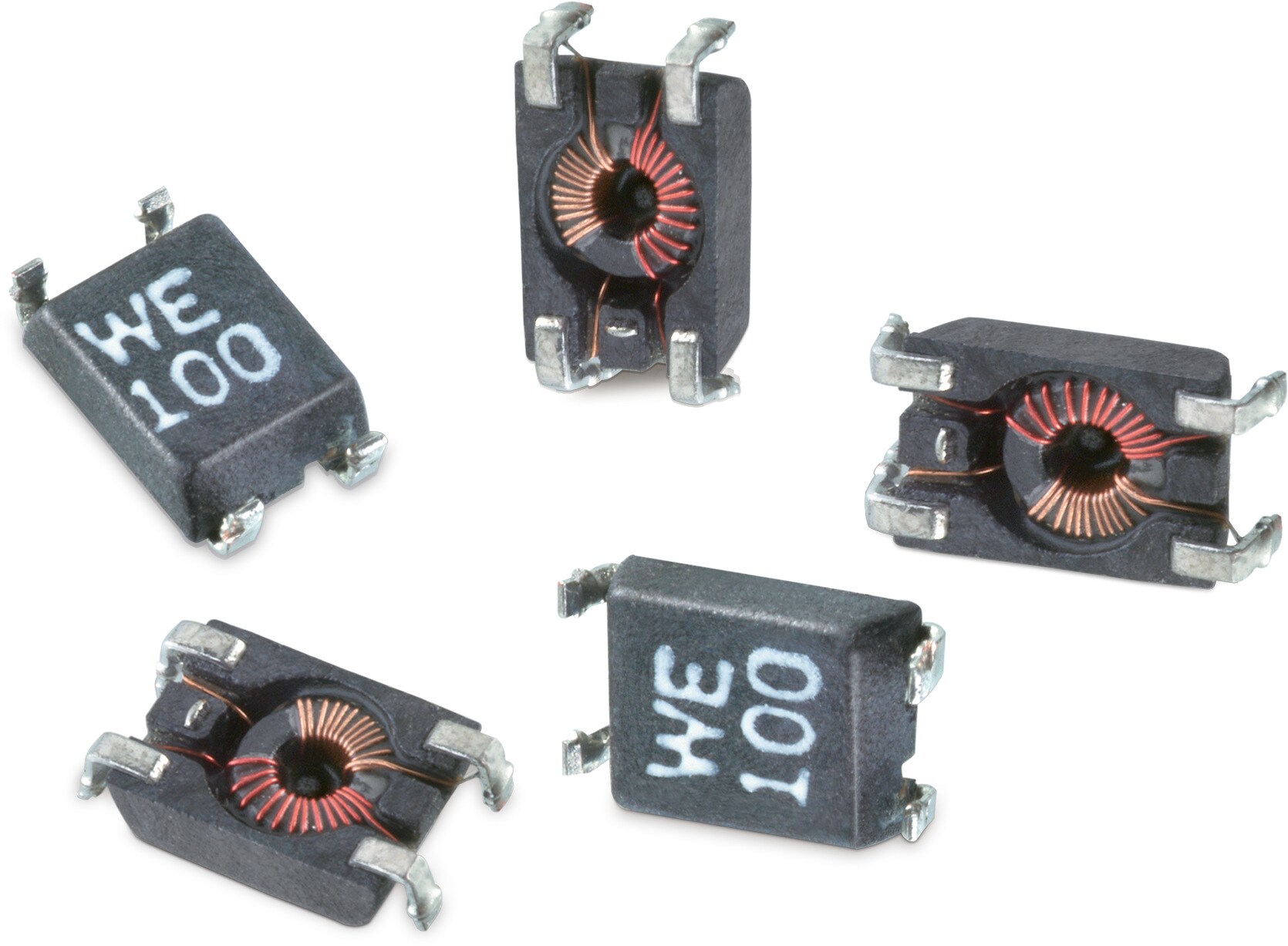

WE-SL1 SMT Common Mode Line Filter

WE-SL1 SMT Common Mode Line Filter
Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
WE-SL1 6.3 3.6 1.65 SMT

Characteristics

  • Low profile, only 1.65 mm
  • High current up to 300 mA
  • Rated voltage: 80 VDC (42 VAC)
  • Flammability corresponding to UL 94 V-0
  • Climatic category 40/105/21

Applications

  • USB
  • CAN
  • FireWire
  • Signal and sensor lines
  • Power supply system
  • Data lines
  • Suppression of common mode noise

Products

WE-SL1
Order Code Data­sheet Simu­lation DownloadsWinding StyleNumber of windingsL
(µH)
Zmax
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
ApplicationDesign Kit Samples
744212100SPEC
7 files sectional 2 10 1200 300 0.24 80744725
744212470SPEC
7 files sectional 2 47 300 300 0.16 80
744212510SPEC
7 files sectional 2 51 300 300 0.16 80 CAN
744212820SPEC
7 files sectional 2 82 440 300 0.2 80744725
744212101SPEC
7 files sectional 2 100 500 300 0.22 80
744212181SPEC
7 files sectional 2 180 1000 300 0.25 80
744212221SPEC
7 files sectional 2 220 1200 300 0.28 80
744212331SPEC
7 files sectional 2 330 2000 300 0.3 80744725
Order Code Data­sheet Simu­lation
744212100SPEC
744212470SPEC
744212510SPEC
744212820SPEC
744212101SPEC
744212181SPEC
744212221SPEC
744212331SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsWinding StyleNumber of windingsL
(µH)
Zmax
(Ω)
IR
(mA)
RDC max.
(Ω)
VR
(V)
ApplicationDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
