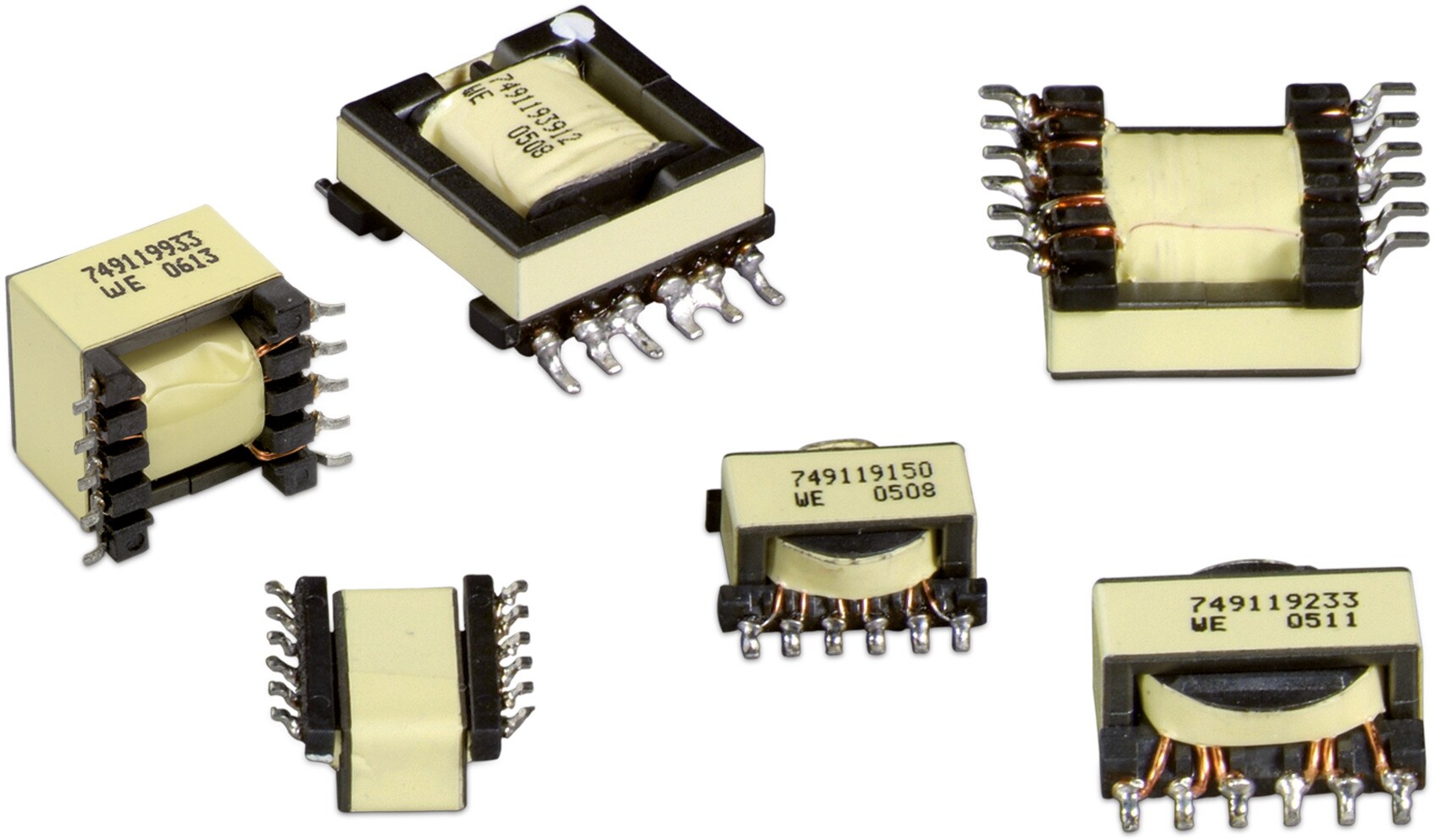

WE-PoE Power over Ethernet Transformer | Passive Components

	Size	L (mm)	W (mm)	H (mm)	Mount
	ER11/5	12.9	13	6.2	SMT
	ER14.5/6	16.3	16.8	7.4	SMT
	EFD15	17.5	22.1	8.3	SMT
	EP10	-	15.24	11.43	SMT
	EP13	-	17.75	-	SMT
NEW	EFD20	-	-	-	SMT
NEW	RM6	20.07	21.89	13.34	SMT
NEW	EP7	-	-	-	SMT

LTSpice files

LT
LTSpice_WE-PoE (rev24b).zip
|
84.5 KB

Characteristics

Flyback transformer designed for PoE PDs
Input voltage: 36 V to 57 V
Switching frequencies: 200–500 kHz
Operating temperature: –40 ºC to +125 ºC
Isolation voltage: 1.5 kVAC/1 min
Different output powers and voltages available

Applications

PoE powered devices
IP Phones
WLAN Access Points
Access control terminals
Security cameras

Products

All

ER11/5

ER14.5/6

EFD15

EP10

EP13

EFD20

RM6

EP7

Order Code	Datasheet	Simulation	Downloads	Version	V_IN	V_Out1 (V)	I_Out1 (A)	V_Out2 (V)	I_Out2 (A)	V_Out3 (V)	I_Out3 (A)	L (µH)	n	V_T (V (AC))	Size	L_Smin. (µH)	Mount	Design Kit
750344488	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4290 (rev1).PDF \| 46.8 KB IGS 070-4290 (rev1).IGS \| 2.4 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	CCM Flyback	9 - 60 V (DC)	12	2	–	–	–	–	14	1.33:1:1	1500	EFD20	–	SMT	–
749119133	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_11_5x (rev1).igs \| 2.2 MB STP WE-PoE_ER_11_5x (rev1).stp \| 603.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	0.4	3.3	0.4	3.3	0.4	400	12:1:1:1:3	1500	ER11/5	4	SMT	749119
749119150	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_11_5x (rev1).igs \| 2.2 MB STP WE-PoE_ER_11_5x (rev1).stp \| 603.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	0.27	5	0.27	5	0.27	400	7.2:1:1:1:1.8	1500	ER11/5	–	SMT	749119
749119218	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_14_5_6 (rev1).igs \| 2.8 MB STP WE-PoE_ER_14_5_6 (rev1).stp \| 803.2 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	1.8	1.3	1.8	1.3	1.8	1.3	210	16.5:1:1:1:5.5	1500	ER14.5/6	–	SMT	–
749119233	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_14_5_6 (rev1).igs \| 2.8 MB STP WE-PoE_ER_14_5_6 (rev1).stp \| 803.2 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	0.7	3.3	1.4	–	–	210	12:1:1:3	1500	ER14.5/6	–	SMT	749119
749119250	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_14_5_6 (rev1).igs \| 2.8 MB STP WE-PoE_ER_14_5_6 (rev1).stp \| 803.2 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	0.47	5	0.47	5	0.47	210	6:1:1:1:1.75	1500	ER14.5/6	–	SMT	749119
7491192912	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_ER_14_5_6 (rev1).igs \| 2.8 MB STP WE-PoE_ER_14_5_6 (rev1).stp \| 803.2 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	0.58	5	1.4	3.3	2.1	210	12:1.5:1:3.5:5	1500	ER14.5/6	–	SMT	749119
749119318	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EFD_15 (rev1).igs \| 2 MB STP WE-PoE_EFD_15 (rev1).stp \| 584.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	1.8	2.4	1.8	2.4	1.8	2.4	120	14:1:1:1:5.5	1500	EFD15	–	SMT	–
749119333	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EFD_15 (rev1).igs \| 2 MB STP WE-PoE_EFD_15 (rev1).stp \| 584.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	1.35	3.3	1.35	3.3	1.35	120	12:1:1:1:3	1500	EFD15	–	SMT	749119
749119350	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EFD_15 (rev1).igs \| 2 MB STP WE-PoE_EFD_15 (rev1).stp \| 584.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	0.9	5	0.9	5	0.9	120	7.2:1:1:1:1.8	1500	EFD15	–	SMT	749119
7491193912	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EFD_15 (rev1).igs \| 2 MB STP WE-PoE_EFD_15 (rev1).stp \| 584.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	1.2	5	2.8	3.3	4.3	120	15:1.5:1:3:5	1500	EFD15	–	SMT	749119
750310062	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP10 (rev1).igs \| 1.5 MB STP WE-PoE_EP10 (rev1).stp \| 413.1 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	2	–	–	–	–	127	4:1	1500	EP10	–	SMT	–
749119933	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	2	3.3	2	–	–	127	6:1:1:3	1500	EP13	–	SMT	749119
7491199331	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	2	3.3	2	–	–	127	12:1:1:2.5	1500	EP13	–	SMT	749119
749119950	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	1.3	5	1.3	–	–	127	4:1:1:2	1500	EP13	–	SMT	749119
7491199501	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	1.3	5	1.3	–	–	127	8:1:1:1.67	1500	EP13	–	SMT	749119
7491199112	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	0.55	12	0.55	–	–	127	2:1:1:1	1500	EP13	–	SMT	–
7491199212	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	0.55	12	0.55	–	–	127	4.8:1.4:1.4:1	1500	EP13	–	SMT	–
750310013	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	2.6	–	–	–	–	127	4:1	1500	EP13	–	SMT	–
7491199332	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	2	5	1	5.5	0.05	35	9:1:1.5:2.5:4.5	1500	EP13	–	SMT	–
7491199312	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB ZUK Download_Cadstar_WE-PoE (rev19a).zip \| 14.2 KB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS WE-PoE_EP13_PoE (rev1).igs \| 2.2 MB STP WE-PoE_EP13_PoE (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	1.25	–	–	–	–	40	1:1	1500	EP13	–	SMT	–
750310002	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-5899 (rev1).PDF \| 51 KB IGS Download_IGS_070-5899 (rev1).IGS \| 2.7 MB STP Download_STP_070-5899 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-5899 (rev1).wrl \| 157.8 KB Download all 9 files as zip archive ZIP	Flyback	20 - 72 V (DC)	5	4	–	–	–	–	28	3.5:1:2.75	1500	EFD20	–	SMT	–
750310027	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2720 (rev1).PDF \| 38.8 KB IGS Download_IGS_070-2720 (rev1).IGS \| 1.7 MB STP Download_STP_070-2720-2360 (rev1).STEP \| 845.8 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2720 (rev1).WRL \| 119.1 KB Download all 9 files as zip archive ZIP	Flyback	9 - 50 V (DC)	3.3	3	–	–	–	–	20.4	4.5:1:2.5	1500	EP10	–	SMT	–
750310031	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2720 (rev1).PDF \| 38.8 KB IGS Download_IGS_070-2720 (rev1).IGS \| 1.7 MB STP Download_STP_070-2720-2360 (rev1).STEP \| 845.8 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2720 (rev1).WRL \| 119.1 KB Download all 9 files as zip archive ZIP	Flyback	33 - 57 V (DC)	12	0.58	–	–	–	–	264	3.5:1:0.71	1500	EP10	–	SMT	–
750310032	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2720 (rev1).PDF \| 38.8 KB IGS Download_IGS_070-2720 (rev1).IGS \| 1.7 MB STP Download_STP_070-2720-2360 (rev1).STEP \| 845.8 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2720 (rev1).WRL \| 119.1 KB Download all 9 files as zip archive ZIP	Flyback	33 - 57 V (DC)	12	0.58	–	–	–	–	155	1.47:1:1	1500	EP10	–	SMT	–
750032173	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	33 - 57 V (DC)	12	1.125	–	–	–	–	127	3.42:1:0.71	1500	EP13	–	SMT	–
750032395	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	13 - 59 V (DC)	5	0.5	3.3	3.2	–	–	37	10.5:1:2:5.5	1500	EP13	–	SMT	–
750310007	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	35 - 57 V (DC)	3.3	2.5	12	0.33	–	–	127	6:1:3.4:3.4	1500	EP13	–	SMT	–
750310035	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	33 - 57 V (DC)	5	2.7	–	–	–	–	77.4	3.67:1:2.5	1500	EP13	–	SMT	–
750310310	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	13 - 59 V (DC)	6.6	0.2	3.3	2.5	–	–	37	5.25:1:1:2.75	1500	EP13	–	SMT	–
750310377	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 9 files as zip archive ZIP	Flyback	36 - 57 V (DC)	12	1.08	–	–	–	–	127	2:1:1:1	1500	EP13	–	SMT	–
750310018	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4390 (rev1).PDF \| 49 KB IGS Download_IGS_070-4390 (rev1).IGS \| 2 MB STP Download_STP_EP7_070-4390 (rev1).STEP \| 971.2 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	33 - 57 V (DC)	3.3	0.91	–	–	–	–	500	12:1:2.5	1500	EP7	–	SMT	–
750310019	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4390 (rev1).PDF \| 49 KB IGS Download_IGS_070-4390 (rev1).IGS \| 2 MB STP Download_STP_070-4390 (rev1).STEP \| 1 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	3.3	0.91	–	–	–	–	310	5.5:1:1:3.75	1500	EP7	–	SMT	–
750310020	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4390 (rev1).PDF \| 49 KB IGS Download_IGS_070-4390 (rev1).IGS \| 2 MB STP Download_STP_070-4390 (rev1).STEP \| 1 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	33 - 57 V (DC)	5	0.6	–	0.02	–	–	500	8:1:1.66	1500	EP7	–	SMT	–
750310022	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4390 (rev1).PDF \| 49 KB IGS Download_IGS_070-4390 (rev1).IGS \| 2 MB STP Download_STP_070-4390 (rev1).STEP \| 1 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	33 - 57 V (DC)	12	0.25	–	–	–	–	521	3.5:1:0.71	1500	EP7	–	SMT	–
750314433	SPEC		9 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 9 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	2	5	–	–	–	180	6:1:1:2.17	1500	EP13	–	SMT	–
750313082	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 8 files as zip archive ZIP	Flyback	40 - 57 V (DC)	5	4.6	–	–	–	–	37	4.5:1:2.5	2400	EP13	–	SMT	–
750313109	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 8 files as zip archive ZIP	Flyback	36 - 57 V (DC)	5	2.3	–	–	–	–	44	4:1:1:2.5	2400	EP7	–	SMT	–
750314782	SPEC		8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 8 files as zip archive ZIP	Flyback	40 - 57 V (DC)	24	1	–	–	–	–	37	1:1:0.56	2400	EP13	–	SMT	–
750315422	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-5899 (rev1).PDF \| 51 KB STP Download_STP_070-5899 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 7 files as zip archive ZIP	Flyback	9 - 57 V (DC)	12	2	–	–	–	–	9	1:1.12:1	1500	EFD20	–	SMT	–
750317123	SPEC		10 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D 3D_070-4892 (rev1).PDF \| 90.1 KB IGS Download_IGS_070-4892 (rev1).IGS \| 1.8 MB STP Download_STP_070-4892 (rev1).STEP \| 1 MB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Others ZIP WRL Download_WRL_070-4892 (rev1).WRL \| 148.2 KB Download all 10 files as zip archive ZIP	Flyback	32 - 57 V (DC)	12	1	–	–	–	–	82	2.5:1:0.75	1500	RM6	–	SMT	–
750319924	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D Download_3D_615008160521 (rev1).pdf \| 495.5 KB IGS Download_IGS_EP10_070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	40 - 57 V (DC)	3.3	2.1	–	–	–	–	235	9.5:1:3.5	1500	EP10	–	–	–
750319935	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D Download_3D_615008160521 (rev1).pdf \| 495.5 KB IGS Download_IGS_EP10_070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	40 - 57 V (DC)	5	1.4	–	–	–	–	235	6.5:1:2.38	1500	EP10	–	–	–
750319936	SPEC	–	8 files EDA models: Components ZIP ALT Altium_WE-PoE (rev24a).IntLib \| 1.5 MB CDS Cadence_WE-POE (rev24a).zip \| 9.5 MB EAG Eagle_WE-POE (rev24a).lbr \| 254.8 KB CAD files ZIP 3D Download_3D_615008160521 (rev1).pdf \| 495.5 KB IGS Download_IGS_EP10_070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT LTSpice_WE-PoE (rev24b).zip \| 84.5 KB PSP PSpice_WE-PoE (rev24b).zip \| 36 KB Download all 8 files as zip archive ZIP	Flyback	40 - 57 V (DC)	12	0.6	–	–	–	–	235	2.75:1:1	1500	EP10	–	–	–
