WE-PMI Power Multilayer Inductor

Shielded

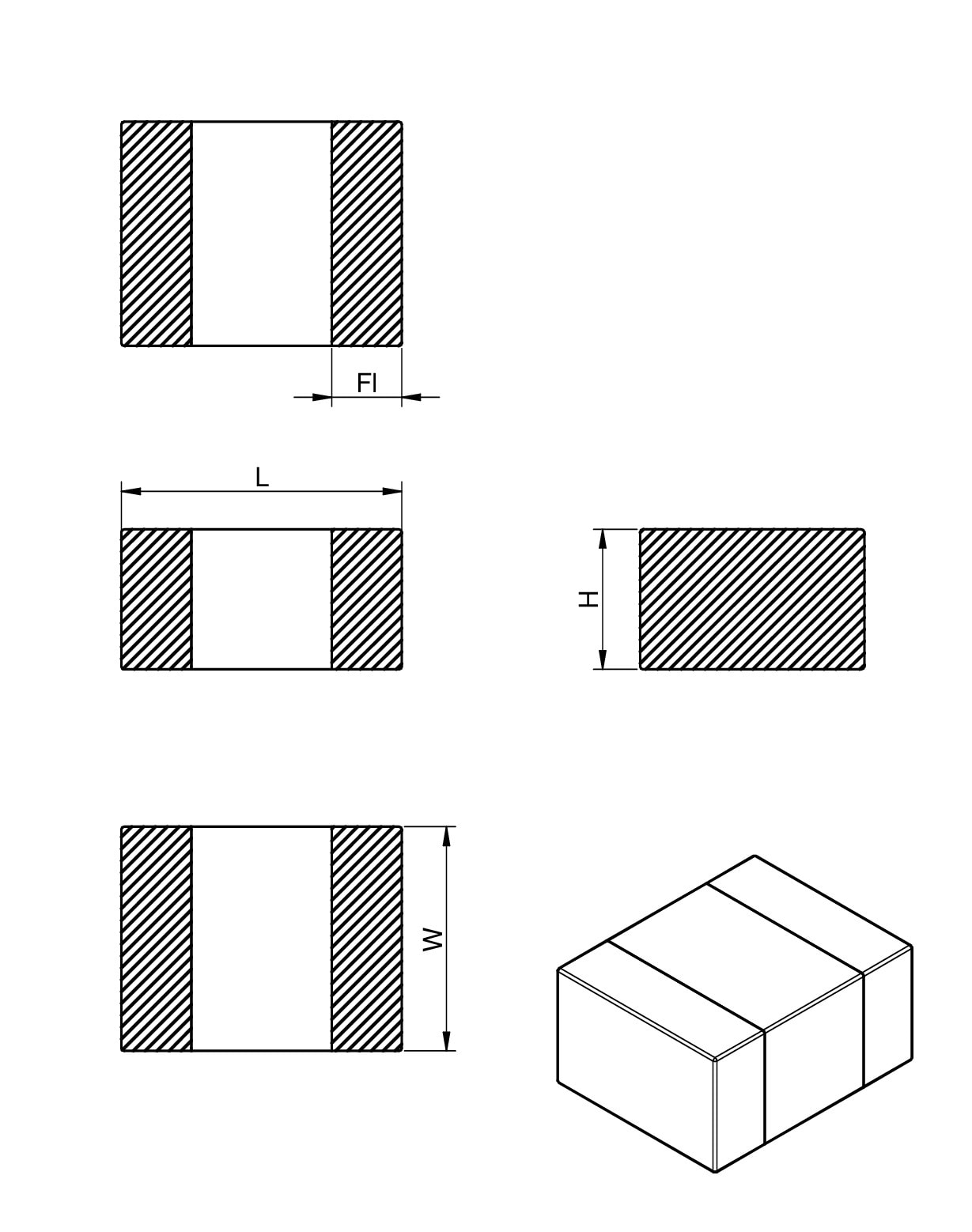

Size L
(mm)
W
(mm)
Fl
(mm)
0603 1.6 0.8 0.3
0805 2 - 0.5
0806 2 1.6 0.5
1008 2.5 2 0.6

Characteristics

  • Compact multilayer type
  • Suitable for applications with high currents up to 3.8 A
  • Magnetically shielded construction: No crosstalk
  • Operating temperature: –40 °C to +125 °C
  • 4 sizes and 3 different types available (Low Profile, Low RDC & High Saturation Current)

Applications

  • DC/DC converters especially at high switching frequencies > 1MHz
  • Electronic devices with very low profile
  • Portable devices like Smart Phones, Tablets, Notebooks and Digital Cameras

Products

All
0603
0805
0806
1008
Order Code SPEC Simu­lation Downloads L
(µH)
IR 1
(mA)
IR 2
(mA)
ISAT
(mA)
RDC
(mΩ)
fres
(MHz)
Type H
(mm)
Design Kit Samples
74479762122
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.22 900 1200 1300 120 250 Low Profile 0.5 744797
74479876124C
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.24 2200 3200 3700 26 160 Low RDC & High Saturation Current 1
74479887124C
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.24 2800 3800 5000 24 120 Low RDC & High Saturation Current 1
74479762133
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.33 800 1100 1200 160 200 Low Profile 0.5 744797
74479773133
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.33 1000 1400 1200 100 200 Low Profile 0.5 744797
74479763147A
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1100 1500 1500 90 190 Low RDC 0.8 744797
74479773147
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1000 1400 1200 100 150 Low Profile 0.5 744797
74479774147
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1000 1300 700 120 130 Low Profile 0.5
74479775147A
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1100 1400 1000 100 130 Low RDC 1
74479776147
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1100 1600 1900 80 120 Low RDC 1
74479876147
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1500 2100 2000 40 120 Low RDC & High Saturation Current 1 744797
74479787147B
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 2000 2700 950 40 105 Low RDC 0.8 744797
74479876147C
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 1800 2600 2600 44 110 Low RDC & High Saturation Current 1
74479887147C
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.47 2000 2800 3100 40 90 Low RDC & High Saturation Current 1
74479773154
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.54 900 1300 1000 120 120 Low Profile 0.5
74479762168
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.68 700 1000 700 220 150 Low Profile 0.5 744797
74479763168
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.68 750 1000 950 180 190 Low RDC 0.8
74479876168
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.68 1300 1800 1700 60 100 Low RDC & High Saturation Current 1
74479876168C
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.68 1400 2000 2600 68 90 Low RDC & High Saturation Current 1
74479763210A
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 700 900 650 200 120 Low RDC 0.8 744797
74479773210
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 800 1200 800 180 90 Low Profile 0.5 744797
74479774210
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 800 1100 500 190 100 Low Profile 0.5
74479775210A
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 900 1300 950 110 90 Low RDC 1 744797
74479776210
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1000 1400 1000 90 80 Low RDC 1
74479876210
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1100 1500 1500 70 80 Low RDC & High Saturation Current 1 744797
74479787210B
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1450 1950 1150 60 75 Low RDC 0.8 744797
74479889210
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1400 2000 2000 85 80 High Saturation Current 1.2 744797
74479875210C
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1200 1600 1400 115 80 Low RDC & High Saturation Current 1
74479876210C
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1200 1800 1800 75 70 Low RDC & High Saturation Current 1
74479887210C
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 1700 2500 1900 55 60 Low RDC & High Saturation Current 1
74479763215
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 600 850 500 230 100 Low RDC 0.8
74479774215
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 600 800 300 260 70 Low Profile 0.5
74479775215
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 800 1100 800 160 70 Low RDC 1
74479776215
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 900 1300 800 110 60 Low RDC 1
74479787215A
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 1400 1900 1100 70 65 Low RDC 0.8
74479876215C
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.5 1100 1500 1500 115 50 Low RDC & High Saturation Current 1
74479763222
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 550 800 280 300 80 Low RDC 0.9 744797
74479774222
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 500 700 250 340 40 Low Profile 0.5
74479775222A
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 700 1000 700 200 50 Low RDC 1 744797
74479776222A
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 900 1300 560 110 50 Low RDC 1 744797
74479787222A
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 1300 1800 700 85 55 Low RDC 0.8 744797
74479888222
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 800 1200 1400 200 50 High Saturation Current 1 744797
74479889222
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 900 1300 1700 250 50 High Saturation Current 1.2 744797
74479875222C
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 1000 1400 600 140 45 Low RDC & High Saturation Current 1
74479876222C
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 900 1300 1100 210 30 Low RDC & High Saturation Current 1
74479887222C
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 1200 1600 1500 110 40 Low RDC & High Saturation Current 1
74479775233
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 700 1000 280 200 30 Low RDC 1
74479776233A
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 950 1250 330 120 40 Low RDC 1
74479787233A
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 1100 1600 400 100 35 Low RDC 0.8 744797
74479888233
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 750 1100 1100 250 45 High Saturation Current 1
74479889233
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 900 1300 1300 250 50 High Saturation Current 1.2
74479775247
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 600 850 250 250 30 Low RDC 1 744797
74479776247A
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 900 1200 200 170 30 Low RDC 1 744797
74479787247A
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 1000 1500 270 110 25 Low RDC 0.8
74479888247
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 700 1000 700 380 35 High Saturation Current 1 744797
74479889247
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 650 900 900 400 35 High Saturation Current 1.2 744797
74479777268
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 600 900 200 300 40 Low RDC 1.25 744797
74479778268
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 800 1200 200 170 40 Low RDC 1.1 744797
74479888268
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 650 900 300 450 30 High Saturation Current 1
74479889268
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 600 800 700 500 25 High Saturation Current 1.2
74479777310
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 450 650 125 500 25 Low RDC 1.25
74479777310A
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 600 900 120 300 35 Low RDC 1.25 744797
74479778310
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 700 1000 150 250 32 Low RDC 1.1 744797
74479888310
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 600 800 250 500 25 High Saturation Current 1
74479889310
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 600 800 500 500 20 High Saturation Current 1.2 744797
