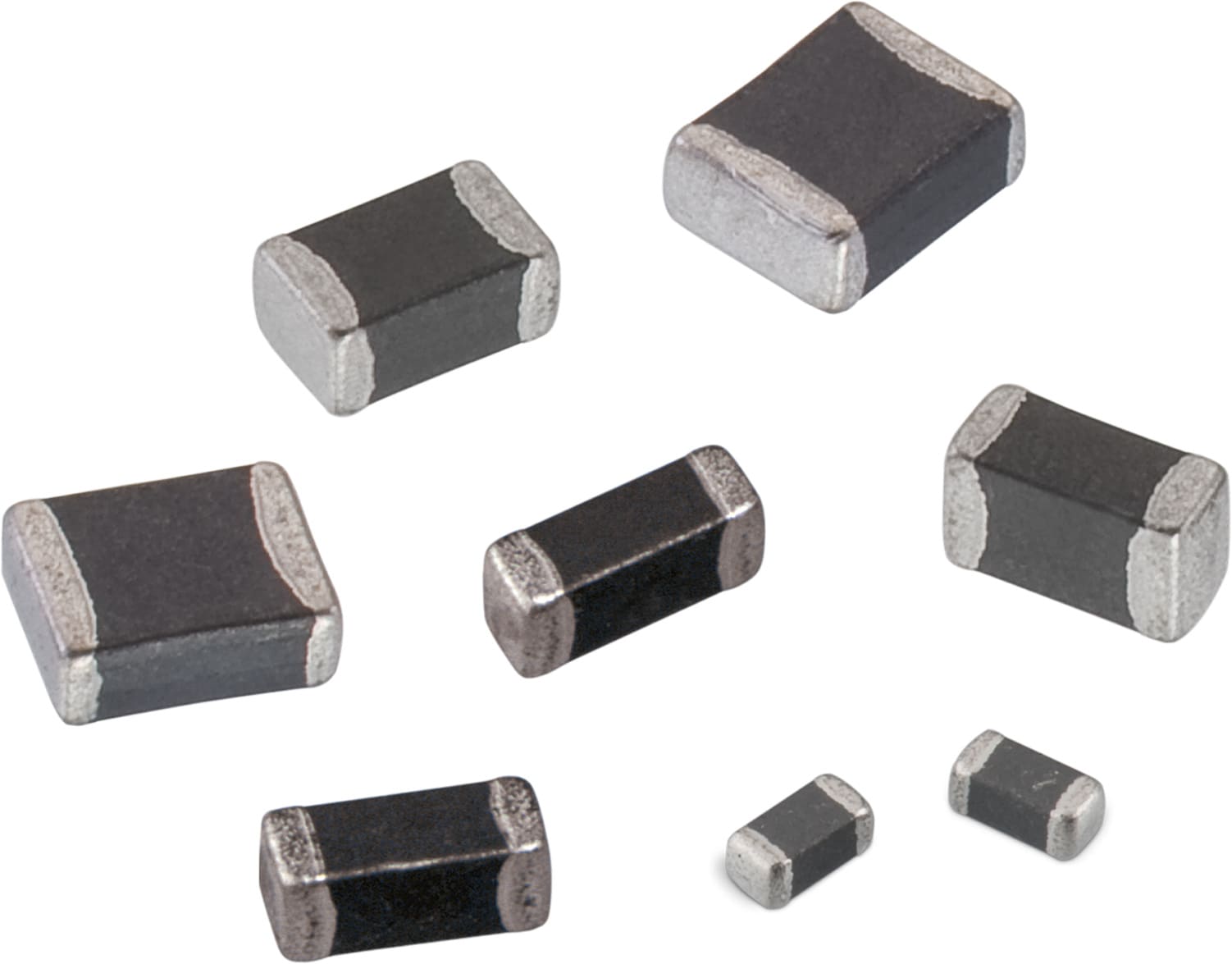

WE-PMI Power Multilayer Inductor

Size	L (mm)	W (mm)	Fl (mm)
0603	1.6	0.8	0.3
0805	2	-	-
1008	2.5	2	-

LTSpice files

LT
LTSpice_WE-PMI (rev22a).zip
|
3.2 KB

Characteristics

Compact multilayer type
Suitable for applications with high currents up to 3.8 A
Magnetically shielded construction: No crosstalk
Operating temperature: –40 °C to +125 °C
4 sizes and 3 different types available (Low Profile, Low RDC & High Saturation Current)

Applications

DC/DC converters especially at high switching frequencies > 1MHz
Electronic devices with very low profile
Portable devices like Smart Phones, Tablets, Notebooks and Digital Cameras

Application Notes

Products

All

0603

0805

1008

Order Code	Datasheet	Replacement Order Code	Simulation	Downloads	Status	L (µH)	I_R (mA)	I_{R 2} (mA)	I_SAT (mA)	R_DC (mΩ)	f_res (MHz)	Type	H (mm)	W (mm)	Samples
74479762122	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LP (rev1).igs \| 76.7 KB STP Download_STP_WE-PMI-0603LP (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.22	900	1200	1300	120	250	Low Profile	0.5	0.8
74479762133	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LP (rev1).igs \| 76.7 KB STP Download_STP_WE-PMI-0603LP (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.33	800	1100	1200	160	200	Low Profile	0.5	0.8
74479763147A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0603LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	1100	1500	1500	90	190	Low RDC	0.8	0.8
74479774147i	SPEC	74479775147A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	0.47	1000	1300	700	120	130	Low Profile	0.5	1.25	–
74479775147A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805 (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805 (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	1100	1400	1000	100	130	Low RDC	1	1.2
74479787147B	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008LP (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008LP (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	2000	2700	950	40	105	Low RDC	0.8	2
74479763168	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0603LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.68	750	1000	950	180	190	Low RDC	0.8	0.8
74479763210A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0603LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	700	900	650	200	120	Low RDC	0.8	0.8
74479773210	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LP (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805LP (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	800	1200	800	180	90	Low Profile	0.5	1.25
74479774210	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LP (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805LP (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	800	1100	500	190	100	Low Profile	0.5	1.25
74479775210Ai	SPEC	74479774210	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	1	900	1300	950	110	90	Low RDC	1	1.2	–
74479787210A	SPEC	–		7 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	1300	1700	1000	71.5	90	Low RDC	1	2
74479787210Bi	SPEC	74479787210A 74479887210A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	1	1450	1950	1150	60	75	Low RDC	0.8	2	–
74479887210A	SPEC	–		6 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	1300	1600	1000	75	90	High Saturation Current	0.8	2
74479763215	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0603LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	600	850	500	230	100	Low RDC	0.8	0.8
74479775215	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0805LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	800	1100	800	160	70	Low RDC	1	1.2
74479787215A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008LP (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008LP (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	1400	1900	1100	70	65	Low RDC	0.8	2
74479763222	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0603LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0603LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	550	800	280	300	80	Low RDC	0.9	0.8
74479774222	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LP (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805LP (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	500	700	250	340	40	Low Profile	0.5	1.25
74479775222A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0805LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	700	1000	700	200	50	Low RDC	1	1.2
74479787222Ai	SPEC	74479887222A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	2.2	1300	1800	700	85	55	Low RDC	0.8	2	–
74479887222A	SPEC	–		7 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	1050	1350	825	140	65	High Saturation Current	0.8	2
74479889222i	SPEC	74479887222A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	2.2	900	1300	1700	250	50	High Saturation Current	1.2	2	–
74479775233	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0805LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	700	1000	280	200	30	Low RDC	1	1.2
74479787233Ai	SPEC	74479887233A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	3.3	1100	1600	400	100	35	Low RDC	0.8	2	–
74479887233Ai	SPEC	74479887247A	–	–	Active i\| Production is active. Expected lifetime: >10 years.	3.3	850	1150	600	180	40	High Saturation Current	0.8	2	–
74479889233	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008HS (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008HS (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	900	1300	1300	250	50	High Saturation Current	1.2	2
74479775247	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805LR (rev1).igs \| 76.4 KB STP Download_STP_WE-PMI-0805LR (rev1).stp \| 62.7 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	600	850	250	250	30	Low RDC	1	1.2
74479787247Ai	SPEC	74479887247A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	4.7	1000	1500	270	110	25	Low RDC	0.8	2	–
74479888247i	SPEC	74479889247	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	4.7	700	1000	700	380	35	High Saturation Current	1	2	–
74479887247A	SPEC	–		7 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	700	1000	400	230	35	High Saturation Current	0.8	2
74479889247	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008HS (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008HS (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	650	900	900	400	35	High Saturation Current	1.2	2
74479777268	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805 (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805 (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	600	900	200	300	40	Low RDC	1.25	1.2
74479887268A	SPEC	–		7 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	650	950	300	250	30	High Saturation Current	0.8	2
74479889268	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008HS (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008HS (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	600	800	700	500	25	High Saturation Current	1.2	2
74479777310	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805 (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805 (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	450	650	125	500	25	Low RDC	1.25	1.2
74479777310A	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-0805 (rev1).igs \| 77.1 KB STP Download_STP_WE-PMI-0805 (rev1).stp \| 62.8 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	600	900	120	300	35	Low RDC	1.25	1.2
74479888310i	SPEC	74479887310A	–	–	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	10	600	800	250	500	25	High Saturation Current	1	2	–
74479887310A	SPEC	–		7 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	600	850	125	300	20	High Saturation Current	0.8	2
74479889310	SPEC	–		9 files EDA models: Components ZIP ALT WE-PMI (rev25a).IntLib \| 135.5 KB CDS Cadence_WE-PMI (rev25a).zip \| 490.5 KB EAG Eagle_WE-PMI (rev25a).lbr \| 47.9 KB KIC KiCad_WE-PMI (rev25a).zip \| 116.7 KB ZUK Cadstar_WE-PMI (rev21c).zip \| 16.1 KB CAD files ZIP IGS Download_IGS_WE-PMI-1008HS (rev1).igs \| 76.5 KB STP Download_STP_WE-PMI-1008HS (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-PMI (rev22a).zip \| 15.7 KB SCS Spectre_WE-PMI (rev24a).mod \| 9.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	600	800	500	500	20	High Saturation Current	1.2	2

Order Code	Datasheet	Replacement Order Code	Simulation
74479762122	SPEC	–
74479762133	SPEC	–
74479763147A	SPEC	–
74479774147i	SPEC	74479775147A	–
74479775147A	SPEC	–
74479787147B	SPEC	–
74479763168	SPEC	–
74479763210A	SPEC	–
74479773210	SPEC	–
74479774210	SPEC	–
74479775210Ai	SPEC	74479774210	–
74479787210A	SPEC	–
74479787210Bi	SPEC	74479787210A 74479887210A	–
74479887210A	SPEC	–
74479763215	SPEC	–
74479775215	SPEC	–
74479787215A	SPEC	–
74479763222	SPEC	–
74479774222	SPEC	–
74479775222A	SPEC	–
74479787222Ai	SPEC	74479887222A	–
74479887222A	SPEC	–
74479889222i	SPEC	74479887222A	–
74479775233	SPEC	–
74479787233Ai	SPEC	74479887233A	–
74479887233Ai	SPEC	74479887247A	–
74479889233	SPEC	–
74479775247	SPEC	–
74479787247Ai	SPEC	74479887247A	–
74479888247i	SPEC	74479889247	–
74479887247A	SPEC	–
74479889247	SPEC	–
74479777268	SPEC	–
74479887268A	SPEC	–
74479889268	SPEC	–
74479777310	SPEC	–
74479777310A	SPEC	–
74479888310i	SPEC	74479887310A	–
74479887310A	SPEC	–
74479889310	SPEC	–

Samples



–






–

–







–

–

–
–


–
–







–

Order Code	Datasheet	Replacement Order Code	Simulation	Downloads	Status	L (µH)	I_R (mA)	I_{R 2} (mA)	I_SAT (mA)	R_DC (mΩ)	f_res (MHz)	Type	H (mm)	W (mm)	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
