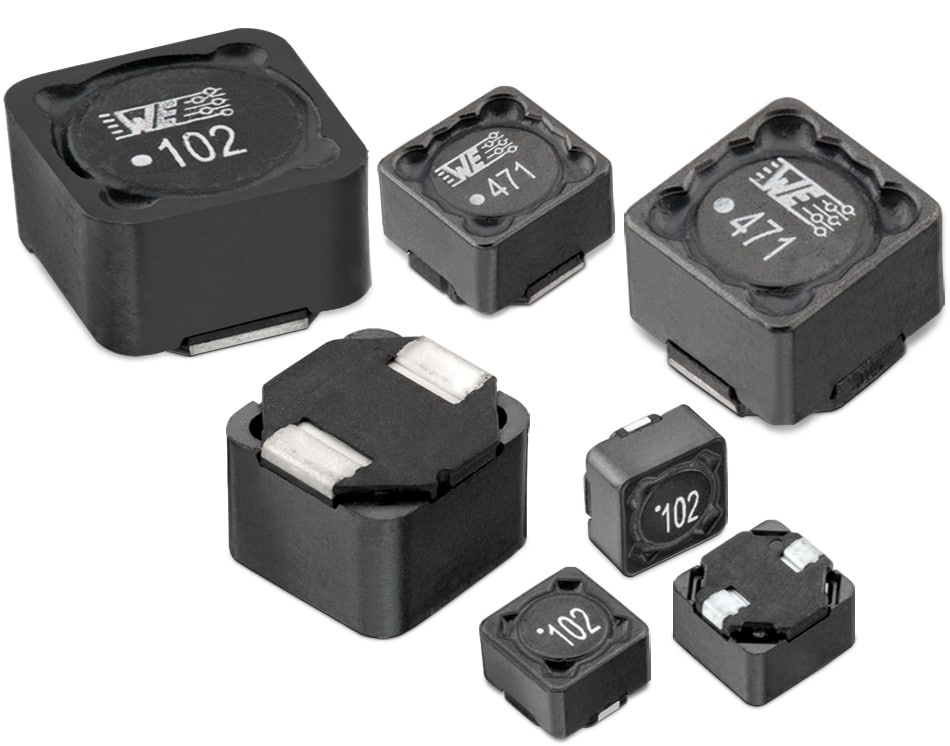

WE-PD HV SMT Power Inductor (High Voltage)

Size	L (mm)	W (mm)	H (mm)	Mount

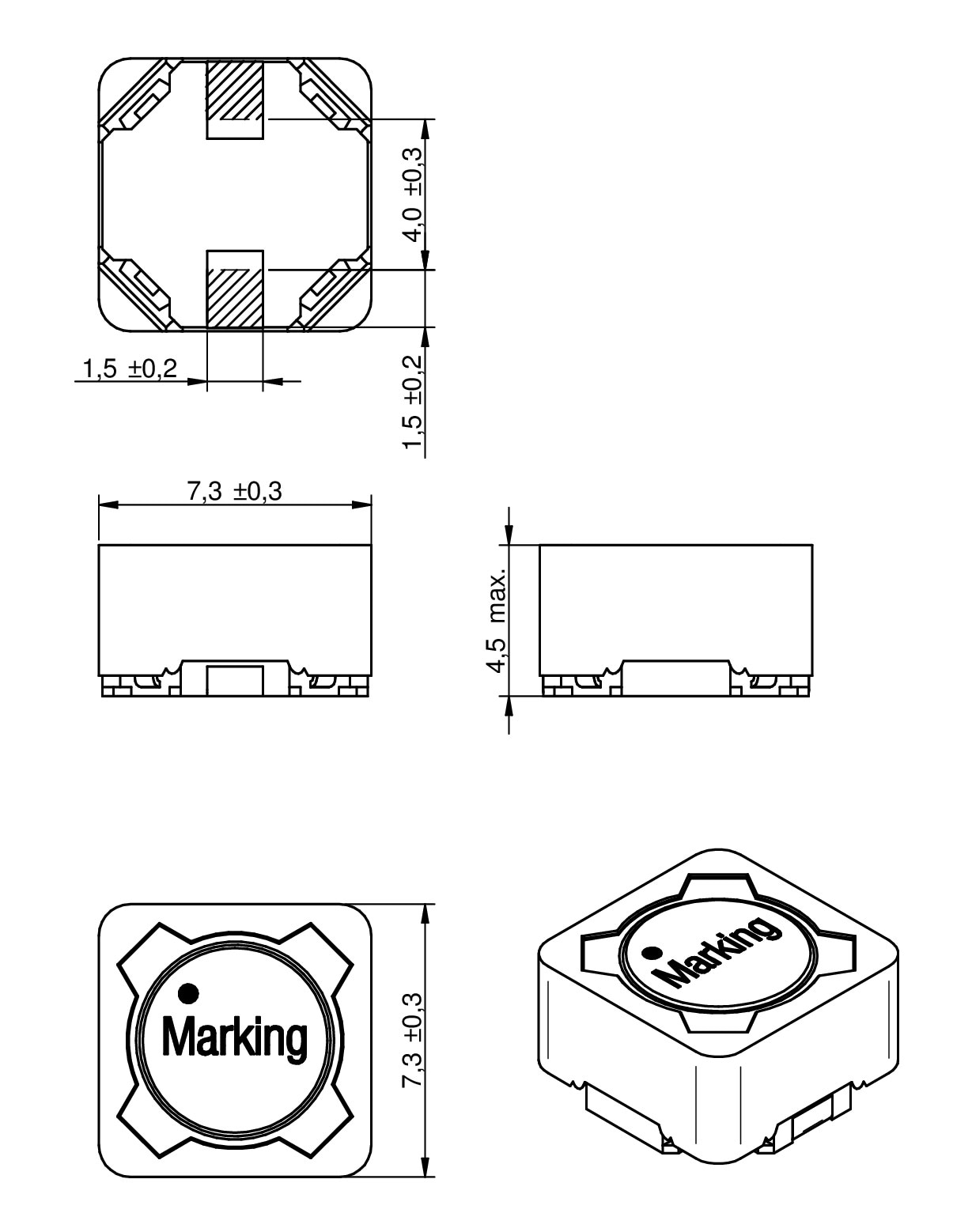

7332	7.3	7.3	3.2	SMT
7345	7.3	7.3	4.5	SMT

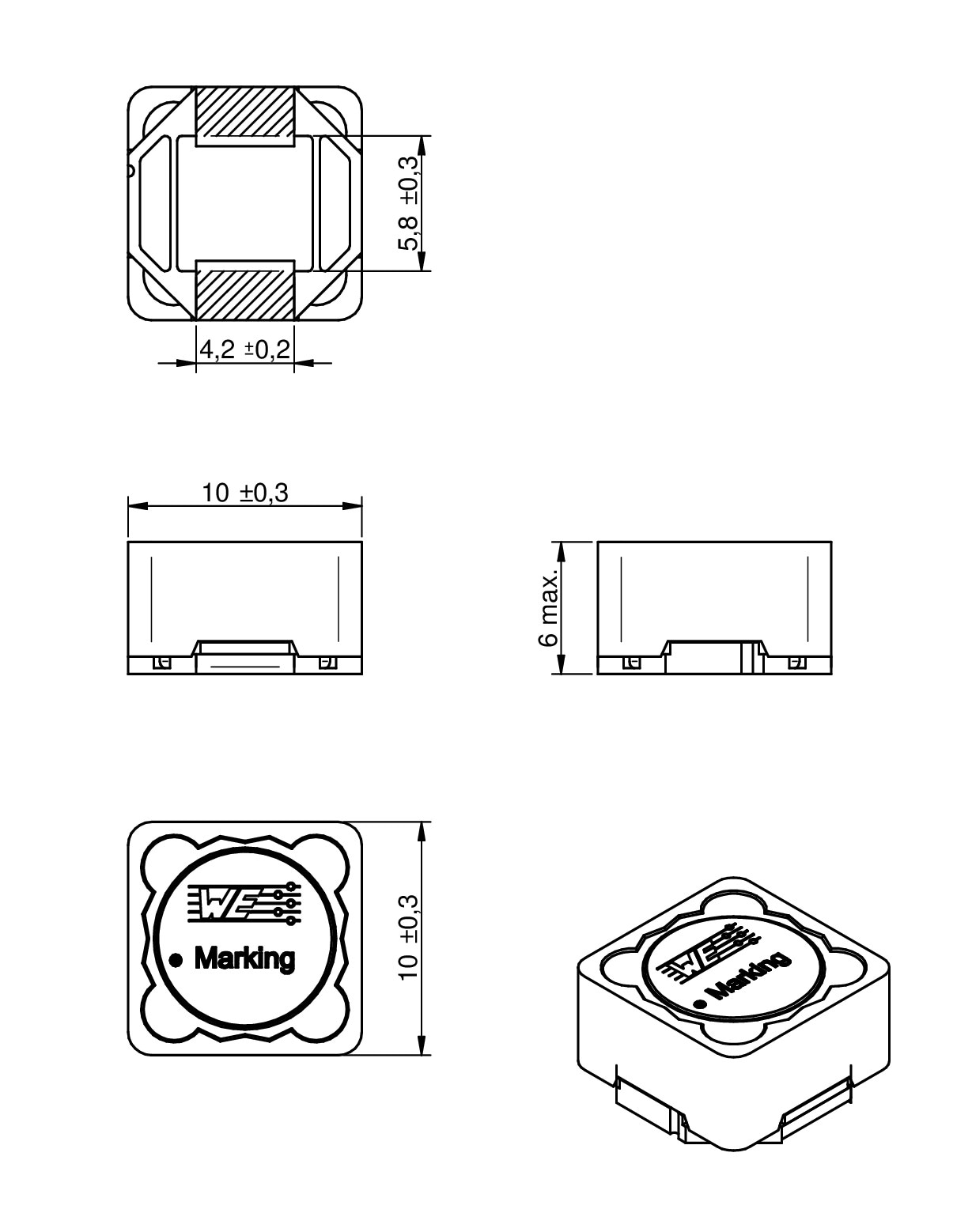

1060	10	10	6	SMT

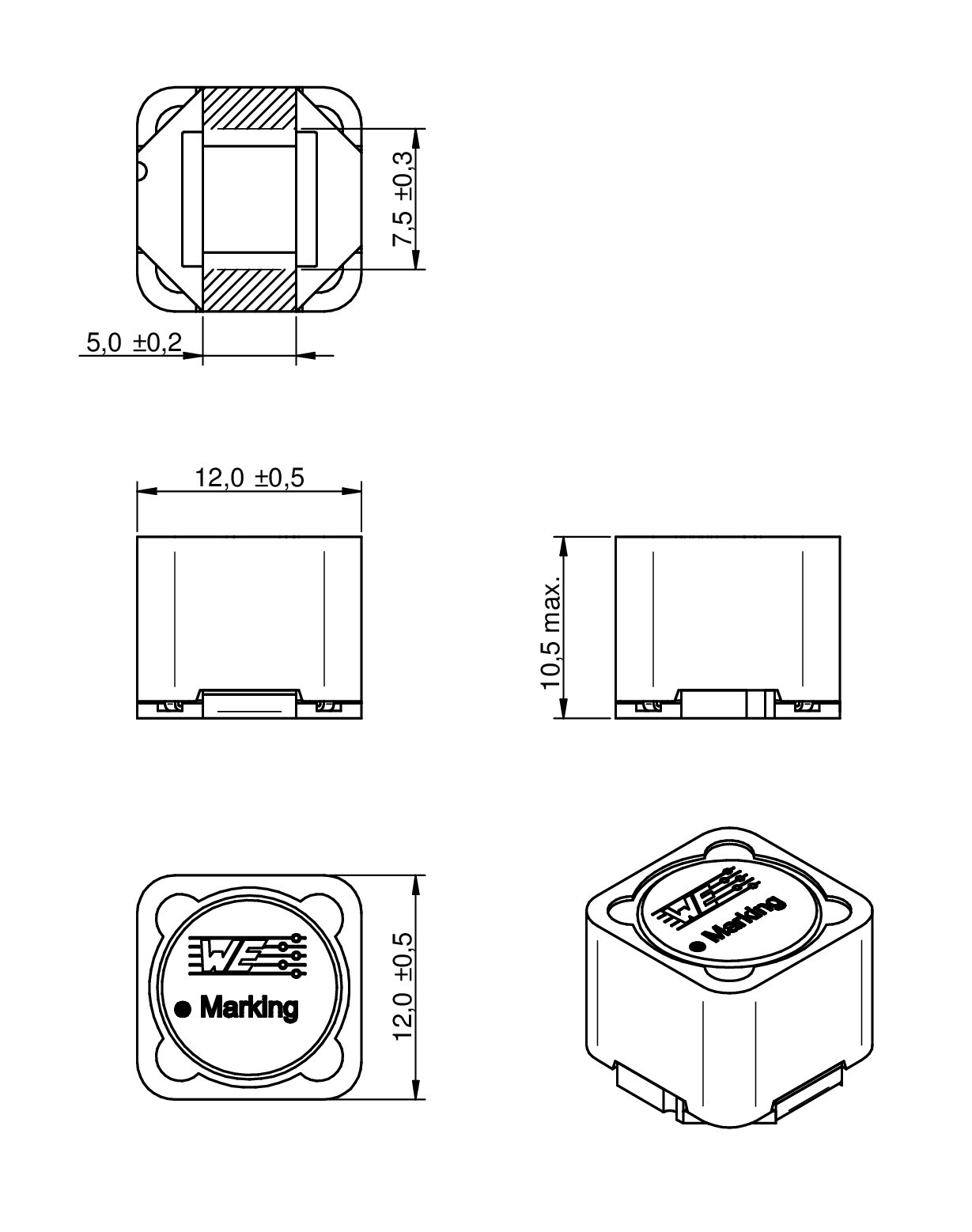

1210	12	12	10.5	SMT

LTSpice files

LT
LTSpice_WE-PD HV (rev25a).zip
|
2.5 KB

Characteristics

Shielded part for ideal wire protection
Operating Temperature: -40°C - 125°C
Magnetically shielded
Designed for 400VDC Applications

Applications

Non-isolated buck or Buck-Boost Converter like PI LinkSwitch-TN
constant current LED Driver
Utility metering
Filter for power supply

Application Notes

Products

All

7332

7345

1060

1210

Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	f_res (MHz)	Design Kit
7687779470	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	1	1.1	280	11.3	–
7687714470	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	1.7	2.3	156	10.2	–
7687714221	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687718xxx_3D (rev1).pdf \| 308 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.95	1.15	680	3.9	–
7687709221	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	1.3	2	350	2.2	–
7687779221	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.56	0.5	1300	4.9	–
7687714471	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.6	0.8	1450	2.7	768771
7687709471	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.97	1.4	800	1.9	768771
7687779471	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.35	0.37	3200	3	768771
7687789471	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687789xx_3d (rev1).pdf \| 743.2 KB IGS 7687789xx (rev1).igs \| 2.4 MB STP 7687789xx (rev1).stp \| 646.2 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.25	0.35	3500	4.9	768771
7687779561	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	0.33	0.35	3600	2.9	–
7687714681	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.55	0.61	2250	2	768771
7687709681	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.8	1.2	1150	1.5	768771
7687779681	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.3	0.3	4000	2.8	768771
7687789681	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687789xx_3d (rev1).pdf \| 743.2 KB IGS 7687789xx (rev1).igs \| 2.4 MB STP 7687789xx (rev1).stp \| 646.2 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.22	0.26	5200	3.5	768771
7687709821	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS 7687709xxx (rev1).igs \| 2.8 MB STP 7687709xxx (rev1).stp \| 705.1 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	0.76	1.1	1250	1.4	–
7687789821	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687789xx_3d (rev1).pdf \| 743.2 KB IGS 7687789xx (rev1).igs \| 2.4 MB STP 7687789xx (rev1).stp \| 646.2 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	0.18	0.23	8200	3.3	–
7687714102	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.4	0.55	3200	1.7	768771
7687709102	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.72	0.9	1400	1.2	768771
7687779102	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687779xxx_3d (rev1).pdf \| 226.8 KB IGS WE-PD_HV_7345_Plastic_HV (rev1).igs \| 1.9 MB STP WE-PD_HV_7345_Plastic_HV (rev1).stp \| 708 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.24	0.25	6000	2.3	768771
7687789102	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687789xx_3d (rev1).pdf \| 743.2 KB IGS 7687789xx (rev1).igs \| 2.4 MB STP 7687789xx (rev1).stp \| 646.2 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.17	0.2	9000	2.5	768771
7687714152	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	0.32	0.46	4600	1.4	768771
7687709152	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	0.52	0.8	2200	0.9	768771
7687714222	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687714xxx_3d (rev1).pdf \| 284.3 KB IGS WE-PD_HV_1060_Plastic (rev1).igs \| 2.7 MB STP WE-PD_HV_1060_Plastic (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	0.26	0.37	6500	1.2	768771
7687709222	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	0.43	0.65	3700	0.8	768771
7687709332	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3300	0.37	0.52	5200	0.6	768771
7687709472	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4700	0.3	0.48	7800	0.5	768771
7687709682	SPEC	10 files EDA models: Components ZIP ALT WE-PDHV (rev25a).IntLib \| 628 KB CDS Cadence_WE-PD HV (rev25a).zip \| 6.7 MB EAG Eagle_WE-PD HV (rev25a).lbr \| 51.2 KB KIC KiCad_WE-PDHV (rev25a).zip \| 1.1 MB ZUK Download_CadStar_WE-PD-HV (rev19b).zip \| 12.4 KB CAD files ZIP 3D 7687709xxx_3d (rev1).pdf \| 297.7 KB IGS WE-PD_HV_1210_Plastic (rev1).igs \| 2.6 MB STP WE-PD_HV_1210_Plastic (rev1).stp \| 1006.6 KB Electric models ZIP PSP PSpice_WE-PD HV (rev25a).zip \| 7.8 KB SCS Spectre_WE-PD HV (rev25a).mod \| 7.6 KB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6800	0.28	0.38	9600	0.45	–

Order Code	Datasheet	Simulation
7687779470	SPEC
7687714470	SPEC
7687714221	SPEC
7687709221	SPEC
7687779221	SPEC
7687714471	SPEC
7687709471	SPEC
7687779471	SPEC
7687789471	SPEC
7687779561	SPEC
7687714681	SPEC
7687709681	SPEC
7687779681	SPEC
7687789681	SPEC
7687709821	SPEC
7687789821	SPEC
7687714102	SPEC
7687709102	SPEC
7687779102	SPEC
7687789102	SPEC
7687714152	SPEC
7687709152	SPEC
7687714222	SPEC
7687709222	SPEC
7687709332	SPEC
7687709472	SPEC
7687709682	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	f_res (MHz)	Design Kit	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Learn more

Schematic representations of the REDEXPERT loss simulator

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Single Inductor High Voltage WE-PD HV, WE-PD2 HV, WE-TI HV

Comments

The ambient temperature when operating the WE-PD HV series of storage chokes at full current rating load should generally range from –40 °C to +85 °C.
The self-heating of the component must be taken into account at higher ambient temperatures in order that the permissible solder joint temperature is not exceeded or the wire insulation damaged.
The wire used can withstand a temperature of up to +180 °C.
The ferrite core itself may be used over a far greater temperature range (approx. –50 °C to +250 °C (curie temperature)).
However, in this case, the tolerance limits of the inductor may be exceeded due to the temperature dependence of permeability.
