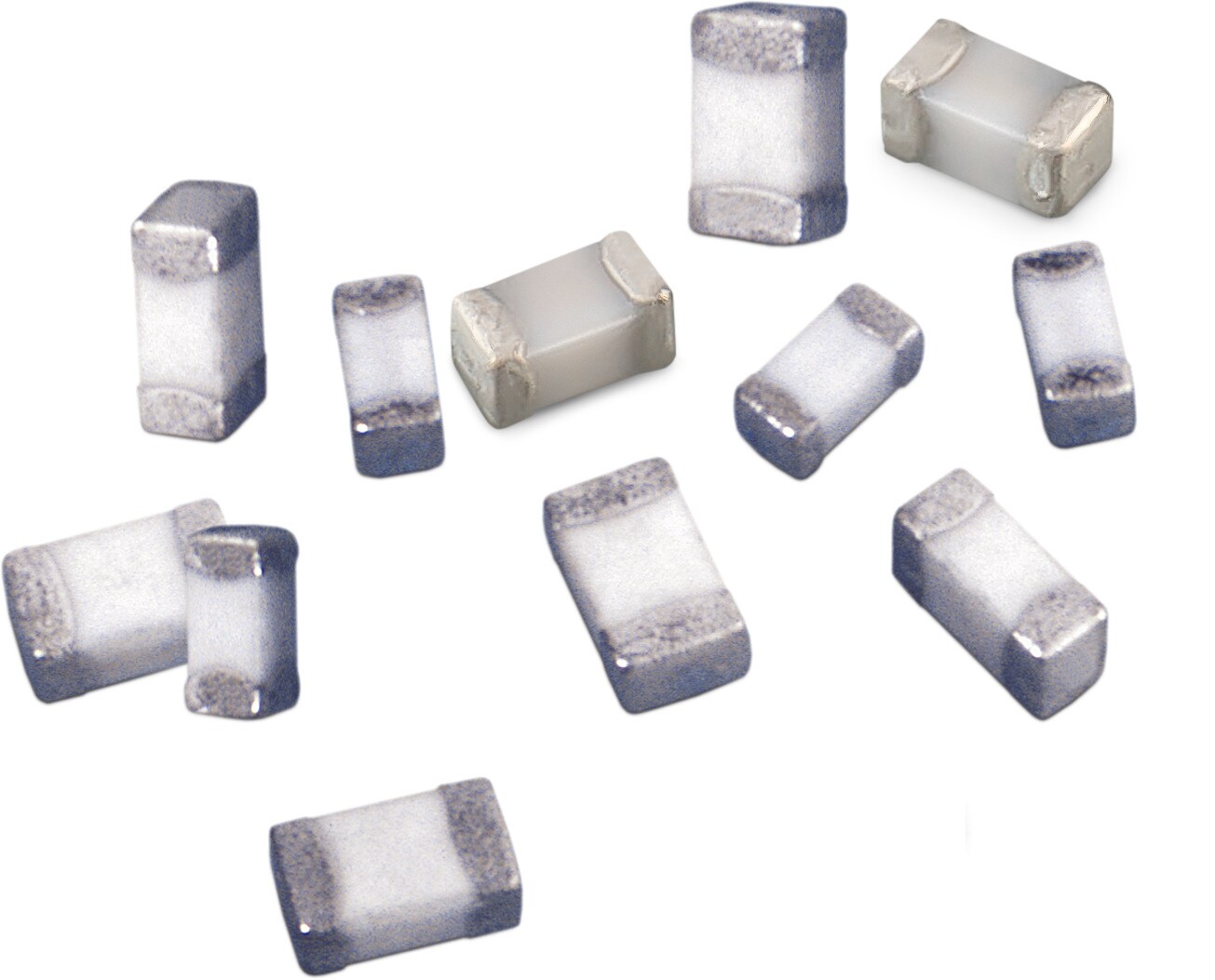

WE-MK Multilayer Ceramic SMT Inductor EXTENDED

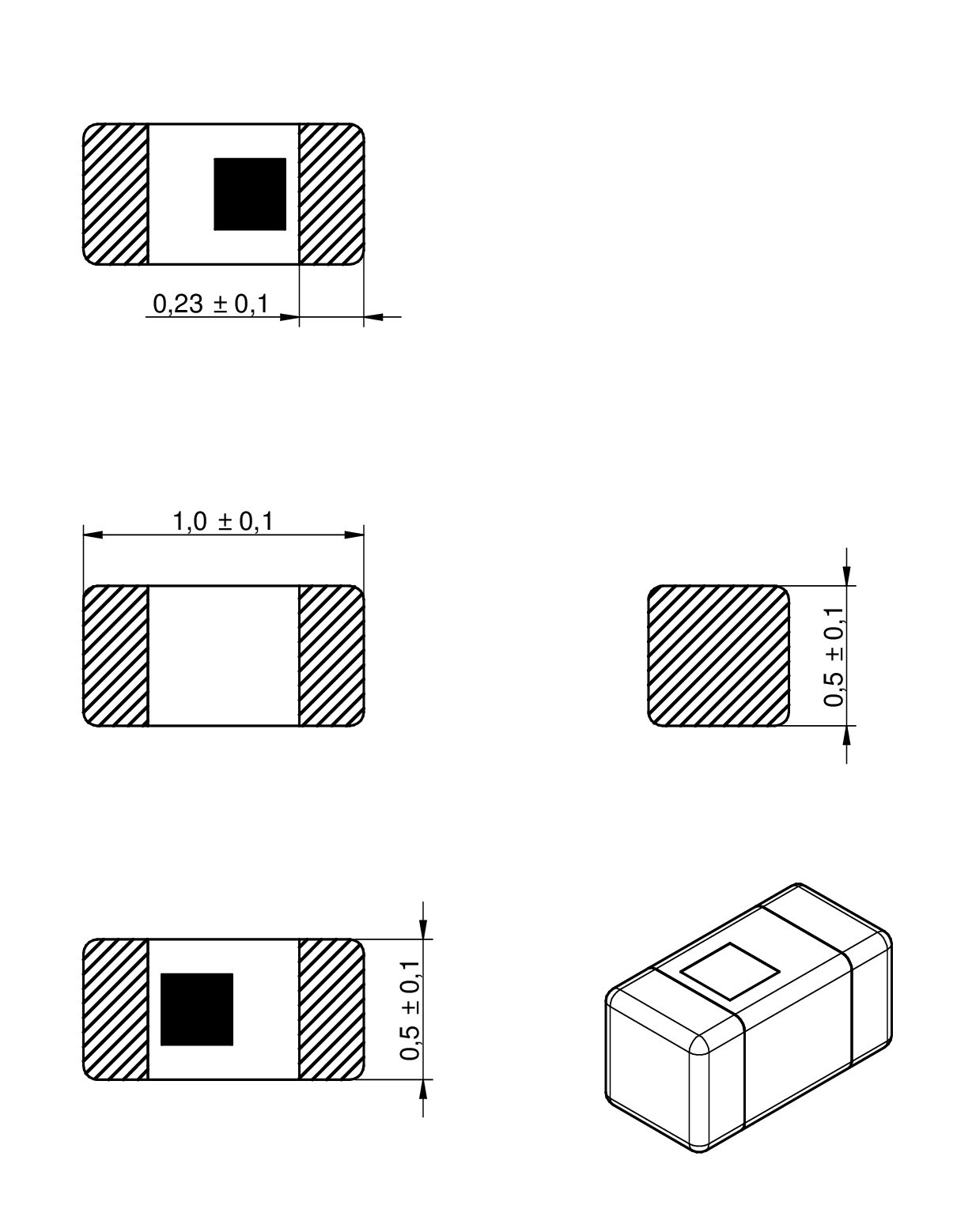

  Size L
(mm)
W
(mm)
H
(mm)
Mount

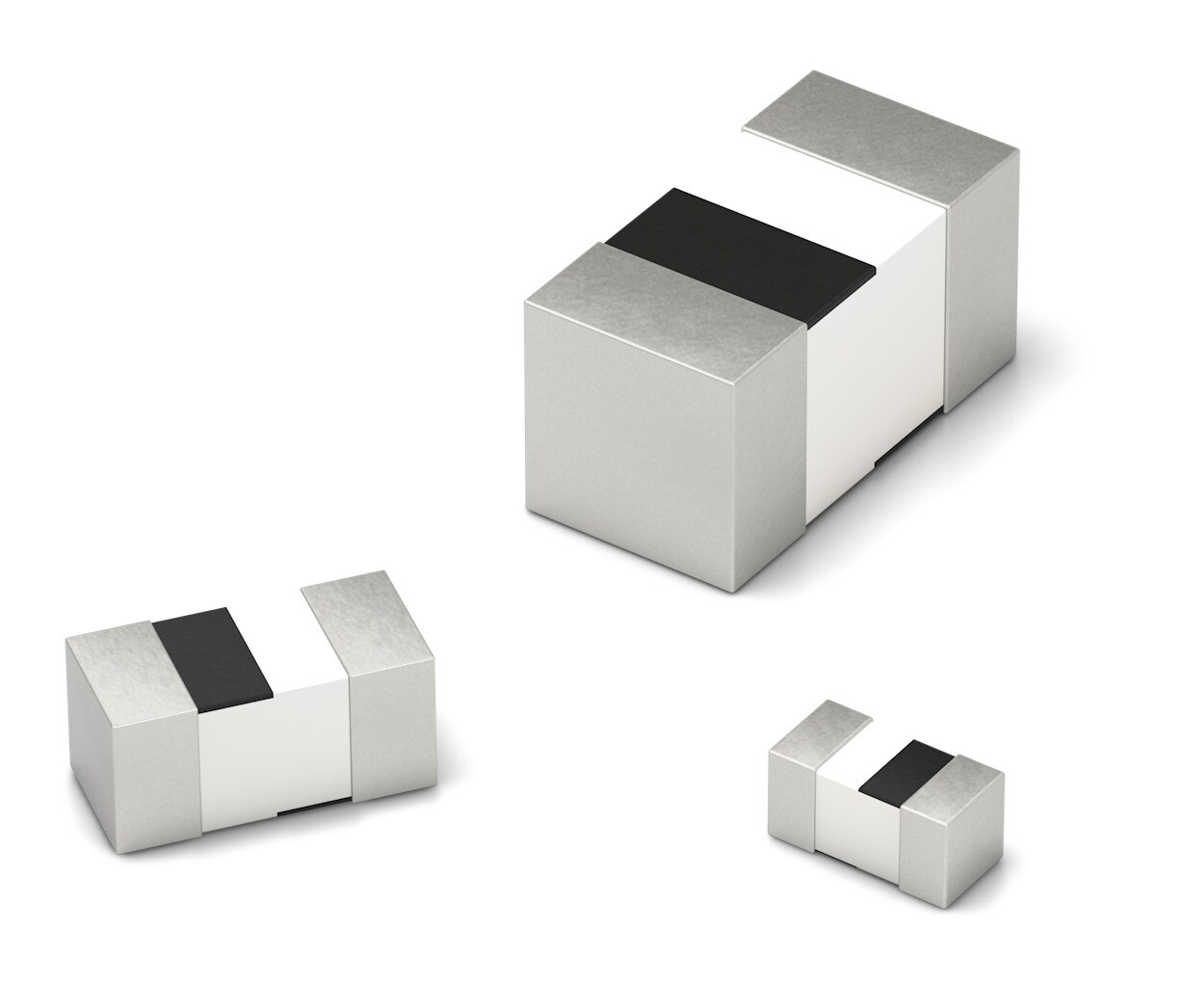

EXT. 0201 0.6 0.3 0.3 SMT
EXT. 0402 1 0.5 0.5 SMT
EXT. 0603 1.6 0.8 0.8 SMT

Characteristics

  • Coil integrated in a multilayer ceramic structure
  • All inductors with polarity marking
  • High self resonant frequency
  • Inductive tolerances of 5%; ± 0.3 nH
  • Operating temperature: –55°C to +125°C
  • Inductance very stable over temperature
  • Recommended solder profile: Reflow

Applications

  • High frequency circuits
  • Bluetooth
  • Wireless LAN
  • Filter circuits
  • Oscillators
  • Pagers
  • Laptops
  • PCMCIA-cards

Modelithics Simulation Models

Incorporate this part into your design with Modelithics’ highly accurate measurement-based simulation models. Request a 90-day FREE trail! Modelithics libraries are available for Keysight Technologies’ Advanced Design System (ADS), NI/AWR Design Environment/Microwave Office™, Keysight Technologies’ Gensys, ASYSS® HFSS™, Sonnet® and Cadence.

Request a FREE 90-Day Trial!

Products

All
0201
0402
0603
Order Code Data­sheet Simu­lation Downloads L
(nH)
Tol. L TC L Qmin. TC Q RDC max.
(Ω)
IR
(mA)
fres
(MHz)
Samples
NEW 7447840010
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1 ±0.3nH 100 MHz 8 100 MHz 0.1 300 8000
NEW 7447820010
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1 ±0.3nH 100 MHz 4 100 MHz 0.11 470 10000
NEW 7447860010
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1 ±0.3nH 100 MHz 8 100 MHz 0.05 300 10000
NEW 7447840012
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.2 ±0.3nH 100 MHz 8 100 MHz 0.1 300 8000
NEW 7447820012
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.2 ±0.3nH 100 MHz 4 100 MHz 0.12 450 10000
NEW 7447860012
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.2 ±0.3nH 100 MHz 8 100 MHz 0.05 300 10000
NEW 7447840015
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.5 ±0.3nH 100 MHz 8 100 MHz 0.1 300 8000
NEW 7447820015
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.5 ±0.3nH 100 MHz 4 100 MHz 0.13 430 10000
NEW 7447860015
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.5 ±0.3nH 100 MHz 8 100 MHz 0.1 300 6000
NEW 7447840018
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.8 ±0.3nH 100 MHz 8 100 MHz 0.1 300 6000
NEW 7447820018
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.8 ±0.3nH 100 MHz 4 100 MHz 0.16 390 10000
NEW 7447860018
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 1.8 ±0.3nH 100 MHz 8 100 MHz 0.2 300 6000
NEW 7447840020
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2 ±0.3nH 100 MHz 8 100 MHz 0.12 300 6000
NEW 7447820020
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2 ±0.3nH 100 MHz 4 100 MHz 0.17 380 8800
NEW 7447820022
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.2 ±0.3nH 100 MHz 4 100 MHz 0.19 360 8800
7447840022
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.2 ±0.3nH 100 MHz 8 100 MHz 0.15 300 6000
NEW 7447860022
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.2 ±0.3nH 100 MHz 8 100 MHz 0.1 300 6000
NEW 7447820024
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.4 ±0.3nH 100 MHz 4 100 MHz 0.2 350 8300
NEW 7447820027
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.7 ±0.3nH 100 MHz 4 100 MHz 0.21 340 7700
NEW 7447840027
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.7 ±0.3nH 100 MHz 8 100 MHz 0.17 300 6000
NEW 7447860027
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 2.7 ±0.3nH 100 MHz 10 100 MHz 0.1 300 6000
NEW 7447820030
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3 ±0.3nH 100 MHz 4 100 MHz 0.22 330 7200
NEW 7447840030
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3 ±0.3nH 100 MHz 8 100 MHz 0.18 300 6000
NEW 7447820033
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.3 ±0.3nH 100 MHz 4 100 MHz 0.23 320 6700
NEW 7447840033
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.3 ±0.3nH 100 MHz 8 100 MHz 0.19 300 6000
NEW 7447860033
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.3 ±0.3nH 100 MHz 10 100 MHz 0.12 300 6000
NEW 7447820036
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.6 ±0.3nH 100 MHz 4 100 MHz 0.25 310 6400
NEW 7447820039
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.9 ±0.3nH 100 MHz 4 100 MHz 0.27 300 6000
NEW 7447840039
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.9 ±0.3nH 100 MHz 8 100 MHz 0.19 300 6000
NEW 7447860039
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 3.9 ±0.3nH 100 MHz 10 100 MHz 0.14 300 6000
NEW 7447820043
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 4.3 ±0.3nH 100 MHz 4 100 MHz 0.3 280 5700
NEW 7447820047
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 4.7 ±0.3nH 100 MHz 4 100 MHz 0.3 280 5300
NEW 7447840047
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 4.7 ±0.3nH 100 MHz 8 100 MHz 0.23 300 6000
NEW 7447860047
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 4.7 ±0.3nH 100 MHz 10 100 MHz 0.16 300 4000
NEW 7447820051
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 5.1 ±0.3nH 100 MHz 4 100 MHz 0.33 270 5000
NEW 7447820056
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 5.6 ±0.3nH 100 MHz 4 100 MHz 0.36 260 4600
NEW 7447840056
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 5.6 ±0.3nH 100 MHz 8 100 MHz 0.26 300 5300
NEW 7447860056
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 5.6 ±0.3nH 100 MHz 10 100 MHz 0.18 300 4000
NEW 7447820062
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 6.2 ±0.3nH 100 MHz 4 100 MHz 0.38 250 4200
NEW 7447820068
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 6.8 ±5% 100 MHz 4 100 MHz 0.39 250 3900
NEW 7447840068
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 6.8 ±5% 100 MHz 8 100 MHz 0.29 300 4200
NEW 7447860068
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 6.8 ±5% 100 MHz 10 100 MHz 0.22 300 4000
NEW 7447820075
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 7.5 ±5% 100 MHz 4 100 MHz 0.41 240 3600
NEW 7447840075
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 7.5 ±5% 100 MHz 8 100 MHz 0.31 300 4200
NEW 7447820082
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 8.2 ±5% 100 MHz 4 100 MHz 0.45 230 3400
NEW 7447840082
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 8.2 ±5% 100 MHz 8 100 MHz 0.33 300 3600
NEW 7447860082
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 8.2 ±5% 100 MHz 10 100 MHz 0.24 300 3500
NEW 7447820091
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 9.1 ±5% 100 MHz 4 100 MHz 0.48 220 3200
NEW 7447820110
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 10 ±5% 100 MHz 4 100 MHz 0.51 220 2900
NEW 7447840110
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 10 ±5% 100 MHz 8 100 MHz 0.35 300 3200
NEW 7447860110
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 10 ±5% 100 MHz 12 100 MHz 0.26 300 3400
NEW 7447820112
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 12 ±5% 100 MHz 4 100 MHz 0.68 190 2700
NEW 7447840112
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 12 ±5% 100 MHz 8 100 MHz 0.41 300 2800
NEW 7447860112
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 12 ±5% 100 MHz 12 100 MHz 0.28 300 2600
NEW 7447820115
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 15 ±5% 100 MHz 4 100 MHz 0.71 180 0.0023
NEW 7447840115
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 15 ±5% 100 MHz 8 100 MHz 0.46 300 2300
NEW 7447860115
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 15 ±5% 100 MHz 12 100 MHz 0.32 300 2300
7447860118
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 18 ±5% 100 MHz 12 100 MHz 0.35 300 2000
7447820118
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 18 ±5% 100 MHz 4 100 MHz 0.81 170 2100
NEW 7447840118
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 18 ±5% 100 MHz 8 100 MHz 0.51 300 2100
NEW 7447820122
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 22 ±5% 100 MHz 4 100 MHz 1 150 1800
NEW 7447840122
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 22 ±5% 100 MHz 8 100 MHz 0.58 300 1800
NEW 7447860122
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 22 ±5% 100 MHz 12 100 MHz 0.4 300 1600
7447820127
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 27 ±5% 100 MHz 4 100 MHz 1.35 120 1800
NEW 7447840127
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 27 ±5% 100 MHz 8 100 MHz 0.67 300 1600
NEW 7447860127
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 27 ±5% 100 MHz 12 100 MHz 0.45 300 1400
NEW 7447840133
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 33 ±5% 100 MHz 8 100 MHz 0.67 200 1500
NEW 7447860133
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 33 ±5% 100 MHz 12 100 MHz 0.55 300 1200
NEW 7447840139
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 39 ±5% 100 MHz 8 100 MHz 1.06 200 1200
NEW 7447860139
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 39 ±5% 100 MHz 12 100 MHz 0.6 300 1100
NEW 7447840147
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 47 ±5% 100 MHz 8 100 MHz 1.15 200 1000
NEW 7447860147
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 47 ±5% 100 MHz 12 100 MHz 0.7 300 900
NEW 7447840156
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 56 ±5% 100 MHz 8 100 MHz 1.2 200 800
NEW 7447860156
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 56 ±5% 100 MHz 12 100 MHz 0.75 300 900
NEW 7447840168
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 68 ±5% 100 MHz 8 100 MHz 1.25 180 800
NEW 7447860168
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 68 ±5% 100 MHz 12 100 MHz 0.85 300 700
NEW 7447840182
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 82 ±5% 100 MHz 8 100 MHz 1.6 150 600
NEW 7447860182
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 82 ±5% 100 MHz 12 100 MHz 0.95 300 600
NEW 7447840210
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 100 ±5% 100 MHz 8 100 MHz 1.6 150 600
NEW 7447860210
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 100 ±5% 100 MHz 12 100 MHz 1 300 600
NEW 7447840212
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 120 ±5% 100 MHz 8 100 MHz 1.6 150 600
NEW 7447860212
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 120 ±5% 50 MHz 8 50 MHz 1.2 300 500
NEW 7447840215
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 150 ±5% 100 MHz 8 100 MHz 2.99 140 500
NEW 7447860215
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 150 ±5% 50 MHz 8 50 MHz 1.2 300 500
NEW 7447840218
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 180 ±5% 100 MHz 8 100 MHz 3.38 150 500
NEW 7447860218
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 180 ±5% 50 MHz 8 50 MHz 1.3 300 400
NEW 7447840222
STE ALT EAG CAD LTS PSP CAD IGS SPA MDL 220 ±5% 100 MHz 8 100 MHz 3.77 120 500
NEW 7447860222
