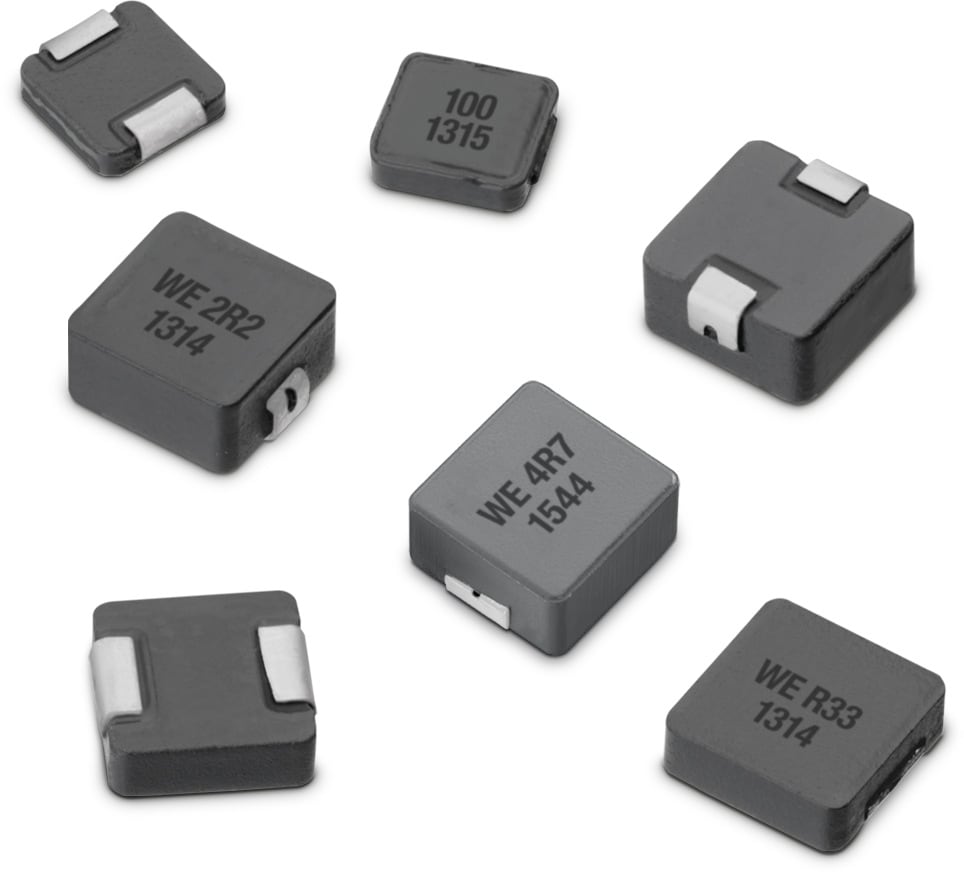

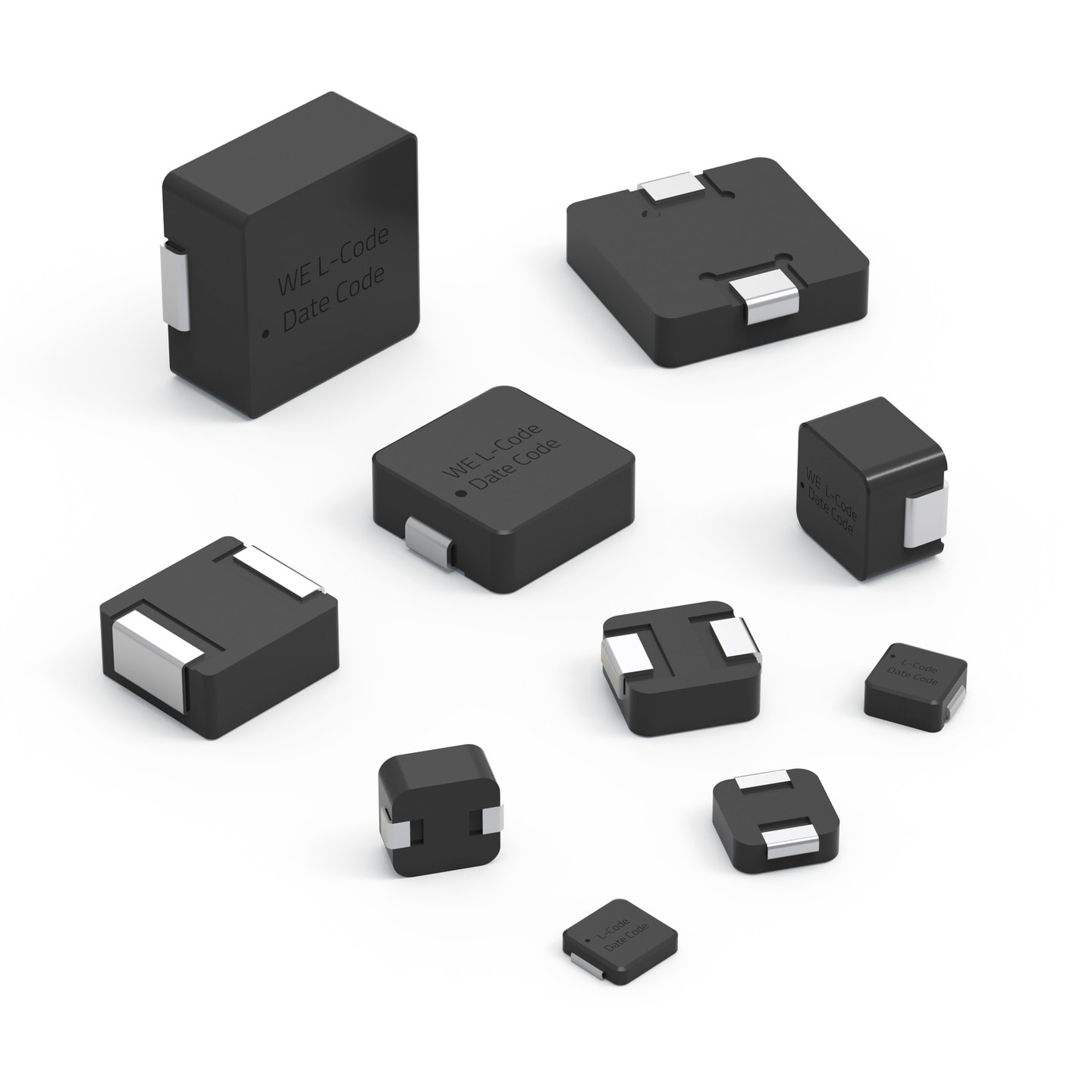

WE-LHMI SMT Power Inductor EXTENDED

Shielded

 Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

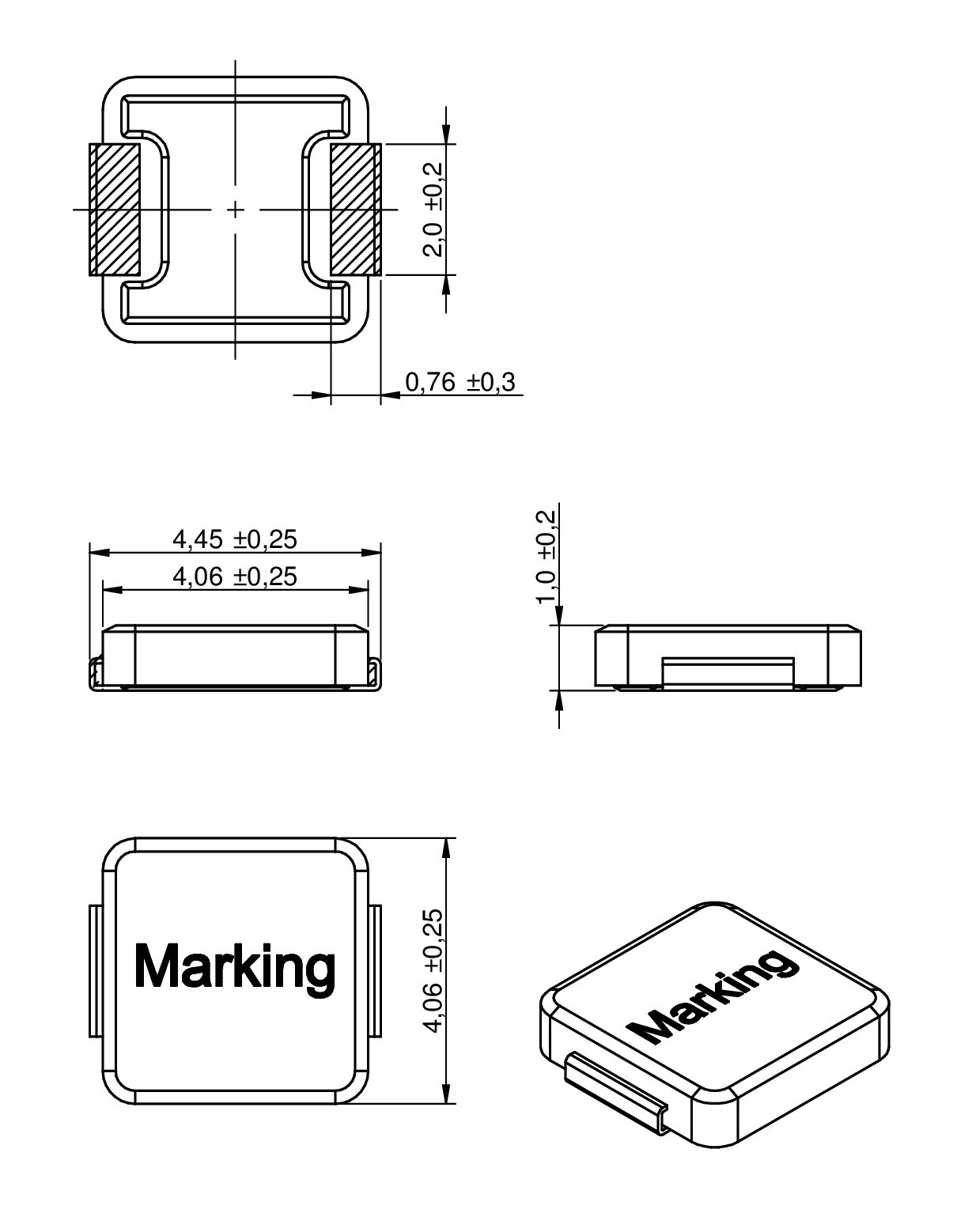

4012 4.45 4.06 1 SMT

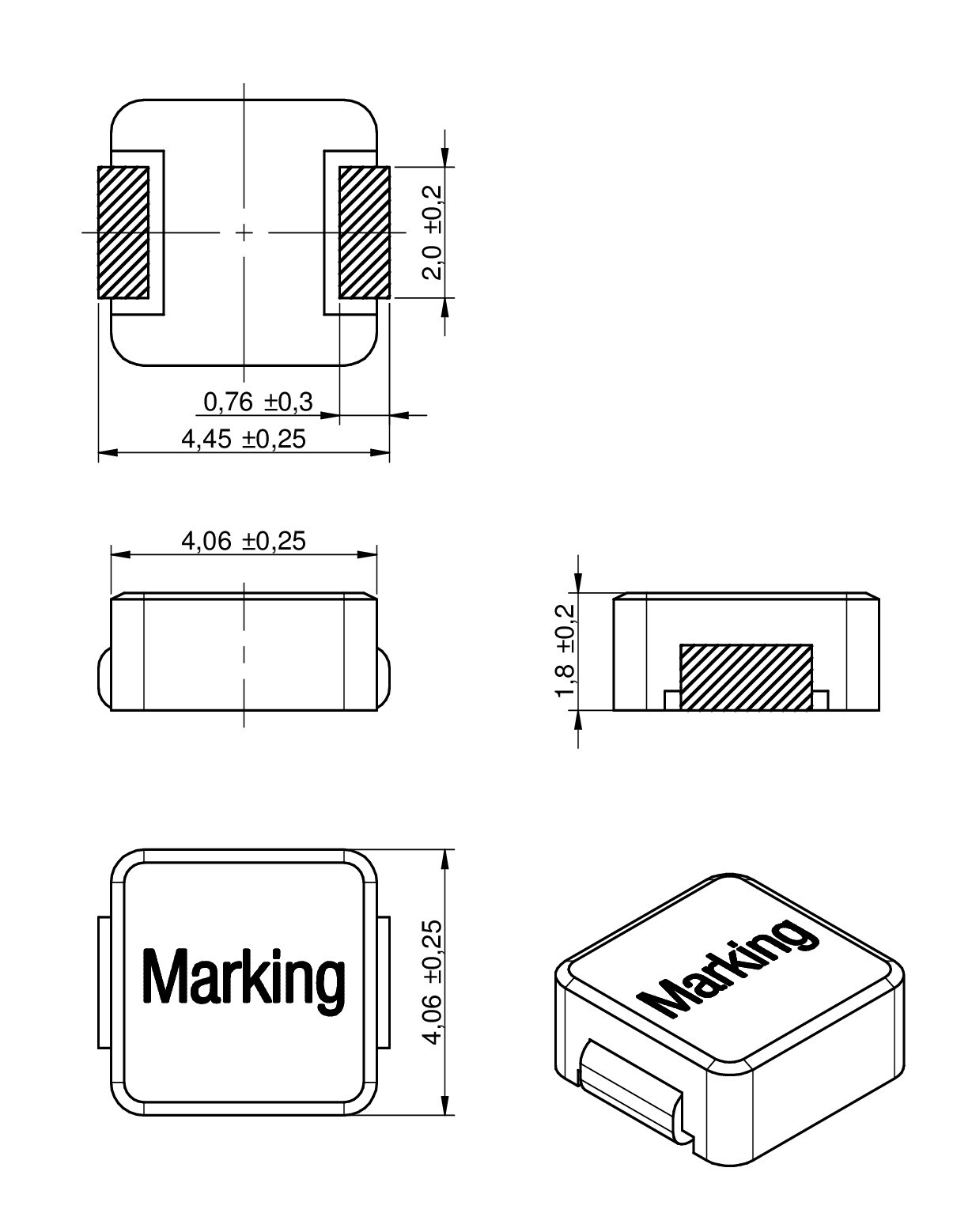

4020 4.45 4.06 1.8 SMT
NEW 4020 HT 4.45 4.06 1.8 SMT

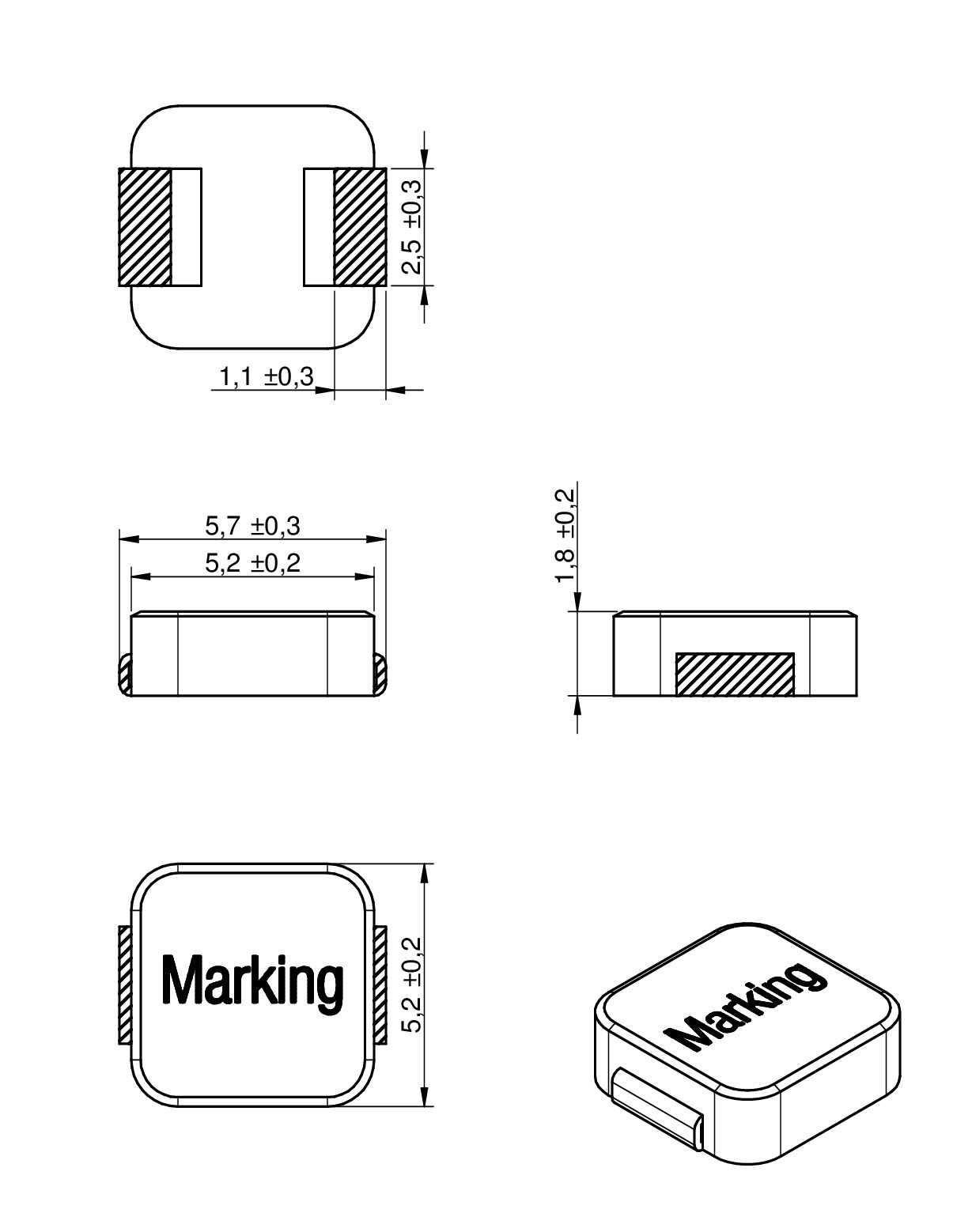

5020 5.7 5.2 1.8 SMT
NEW 5020 HT 5.7 5.2 1.8 SMT

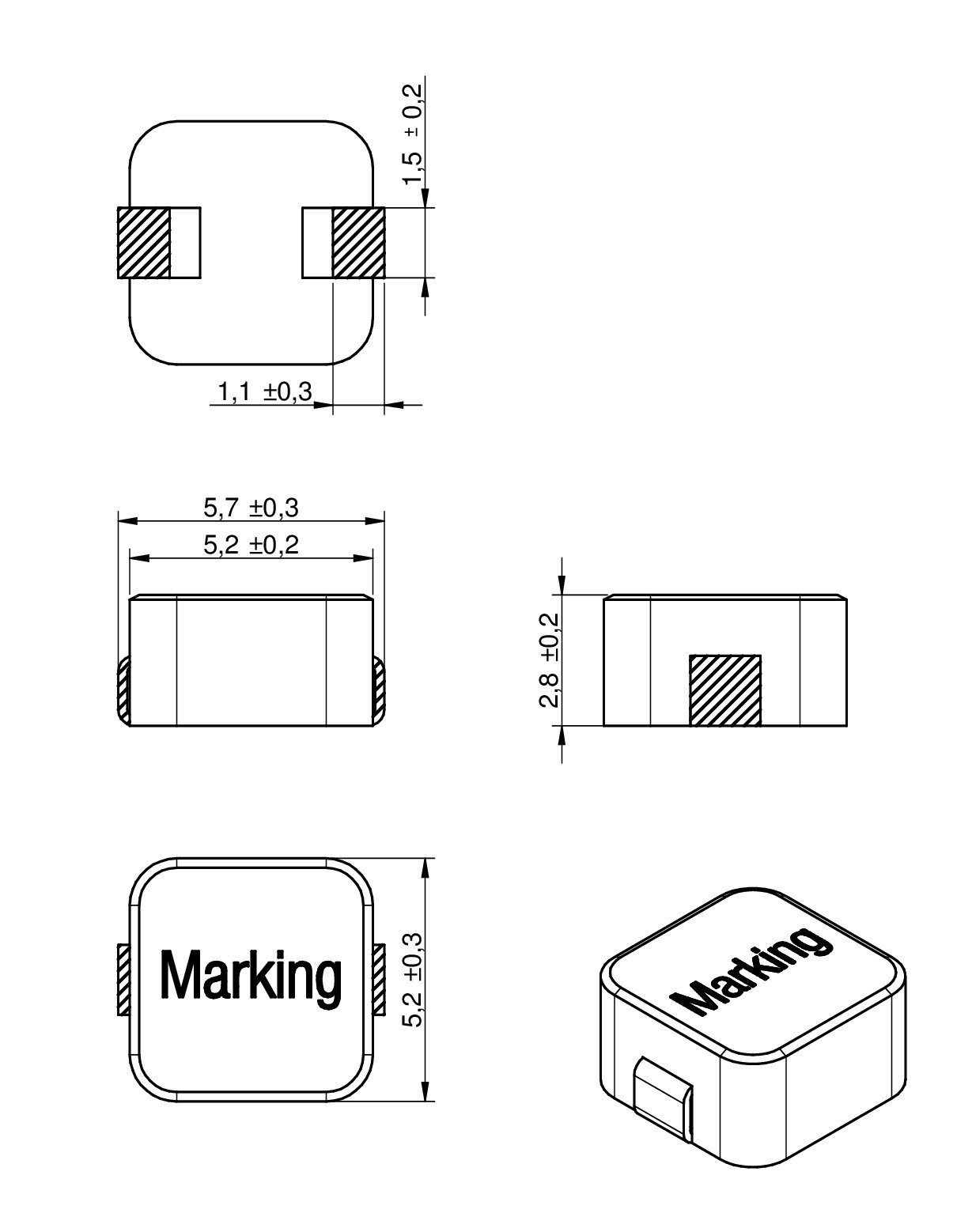

5030 5.7 5.2 2.8 SMT

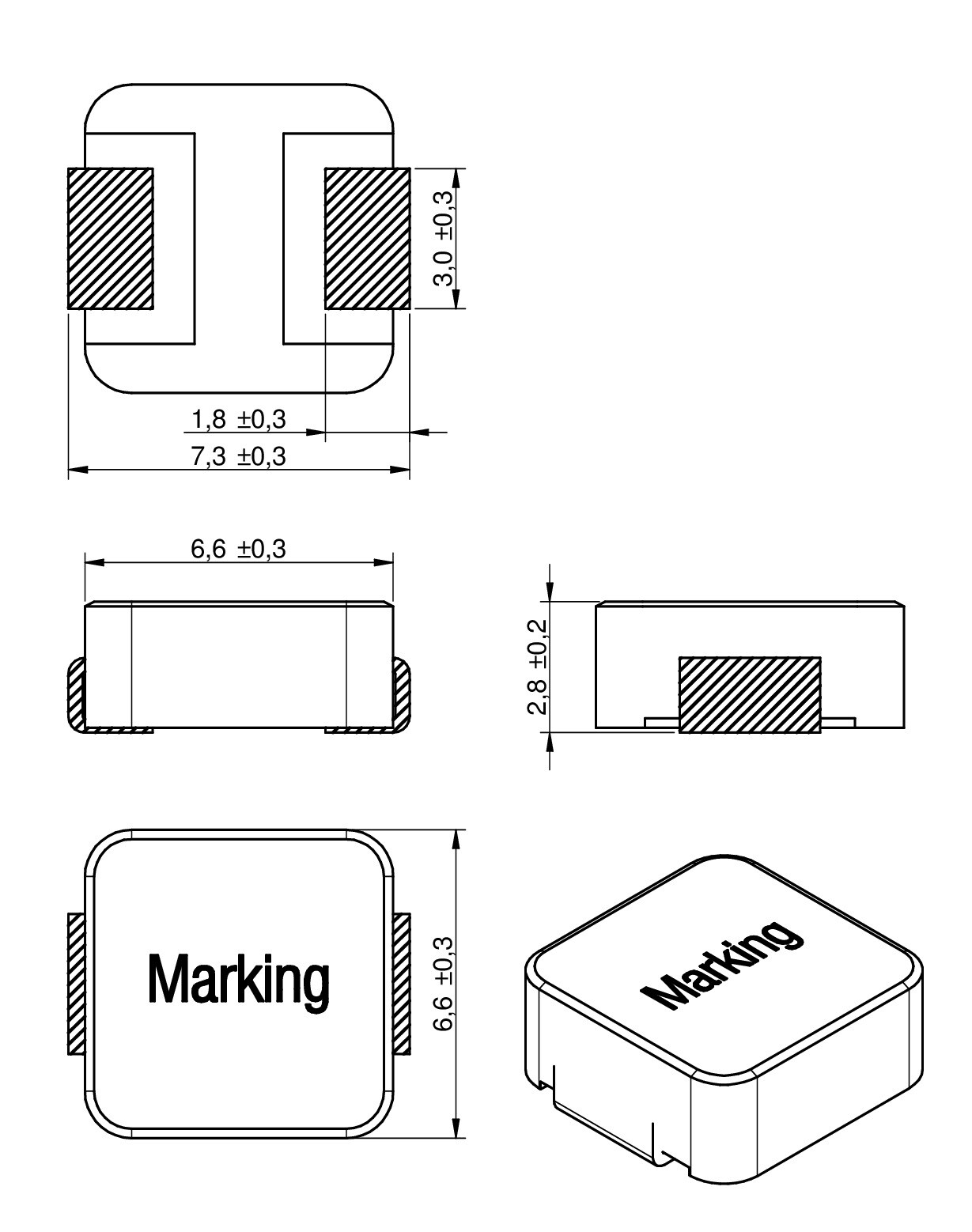

7030 7.3 6.6 2.8 SMT
NEW 7030 HT 7.3 6.6 2.8 SMT

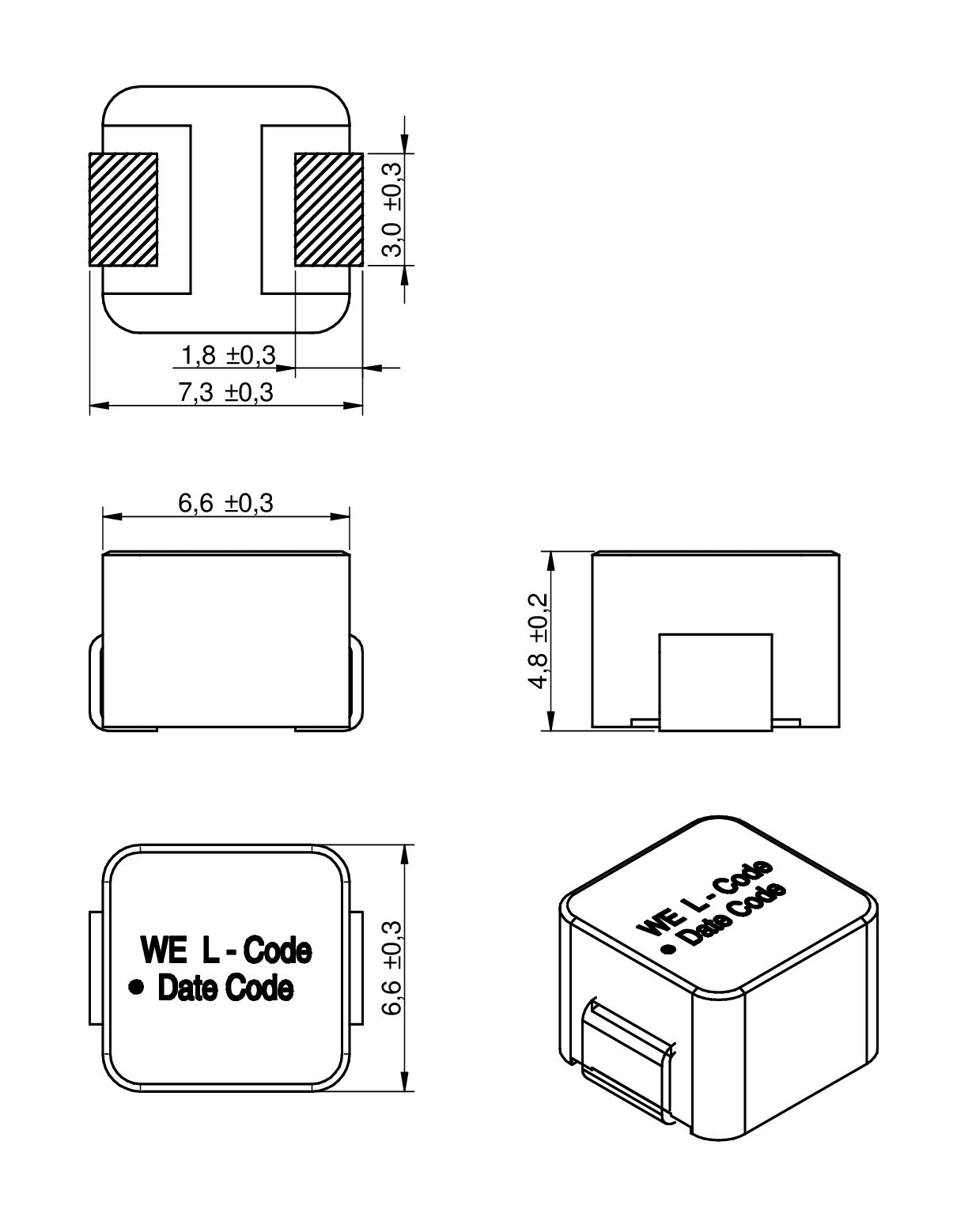

7050 7.3 6.6 4.8 SMT
NEW 7050 HT 7.3 6.6 4.8 SMT

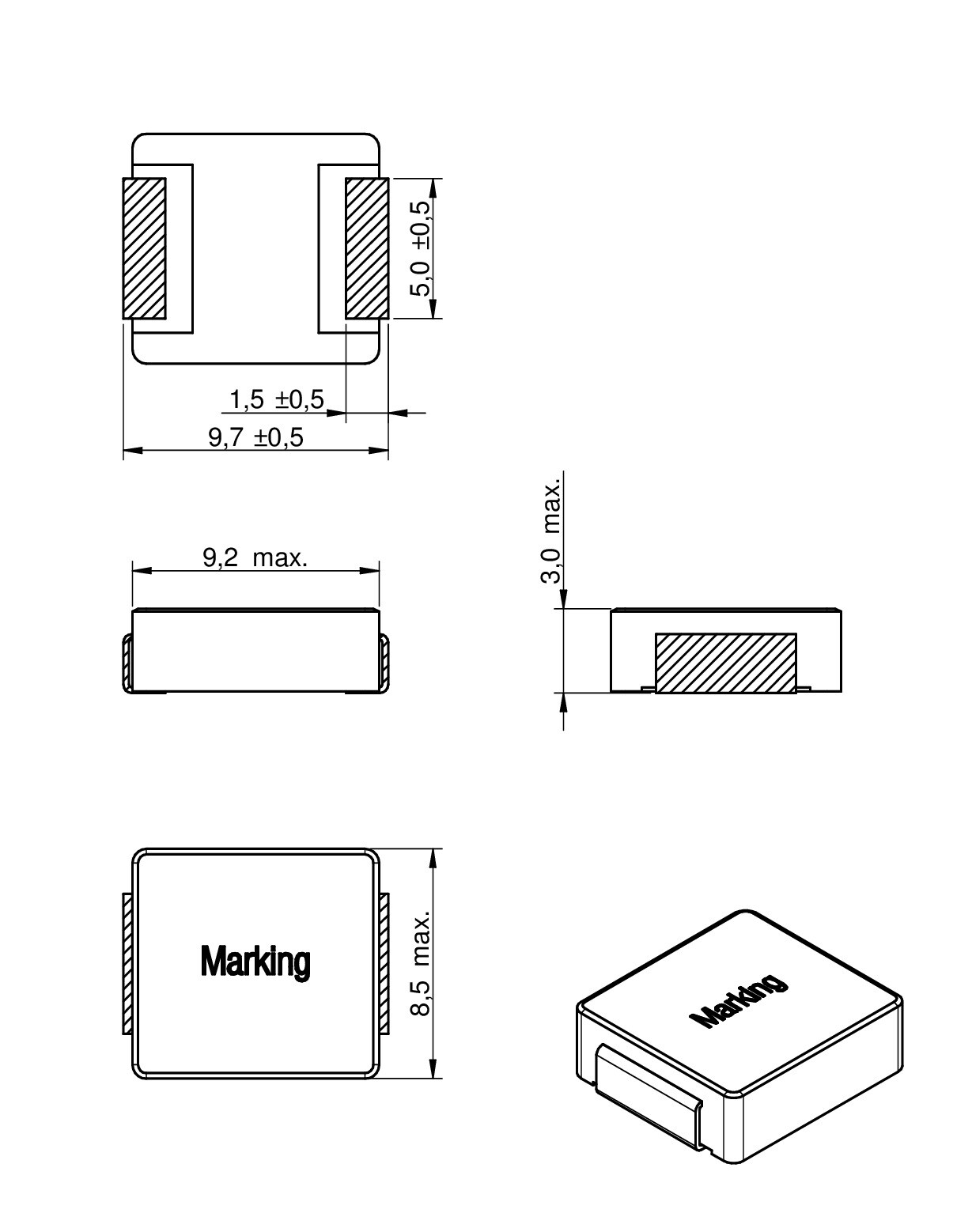

8030 9.7 8.5 3 SMT

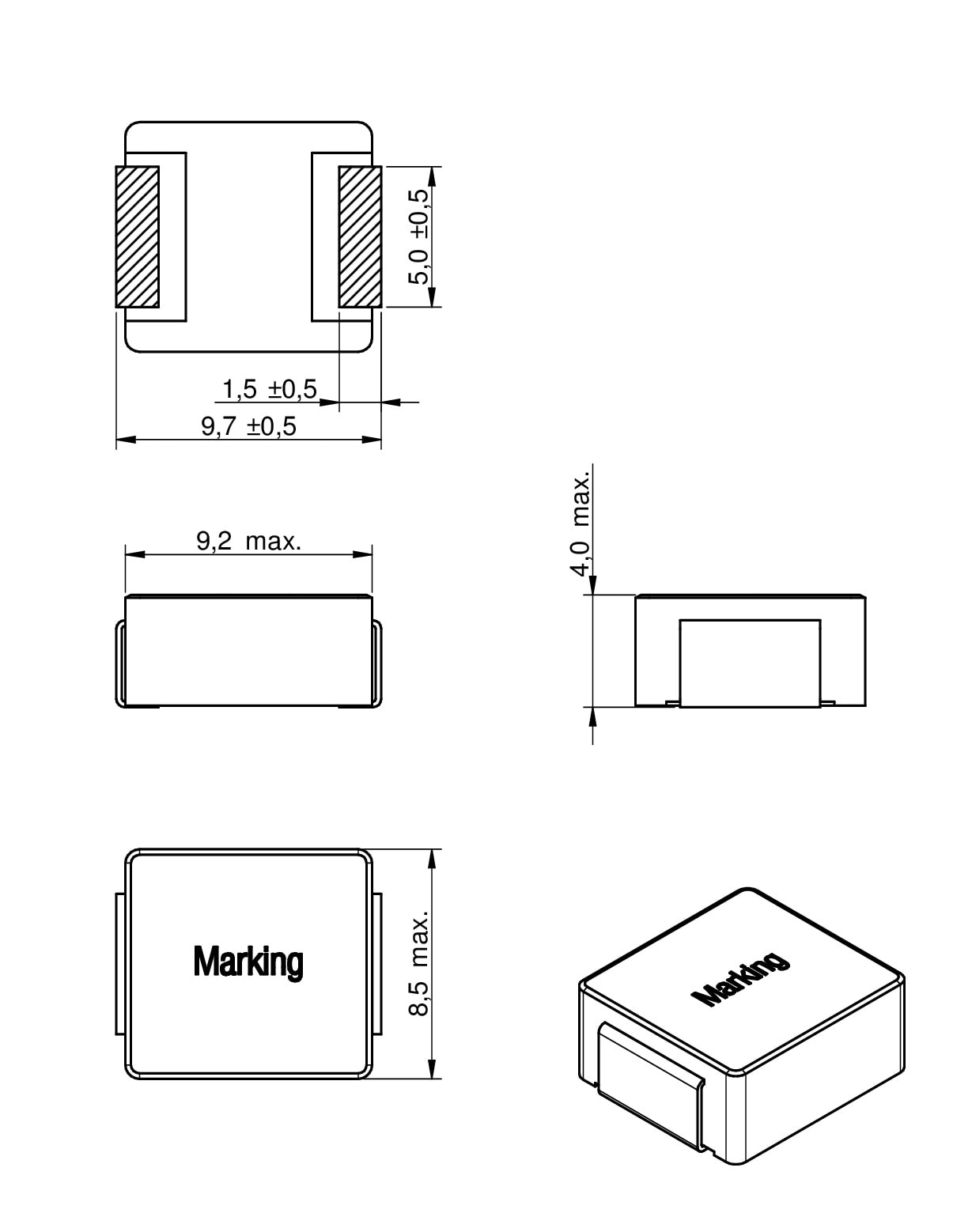

8040 9.7 8.5 4 SMT

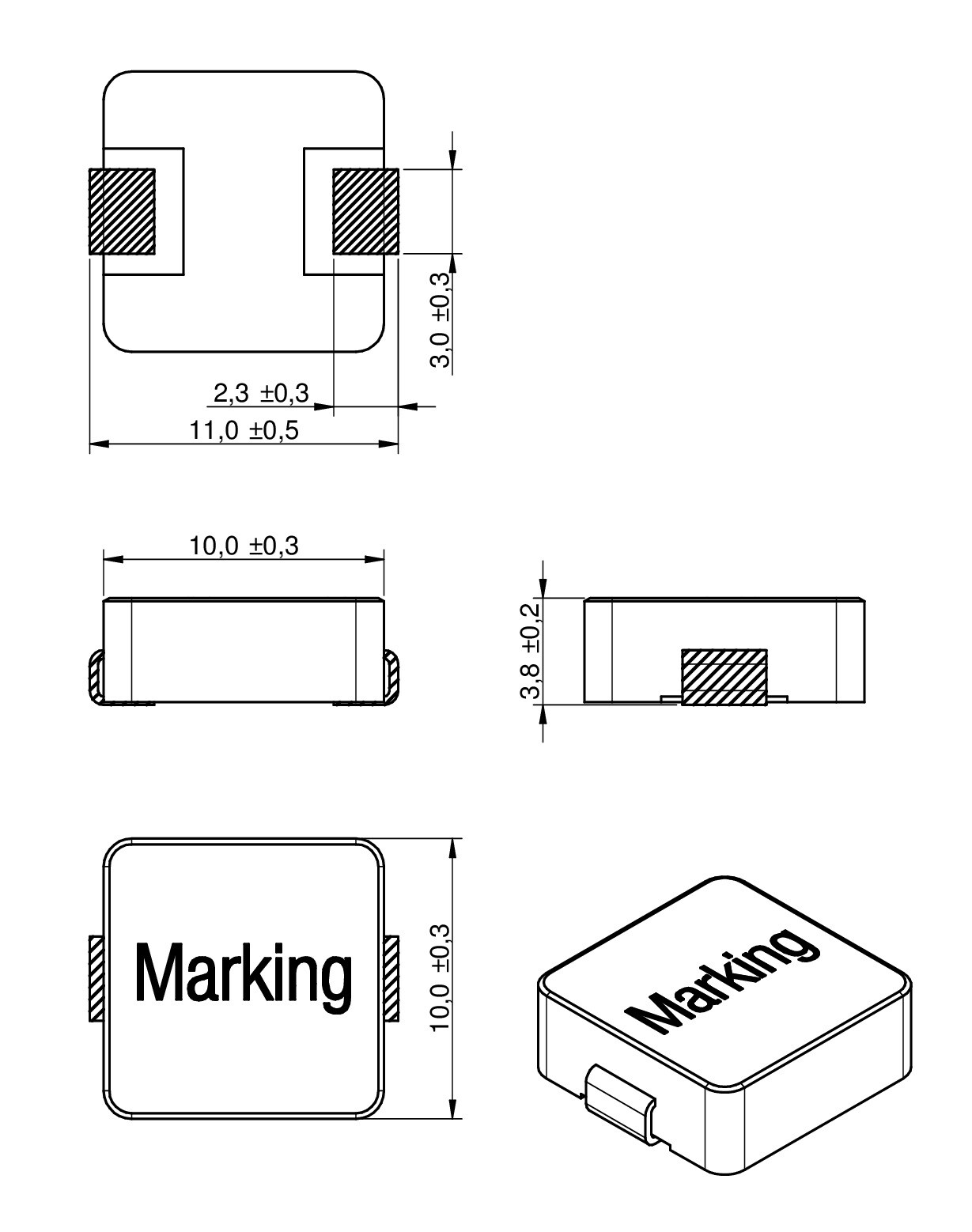

1040 11 10 3.8 SMT

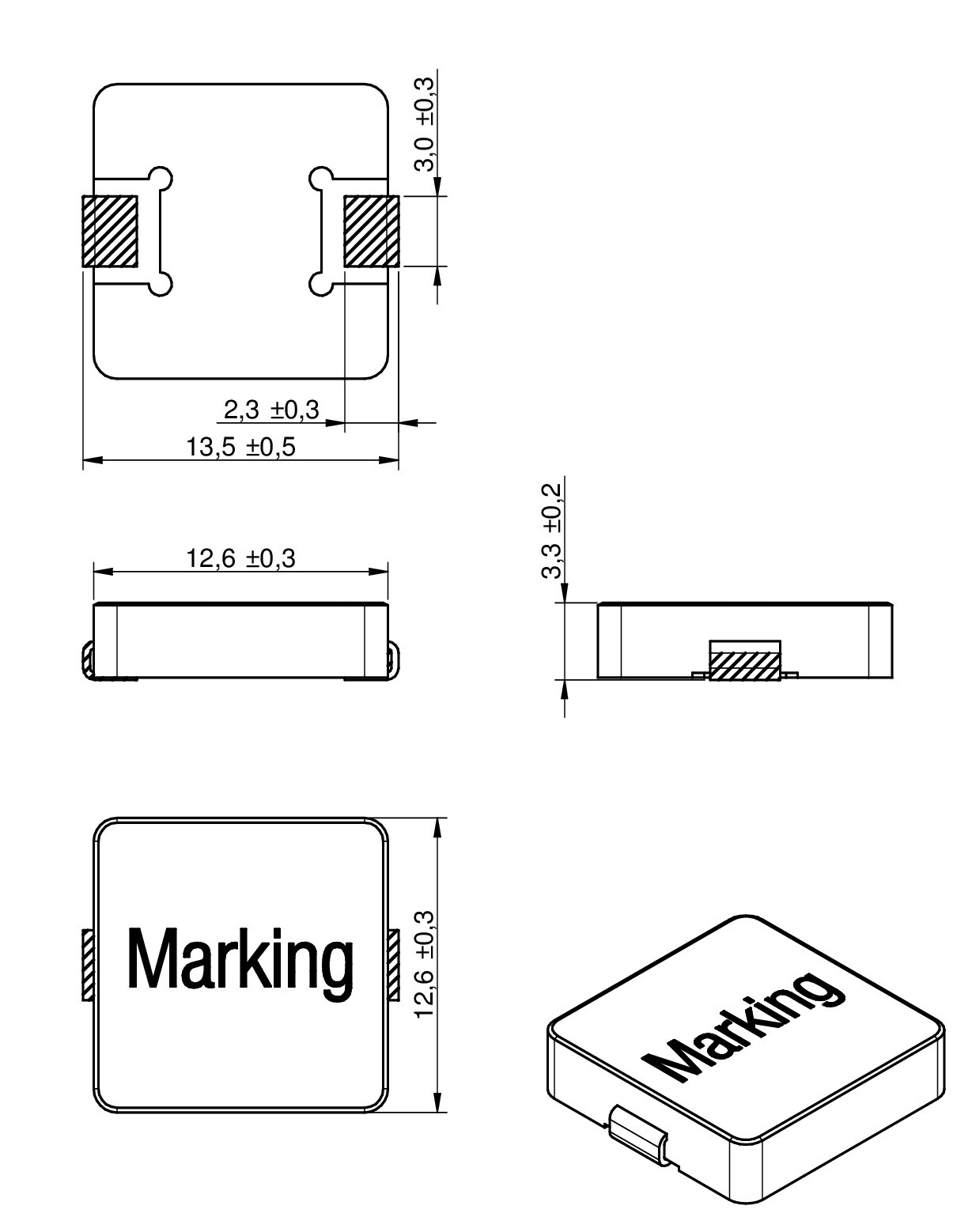

1335 13.5 12.6 3.3 SMT

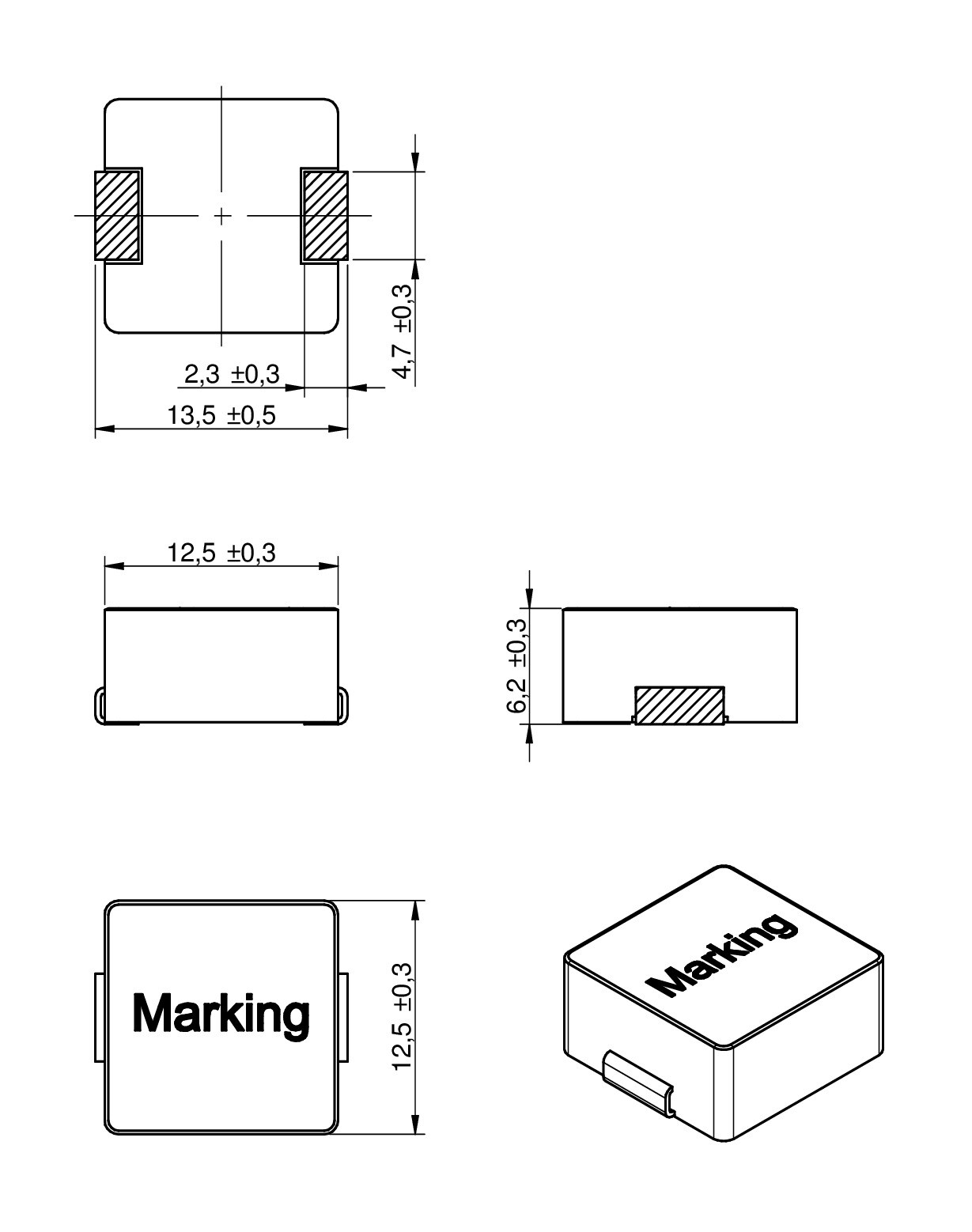

1365 13.65 12.5 6.2 SMT

Characteristics

  • Compact Design
  • Magnetically shielded
  • High current capability
  • Handles high transient current spikes
  • No acoustic noise and no leakage field
  • Operating temperature: -40°C to +125°C

WE-LHMI Sizes 4020HT 520HT 7030HT 7050HT

  • High Temperature Series with operating temperature from -55 °C to +150 °C
  • Designed to avoid thermal aging degradation

Applications

  • DC/DC Converters for high current power supplies
  • DC/DC Converters for Field Programmable Gate Arrays (FPGA)
  • POL Converters
  • Portable power like PDA, digital camera
  • Mainboards/ graphic cards
  • CPU/ RAM
  • Battery powered devices

Products

All
4012
4020
4020 HT
5020
5020 HT
5030
7030
7030 HT
7050
7050 HT
8030
8040
1040
1335
1365
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT,10%
(A)
ISAT,30%
(A)
RDC max.
(mΩ)
fres
(MHz)
MountDesign Kit Samples
744373210010SPEC
8 files 0.1 14.1 16.1 29.6 5.5 365 SMT7443732
744373240010SPEC
8 files 0.1 16.5 20.9 37.6 4 323 SMT7443732
744373210022SPEC
8 files 0.22 11.4 11.1 21.5 8 230 SMT7443732
744373240022SPEC
8 files 0.22 11.4 10.8 22.3 7.3 195 SMT7443732
744373460022SPEC
8 files 0.22 23 29.9 54.3 2.8 149 SMT7443734
744373560022SPEC
8 files 0.22 29.5 32.1 63.4 1.61 110 SMT
744373580022SPEC
8 files 0.22 38.5 38.3 80.4 1.35 145 SMT
744373680022SPEC
8 files 0.22 41.4 46 94.2 1 153 SMT7443736
744373770022SPEC
8 files 0.22 45 23.9 57.4 0.9 130 SMT7443736
7443739650022SPEC
8 files 0.22 54.9 81.5 120 0.6 112.3 SMT
744373240033SPEC
8 files 0.33 10.5 11.2 22 8.6 143 SMT7443732
744373340033SPEC
8 files 0.33 12.4 14.7 29.3 7.3 100 SMT7443735
744373360033SPEC
8 files 0.33 15.1 15 29.3 5 120 SMT7443735
744373460033SPEC
8 files 0.33 17.8 27.1 47 3.9 124 SMT7443734
744373560033SPEC
8 files 0.33 24.8 26.2 51.9 2.57 95 SMT
744373580033SPEC
8 files 0.33 29.7 31.4 67.2 2.15 96 SMT
744373770033SPEC
8 files 0.33 41.6 23.9 65.5 1.05 84 SMT7443736
7443739650033SPEC
8 files 0.33 49 57.5 108.6 0.8 74.7 SMT
744373680036SPEC
8 files 0.36 36.2 44.5 79.4 1.2 104 SMT7443736
744373680039SPEC
8 files 0.39 35.3 43 77.5 1.3 101 SMT7443736
744373680045SPEC
8 files 0.45 32.6 34.9 64.5 1.5 82 SMT7443736
744373210047SPEC
8 files 0.47 6.9 6.8 12.5 20 120 SMT7443732
744373240047SPEC
8 files 0.47 8.7 10.4 19.6 14 122 SMT7443732
744373340047SPEC
8 files 0.47 11.5 9.6 19.8 8.6 95 SMT7443735
744373360047SPEC
8 files 0.47 12.3 10.8 21.5 7.4 100 SMT7443735
744373460047SPEC
8 files 0.47 16.6 21.4 37.8 4.2 91 SMT7443734
744373490047SPEC
8 files 0.47 17.8 20 41.6 3.9 96 SMT7443734
744373560047SPEC
8 files 0.47 23.2 22 44.7 3.33 72 SMT
744373580047SPEC
8 files 0.47 27.6 27.1 56.8 2.38 82 SMT
744373770047SPEC
8 files 0.47 33.8 17.2 40.2 1.6 77 SMT7443736
7443739650047SPEC
8 files 0.47 40.7 49.7 99.4 1.2 60 SMT
744373240056SPEC
8 files 0.56 7.9 6.7 13 16 104 SMT7443732
744373490056SPEC
8 files 0.56 17.6 19.9 36.4 4.2 85 SMT7443736
744373680056SPEC
8 files 0.56 29.3 31.7 60.9 1.8 70 SMT7443736
744373770056SPEC
8 files 0.56 32.9 16.8 42.8 1.7 59 SMT7443736
7443739650056SPEC
8 files 0.56 37.1 36.3 68.3 1.2 51.7 SMT
744373240068SPEC
8 files 0.68 7.3 7.1 14 19 90 SMT7443732
744373340068SPEC
8 files 0.68 9.4 9.8 17.8 12.4 90 SMT7443735
744373360068SPEC
8 files 0.68 9.8 10.2 19.3 12 90 SMT7443735
744373460068SPEC
8 files 0.68 15.1 15.9 31.6 5.5 72 SMT7443734
744373490068SPEC
8 files 0.68 16.7 18.8 33.8 4.5 73 SMT7443734
744373560068SPEC
8 files 0.68 18.5 21 43 3.99 53 SMT
744373580068SPEC
8 files 0.68 21.5 17.5 37.8 3.22 45 SMT
744373680068SPEC
8 files 0.68 23.8 30.6 58.3 2.7 53 SMT7443736
744373770068SPEC
8 files 0.68 28.8 15.7 42.5 2.2 51 SMT7443736
7443739650068SPEC
8 files 0.68 35.6 35.7 67.4 1.5 51.1 SMT
744373460082SPEC
8 files 0.82 12.7 15 31.9 8 60 SMT7443734
744373490082SPEC
8 files 0.82 15.5 17.4 31.6 4.9 70 SMT7443734
744373560082SPEC
8 files 0.82 17.3 19.3 40.9 4.87 51 SMT
744373580082SPEC
8 files 0.82 20.7 19.7 41.6 3.88 51 SMT
74437321010SPEC
8 files 1 4.5 5.65 10 47 90 SMT7443732
74437324010SPEC
8 files 1 6.2 6.5 12.5 27 89 SMT7443732
74437334010SPEC
8 files 1 7.4 9.2 17.7 20 65 SMT7443735
74437336010SPEC
8 files 1 8.6 7.4 14.2 14 60 SMT7443735
74437346010SPEC
8 files 1 11.4 14.7 29 10 54 SMT7443734
74437349010SPEC
8 files 1 13.4 13 25.8 6.5 51 SMT7443734
74437356010SPEC
8 files 1 15.7 15.8 34.2 8.35 44 SMT
74437358010SPEC
8 files 1 18.6 20.6 43.1 4.63 42 SMT
74437368010SPEC
8 files 1 21.3 22.7 48.3 3.3 45 SMT7443736
74437377010SPEC
8 files 1 23.5 15.4 38 3.5 41 SMT7443736
744373965010SPEC
8 files 1 28.2 32.7 59.9 2.3 43.5 SMT
NEW7443732448010SPEC
7 files 1 7 4 8.5 27 66 SMT
NEW7443733448010SPEC
7 files 1 7.9 5.4 12 17.5 62 SMT
NEW7443734648010SPEC
7 files 1 13.5 8.5 18.5 7.4 53 SMT
NEW7443734948010SPEC
7 files 1 15.7 8.5 17.8 6.5 44 SMT
74437324012SPEC
8 files 1.2 5.85 6.3 11.6 30 71 SMT7443732
74437334012SPEC
8 files 1.2 6.4 7.5 14 28 60 SMT7443735
74437336012SPEC
8 files 1.2 8.3 7.5 13.9 16 50 SMT7443735
74437349012SPEC
8 files 1.2 12.4 12 24 7.5 45 SMT7443734
74437321015SPEC
8 files 1.5 3.9 2.7 5.1 63.3 60 SMT7443732
74437324015SPEC
8 files 1.5 4.9 5.65 10.1 42 64 SMT7443732
74437334015SPEC
8 files 1.5 6 6.6 13.6 30.5 50 SMT7443735
74437336015SPEC
8 files 1.5 7.8 7.7 14.2 25 45 SMT7443735
74437346015SPEC
8 files 1.5 9.1 11.2 27.6 15 45 SMT7443734
74437349015SPEC
8 files 1.5 11.3 9.7 18.7 9 35 SMT7443734
74437356015SPEC
8 files 1.5 12.2 13.5 27.2 13.3 32 SMT
74437377015SPEC
8 files 1.5 17.8 14.3 33.8 5.5 30 SMT7443736
744373965015SPEC
8 files 1.5 25.7 28.9 55.2 3 29.5 SMT
NEW7443732448015SPEC
7 files 1.5 6.1 3.4 7 46 55 SMT
NEW7443733448015SPEC
7 files 1.5 6.7 4.2 9.5 43 54 SMT
NEW7443734648015SPEC
7 files 1.5 12 8 17 12.1 44 SMT
NEW7443734948015SPEC
7 files 1.5 13.2 7.5 15.5 8.5 38 SMT
74437346018SPEC
8 files 1.8 8.8 10.2 21.4 17 35 SMT
74437321022SPEC
8 files 2.2 3.5 3.2 6.2 80 55 SMT7443732
74437324022SPEC
8 files 2.2 4.05 4.45 8.4 61 49 SMT7443732
74437334022SPEC
8 files 2.2 4.75 6.4 11.9 50 46 SMT7443735
74437336022SPEC
8 files 2.2 6.2 7 14 35 42 SMT7443735
74437346022SPEC
8 files 2.2 7.7 10 19.1 20 32 SMT7443734
74437349022SPEC
8 files 2.2 9.9 10.5 19.1 12 30 SMT7443734
74437356022SPEC
8 files 2.2 9.5 10 19.6 20.3 24 SMT
74437358022SPEC
8 files 2.2 12 17.2 36.8 9.41 29 SMT
74437368022SPEC
8 files 2.2 14.3 18.1 38.7 7 27 SMT7443736
74437377022SPEC
8 files 2.2 14.3 14.2 31.2 8 22 SMT7443736
744373965022SPEC
8 files 2.2 21.6 20.7 41.1 4.2 21.6 SMT
NEW7443732448022SPEC
7 files 2.2 5.2 2.9 6 61 44 SMT
NEW7443733448022SPEC
7 files 2.2 5.5 3 6.7 38 40 SMT
NEW7443734648022SPEC
7 files 2.2 10.5 6.8 14.7 17 34 SMT
NEW7443734948022SPEC
7 files 2.2 10.5 6.5 12.8 14 31 SMT
74437346025SPEC
8 files 2.5 7.3 8.5 17.3 22 30 SMT
74437321033SPEC
8 files 3.3 3.15 2.6 4.8 97 40 SMT7443732
74437324033SPEC
8 files 3.3 3.5 2.75 5.45 76 40 SMT7443732
74437334033SPEC
8 files 3.3 3.75 5.25 9.6 76 35 SMT7443735
74437336033SPEC
8 files 3.3 5.45 5.55 10.9 38 27 SMT7443735
74437346033SPEC
8 files 3.3 6.2 8.4 16.6 30 27 SMT7443734
74437349033SPEC
8 files 3.3 7.5 7.9 15.1 20.9 26 SMT7443734
74437356033SPEC
8 files 3.3 8 8.8 16.1 27.4 19 SMT
74437358033SPEC
8 files 3.3 10 12.4 27 14.9 20 SMT
74437368033SPEC
8 files 3.3 11.1 15.6 31.2 11.8 22 SMT7443736
74437377033SPEC
8 files 3.3 12.8 13.3 30.9 11 17 SMT7443736
744373965033SPEC
8 files 3.3 16.2 20.3 41.5 6.8 20.3 SMT
NEW7443732448033SPEC
7 files 3.3 4.1 2.5 5.6 71 33 SMT
NEW7443733448033SPEC
7 files 3.3 4.8 2.8 6.5 60 36 SMT
NEW7443734648033SPEC
7 files 3.3 8.7 5.6 10.8 22 28 SMT
NEW7443734948033SPEC
7 files 3.3 8.7 5.6 11.8 23 26 SMT
74437368039SPEC
8 files 3.9 10.3 12 26.8 14.5 17 SMT7443736
74437321047SPEC
8 files 4.7 2.55 2.1 4.1 145 34 SMT7443732
74437324047SPEC
8 files 4.7 2.95 2.45 5.4 105 31 SMT7443732
74437334047SPEC
8 files 4.7 3 4.1 7.5 116 27 SMT7443735
74437336047SPEC
8 files 4.7 4.35 3.85 7.6 53 25 SMT7443735
74437346047SPEC
8 files 4.7 5.35 7.5 15.5 40 22 SMT7443734
74437349047SPEC
8 files 4.7 6.2 7.5 14.6 30.8 24 SMT7443734
74437356047SPEC
8 files 4.7 6.7 8.1 15.2 34.2 16 SMT
74437358047SPEC
8 files 4.7 7.9 10.8 22.9 22.6 19 SMT
74437368047SPEC
8 files 4.7 9.4 11.7 26 15.5 16 SMT7443736
74437377047SPEC
8 files 4.7 10.6 12 25.1 15 13 SMT7443736
744373965047SPEC
8 files 4.7 15.1 18.4 35.8 8.4 13.9 SMT
NEW7443732448047SPEC
7 files 4.7 3 2.2 4.7 115 25 SMT
NEW7443733448047SPEC
7 files 4.7 4.3 2.6 5.8 88 30 SMT
NEW7443734648047SPEC
7 files 4.7 7 4.4 9.8 40 24 SMT
NEW7443734948047SPEC
7 files 4.7 7 5.2 11.4 31 20 SMT
74437321056SPEC
8 files 5.6 2.15 1.95 3.65 208 28 SMT7443732
74437324056SPEC
8 files 5.6 2.6 2.4 5.1 125 30 SMT7443732
74437334056SPEC
8 files 5.6 2.85 3.7 7 122 21 SMT7443735
74437336056SPEC
8 files 5.6 4.15 3.85 7.7 63 22 SMT7443735
74437346056SPEC
8 files 5.6 5 5.9 12.1 48 20 SMT7443734
74437349056SPEC
8 files 5.6 4.9 6.6 16.5 49 17 SMT7443734
744373965056SPEC
8 files 5.6 13.3 18.3 33 10 13.7 SMT
74437368056SPEC
8 files 5.6 8.7 9.4 19.4 19.3 13 SMT
74437321068SPEC
8 files 6.8 1.65 1.65 3.05 360 25 SMT7443732
74437324068SPEC
8 files 6.8 2.35 2.4 4.75 172 29 SMT7443732
74437334068SPEC
8 files 6.8 2.65 3.05 5.55 150 20.5 SMT7443735
74437336068SPEC
8 files 6.8 3.75 2.9 5.9 76.2 20 SMT7443735
74437346068SPEC
8 files 6.8 4.45 5.45 10.6 60 18 SMT7443734
74437349068SPEC
8 files 6.8 4.8 6.3 13.1 51.5 16 SMT7443734
74437356068SPEC
8 files 6.8 5.8 6.9 14.2 49.3 14 SMT
74437358068SPEC
8 files 6.8 6.4 8.5 17.7 33.4 12 SMT
74437368068SPEC
8 files 6.8 8.6 8 17.4 23.3 13 SMT7443736
744373965068SPEC
8 files 6.8 12.7 15.8 28.9 11.6 11.6 SMT
NEW7443732448068SPEC
7 files 6.8 2.7 1.6 3 228 19 SMT
NEW7443733448068SPEC
7 files 6.8 3.3 1.9 4.5 159 26 SMT
NEW7443734648068SPEC
7 files 6.8 5.6 3.5 7.6 48 19 SMT
NEW7443734948068SPEC
7 files 6.8 6.6 4 8.4 34 16 SMT
74437321082SPEC
8 files 8.2 1.6 1.65 2.85 376 24 SMT7443732
74437324082SPEC
8 files 8.2 2.3 1.8 3.8 180 22 SMT7443732
74437334082SPEC
8 files 8.2 2.5 3 5.65 171 20 SMT7443735
74437346082SPEC
8 files 8.2 4.1 5.1 10.1 68 17 SMT7443734
74437349082SPEC
8 files 8.2 4.35 6 12.2 63 15 SMT7443734
74437356082SPEC
8 files 8.2 4.6 6.3 14 59.3 11 SMT
74437358082SPEC
8 files 8.2 5.45 8.6 16.6 45 10 SMT
74437321100SPEC
8 files 10 1.4 1.5 2.65 463 23 SMT7443732
74437324100SPEC
8 files 10 1.95 1.5 3.15 243 23 SMT7443732
74437334100SPEC
8 files 10 2.25 2.7 5.15 199 16 SMT7443735
74437336100SPEC
8 files 10 2.9 2.8 5.35 128 16 SMT7443735
74437346100SPEC
8 files 10 3.75 5 9.8 85 15 SMT7443734
74437349100SPEC
8 files 10 4.05 5.6 10.5 69 12 SMT7443734
74437356100SPEC
8 files 10 4.45 6.2 13.4 71.2 10 SMT
74437358100SPEC
8 files 10 5.05 8.3 15.9 51.8 9 SMT
74437368100SPEC
8 files 10 7 7.9 16.8 30 12 SMT7443736
744373965100SPEC
8 files 10 11.8 13.2 23.9 16.5 8 SMT
NEW7443732448100SPEC
7 files 10 2.4 1 2.4 243 16 SMT
NEW7443733448100SPEC
7 files 10 2.2 1.2 3 230 20 SMT
NEW7443734648100SPEC
7 files 10 4.3 2.8 6 78 15 SMT
NEW7443734948100SPEC
7 files 10 5.2 3.7 8 50 12 SMT
744373965120SPEC
8 files 12 9.1 12.9 26.6 20 7.6 SMT
74437349150SPEC
8 files 15 3.6 3.5 7.2 92 10 SMT7443734
74437368150SPEC
8 files 15 5.7 5.55 11.8 45 8 SMT7443736
74437324150SPEC
8 files 15 1.6 1.35 2.75 374 17 SMT7443732
744373965150SPEC
8 files 15 7.7 10.2 18.5 28 7.5 SMT
74437346150SPEC
7 files 15 3.15 3.2 6.1 123 12 SMT
74437324220SPEC
8 files 22 1.3 1.45 2.35 500 14 SMT7443732
74437346220SPEC
8 files 22 2.5 2.75 5.95 190 10 SMT7443734
74437349220SPEC
8 files 22 2.75 4.15 8.5 170 8 SMT7443734
74437368220SPEC
8 files 22 4.5 5 10.8 74 7 SMT7443736
744373965220SPEC
8 files 22 6.5 6.7 13.9 37 5.4 SMT
74437349330SPEC
8 files 33 2.45 2.6 4.75 200 7.5 SMT7443734
74437368330SPEC
8 files 33 3.75 3.3 7.4 112 6 SMT7443736
744373965330SPEC
8 files 33 5.45 6.3 13.2 58 4.4 SMT
74437349470SPEC
8 files 47 1.9 1.8 3.4 330 7.3 SMT7443734
74437368470SPEC
8 files 47 2.95 2.55 6.7 167 5 SMT7443736
744373965470SPEC
8 files 47 4.4 6.15 13.1 90 3.8 SMT
74437349560SPEC
8 files 56 1.75 1.4 2.7 396 6 SMT7443734
74437349680SPEC
8 files 68 1.65 1.45 3.8 445 3.5 SMT7443734
744373965101SPEC
8 files 100 3.2 3.45 6.8 165 2.4 SMT
Order Code Data­sheet Simu­lation
744373210010SPEC
744373240010SPEC
744373210022SPEC
744373240022SPEC
744373460022SPEC
744373560022SPEC
744373580022SPEC
744373680022SPEC
744373770022SPEC
7443739650022SPEC
744373240033SPEC
744373340033SPEC
744373360033SPEC
744373460033SPEC
744373560033SPEC
744373580033SPEC
744373770033SPEC
7443739650033SPEC
744373680036SPEC
744373680039SPEC
744373680045SPEC
744373210047SPEC
744373240047SPEC
744373340047SPEC
744373360047SPEC
744373460047SPEC
744373490047SPEC
744373560047SPEC
744373580047SPEC
744373770047SPEC
7443739650047SPEC
744373240056SPEC
744373490056SPEC
744373680056SPEC
744373770056SPEC
7443739650056SPEC
744373240068SPEC
744373340068SPEC
744373360068SPEC
744373460068SPEC
744373490068SPEC
744373560068SPEC
744373580068SPEC
744373680068SPEC
744373770068SPEC
7443739650068SPEC
744373460082SPEC
744373490082SPEC
744373560082SPEC
744373580082SPEC
74437321010SPEC
74437324010SPEC
74437334010SPEC
74437336010SPEC
74437346010SPEC
74437349010SPEC
74437356010SPEC
74437358010SPEC
74437368010SPEC
74437377010SPEC
744373965010SPEC
NEW7443732448010SPEC
NEW7443733448010SPEC
NEW7443734648010SPEC
NEW7443734948010SPEC
74437324012SPEC
74437334012SPEC
74437336012SPEC
74437349012SPEC
74437321015SPEC
74437324015SPEC
74437334015SPEC
74437336015SPEC
74437346015SPEC
74437349015SPEC
74437356015SPEC
74437377015SPEC
744373965015SPEC
NEW7443732448015SPEC
NEW7443733448015SPEC
NEW7443734648015SPEC
NEW7443734948015SPEC
74437346018SPEC
74437321022SPEC
74437324022SPEC
74437334022SPEC
74437336022SPEC
74437346022SPEC
74437349022SPEC
74437356022SPEC
74437358022SPEC
74437368022SPEC
74437377022SPEC
744373965022SPEC
NEW7443732448022SPEC
NEW7443733448022SPEC
NEW7443734648022SPEC
NEW7443734948022SPEC
74437346025SPEC
74437321033SPEC
74437324033SPEC
74437334033SPEC
74437336033SPEC
74437346033SPEC
74437349033SPEC
74437356033SPEC
74437358033SPEC
74437368033SPEC
74437377033SPEC
744373965033SPEC
NEW7443732448033SPEC
NEW7443733448033SPEC
NEW7443734648033SPEC
NEW7443734948033SPEC
74437368039SPEC
74437321047SPEC
74437324047SPEC
74437334047SPEC
74437336047SPEC
74437346047SPEC
74437349047SPEC
74437356047SPEC
74437358047SPEC
74437368047SPEC
74437377047SPEC
744373965047SPEC
NEW7443732448047SPEC
NEW7443733448047SPEC
NEW7443734648047SPEC
NEW7443734948047SPEC
74437321056SPEC
74437324056SPEC
74437334056SPEC
74437336056SPEC
74437346056SPEC
74437349056SPEC
744373965056SPEC
74437368056SPEC
74437321068SPEC
74437324068SPEC
74437334068SPEC
74437336068SPEC
74437346068SPEC
74437349068SPEC
74437356068SPEC
74437358068SPEC
74437368068SPEC
744373965068SPEC
NEW7443732448068SPEC
NEW7443733448068SPEC
NEW7443734648068SPEC
NEW7443734948068SPEC
74437321082SPEC
74437324082SPEC
74437334082SPEC
74437346082SPEC
74437349082SPEC
74437356082SPEC
74437358082SPEC
74437321100SPEC
74437324100SPEC
74437334100SPEC
74437336100SPEC
74437346100SPEC
74437349100SPEC
74437356100SPEC
74437358100SPEC
74437368100SPEC
744373965100SPEC
NEW7443732448100SPEC
NEW7443733448100SPEC
NEW7443734648100SPEC
NEW7443734948100SPEC
744373965120SPEC
74437349150SPEC
74437368150SPEC
74437324150SPEC
744373965150SPEC
74437346150SPEC
74437324220SPEC
74437346220SPEC
74437349220SPEC
74437368220SPEC
744373965220SPEC
74437349330SPEC
74437368330SPEC
744373965330SPEC
74437349470SPEC
74437368470SPEC
744373965470SPEC
74437349560SPEC
74437349680SPEC
744373965101SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
IRP,40K
(A)
ISAT,10%
(A)
ISAT,30%
(A)
RDC max.
(mΩ)
fres
(MHz)
MountDesign Kit Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Videos

How to choose the right coil type (inductor)?!

Videos

Würth Elektronik Webinar: Magnetics design & selection – intermediate level

Videos

Webinar: Definition of component heating of power inductors in switching regulators
