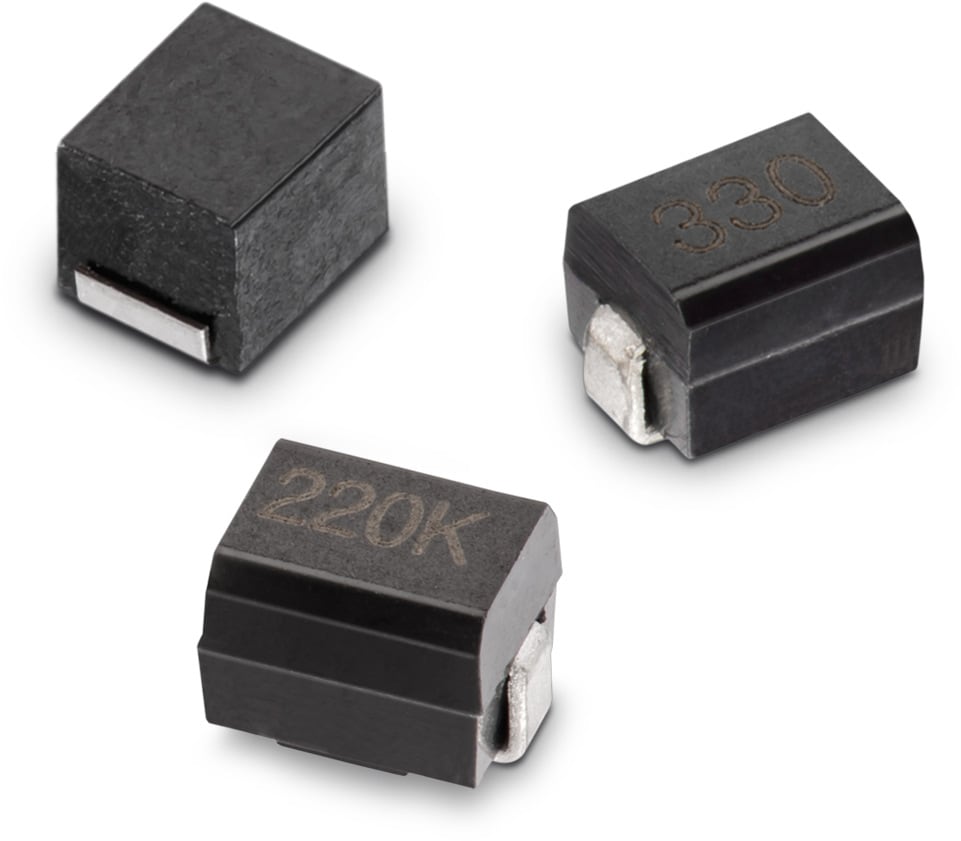

WE-GFH High Frequency SMT Inductor

Size	L (mm)	W (mm)	H (mm)	Mount

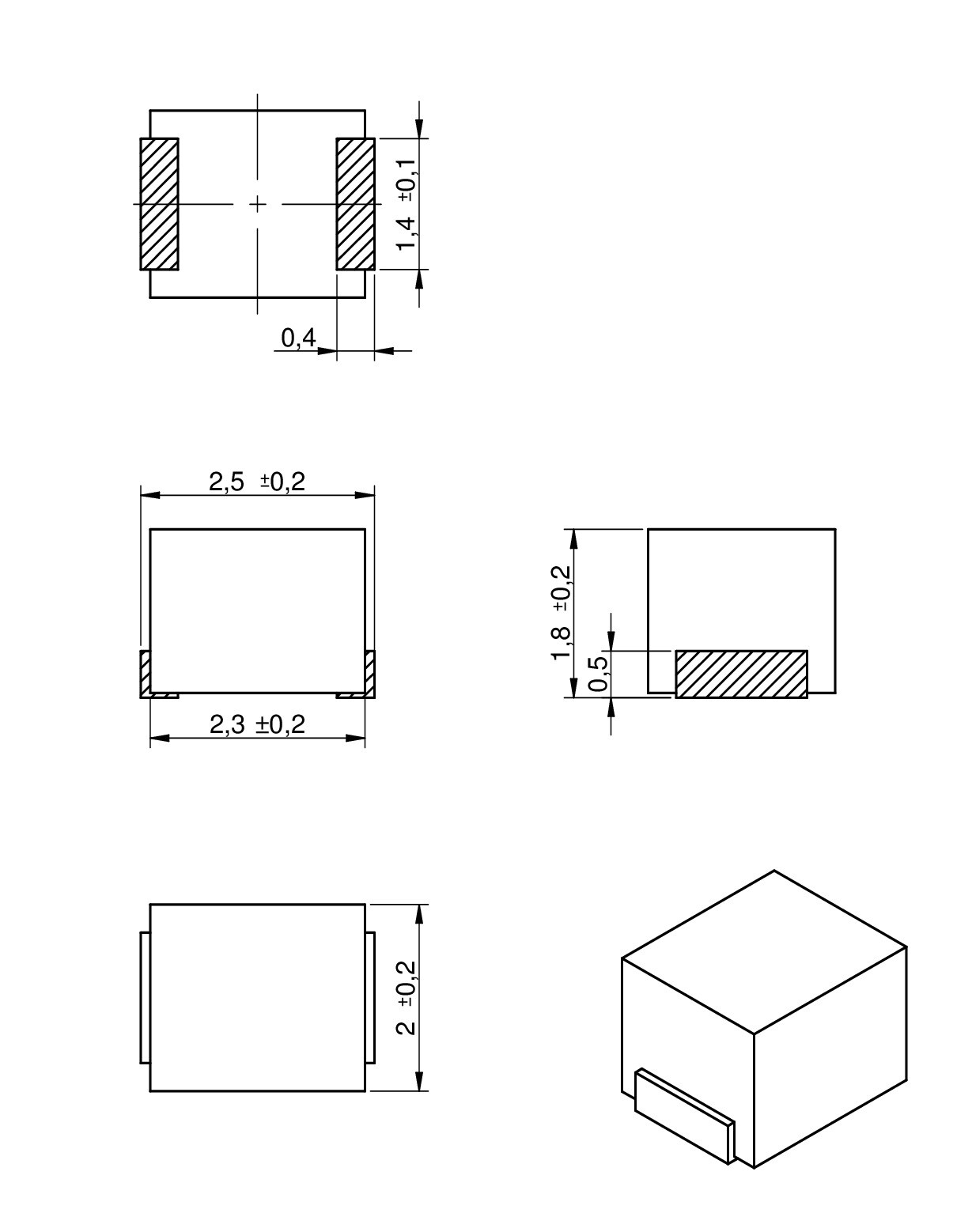

2520	2.5	2	1.8	SMT

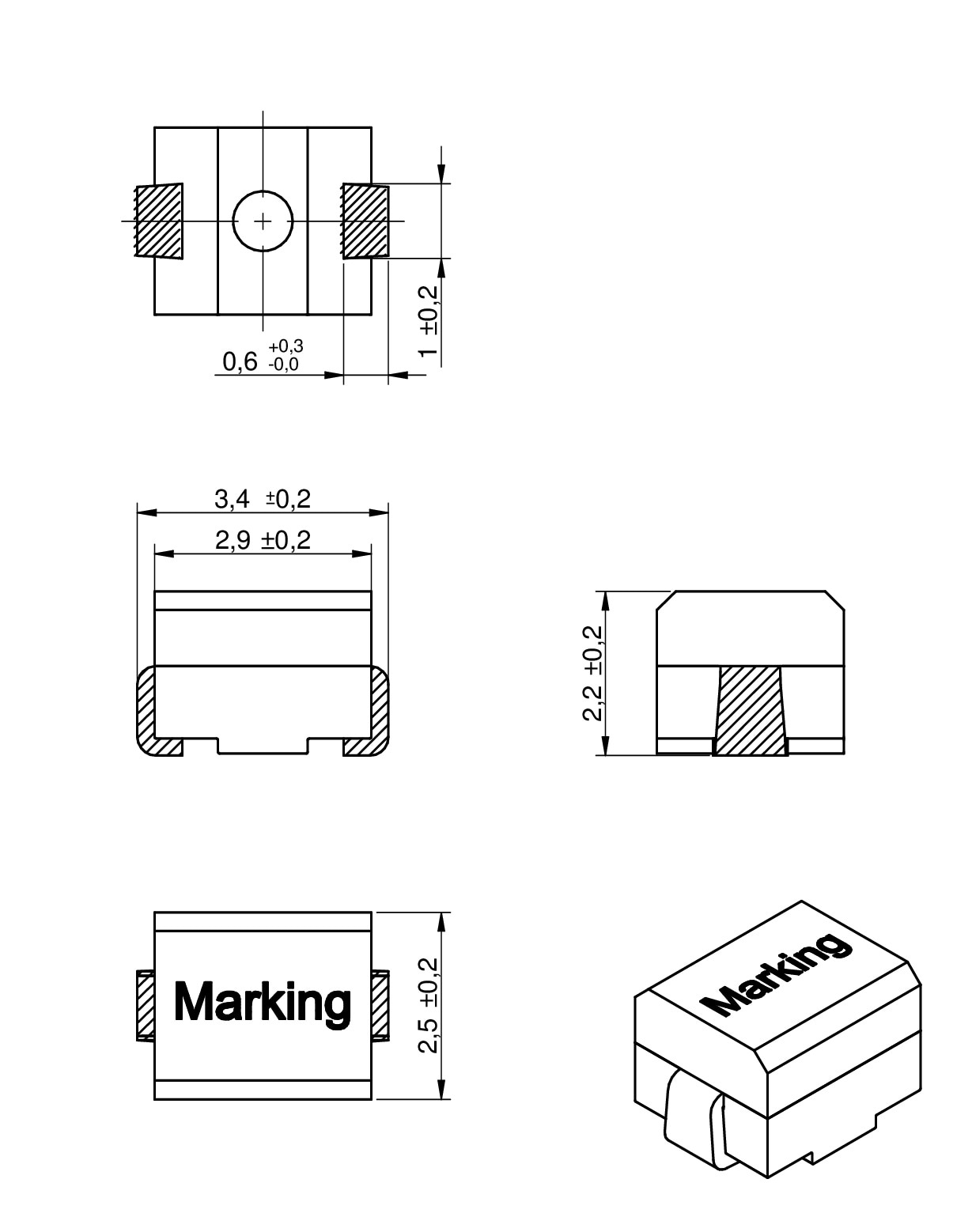

3225	3.2	2.5	2.2	SMT

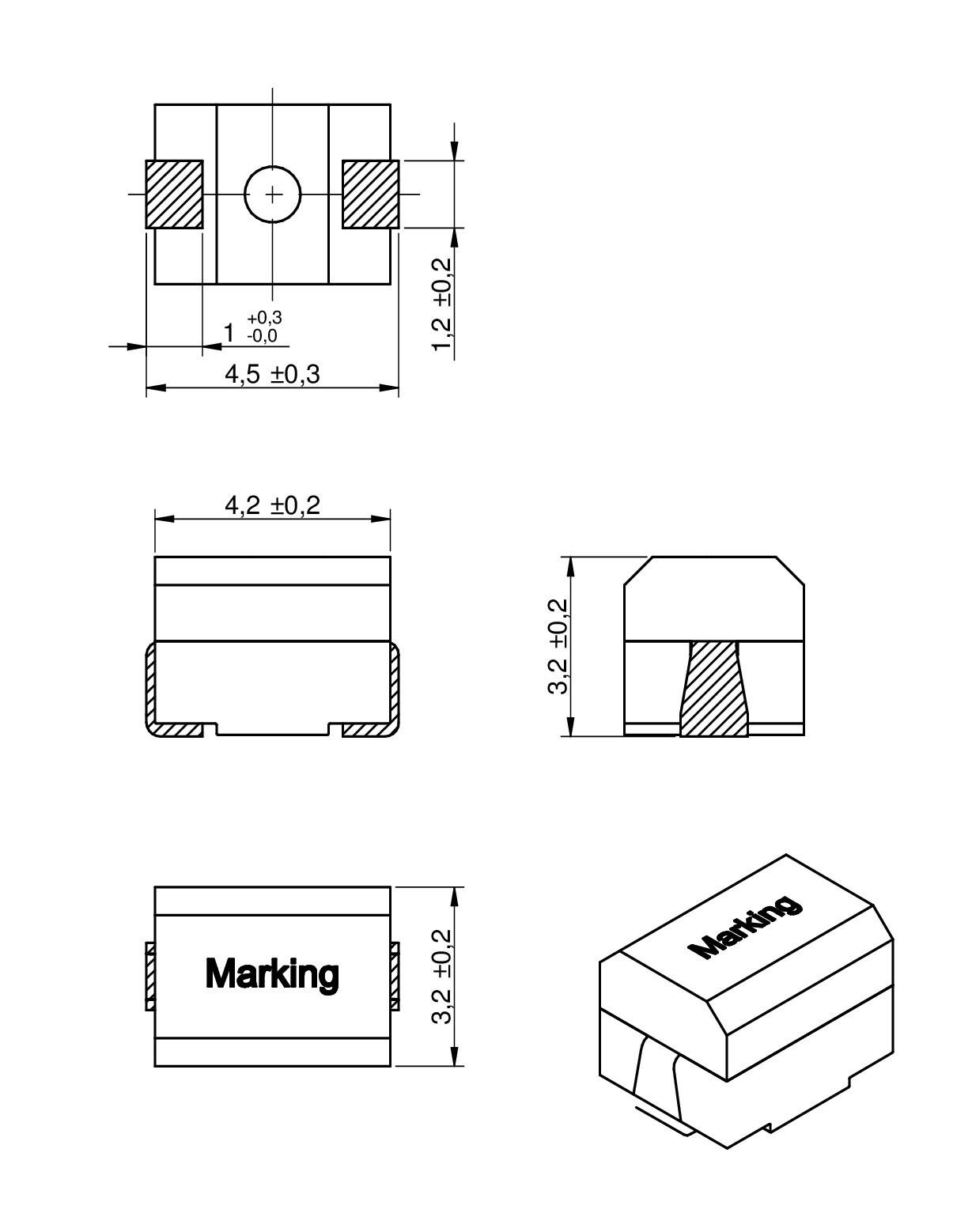

4532	4.5	3.2	3.2	SMT

LTSpice files

LT
LTSpice_WE-GFH (rev22a).zip
|
2.7 KB

Characteristics

Chip SMT inductance
Lower RDC for the same type
Higher current supporting than standard form
Small type 2.5 mm x 2.0 mm
Operating temperature: -40°C to +105°C (Size 2520)
Operating Temperature: -40°C to +125°C (Size 3225 and 4532 )

Applications

HF Circuits
HF Filtering Applications
Acoustic Filtering Applications

Products

All

2520

3225

4532

Order Code	Datasheet	Downloads	L (µH)	I_R (mA)	R_{DC max.} (mΩ)	Q (%)	f_res (MHz)	Mount
7447629010	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1	850	408	20	290	SMT
744764901	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1	1550	156	15	175	SMT
744766901	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1	1900	110	15	265	SMT
7447669012	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1.2	1800	120	15	180	SMT
7447629015	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1.5	750	504	20	220	SMT
7447649015	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	1.5	1400	195	15	100	SMT
7447629022	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	2.2	650	600	20	115	SMT
744764902	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	2.2	1100	260	15	85	SMT
744766902	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	2.2	1450	180	15	110	SMT
7447629033	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	3.3	600	780	20	84	SMT
744764903	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	3.3	1050	325	15	70	SMT
744766903	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	3.3	1300	220	15	55	SMT
7447669039	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	3.9	1250	240	15	50	SMT
7447629047	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	4.7	510	960	20	72	SMT
744764904	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	4.7	800	520	15	55	SMT
744766904	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	4.7	1200	270	15	47	SMT
7447629068	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	6.8	450	1200	20	61	SMT
744766906	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	6.8	1025	300	15	35	SMT
7447629100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	10	340	2028	30	44	SMT
744764910	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	10	500	1105	30	35	SMT
744766910	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	10	825	500	25	29	SMT
7447669112	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	12	810	600	25	28	SMT
7447629150	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	15	325	2640	30	33	SMT
7447649115	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	15	450	1690	30	30	SMT
7447669115	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	15	800	700	25	24	SMT
7447669118	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	18	700	800	25	21	SMT
7447629220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	22	265	3360	30	29	SMT
7447649122	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	22	400	2600	35	22	SMT
7447669122	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	22	650	900	25	20	SMT
7447669127	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	27	575	1200	25	17	SMT
7447629330	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-2520 (rev1).igs \| 40 KB STP Download_STP_WE-GFH-2520 (rev1).stp \| 41.1 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	33	210	5040	30	22	SMT
7447649133	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	33	320	3640	35	20	SMT
7447669133	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	33	525	1400	25	16.5	SMT
7447669139	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	39	460	1600	30	14.5	SMT
7447649147	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	47	250	5460	35	15	SMT
7447669147	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	47	425	1900	30	14	SMT
7447669156	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	56	400	2200	30	11	SMT
7447649168	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	68	225	8450	40	12	SMT
7447669168	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	68	350	2600	30	10.5	SMT
7447669182	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	82	300	3500	30	10	SMT
744764920	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-3225 (rev1).igs \| 424.4 KB STP Download_STP_WE-GFH-3225 (rev1).stp \| 413.8 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	100	160	10140	45	10	SMT
744766920	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	100	275	4000	40	8.5	SMT
7447669212	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	120	235	4500	40	8	SMT
7447669218	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	180	220	7500	40	6.5	SMT
7447669220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GFH (rev22d).IntLib \| 187.5 KB ZUK Cadstar_WE-GFH (rev21a).zip \| 15 KB CDS Cadence_WE-GFH (rev22a).zip \| 1.8 MB EAG Eagle_WE-GFH (rev19a).lbr \| 43.7 KB CAD files ZIP IGS Download_IGS_WE-GFH-4532 (rev1).igs \| 418.3 KB STP Download_STP_WE-GFH-4532 (rev1).stp \| 405.7 KB Electric models ZIP PSP PSpice_WE-GFH (rev22a).zip \| 9.3 KB SCS Spectre_WE-GFH (rev23a).mod \| 10.5 KB Download all 8 files as zip archive ZIP	220	200	9000	40	6	SMT
