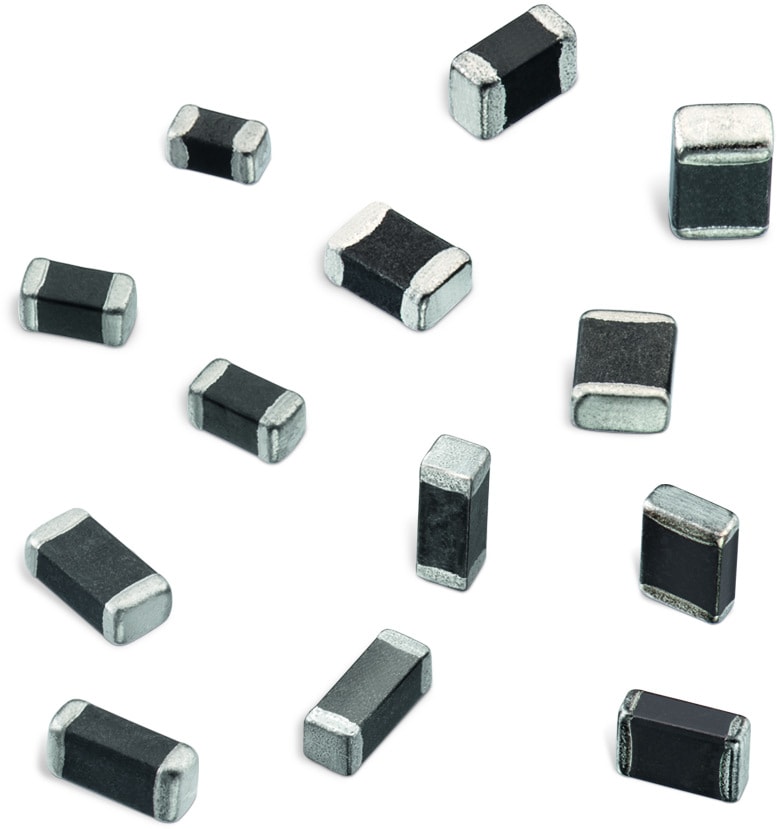

WE-CBA SMT EMI Suppression Ferrite Bead
| Size | Dimensions | L (mm) | W (mm) | H (mm) | Fl (mm) | Mount | |
|---|---|---|---|---|---|---|---|
0201 | 0.6 | 0.3 | 0.3 | 0.15 | SMT | ||
0402 | 1 | 0.5 | 0.5 | 0.25 | SMT | ||
0603 | 1.6 | 0.8 | 0.8 | 0.3 | SMT | ||
0805 | 2 | 1.2 | 0.9 | 0.5 | SMT | ||
1206 | 3.2 | 1.6 | 1.1 | 0.5 | SMT | ||
1806 | 4.5 | 1.6 | 1.6 | 0.5 | SMT | ||
1812 | 4.5 | 3.2 | 1.5 | 0.5 | SMT |
Characteristics
- EMI suppression and noise reduction
- High rated current up to 7.5 A
- Available in 7 different sizes
- Reliable Ni-Sn electrodes
- Operating temperature:-55 °C up to +125 °C
- AEC - Q 200
Applications
- Data line filter for any application in the infotainment system
- Applications for noise reduction at power-trains, body control and multimedia systems.
- Battery management systems, DC/DC converters, audio, etc.
- Uncoupling of distribution voltage
Products
All
0201
0402
0603
0805
1206
1806
1812
Filter by
show in
article in 7 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | Z @ 100 MHz(Ω) | Zmax(Ω) | IR(mA) | RDC(Ω) | Type | Design Kit | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
782423100 | SPEC10 Ω, 17 Ω, 1500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz10 Ω | Maximum Impedance17 Ω | Rated Current1500 mA | DC Resistance0.03 Ω | TypeHigh Current | Design Kit | –Check availability | |
782219100 | SPEC10 Ω, 12.6 Ω, 650 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz10 Ω | Maximum Impedance12.6 Ω | Rated Current650 mA | DC Resistance0.055 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782853200 | SPEC20 Ω, 35 Ω, 5000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz20 Ω | Maximum Impedance35 Ω | Rated Current5000 mA | DC Resistance0.008 Ω | TypeHigh Current | Design Kit | –Check availability | |
782639220 | SPEC22 Ω, 41 Ω, 7500 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz22 Ω | Maximum Impedance41 Ω | Rated Current7500 mA | DC Resistance0.004 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782853270 | SPEC27 Ω, 45 Ω, 4000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz27 Ω | Maximum Impedance45 Ω | Rated Current4000 mA | DC Resistance0.015 Ω | TypeHigh Current | Design Kit | –Check availability | |
782763480 | SPEC48 Ω, 90 Ω, 6000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz48 Ω | Maximum Impedance90 Ω | Rated Current6000 mA | DC Resistance0.005 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782963560 | SPEC56 Ω, 90 Ω, 5000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz56 Ω | Maximum Impedance90 Ω | Rated Current5000 mA | DC Resistance0.008 Ω | TypeHigh Current | Design Kit | –Check availability | |
782963600 | SPEC60 Ω, 120 Ω, 6000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz60 Ω | Maximum Impedance120 Ω | Rated Current6000 mA | DC Resistance0.01 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782963610 | SPEC60 Ω, 120 Ω, 6000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz60 Ω | Maximum Impedance120 Ω | Rated Current6000 mA | DC Resistance0.008 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782219600 | SPEC60 Ω, 135 Ω, 400 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz60 Ω | Maximum Impedance135 Ω | Rated Current400 mA | DC Resistance0.25 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782632620 | SPEC62 Ω, 95 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz62 Ω | Maximum Impedance95 Ω | Rated Current500 mA | DC Resistance0.15 Ω | TypeWide Band | Design Kit | –Check availability | |
782633620 | SPEC62 Ω, 98 Ω, 2500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz62 Ω | Maximum Impedance98 Ω | Rated Current2500 mA | DC Resistance0.04 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853680 | SPEC68 Ω, 110 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz68 Ω | Maximum Impedance110 Ω | Rated Current3000 mA | DC Resistance0.025 Ω | TypeHigh Current | Design Kit | –Check availability | |
782423700 | SPEC70 Ω, 140 Ω, 1000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz70 Ω | Maximum Impedance140 Ω | Rated Current1000 mA | DC Resistance0.09 Ω | TypeHigh Current | Design Kit | –Check availability | |
782965700 | SPEC70 Ω, 120 Ω, 6000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz70 Ω | Maximum Impedance120 Ω | Rated Current6000 mA | DC Resistance0.008 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782763700 | SPEC70 Ω, 105 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz70 Ω | Maximum Impedance105 Ω | Rated Current500 mA | DC Resistance0.15 Ω | TypeHigh Speed | Design Kit – | –Check availability | |
782963800 | SPEC80 Ω, 140 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz80 Ω | Maximum Impedance140 Ω | Rated Current3000 mA | DC Resistance0.04 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782763800 | SPEC80 Ω, 160 Ω, 4000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz80 Ω | Maximum Impedance160 Ω | Rated Current4000 mA | DC Resistance0.02 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782763820 | SPEC82 Ω, 130 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz82 Ω | Maximum Impedance130 Ω | Rated Current3000 mA | DC Resistance0.025 Ω | TypeHigh Current | Design Kit | –Check availability | |
782963820 | SPEC82 Ω, 110 Ω, 3500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz82 Ω | Maximum Impedance110 Ω | Rated Current3500 mA | DC Resistance0.02 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853910 | SPEC91 Ω, 105 Ω, 2000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz91 Ω | Maximum Impedance105 Ω | Rated Current2000 mA | DC Resistance0.06 Ω | TypeHigh Current | Design Kit | –Check availability | |
782422101 | SPEC100 Ω, 180 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz100 Ω | Maximum Impedance180 Ω | Rated Current500 mA | DC Resistance0.3 Ω | TypeWide Band | Design Kit | –Check availability | |
782631101 | SPEC100 Ω, 610 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz100 Ω | Maximum Impedance610 Ω | Rated Current500 mA | DC Resistance0.2 Ω | TypeHigh Speed | Design Kit | –Check availability | |
782631111 | SPEC100 Ω, 125 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz100 Ω | Maximum Impedance125 Ω | Rated Current500 mA | DC Resistance0.12 Ω | TypeWide Band | Design Kit – | –Check availability | |
782429111 | SPEC110 Ω, 195 Ω, 1200 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz110 Ω | Maximum Impedance195 Ω | Rated Current1200 mA | DC Resistance0.09 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782632121 | SPEC120 Ω, 190 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance190 Ω | Rated Current500 mA | DC Resistance0.2 Ω | TypeWide Band | Design Kit | –Check availability | |
782853121 | SPEC120 Ω, 180 Ω, 2500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance180 Ω | Rated Current2500 mA | DC Resistance0.035 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853131 | SPEC120 Ω, 180 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance180 Ω | Rated Current3000 mA | DC Resistance0.03 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782631141 | SPEC120 Ω, 180 Ω, 2000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance180 Ω | Rated Current2000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782422121 | SPEC120 Ω, 200 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance200 Ω | Rated Current500 mA | DC Resistance0.2 Ω | TypeWide Band | Design Kit – | –Check availability | |
782965121 | SPEC120 Ω, 190 Ω, 3000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance190 Ω | Rated Current3000 mA | DC Resistance0.04 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782631131 | SPEC120 Ω, 200 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance200 Ω | Rated Current500 mA | DC Resistance0.12 Ω | TypeWide Band | Design Kit – | –Check availability | |
782219121 | SPEC120 Ω, 259 Ω, 250 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz120 Ω | Maximum Impedance259 Ω | Rated Current250 mA | DC Resistance0.29 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782429161 | SPEC160 Ω, 280 Ω, 1000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz160 Ω | Maximum Impedance280 Ω | Rated Current1000 mA | DC Resistance0.15 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782632181 | SPEC180 Ω, 280 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz180 Ω | Maximum Impedance280 Ω | Rated Current500 mA | DC Resistance0.2 Ω | TypeWide Band | Design Kit | –Check availability | |
782422181 | SPEC180 Ω, 260 Ω, 400 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz180 Ω | Maximum Impedance260 Ω | Rated Current400 mA | DC Resistance0.3 Ω | TypeWide Band | Design Kit – | –Check availability | |
782422221 | SPEC220 Ω, 330 Ω, 400 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz220 Ω | Maximum Impedance330 Ω | Rated Current400 mA | DC Resistance0.3 Ω | TypeWide Band | Design Kit | –Check availability | |
782853221 | SPEC220 Ω, 290 Ω, 2000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz220 Ω | Maximum Impedance290 Ω | Rated Current2000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit | –Check availability | |
782422231 | SPEC220 Ω, 360 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz220 Ω | Maximum Impedance360 Ω | Rated Current300 mA | DC Resistance0.35 Ω | TypeWide Band | Design Kit – | –Check availability | |
782853231 | SPEC220 Ω, 330 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz220 Ω | Maximum Impedance330 Ω | Rated Current3000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782422241 | SPEC240 Ω, 290 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz240 Ω | Maximum Impedance290 Ω | Rated Current300 mA | DC Resistance0.35 Ω | TypeWide Band | Design Kit – | –Check availability | |
782219241 | SPEC240 Ω, 536 Ω, 300 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz240 Ω | Maximum Impedance536 Ω | Rated Current300 mA | DC Resistance0.57 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782429261 | SPEC260 Ω, 375 Ω, 1000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz260 Ω | Maximum Impedance375 Ω | Rated Current1000 mA | DC Resistance0.15 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782762301 | SPEC300 Ω, 360 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz300 Ω | Maximum Impedance360 Ω | Rated Current500 mA | DC Resistance0.1 Ω | TypeWide Band | Design Kit | –Check availability | |
782422301 | SPEC300 Ω, 400 Ω, 200 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz300 Ω | Maximum Impedance400 Ω | Rated Current200 mA | DC Resistance0.7 Ω | TypeWide Band | Design Kit – | –Check availability | |
782853301 | SPEC300 Ω, 350 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz300 Ω | Maximum Impedance350 Ω | Rated Current3000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782763301 | SPEC300 Ω, 330 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz300 Ω | Maximum Impedance330 Ω | Rated Current3000 mA | DC Resistance0.06 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782219301 | SPEC300 Ω, 455 Ω, 400 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz300 Ω | Maximum Impedance455 Ω | Rated Current400 mA | DC Resistance0.61 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782853321 | SPEC320 Ω, 370 Ω, 2000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz320 Ω | Maximum Impedance370 Ω | Rated Current2000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782422331 | SPEC330 Ω, 640 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz330 Ω | Maximum Impedance640 Ω | Rated Current300 mA | DC Resistance0.5 Ω | TypeWide Band | Design Kit | –Check availability | |
782631331 | SPEC330 Ω, 690 Ω, 400 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz330 Ω | Maximum Impedance690 Ω | Rated Current400 mA | DC Resistance0.25 Ω | TypeHigh Speed | Design Kit | –Check availability | |
782853331 | SPEC330 Ω, 375 Ω, 3000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz330 Ω | Maximum Impedance375 Ω | Rated Current3000 mA | DC Resistance0.05 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782853401 | SPEC400 Ω, 500 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz400 Ω | Maximum Impedance500 Ω | Rated Current300 mA | DC Resistance0.3 Ω | TypeWide Band | Design Kit – | –Check availability | |
782429461 | SPEC460 Ω, 1250 Ω, 500 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz460 Ω | Maximum Impedance1250 Ω | Rated Current500 mA | DC Resistance0.55 Ω | TypeHigh Speed | Design Kit – | –Check availability | ||
782763501 | SPEC500 Ω, 610 Ω, 2500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz500 Ω | Maximum Impedance610 Ω | Rated Current2500 mA | DC Resistance0.06 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782422511 | SPEC510 Ω, 730 Ω, 200 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz510 Ω | Maximum Impedance730 Ω | Rated Current200 mA | DC Resistance0.8 Ω | TypeWide Band | Design Kit | –Check availability | |
782632511 | SPEC510 Ω, 610 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz510 Ω | Maximum Impedance610 Ω | Rated Current300 mA | DC Resistance0.35 Ω | TypeWide Band | Design Kit | –Check availability | |
782853561 | SPEC560 Ω, 600 Ω, 1500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz560 Ω | Maximum Impedance600 Ω | Rated Current1500 mA | DC Resistance0.1 Ω | TypeHigh Current | Design Kit | –Check availability | |
782219561 | SPEC560 Ω, 750 Ω, 250 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz560 Ω | Maximum Impedance750 Ω | Rated Current250 mA | DC Resistance0.75 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782422601 | SPEC600 Ω, 800 Ω, 200 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance800 Ω | Rated Current200 mA | DC Resistance0.8 Ω | TypeWide Band | Design Kit | –Check availability | |
782633601 | SPEC600 Ω, 660 Ω, 1000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance660 Ω | Rated Current1000 mA | DC Resistance0.2 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853601 | SPEC600 Ω, 700 Ω, 500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance700 Ω | Rated Current500 mA | DC Resistance0.3 Ω | TypeWide Band | Design Kit – | –Check availability | |
782853611 | SPEC600 Ω, 700 Ω, 2000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance700 Ω | Rated Current2000 mA | DC Resistance0.11 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782965601 | SPEC600 Ω, 900 Ω, 3000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance900 Ω | Rated Current3000 mA | DC Resistance0.04 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782422611 | SPEC600 Ω, 900 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance900 Ω | Rated Current300 mA | DC Resistance0.6 Ω | TypeWide Band | Design Kit – | –Check availability | |
782763601 | SPEC600 Ω, 650 Ω, 2500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance650 Ω | Rated Current2500 mA | DC Resistance0.048 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782429601 | SPEC600 Ω, 720 Ω, 850 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance720 Ω | Rated Current850 mA | DC Resistance0.25 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782639601 | SPEC600 Ω, 634 Ω, 1500 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz600 Ω | Maximum Impedance634 Ω | Rated Current1500 mA | DC Resistance0.1 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782763621 | SPEC620 Ω, 620 Ω, 1500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz620 Ω | Maximum Impedance620 Ω | Rated Current1500 mA | DC Resistance0.1 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853701 | SPEC700 Ω, 730 Ω, 1500 mA | Availability – | Downloads9 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz700 Ω | Maximum Impedance730 Ω | Rated Current1500 mA | DC Resistance0.1 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782965781 | SPEC780 Ω, 1300 Ω, 3000 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz780 Ω | Maximum Impedance1300 Ω | Rated Current3000 mA | DC Resistance0.04 Ω | TypeHigh Current | Design Kit – | –Check availability | ||
782963851 | SPEC850 Ω, 1250 Ω, 1500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz850 Ω | Maximum Impedance1250 Ω | Rated Current1500 mA | DC Resistance0.1 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782422102 | SPEC1000 Ω, 1200 Ω, 200 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1200 Ω | Rated Current200 mA | DC Resistance1 Ω | TypeWide Band | Design Kit | –Check availability | |
782632102 | SPEC1000 Ω, 1100 Ω, 800 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1100 Ω | Rated Current800 mA | DC Resistance0.5 Ω | TypeWide Band | Design Kit | –Check availability | |
782851102 | SPEC1000 Ω, 1100 Ω, 300 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1100 Ω | Rated Current300 mA | DC Resistance0.35 Ω | TypeHigh Speed | Design Kit | –Check availability | |
782763102 | SPEC1000 Ω, 1200 Ω, 1000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1200 Ω | Rated Current1000 mA | DC Resistance0.3 Ω | TypeHigh Current | Design Kit | –Check availability | |
782963201 | SPEC1000 Ω, 1020 Ω, 1500 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1020 Ω | Rated Current1500 mA | DC Resistance0.09 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782853102 | SPEC1000 Ω, 1000 Ω, 1000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1000 Ω | Rated Current1000 mA | DC Resistance0.3 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782429102 | SPEC1000 Ω, 1157 Ω, 480 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1000 Ω | Maximum Impedance1157 Ω | Rated Current480 mA | DC Resistance0.48 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782853112 | SPEC1100 Ω, 1400 Ω, 800 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1100 Ω | Maximum Impedance1400 Ω | Rated Current800 mA | DC Resistance0.3 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853152 | SPEC1500 Ω, 1800 Ω, 700 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1500 Ω | Maximum Impedance1800 Ω | Rated Current700 mA | DC Resistance0.35 Ω | TypeHigh Current | Design Kit | –Check availability | |
782853162 | SPEC1500 Ω, 1800 Ω, 1000 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1500 Ω | Maximum Impedance1800 Ω | Rated Current1000 mA | DC Resistance0.3 Ω | TypeHigh Current | Design Kit – | –Check availability | |
782429152 | SPEC1500 Ω, 1533 Ω, 500 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1500 Ω | Maximum Impedance1533 Ω | Rated Current500 mA | DC Resistance0.5 Ω | TypeWide Band | Design Kit – | –Check availability | ||
782631182 | SPEC1800 Ω, 2300 Ω, 100 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1800 Ω | Maximum Impedance2300 Ω | Rated Current100 mA | DC Resistance0.75 Ω | TypeHigh Speed | Design Kit | –Check availability | |
782429182 | SPEC1800 Ω, 2700 Ω, 210 mA | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz1800 Ω | Maximum Impedance2700 Ω | Rated Current210 mA | DC Resistance2.1 Ω | TypeHigh Frequency | Design Kit – | –Check availability | ||
782851212 | SPEC2000 Ω, 2000 Ω, 400 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz2000 Ω | Maximum Impedance2000 Ω | Rated Current400 mA | DC Resistance0.42 Ω | TypeHigh Speed | Design Kit – | –Check availability | |
782851202 | SPEC2200 Ω, 2200 Ω, 200 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz2200 Ω | Maximum Impedance2200 Ω | Rated Current200 mA | DC Resistance0.45 Ω | TypeHigh Speed | Design Kit | –Check availability | |
782631222 | SPEC2200 Ω, 2250 Ω, 150 mA | Availability – | Downloads10 files | Status Activei| Production is active. Expected lifetime: >10 years. | Impedance @ 100 MHz2200 Ω | Maximum Impedance2250 Ω | Rated Current150 mA | DC Resistance0.8 Ω | TypeHigh Speed | Design Kit – | –Check availability |
Availability Forecast
WE item number: –
VPE–
Lead time– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.
Characterization
Characterization
High current ferrites are designed for high rated current, which refers to
40 K self-heating.
Applications: power supply, DC/DC converter, power-trains, Battery management
High speed ferrites have lower impedance in lower frequency ranges. Therefore has low attenuation on signals and focuses on a specific noise frequency.
Applications: USB, infotainment systems, LVDS
Wide band ferrites show already high impedance in low frequency range. Therefore they are wide band through the whole spectrum.
Applications: control signals, DC/DC converter, infotainment systems, body control
