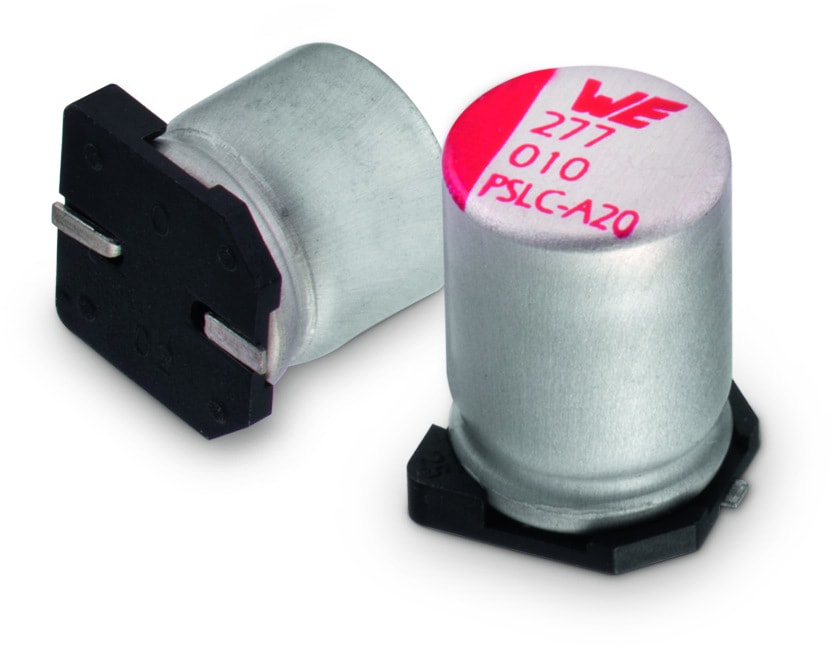

WCAP-PSLC Aluminum Polymer Capacitors

Large Capacitance

Size Dimen­sionsL
(mm)
W
(mm)
Mount
⌀ 8 mm - 8.3 V-Chip SMT
⌀ 10 mm 12.4 10.3 V-Chip SMT

Characteristics

  • Large capacitance product series
  • Low ESR over high frequency range
  • High permissible ripple current
  • Mounting style: V-Chip SMT
  • Capacitance range: 10 µF ‒ 2000 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 6.3 ‒ 100 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 2000h @ +105 °C
  • Dimensions (DxL) in mm: 8.0 x 11.7 up to 10.0 x 12.4
  • Recommended soldering: Reflow soldering

Applications

  • Low ripple voltage at the switching converter
  • Filtering
  • Smoothing
  • Coupling
  • e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Products

All
⌀ 8 mm
⌀ 10 mm
Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
RESR
(mΩ)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
PackagingDesign KitDemoboard Samples
875075755001SPEC
7 files 10 µF 50 2000 -55 °C up to +105 °C 1800 40 100 12 8 11.7 15" Tape & Reel
875075855001SPEC
7 files 10 µF 63 2000 -55 °C up to +105 °C 1800 35 126 12 8 11.7 15" Tape & Reel
875075955001SPEC
7 files 10 µF 100 2000 -55 °C up to +105 °C 1700 45 200 12 8 11.7 15" Tape & Reel
875076155002SPEC
7 files 12 µF 80 2000 -55 °C up to +105 °C 1800 40 192 12 8 11.7 15" Tape & Reel
875075855002SPEC
7 files 22 µF 63 2000 -55 °C up to +105 °C 1800 35 277.2 12 8 11.7 15" Tape & Reel
875075861003SPEC
7 files 22 µF 63 2000 -55 °C up to +105 °C 2000 30 277.2 12 10 12.4 15" Tape & Reel
875076161003SPEC
7 files 22 µF 80 2000 -55 °C up to +105 °C 2300 38 352 12 10 12.4 15" Tape & Reel
875075755002SPEC
7 files 22 µF 50 2000 -55 °C up to +105 °C 1800 40 220 12 8 11.7 15" Tape & Reel
875075961002SPEC
7 files 22 µF 100 2000 -55 °C up to +105 °C 2100 40 440 12 10 12.4 15" Tape & Reel
875075861004SPEC
7 files 33 µF 63 2000 -55 °C up to +105 °C 2000 30 415.8 12 10 12.4 15" Tape & Reel
875075761003SPEC
7 files 33 µF 50 2000 -55 °C up to +105 °C 2000 35 330 12 10 12.4 15" Tape & Reel
875075555001SPEC
7 files 39 µF 25 2000 -55 °C up to +105 °C 4210 15 195 8 8 11.7 15" Tape & Reel875075
875075655001SPEC
7 files 39 µF 35 2000 -55 °C up to +105 °C 2700 32 273 12 8 11.7 15" Tape & Reel
875075761004SPEC
7 files 39 µF 50 2000 -55 °C up to +105 °C 2000 35 390 12 10 12.4 15" Tape & Reel
875075855005SPEC
7 files 39 µF 63 2000 -55 °C up to +105 °C 3500 27 491.4 12 8 11.7 15" Tape & Reel
875075555002SPEC
7 files 47 µF 25 2000 -55 °C up to +105 °C 4210 15 235 8 8 11.7 15" Tape & Reel875075
875075761005SPEC
7 files 47 µF 50 2000 -55 °C up to +105 °C 2000 35 470 12 10 12.4 15" Tape & Reel
875075861006SPEC
7 files 47 µF 63 2000 -55 °C up to +105 °C 2000 30 592.2 12 10 12.4 15" Tape & Reel
875075761006SPEC
7 files 56 µF 50 2000 -55 °C up to +105 °C 2000 35 560 12 10 12.4 15" Tape & Reel
875075555003SPEC
7 files 68 µF 25 2000 -55 °C up to +105 °C 4210 15 340 8 8 11.7 15" Tape & Reel875075
875075655002SPEC
7 files 68 µF 35 2000 -55 °C up to +105 °C 3300 28 476 12 8 11.7 15" Tape & Reel
875075761007SPEC
7 files 68 µF 50 2000 -55 °C up to +105 °C 2000 35 680 12 10 12.4 15" Tape & Reel
875075555004SPEC
7 files 82 µF 25 2000 -55 °C up to +105 °C 4210 15 410 8 8 11.7 15" Tape & Reel875075
875075655003SPEC
7 files 82 µF 35 2000 -55 °C up to +105 °C 3300 28 574 12 8 11.7 15" Tape & Reel
875075561005SPEC
7 files 100 µF 25 2000 -55 °C up to +105 °C 4800 15 500 10 10 12.4 15" Tape & Reel875075
9999003
875075661004SPEC
7 files 100 µF 35 2000 -55 °C up to +105 °C 3800 25 700 12 10 12.4 15" Tape & Reel
875075655005SPEC
7 files 120 µF 35 2000 -55 °C up to +105 °C 3800 25 840 12 8 11.7 15" Tape & Reel
875075561006SPEC
7 files 150 µF 25 2000 -55 °C up to +105 °C 4800 15 750 10 10 12.4 15" Tape & Reel875075
875075655006SPEC
7 files 150 µF 35 2000 -55 °C up to +105 °C 3800 25 840 12 8 11.7 15" Tape & Reel
875075155001SPEC
7 files 180 µF 6.3 2000 -55 °C up to +105 °C 5200 8 226.8 8 8 11.7 15" Tape & Reel875075
875075355001SPEC
7 files 180 µF 16 2000 -55 °C up to +105 °C 4700 10 576 8 8 11.7 15" Tape & Reel875075
875075561007SPEC
7 files 180 µF 25 2000 -55 °C up to +105 °C 4800 15 900 10 10 12.4 15" Tape & Reel875075
875075661007SPEC
7 files 180 µF 35 2000 -55 °C up to +105 °C 4100 22 1260 12 10 12.4 15" Tape & Reel
875075155002SPEC
7 files 220 µF 6.3 2000 -55 °C up to +105 °C 5200 8 277.2 8 8 11.7 15" Tape & Reel875075
875075355002SPEC
7 files 220 µF 16 2000 -55 °C up to +105 °C 4700 10 704 8 8 11.7 15" Tape & Reel875075
875075561008SPEC
7 files 220 µF 25 2000 -55 °C up to +105 °C 4800 15 1100 10 10 12.4 15" Tape & Reel875075
875075661008SPEC
7 files 220 µF 35 2000 -55 °C up to +105 °C 4100 22 1540 12 10 12.4 15" Tape & Reel
875075155003SPEC
7 files 270 µF 6.3 2000 -55 °C up to +105 °C 5200 8 340.2 8 8 11.7 15" Tape & Reel875075
875075355003SPEC
7 files 270 µF 16 2000 -55 °C up to +105 °C 4700 10 864 8 8 11.7 15" Tape & Reel875075
875075561009SPEC
7 files 270 µF 25 2000 -55 °C up to +105 °C 4800 15 1350 10 10 12.4 15" Tape & Reel875075
875075661009SPEC
7 files 270 µF 35 2000 -55 °C up to +105 °C 4400 20 1890 12 10 12.4 15" Tape & Reel
875075155004SPEC
7 files 330 µF 6.3 2000 -55 °C up to +105 °C 5200 8 416 8 8 11.7 15" Tape & Reel875075
875075355004SPEC
7 files 330 µF 16 2000 -55 °C up to +105 °C 4700 10 1056 8 8 12.4 15" Tape & Reel875075
875075661010SPEC
7 files 330 µF 35 2000 -55 °C up to +105 °C 4400 20 2310 12 10 12.4 15" Tape & Reel
875075155005SPEC
7 files 390 µF 6.3 2000 -55 °C up to +105 °C 5200 8 491 8 8 11.7 15" Tape & Reel875075
875075155006SPEC
7 files 470 µF 6.3 2000 -55 °C up to +105 °C 5200 8 592 8 8 11.7 15" Tape & Reel875075
875075361005SPEC
7 files 470 µF 16 2000 -55 °C up to +105 °C 5100 10 1504 10 10 12.4 15" Tape & Reel875075
875075155007SPEC
7 files 560 µF 6.3 2000 -55 °C up to +105 °C 5200 8 705.6 8 8 11.7 15" Tape & Reel875075
875075155008SPEC
7 files 680 µF 6.3 2000 -55 °C up to +105 °C 5200 8 856 8 8 11.7 15" Tape & Reel875075
875075361006SPEC
7 files 680 µF 16 2000 -55 °C up to +105 °C 5100 10 2176 10 10 12.4 15" Tape & Reel875075
875075155009SPEC
7 files 820 µF 6.3 2000 -55 °C up to +105 °C 5200 8 1033.2 10 8 11.7 15" Tape & Reel875075
875075361007SPEC
7 files 820 µF 16 2000 -55 °C up to +105 °C 5100 10 2624 10 10 12.4 15" Tape & Reel875075
875075155010SPEC
7 files 1000 µF 6.3 2000 -55 °C up to +105 °C 5200 8 1260 10 8 11.7 15" Tape & Reel875075
875075161011SPEC
7 files 1200 µF 6.3 2000 -55 °C up to +105 °C 5500 8 1512 10 10 12.4 15" Tape & Reel875075
875075161012SPEC
7 files 1500 µF 6.3 2000 -55 °C up to +105 °C 5500 8 1890 10 10 12.4 15" Tape & Reel875075
875075161013SPEC
7 files 2000 µF 6.3 2000 -55 °C up to +105 °C 5500 8 2520 10 10 12.4 15" Tape & Reel875075
