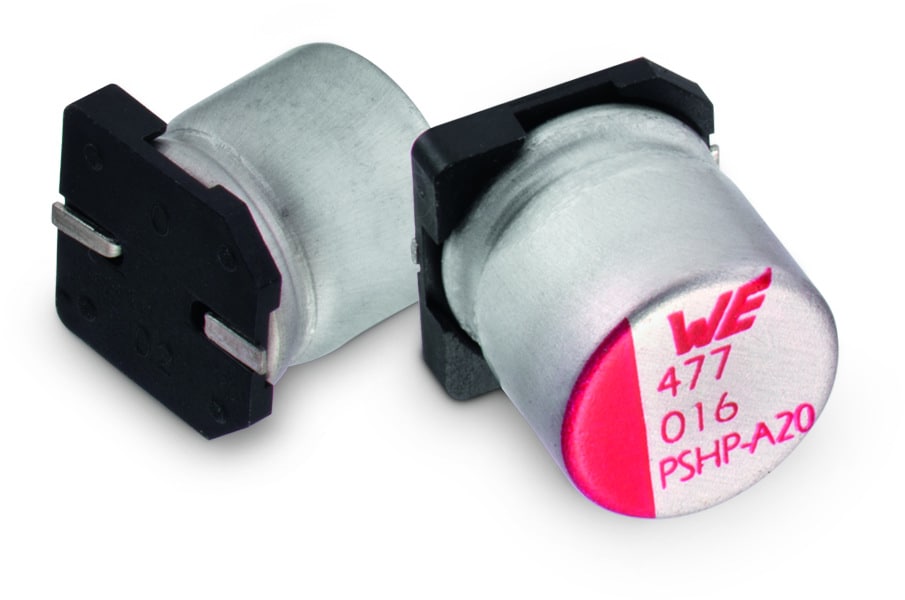

WCAP-PSHP Aluminum Polymer Capacitors

High Ripple Current

Characteristics

  • Product series with ultra high permissible ripple current
  • Low ESR over high frequency range
  • Mounting style: V-Chip SMT
  • Capacitance range: 6.8 µF ‒ 1200 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 6.3 ‒ 100 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 2000 ‒ 5000 h @ +105 °C
  • Dimensions (DxL) in mm: 6.3 x 5.8 up to 10.0 x 10.5
  • Recommended soldering: Reflow soldering

Applications

  • Low ripple voltage at the switching converter
  • Filtering
  • Smoothing
  • Coupling
  • e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Products

Order Code Data­sheet Simu­lation Downloads C VR
(V (DC))
Endurance
(h)
Operating Temperature IRIPPLE
(mA)
RESR
(mΩ)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
Technical Reference Design Kit Samples
875115952001
ALT EAG CAD LTS PSP CAD 6.8  µF 100 2000 -55 °C up to +105 °C 1500 48 136 12 8 8.7 PSEE0876R8M100DVCTEB000
875115644009
ALT EAG CAD LTS PSP CAD 10  µF 35 5000 -55 °C up to +105 °C 980 75 600 12 6.3 5.8 PSED058100M035DVCTBE000
875116152001
ALT EAG CAD LTS PSP CAD 10  µF 80 2000 -55 °C up to +105 °C 1600 45 160 12 8 8.7 PSEE087100M080DVCTEB000
875115752001
ALT EAG CAD LTS PSP CAD 10  µF 50 2000 -55 °C up to +105 °C 1500 45 100 12 8 8.7 PSEE087100M050DVCTEB000
875115852001
ALT EAG CAD LTS PSP CAD 10  µF 63 2000 -55 °C up to +105 °C 1500 45 126 12 8 8.7 PSEE087100M063DVCTEB000
875115957002
ALT EAG CAD LTS PSP CAD 12  µF 100 2000 -55 °C up to +105 °C 1900 45 240 12 10 10.5 PSEF105120M100DVCTEB000
875116157002
ALT EAG CAD LTS PSP CAD 15  µF 80 2000 -55 °C up to +105 °C 1900 40 240 12 10 10.5 PSEF105150M080DVCTEB000
875115645010
ALT EAG CAD LTS PSP CAD 18  µF 35 5000 -55 °C up to +105 °C 1400 60 600 12 6.3 7.7 PSED077180M035DVCTCE000
875115655011
ALT EAG CAD LTS PSP CAD 22  µF 35 5000 -55 °C up to +105 °C 2300 35 600 12 8 11.7 PSEE117220M035DVCTFE000
875115645012
ALT EAG CAD LTS PSP CAD 27  µF 35 5000 -55 °C up to +105 °C 1400 60 600 12 6.3 7.7 PSED077270M035DVCTCE000
875115655013
ALT EAG CAD LTS PSP CAD 33  µF 35 5000 -55 °C up to +105 °C 2300 35 600 12 8 11.7 PSEE117330M035DVCTFE000
875115652014
ALT EAG CAD LTS PSP CAD 39  µF 35 5000 -55 °C up to +105 °C 1800 40 600 12 8 8.7 PSEE087390M035DVCTEE000
875115650005
ALT EAG CAD LTS PSP CAD 56  µF 35 2000 -55 °C up to +105 °C 2200 40 392 12 8 7.7 PSEE077560M035DVCTDB000
875115655015
ALT EAG CAD LTS PSP CAD 56  µF 35 5000 -55 °C up to +105 °C 2300 35 600 12 8 11.7 PSEE117560M035DVCTFE000
875115452001
ALT EAG CAD LTS PSP CAD 68  µF 20 2000 -55 °C up to +105 °C 3500 20 272 8 8 8.7 PSEE087680M020DVCTEB000 875115
875115552001
ALT EAG CAD LTS PSP CAD 68  µF 25 2000 -55 °C up to +105 °C 3500 20 340 8 8 8.7 PSEE087680M025DVCTEB000 875115
875115657016
ALT EAG CAD LTS PSP CAD 68  µF 35 5000 -55 °C up to +105 °C 2500 32 600 12 10 10.5 PSEF105680M035DVCTEE000
875115452002
ALT EAG CAD LTS PSP CAD 82  µF 20 2000 -55 °C up to +105 °C 3500 20 328 8 8 8.7 PSEE087820M020DVCTEB000 875115
875115552002
ALT EAG CAD LTS PSP CAD 82  µF 25 2000 -55 °C up to +105 °C 3500 20 410 10 8 8.7 PSEE087820M025DVCTEB000 875115
875115560003
ALT EAG CAD LTS PSP CAD 82  µF 25 2000 -55 °C up to +105 °C 3100 25 410 10 10 8.7 PSEF087820M025DVCTEB000 875115
875115652006
ALT EAG CAD LTS PSP CAD 82  µF 35 2000 -55 °C up to +105 °C 2600 35 574 12 8 8.7 PSEE087820M035DVCTEB000
875115452003
ALT EAG CAD LTS PSP CAD 100  µF 20 2000 -55 °C up to +105 °C 3500 20 400 8 8 8.7 PSEE087101M020DVCTEB000 875115
875115560004
ALT EAG CAD LTS PSP CAD 100  µF 25 2000 -55 °C up to +105 °C 3100 25 500 10 10 8.7 PSEF087101M025DVCTEB000 875115
875115652007
ALT EAG CAD LTS PSP CAD 100  µF 35 2000 -55 °C up to +105 °C 3000 30 700 12 8 8.7 PSEE087101M035DVCTEB000
875115655003
ALT EAG CAD LTS PSP CAD 100  µF 35 5000 -55 °C up to +105 °C 2800 30 700 12 8 11.7 PSEE117101M035DVCTFE000
875115657008
ALT EAG CAD LTS PSP CAD 120  µF 35 2000 -55 °C up to +105 °C 3200 30 840 12 10 10.5 PSEF105121M035DVCTEB000
875115452004
ALT EAG CAD LTS PSP CAD 150  µF 20 2000 -55 °C up to +105 °C 3500 20 600 10 8 8.7 PSEE087151M020DVCTEB000 875115
875115460005
ALT EAG CAD LTS PSP CAD 150  µF 20 2000 -55 °C up to +105 °C 3100 25 600 10 10 8.7 PSEF087151M020DVCTEB000 875115
875115557005
ALT EAG CAD LTS PSP CAD 150  µF 25 2000 -55 °C up to +105 °C 3700 20 750 10 10 10.5 PSEF105151M025DVCTEB000 875115
875115350001
ALT EAG CAD LTS PSP CAD 180  µF 16 2000 -55 °C up to +105 °C 3500 20 288 8 8 7.7 PSEE077181M016DVCTDB000 875115
875115460006
ALT EAG CAD LTS PSP CAD 180  µF 20 2000 -55 °C up to +105 °C 3100 25 720 10 10 8.7 PSEF087181M020DVCTEB000 875115
875115150001
ALT EAG CAD LTS PSP CAD 220  µF 6.3 2000 -55 °C up to +105 °C 3500 20 277.2 8 8 7.7 PSEE077221M6R3DVCTDB000 875115
875115350002
ALT EAG CAD LTS PSP CAD 220  µF 16 2000 -55 °C up to +105 °C 3500 20 352 8 8 7.7 PSEE077221M016DVCTDB000 875115
875115460007
ALT EAG CAD LTS PSP CAD 220  µF 20 2000 -55 °C up to +105 °C 3100 25 880 10 10 8.7 PSEF087221M020DVCTEB000 875115
875115150002
ALT EAG CAD LTS PSP CAD 270  µF 6.3 2000 -55 °C up to +105 °C 3500 20 340.2 8 8 7.7 PSEE077271M6R3DVCTDB000 875115
875115352003
ALT EAG CAD LTS PSP CAD 270  µF 16 2000 -55 °C up to +105 °C 4800 11 432 10 8 8.7 PSEE087271M016DVCTEB000
875115457008
ALT EAG CAD LTS PSP CAD 270  µF 20 2000 -55 °C up to +105 °C 3700 20 1080 10 10 10.5 PSEF105271M020DVCTEB000 875115
875115150003
ALT EAG CAD LTS PSP CAD 330  µF 6.3 2000 -55 °C up to +105 °C 3500 20 415.8 8 8 7.7 PSEE077331M6R3DVCTDB000 875115
875115250001
ALT EAG CAD LTS PSP CAD 330  µF 10 2000 -55 °C up to +105 °C 3500 20 660 8 8 7.7 PSEE077331M010DVCTDB000 875115
875115360004
ALT EAG CAD LTS PSP CAD 330  µF 16 2000 -55 °C up to +105 °C 3700 20 528 10 10 8.7 PSEF087331M016DVCTEB000 875115
875115150004
ALT EAG CAD LTS PSP CAD 390  µF 6.3 2000 -55 °C up to +105 °C 3500 20 491 8 8 7.7 PSEE077391M6R3DVCTDB000 875115
875115250002
ALT EAG CAD LTS PSP CAD 390  µF 10 2000 -55 °C up to +105 °C 3500 20 780 8 8 7.7 PSEE077391M010DVCTDB000 875115
875115360005
ALT EAG CAD LTS PSP CAD 390  µF 16 2000 -55 °C up to +105 °C 3700 20 624 10 10 8.7 PSEF087391M016DVCTEB000 875115
875115150005
ALT EAG CAD LTS PSP CAD 470  µF 6.3 2000 -55 °C up to +105 °C 3500 20 592 8 8 7.7 PSEE077471M6R3DVCTDB000 875115
875115252003
ALT EAG CAD LTS PSP CAD 470  µF 10 2000 -55 °C up to +105 °C 4800 11 940 8 8 8.7 PSEE087471M010DVCTEB000 875115
875115260004
ALT EAG CAD LTS PSP CAD 470  µF 10 2000 -55 °C up to +105 °C 3700 20 940 8 10 8.7 PSEF087471M010DVCTEB000 875115
875115357006
ALT EAG CAD LTS PSP CAD 470  µF 16 2000 -55 °C up to +105 °C 5100 11 752 10 10 10.5 PSEF105471M016DVCTEB000 875115
875115152006
ALT EAG CAD LTS PSP CAD 560  µF 6.3 2000 -55 °C up to +105 °C 4800 11 705.6 8 8 8.7 PSEE087561M6R3DVCTEB000 875115
875115260005
ALT EAG CAD LTS PSP CAD 560  µF 10 2000 -55 °C up to +105 °C 3700 20 1120 8 10 8.7 PSEF087561M010DVCTEB000 875115
875115152007
ALT EAG CAD LTS PSP CAD 680  µF 6.3 2000 -55 °C up to +105 °C 4800 11 856 10 8 8.7 PSEE087681M6R3DVCTEB000 875115
875115260006
ALT EAG CAD LTS PSP CAD 680  µF 10 2000 -55 °C up to +105 °C 3700 20 1360 10 10 8.7 PSEF087681M010DVCTEB000 875115
875115160008
ALT EAG CAD LTS PSP CAD 820  µF 6.3 2000 -55 °C up to +105 °C 3700 20 1033.2 10 10 8.7 PSEF087821M6R3DVCTEB000 875115
875115257007
ALT EAG CAD LTS PSP CAD 820  µF 10 2000 -55 °C up to +105 °C 5100 11 1640 10 10 10.5 PSEF105821M010DVCTEB000 875115
875115160009
ALT EAG CAD LTS PSP CAD 1000  µF 6.3 2000 -55 °C up to +105 °C 3700 20 1260 10 10 8.7 PSEF087102M6R3DVCTEB000 875115
875115157010
ALT EAG CAD LTS PSP CAD 1200  µF 6.3 2000 -55 °C up to +105 °C 5100 11 1260 10 10 10.5 PSEF105122M6R3DVCTEB000 875115
Order Code Data­sheet Simu­lation
875115952001
875115644009
875116152001
875115752001
875115852001
875115957002
875116157002
875115645010
875115655011
875115645012
875115655013
875115652014
875115650005
875115655015
875115452001
875115552001
875115657016
875115452002
875115552002
875115560003
875115652006
875115452003
875115560004
875115652007
875115655003
875115657008
875115452004
875115460005
875115557005
875115350001
875115460006
875115150001
875115350002
875115460007
875115150002
875115352003
875115457008
875115150003
875115250001
875115360004
875115150004
875115250002
875115360005
875115150005
875115252003
875115260004
875115357006
875115152006
875115260005
875115152007
875115260006
875115160008
875115257007
875115160009
875115157010
Samples
Order Code Data­sheet Simu­lation Downloads C VR
(V (DC))
Endurance
(h)
Operating Temperature IRIPPLE
(mA)
RESR
(mΩ)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
Technical Reference Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
