WCAP-PHGP Aluminum Polymer Capacitors

General Purpose

Characteristics

  • General purpose product series with max. operating temperature of +105 °C
  • High ripple current capability
  • Low profile
  • Mounting style: H-Chip SMT
  • Capacitance range: 100 µF - 560 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 2 V(DC) - 6.3 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 2000h @ +105 °C

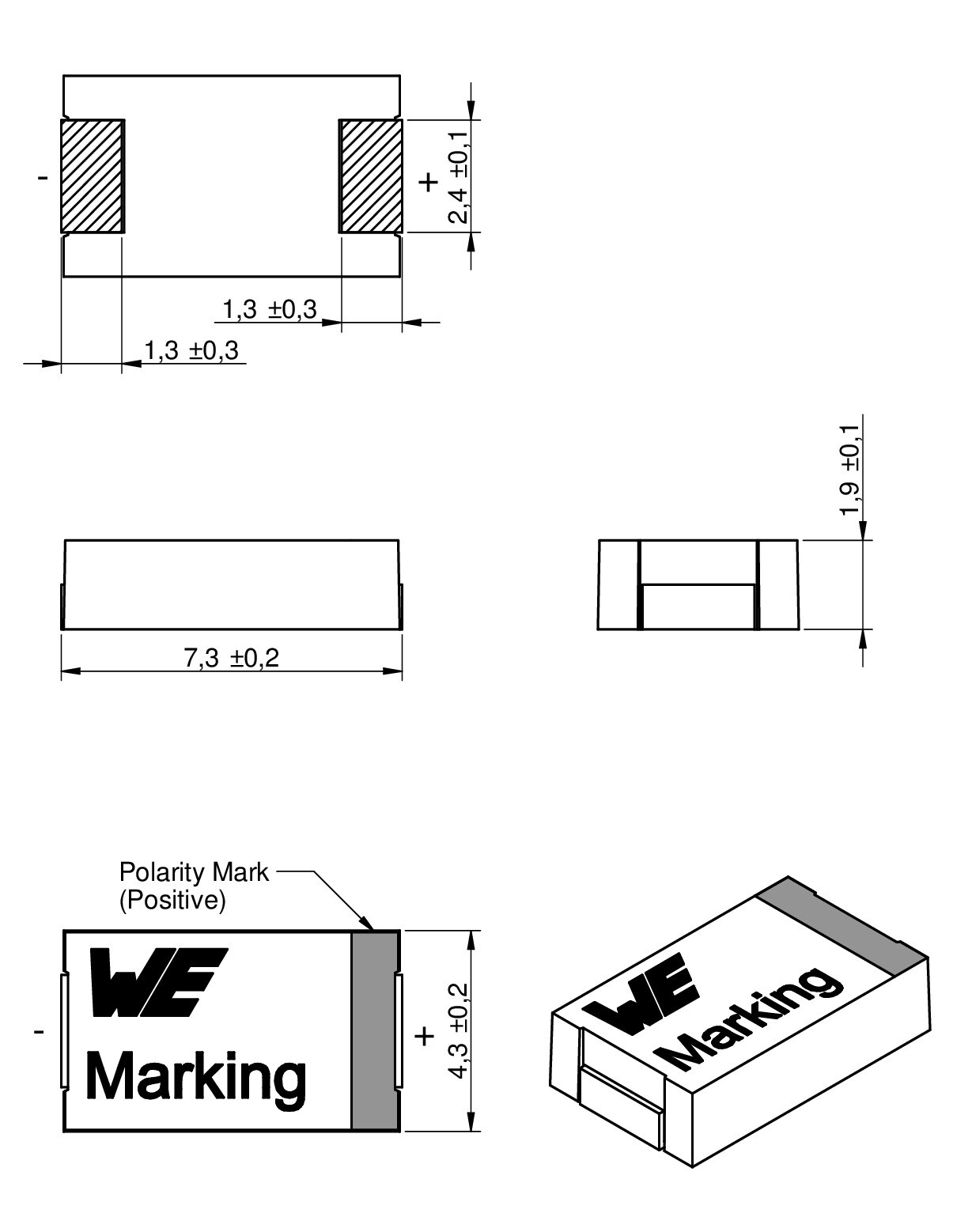

  • Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9
  • Recommended soldering: Reflow soldering

Applications

  • Noise suppression
  • Input and output capacitor for DC/DC converter
  • USB Charger, Smart Meter, Power Bank

Products

Order Code Data­sheet Simu­lation Downloads C VR
(V (DC))
Endurance
(h)
Operating Temperature IRIPPLE
(mA)
RESR
(mΩ)
ILeak
(µA)
DF
(%)
L
(mm)
W
(mm)
H
(mm)
Technical Reference Samples
875015119003
STE ALT EAG CAD CAD 100  µF 6.3 2000 -55 up to +105 °C 5100 15 63 6 7.3 4.3 1.9 PSE2917101M6R3DHCT2HT19
875015119004
STE ALT EAG CAD CAD 150  µF 6.3 2000 -55 up to +105 °C 5600 12 94.5 6 7.3 4.3 1.9 PSE2917151M6R3DHCT2HT19
875015019003
STE ALT EAG CAD CAD 180  µF 4 2000 -55 up to +105 °C 5600 12 72 6 7.3 4.3 1.9 PSE2917181M004DHCT2HT19
875015119005
STE ALT EAG CAD CAD 180  µF 6.3 2000 -55 up to +105 °C 5100 15 113.4 6 7.3 4.3 1.9 PSE2917181M6R3DHCT2HT19
875015019004
STE ALT EAG CAD CAD 220  µF 4 2000 -55 up to +105 °C 5600 12 88 6 7.3 4.3 1.9 PSE2917221M004DHCT2HT19
875015119006
STE ALT EAG CAD CAD 220  µF 6.3 2000 -55 up to +105 °C 5100 15 138.6 6 7.3 4.3 1.9 PSE2917221M6R3DHCT2HT19
875015019005
STE ALT EAG CAD CAD 330  µF 4 2000 -55 up to +105 °C 5100 15 132 6 7.3 4.3 1.9 PSE2917331M004DHCT2HT19
875016219004
STE ALT EAG CAD CAD 330  µF 2 2000 -55 up to +105 °C 5600 12 66 6 7.3 4.3 1.9 PSE2917331M002DHCT2HT19
875016319002
STE ALT EAG CAD CAD 330  µF 2.5 2000 -55 up to +105 °C 5100 15 82.5 6 7.3 4.3 1.9 PSE2917331M2R5DHCT2HT19
875016219005
STE ALT EAG CAD CAD 390  µF 2 2000 -55 up to +105 °C 5100 15 78 6 7.3 4.3 1.9 PSE2917391M002DHCT2HT19
875016319003
STE ALT EAG CAD CAD 390  µF 2.5 2000 -55 up to +105 °C 5100 15 97.5 6 7.3 4.3 1.9 PSE2917391M2R5DHCT2HT19
875016219006
STE ALT EAG CAD CAD 470  µF 2 2000 -55 up to +105 °C 5100 15 94 6 7.3 4.3 1.9 PSE2917471M002DHCT2HT19
875016319004
STE ALT EAG CAD CAD 470  µF 2.5 2000 -55 up to +105 °C 5100 15 117.5 6 7.3 4.3 1.9 PSE2917471M2R5DHCT2HT19
875016219007
STE ALT EAG CAD CAD 560  µF 2 2000 -55 up to +105 °C 5100 15 112 6 7.3 4.3 1.9 PSE2917561M002DHCT2HT19
