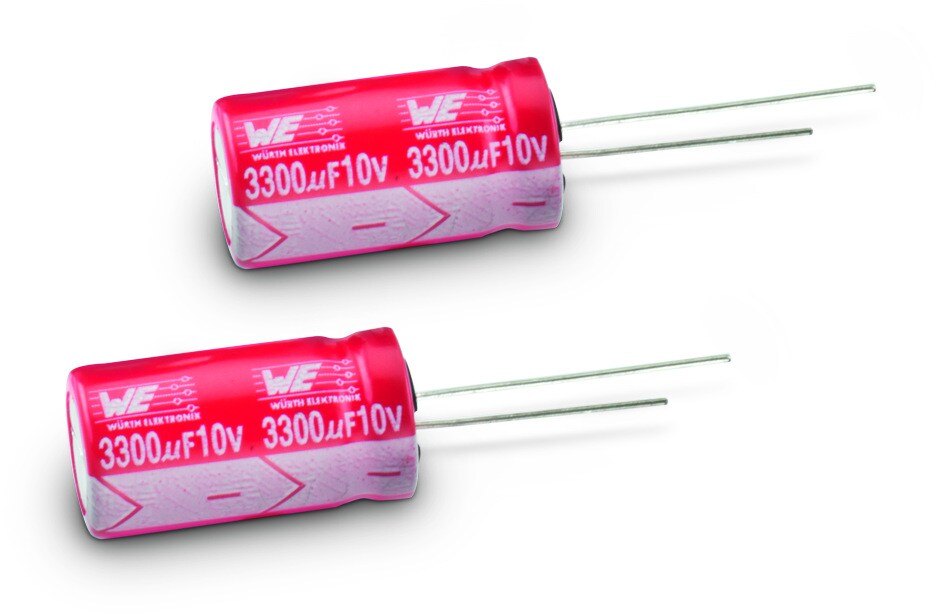

WCAP-ATUL Aluminum Electrolytic Capacitors

Low Leakage & Long Life

Characteristics

  • Low leakage current and long life product series
  • Mounting style: THT Radial
  • Capacitance range: 22 µF ‒ 4700 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 10 ‒ 100 V(DC)
  • Operating temperature: -40 °C up to +105 °C
  • Endurance: 4000 ‒ 10000 h @ +105 °C
  • Dimensions (DxL) in mm: 5.0 x 11.0 up to 18.0 x 41
  • Recommended soldering: Wave soldering

Applications

  • Durable battery applications
  • Filtering
  • Smoothing
  • Energy storage
  • Coupling
  • e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Products

Order Code SPEC Simu­lation Downloads C VR
(V (DC))
ILeak
(µA)
DF
(%)
IRIPPLE
(mA)
Operating Temperature Pitch
(mm)
Ø D
(mm)
L
(mm)
Technical Reference Design Kit Samples
860040672001
ALT EAG CAD LTS PSP CAD CAD 22 µF 50 11 10 220 -40 °C up to +105 °C 2 5 11 ATDC110470M035DSPA3E000 860041
860040874001
ALT EAG CAD LTS PSP CAD CAD 27 µF 100 27 9 300 -40 °C up to +105 °C 3.5 8 11.5 ATDE115270M100DSPA7G000 860042
860040572001
ALT EAG CAD LTS PSP CAD CAD 33 µF 35 11.55 12 230 -40 °C up to +105 °C 2 5 11 ATDC110101M010DSPA3D000 860041
860040773001
ALT EAG CAD LTS PSP CAD CAD 33 µF 63 20.79 9 260 -40 °C up to +105 °C 2.5 6.3 11 ATDD110330M063DSPA4E000 860042
860040472001
ALT EAG CAD LTS PSP CAD CAD 47 µF 25 11.75 14 160 -40 °C up to +105 °C 2 5 11 ATDC110560M025DSPA3E000 860040
860040572002
ALT EAG CAD LTS PSP CAD CAD 47 µF 35 16.45 12 280 -40 °C up to +105 °C 2 5 11 ATDC110330M035DSPA3E000 860041
860040673002
ALT EAG CAD LTS PSP CAD CAD 47 µF 50 23.5 10 260 -40 °C up to +105 °C 2.5 6.3 11 ATDD110470M050DSPA4E000 860041
860040774002
ALT EAG CAD LTS PSP CAD CAD 47 µF 63 29.61 9 360 -40 °C up to +105 °C 3.5 8 11.5 ATDE115470M063DSPA7G000 860042
860040875002
ALT EAG CAD LTS PSP CAD CAD 47 µF 100 47 9 400 -40 °C up to +105 °C 5 10 12.5 ATDF125470M100DSPA9G000 860042
860040372001
ALT EAG CAD LTS PSP CAD CAD 56 µF 16 8.96 16 200 -40 °C up to +105 °C 2 5 11 ATDC110470M025DSPA3E000 860040
860040472002
ALT EAG CAD LTS PSP CAD CAD 56 µF 25 14 14 240 -40 °C up to +105 °C 2 5 11 ATDC110220M050DSPA3E000 860040
860040673003
ALT EAG CAD LTS PSP CAD CAD 56 µF 50 28 10 300 -40 °C up to +105 °C 2.5 6.3 11 ATDD110560M050DSPA4E000 860041
860040573003
ALT EAG CAD LTS PSP CAD CAD 56 µF 35 19.6 12 360 -40 °C up to +105 °C 2.5 6.3 11 ATDD110560M035DSPA4E000 860041
860040774003
ALT EAG CAD LTS PSP CAD CAD 56 µF 63 35.28 9 380 -40 °C up to +105 °C 3.5 8 11.5 ATDE115560M063DSPA7G000 860042
860040875003
ALT EAG CAD LTS PSP CAD CAD 68 µF 100 68 9 460 -40 °C up to +105 °C 5 10 16 ATDF160680M100DSPAAG000 860042
860040774004
ALT EAG CAD LTS PSP CAD CAD 82 µF 63 51.66 9 460 -40 °C up to +105 °C 3.5 8 16 ATDE160820M063DSPA7G000 860042
860040775005
ALT EAG CAD LTS PSP CAD CAD 82 µF 63 51.66 9 500 -40 °C up to +105 °C 5 10 12.5 ATDF125820M063DSPA9G000 860042
860040875004
ALT EAG CAD LTS PSP CAD CAD 82 µF 100 82 9 600 -40 °C up to +105 °C 5 10 20 ATDF200820M100DSPAAG000 860042
860040272001
ALT EAG CAD LTS PSP CAD CAD 100 µF 10 10 19 215 -40 °C up to +105 °C 2 5 11 ATDC110560M016DSPA3E000
860040373002
ALT EAG CAD LTS PSP CAD CAD 100 µF 16 16 16 280 -40 °C up to +105 °C 2.5 6.3 11 ATDD110101M016DSPA4E000 860040
860040473003
ALT EAG CAD LTS PSP CAD CAD 100 µF 25 25 14 350 -40 °C up to +105 °C 2.5 6.3 11 ATDD110101M025DSPA4E000 860040
860040573004
ALT EAG CAD LTS PSP CAD CAD 100 µF 35 35 12 450 -40 °C up to +105 °C 2.5 6.3 11 ATDD110101M035DSPA4E000 860041
860040674004
ALT EAG CAD LTS PSP CAD CAD 100 µF 50 50 10 680 -40 °C up to +105 °C 3.5 8 11.5 ATDE115101M050DSPA7G000 860041
860040775006
ALT EAG CAD LTS PSP CAD CAD 100 µF 63 63 9 640 -40 °C up to +105 °C 5 10 12.5 ATDF125101M063DSPA9G000 860042
860040875005
ALT EAG CAD LTS PSP CAD CAD 100 µF 100 100 9 800 -40 °C up to +105 °C 5 10 25 ATDF250101M100DSPAAG000 860042
860040373003
ALT EAG CAD LTS PSP CAD CAD 120 µF 16 19.2 16 310 -40 °C up to +105 °C 2.5 6.3 11 ATDD110121M016DSPA4E000 860040
860040674005
ALT EAG CAD LTS PSP CAD CAD 120 µF 50 60 10 760 -40 °C up to +105 °C 3.5 8 16 ATDE160121M050DSPA7G000 860041
860040774007
ALT EAG CAD LTS PSP CAD CAD 120 µF 63 75.6 9 700 -40 °C up to +105 °C 3.5 8 20 ATDE200121M063DSPA7G000 860042
860040775008
ALT EAG CAD LTS PSP CAD CAD 120 µF 63 75.6 9 760 -40 °C up to +105 °C 5 10 16 ATDF160121M063DSPAAG000 860042
860040878006
ALT EAG CAD LTS PSP CAD CAD 120 µF 100 120 9 900 -40 °C up to +105 °C 5 13 20 ATDI200121M100DSPACK000 860042
860040574005
ALT EAG CAD LTS PSP CAD CAD 150 µF 35 52.5 12 680 -40 °C up to +105 °C 3.5 8 11.5 ATDE115151M035DSPA7G000 860041
860040675006
ALT EAG CAD LTS PSP CAD CAD 150 µF 50 75 10 800 -40 °C up to +105 °C 5 10 12.5 ATDF125151M050DSPA9G000 860041
860040674007
ALT EAG CAD LTS PSP CAD CAD 180 µF 50 90 10 1000 -40 °C up to +105 °C 3.5 8 20 ATDE200181M050DSPA7G000 860041
860040775009
ALT EAG CAD LTS PSP CAD CAD 180 µF 63 113.4 9 880 -40 °C up to +105 °C 5 10 20 ATDF200181M063DSPAAG000 860042
860040273002
ALT EAG CAD LTS PSP CAD CAD 220 µF 10 22 19 340 -40 °C up to +105 °C 2.5 6.3 11 ATDD110221M010DSPA4D000
860040374004
ALT EAG CAD LTS PSP CAD CAD 220 µF 16 35.2 16 480 -40 °C up to +105 °C 3.5 8 11.5 ATDE115221M016DSPA7G000 860040
860040474004
ALT EAG CAD LTS PSP CAD CAD 220 µF 25 55 14 590 -40 °C up to +105 °C 3.5 8 11.5 ATDE115221M025DSPA7G000 860040
860040574006
ALT EAG CAD LTS PSP CAD CAD 220 µF 35 77 12 1000 -40 °C up to +105 °C 3.5 8 16 ATDE160221M035DSPA7G000 860041
860040575007
ALT EAG CAD LTS PSP CAD CAD 220 µF 35 77 12 1060 -40 °C up to +105 °C 5 10 12.5 ATDF125221M035DSPA9G000 860041
860040675008
ALT EAG CAD LTS PSP CAD CAD 220 µF 50 110 10 1300 -40 °C up to +105 °C 5 10 16 ATDF160221M050DSPAAG000 860041
860040775010
ALT EAG CAD LTS PSP CAD CAD 220 µF 63 138.6 9 1100 -40 °C up to +105 °C 5 10 25 ATDF250221M063DSPAAG000 860042
860040574008
ALT EAG CAD LTS PSP CAD CAD 270 µF 35 94.5 12 1180 -40 °C up to +105 °C 3.5 8 20 ATDE200271M035DSPA7G000 860041
860040675009
ALT EAG CAD LTS PSP CAD CAD 270 µF 50 135 10 1350 -40 °C up to +105 °C 5 10 20 ATDF200271M050DSPAAG000 860041
860040778011
ALT EAG CAD LTS PSP CAD CAD 270 µF 63 170.1 9 1200 -40 °C up to +105 °C 5 13 20 ATDI200271M063DSPACK000 860042
860040880007
ALT EAG CAD LTS PSP CAD CAD 270 µF 100 270 9 1480 -40 °C up to +105 °C 7.5 16 25 ATDK250271M100DSPAEK000 860042
860040273003
ALT EAG CAD LTS PSP CAD CAD 330 µF 10 33 19 380 -40 °C up to +105 °C 2.5 6.3 11 ATDD110331M010DSPA4D000
860040374005
ALT EAG CAD LTS PSP CAD CAD 330 µF 16 52.8 16 600 -40 °C up to +105 °C 3.5 8 11.5 ATDE115331M016DSPA7G000 860040
860040474005
ALT EAG CAD LTS PSP CAD CAD 330 µF 25 82.5 14 810 -40 °C up to +105 °C 3.5 8 16 ATDE160331M025DSPA7G000 860040
860040475006
ALT EAG CAD LTS PSP CAD CAD 330 µF 25 82.5 14 826 -40 °C up to +105 °C 5 10 12.5 ATDF125331M025DSPA9G000 860040
860040575009
ALT EAG CAD LTS PSP CAD CAD 330 µF 35 115.5 12 1380 -40 °C up to +105 °C 5 10 16 ATDF160331M035DSPAAG000 860041
860040675010
ALT EAG CAD LTS PSP CAD CAD 330 µF 50 165 10 1600 -40 °C up to +105 °C 5 10 25 ATDF250331M050DSPAAG000 860041
860040778012
ALT EAG CAD LTS PSP CAD CAD 330 µF 63 207.9 9 1600 -40 °C up to +105 °C 5 13 25 ATDI250331M063DSPACK000 860042
860040878008
ALT EAG CAD LTS PSP CAD CAD 330 µF 100 330 9 1600 -40 °C up to +105 °C 5 13 40 ATDI400331M100DSPS4K000 860042
860040880009
ALT EAG CAD LTS PSP CAD CAD 390 µF 100 390 9 1700 -40 °C up to +105 °C 7.5 16 31.5 ATDK315391M100DSPADK000 860042
860040881010
ALT EAG CAD LTS PSP CAD CAD 390 µF 100 390 9 1740 -40 °C up to +105 °C 7.5 18 25 ATDL250391M100DSPAEK000 860042
860040274004
ALT EAG CAD LTS PSP CAD CAD 470 µF 10 47 19 600 -40 °C up to +105 °C 3.5 8 11.5 ATDE115471M010DSPA7F000
860040374006
ALT EAG CAD LTS PSP CAD CAD 470 µF 16 75.2 16 780 -40 °C up to +105 °C 3.5 8 16 ATDE160471M016DSPA7G000 860040
860040474007
ALT EAG CAD LTS PSP CAD CAD 470 µF 25 117.5 14 1020 -40 °C up to +105 °C 3.5 8 20 ATDE200471M025DSPA7G000 860040
860040375007
ALT EAG CAD LTS PSP CAD CAD 470 µF 16 75.2 16 800 -40 °C up to +105 °C 5 10 12.5 ATDF125471M016DSPA9G000 860040
860040475008
ALT EAG CAD LTS PSP CAD CAD 470 µF 25 117.5 14 1210 -40 °C up to +105 °C 5 10 16 ATDF160471M025DSPAAG000 860040
860040575010
ALT EAG CAD LTS PSP CAD CAD 470 µF 35 164.5 12 1800 -40 °C up to +105 °C 5 10 20 ATDF200471M035DSPAAG000 860041
860040675011
ALT EAG CAD LTS PSP CAD CAD 470 µF 50 235 10 1800 -40 °C up to +105 °C 5 10 30 ATDF300471M050DSPAAG000 860041
860040778013
ALT EAG CAD LTS PSP CAD CAD 470 µF 63 296.1 9 1800 -40 °C up to +105 °C 5 13 30 ATDI300471M063DSPACK000 860042
860040880011
ALT EAG CAD LTS PSP CAD CAD 470 µF 100 470 9 1880 -40 °C up to +105 °C 7.5 16 35.5 ATDK355471M100DSPADK000 860042
860040881012
ALT EAG CAD LTS PSP CAD CAD 470 µF 100 470 9 1600 -40 °C up to +105 °C 7.5 18 31.5 ATDL315471M100DSPAEK000 860042
860040575011
ALT EAG CAD LTS PSP CAD CAD 560 µF 35 196 12 1900 -40 °C up to +105 °C 5 10 25 ATDF250561M035DSPAAG000 860041
860040678012
ALT EAG CAD LTS PSP CAD CAD 560 µF 50 280 10 1950 -40 °C up to +105 °C 5 13 25 ATDI250561M050DSPACK000 860041
860040780014
ALT EAG CAD LTS PSP CAD CAD 560 µF 63 352.8 9 2000 -40 °C up to +105 °C 7.5 16 25 ATDK250561M063DSPAEK000 860042
860040274005
ALT EAG CAD LTS PSP CAD CAD 680 µF 10 68 19 770 -40 °C up to +105 °C 3.5 8 16 ATDE160681M010DSPA7F000
860040374008
ALT EAG CAD LTS PSP CAD CAD 680 µF 16 108.8 16 1000 -40 °C up to +105 °C 3.5 8 20 ATDE200681M016DSPA7G000 860040
860040275006
ALT EAG CAD LTS PSP CAD CAD 680 µF 10 68 19 800 -40 °C up to +105 °C 5 10 12.5 ATDF125681M010DSPA9F000
860040475009
ALT EAG CAD LTS PSP CAD CAD 680 µF 25 170 14 1400 -40 °C up to +105 °C 5 10 20 ATDF200681M025DSPAAG000 860040
860040575012
ALT EAG CAD LTS PSP CAD CAD 680 µF 35 238 12 2000 -40 °C up to +105 °C 5 10 30 ATDF300681M035DSPAAG000 860041
860040578013
ALT EAG CAD LTS PSP CAD CAD 680 µF 35 238 12 2100 -40 °C up to +105 °C 5 13 20 ATDI200681M035DSPACK000 860041
860040778015
ALT EAG CAD LTS PSP CAD CAD 680 µF 63 428.4 9 2200 -40 °C up to +105 °C 5 13 40 ATDI400681M063DSPS4K000 860042
860040881013
ALT EAG CAD LTS PSP CAD CAD 680 µF 100 680 9 1720 -40 °C up to +105 °C 7.5 18 35.5 ATDL355681M100DSPAEK000 860042
860040275007
ALT EAG CAD LTS PSP CAD CAD 820 µF 10 82 19 920 -40 °C up to +105 °C 5 10 16 ATDF160821M010DSPAAF000
860040375009
ALT EAG CAD LTS PSP CAD CAD 820 µF 16 131.2 16 1280 -40 °C up to +105 °C 5 10 20 ATDF200821M016DSPAAG000 860040
860040475010
ALT EAG CAD LTS PSP CAD CAD 820 µF 25 205 14 1580 -40 °C up to +105 °C 5 10 25 ATDF250821M025DSPAAG000 860040
860040780016
ALT EAG CAD LTS PSP CAD CAD 820 µF 63 516.6 9 2400 -40 °C up to +105 °C 7.5 16 31.5 ATDK315821M063DSPADK000 860042
860040881014
ALT EAG CAD LTS PSP CAD CAD 820 µF 100 820 9 2340 -40 °C up to +105 °C 7.5 18 41 ATDL410821M100DSPS1K000 860042
860040274008
ALT EAG CAD LTS PSP CAD CAD 1000 µF 10 100 19 1050 -40 °C up to +105 °C 3.5 8 20 ATDE200102M010DSPA7F000
860040275009
ALT EAG CAD LTS PSP CAD CAD 1000 µF 10 100 19 1110 -40 °C up to +105 °C 5 10 16 ATDF160102M010DSPAAF000
