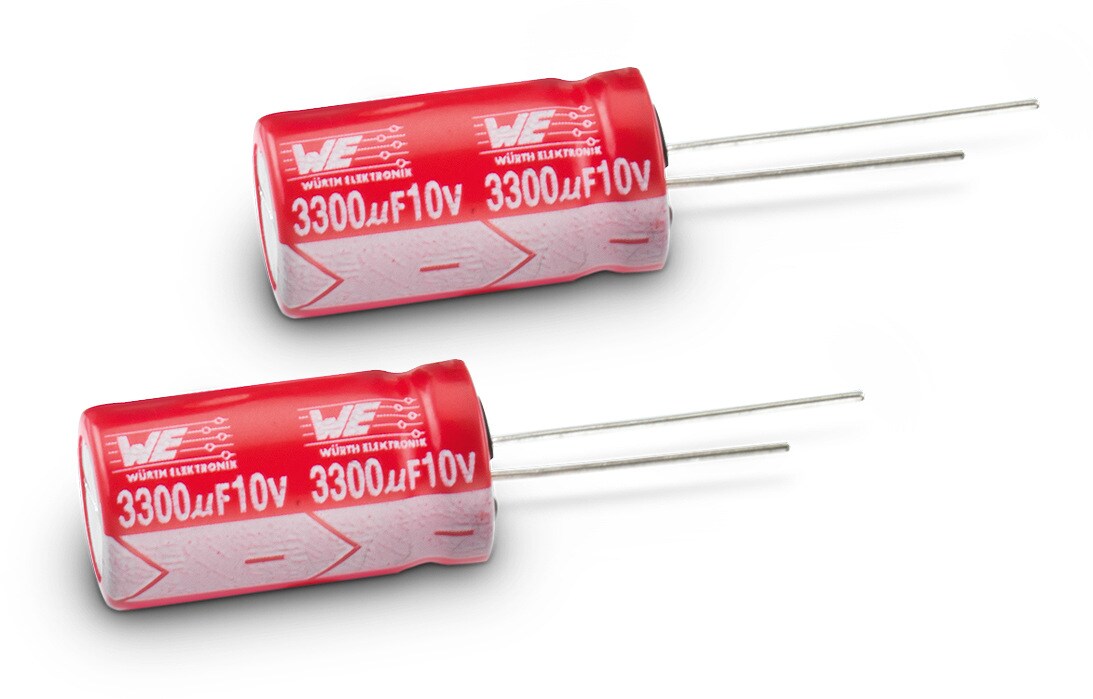

WCAP-ATLI Aluminum Electrolytic Capacitors

Low Impedance +105 °C

Characteristics

  • Low impedance product series
  • Mounting style: THT Radial
  • Capacitance range: 10 µF ‒ 6800 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 10 ‒ 63 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 2000 ‒ 5000 h @ +105 °C
  • Dimensions (DxL) in mm: 5.0 x 11.0 up to 18.0 x 31.5
  • Recommended soldering: Wave soldering

Applications

  • Low impedance, especially for filtering applications
  • Filtering
  • Smoothing
  • Energy storage
  • Coupling
  • e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Products

Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
ILeak
(µA)
DF
(%)
Pitch
(mm)
Ø D
(mm)
L
(mm)
Technical ReferenceDesign Kit Samples
860080872002SPEC
7 files 4.7 µF 100 2000 125 4.7 8 2 5 11 ATEC1104R7M100DSPA3B0RE
860080772001SPEC
7 files 10 µF 63 2000 -55 °C up to +105 °C 135 6.3 8 2 5 11 ATEC110100M063DSPA3B000860082
860080773002SPEC
7 files 15 µF 63 2000 -55 °C up to +105 °C 168 9.45 8 2.5 6.3 11 ATED110150M063DSPA4B000860082
860080773003SPEC
7 files 18 µF 63 2000 -55 °C up to +105 °C 170 11.34 8 2.5 6.3 11 ATED110180M063DSPA4B000860082
860080672001SPEC
7 files 22 µF 50 2000 -55 °C up to +105 °C 220 11 8 2 5 11 ATEC110220M050DSPA3B000
860080773004SPEC
7 files 22 µF 63 2000 -55 °C up to +105 °C 250 13.86 8 2.5 6.3 11 ATED110220M063DSPA4B000860082
860080673002SPEC
7 files 27 µF 50 2000 -55 °C up to +105 °C 265 13.5 8 2.5 6.3 11 ATED110270M050DSPA4B000
860080773005SPEC
7 files 27 µF 63 2000 -55 °C up to +105 °C 260 17.01 8 2.5 6.3 11 ATED110270M063DSPA4B000860082
860080572001SPEC
7 files 33 µF 35 2000 -55 °C up to +105 °C 230 11.55 9 2 5 11 ATEC110330M035DSPA3B000860081
860080673003SPEC
7 files 33 µF 50 2000 -55 °C up to +105 °C 280 16.5 8 2.5 6.3 11 ATED110330M050DSPA4B000
860080773006SPEC
7 files 33 µF 63 2000 -55 °C up to +105 °C 270 20.79 8 2.5 6.3 11 ATED110330M063DSPA4B000860082
860080472001SPEC
7 files 39 µF 25 2000 -55 °C up to +105 °C 210 9.75 10 2 5 11 ATEC110390M025DSPA3B000
860080673004SPEC
7 files 39 µF 50 2000 -55 °C up to +105 °C 300 19.5 8 2.5 6.3 11 ATED110390M050DSPA4B000
860080573002SPEC
7 files 39 µF 35 2000 -55 °C up to +105 °C 277 13.65 9 2.5 6.3 11 ATED110390M035DSPA4B000860081
860080774007SPEC
7 files 39 µF 63 3000 -55 °C up to +105 °C 320 24.57 8 3.5 8 11.5 ATEE115390M063DSPA7C000860082
860080372001SPEC
7 files 47 µF 16 2000 -55 °C up to +105 °C 200 7.52 12 2 5 11 ATEC110470M016DSPA3B000860080
860080472002SPEC
7 files 47 µF 25 2000 -55 °C up to +105 °C 240 11.75 10 2 5 11 ATEC110470M025DSPA3B000
860080573003SPEC
7 files 47 µF 35 2000 -55 °C up to +105 °C 340 16.45 9 2.5 6.3 11 ATED110470M035DSPA4B000860081
860080674005SPEC
7 files 47 µF 50 3000 -55 °C up to +105 °C 360 23.5 8 3.5 8 11.5 ATEE115470M050DSPA7C000
860080774008SPEC
7 files 47 µF 63 3000 -55 °C up to +105 °C 400 29.61 8 3.5 8 11.5 ATEE115470M063DSPA7C000860082
860080372002SPEC
7 files 56 µF 16 2000 -55 °C up to +105 °C 220 8.96 12 2 5 11 ATEC110560M016DSPA3B000860080
860080472003SPEC
7 files 56 µF 25 2000 -55 °C up to +105 °C 256 14 10 2 5 11 ATEC110560M025DSPA3B000
860080573004SPEC
7 files 56 µF 35 2000 -55 °C up to +105 °C 375 19.6 9 2.5 6.3 11 ATED110560M035DSPA4B000860081
860080674006SPEC
7 files 56 µF 50 3000 -55 °C up to +105 °C 375 28 8 3.5 8 11.5 ATEE115560M050DSPA7C000
860080774009SPEC
7 files 56 µF 63 3000 -55 °C up to +105 °C 420 35.28 8 3.5 8 11.5 ATEE115560M063DSPA7C000860082
860080372003SPEC
7 files 68 µF 16 2000 -55 °C up to +105 °C 230 10.88 12 2 5 11 ATEC110680M016DSPA3B000860080
860080272001SPEC
7 files 68 µF 10 2000 -55 °C up to +105 °C 190 6.8 14 2 5 11 ATEC110680M010DSPA3B000
860080473004SPEC
7 files 68 µF 25 2000 -55 °C up to +105 °C 300 17 10 2.5 6.3 11 ATED110680M025DSPA4B000
860080573005SPEC
7 files 68 µF 35 2000 -55 °C up to +105 °C 400 23.8 9 2.5 6.3 11 ATED110680M035DSPA4B000860081
860080674007SPEC
7 files 68 µF 50 3000 -55 °C up to +105 °C 400 34 8 3.5 8 11.5 ATEE115680M050DSPA7C000
860080775010SPEC
7 files 68 µF 63 5000 -55 °C up to +105 °C 500 42.84 8 5 10 12.5 ATEF125680M063DSPA9E000860082
860080372004SPEC
7 files 82 µF 16 2000 -55 °C up to +105 °C 260 13.12 12 2 5 11 ATEC110820M016DSPA3B000860080
860080272002SPEC
7 files 82 µF 10 2000 -55 °C up to +105 °C 210 8.2 14 2 5 11 ATEC110820M010DSPA3B000
860080473005SPEC
7 files 82 µF 25 2000 -55 °C up to +105 °C 350 20.5 10 2.5 6.3 11 ATED110820M025DSPA4B000
860080674008SPEC
7 files 82 µF 50 3000 -55 °C up to +105 °C 550 41 8 3.5 8 11.5 ATEE115820M050DSPA7C000
860080574006SPEC
7 files 82 µF 35 3000 -55 °C up to +105 °C 480 28.7 9 3.5 8 11.5 ATEE115820M035DSPA7C000860081
860080774011SPEC
7 files 82 µF 63 3000 -55 °C up to +105 °C 540 51.66 8 3.5 8 16 ATEE160820M063DSPA7C000860082
860080775012SPEC
7 files 82 µF 63 5000 -55 °C up to +105 °C 570 51.66 8 5 10 12.5 ATEF125820M063DSPA9E000860082
860080272003SPEC
7 files 100 µF 10 2000 -55 °C up to +105 °C 242 10 14 2 5 11 ATEC110101M010DSPA3B000
860080373005SPEC
7 files 100 µF 16 2000 -55 °C up to +105 °C 360 16 12 2.5 6.3 11 ATED110101M016DSPA4B000860080
860080473006SPEC
7 files 100 µF 25 2000 -55 °C up to +105 °C 410 25 10 2.5 6.3 11 ATED110101M025DSPA4B000
860080674009SPEC
7 files 100 µF 50 3000 -55 °C up to +105 °C 730 50 8 3.5 8 11.5 ATEE115101M050DSPA7C000
860080574007SPEC
7 files 100 µF 35 3000 -55 °C up to +105 °C 560 35 9 3.5 8 11.5 ATEE115101M035DSPA7C000860081
860080775013SPEC
7 files 100 µF 63 5000 -55 °C up to +105 °C 720 63 8 5 10 12.5 ATEF125101M063DSPA9E000860082
860080272004SPEC
7 files 120 µF 10 2000 -55 °C up to +105 °C 261 12 14 2 5 11 ATEC110121M010DSPA3B000
860080373006SPEC
7 files 120 µF 16 2000 -55 °C up to +105 °C 365 19.2 12 2.5 6.3 11 ATED110121M016DSPA4B000860080
860080473007SPEC
7 files 120 µF 25 2000 -55 °C up to +105 °C 490 30 10 2.5 6.3 15 ATED150121M025DSPA4B000
860080574008SPEC
7 files 120 µF 35 3000 -55 °C up to +105 °C 585 42 9 3.5 8 11.5 ATEE115121M035DSPA7C000860081
860080674010SPEC
7 files 120 µF 50 3000 -55 °C up to +105 °C 770 60 8 3.5 8 16 ATEE160121M050DSPA7C000
860080774014SPEC
7 files 120 µF 63 3000 -55 °C up to +105 °C 790 75.6 8 3.5 8 20 ATEE200121M063DSPA7C000860082
860080675011SPEC
7 files 120 µF 50 5000 -55 °C up to +105 °C 790 60 8 5 10 12.5 ATEF125121M050DSPA9E000
860080775015SPEC
7 files 120 µF 63 5000 -55 °C up to +105 °C 835 75.6 8 5 10 16 ATEF160121M063DSPAAE000860082
860080373007SPEC
7 files 150 µF 16 2000 -55 °C up to +105 °C 385 24 12 2.5 6.3 11 ATED110151M016DSPA4B000860080
860080273005SPEC
7 files 150 µF 10 2000 -55 °C up to +105 °C 300 15 14 2.5 6.3 11 ATED110151M010DSPA4B000
860080474008SPEC
7 files 150 µF 25 3000 -55 °C up to +105 °C 540 37.5 10 3.5 8 11.5 ATEE115151M025DSPA7C000
860080574009SPEC
7 files 150 µF 35 3000 -55 °C up to +105 °C 680 52.5 9 3.5 8 11.5 ATEE115151M035DSPA7C000860081
860080675012SPEC
7 files 150 µF 50 5000 -55 °C up to +105 °C 870 75 8 5 10 12.5 ATEF125151M050DSPA9E000
860080775016SPEC
7 files 150 µF 63 5000 -55 °C up to +105 °C 900 94.5 8 5 10 16 ATEF160151M063DSPAAE000860082
860080273006SPEC
7 files 180 µF 10 2000 -55 °C up to +105 °C 350 18 14 2.5 6.3 11 ATED110181M010DSPA4B000
860080374008SPEC
7 files 180 µF 16 3000 -55 °C up to +105 °C 520 28.8 12 3.5 8 11.5 ATEE115181M016DSPA7C000860080
860080474009SPEC
7 files 180 µF 25 3000 -55 °C up to +105 °C 620 45 10 3.5 8 11.5 ATEE115181M025DSPA7C000
860080574010SPEC
7 files 180 µF 35 3000 -55 °C up to +105 °C 810 63 9 3.5 8 16 ATEE160181M035DSPA7C000860081
860080674013SPEC
7 files 180 µF 50 3000 -55 °C up to +105 °C 1060 90 8 3.5 8 20 ATEE200181M050DSPA7C000
860080675014SPEC
7 files 180 µF 50 5000 -55 °C up to +105 °C 1090 90 8 5 10 16 ATEF160181M050DSPAAE000
860080775017SPEC
7 files 180 µF 63 5000 -55 °C up to +105 °C 1200 113.4 8 5 10 20 ATEF200181M063DSPAAE000860082
860080273007SPEC
7 files 220 µF 10 2000 -55 °C up to +105 °C 390 22 14 2.5 6.3 11 ATED110221M010DSPA4B000
860080374009SPEC
7 files 220 µF 16 3000 -55 °C up to +105 °C 575 35.2 12 3.5 8 11.5 ATEE115221M016DSPA7C000860080
860080474010SPEC
7 files 220 µF 25 3000 -55 °C up to +105 °C 750 55 10 3.5 8 11.5 ATEE115221M025DSPA7C000
860080574011SPEC
7 files 220 µF 35 3000 -55 °C up to +105 °C 1000 77 9 3.5 8 16 ATEE160221M035DSPA7C000860081
860080575012SPEC
7 files 220 µF 35 5000 -55 °C up to +105 °C 1060 77 9 5 10 12.5 ATEF125221M035DSPA9E000860081
860080675015SPEC
7 files 220 µF 50 5000 -55 °C up to +105 °C 1385 110 8 5 10 16 ATEF160221M050DSPAAE000
860080775018SPEC
7 files 220 µF 63 5000 -55 °C up to +105 °C 1315 138.6 8 5 10 25 ATEF250221M063DSPAAE000860082
860080273008SPEC
7 files 270 µF 10 2000 -55 °C up to +105 °C 460 27 14 2.5 6.3 15 ATED150271M010DSPA4B000
860080374010SPEC
7 files 270 µF 16 3000 -55 °C up to +105 °C 600 43.2 12 3.5 8 11.5 ATEE115271M016DSPA7C000860080
860080474011SPEC
7 files 270 µF 25 3000 -55 °C up to +105 °C 850 67.5 10 3.5 8 16 ATEE160271M025DSPA7C000
860080575013SPEC
7 files 270 µF 35 5000 -55 °C up to +105 °C 1190 94.5 9 5 10 16 ATEF160271M035DSPAAE000860081
860080675016SPEC
7 files 270 µF 50 5000 -55 °C up to +105 °C 1500 135 8 5 10 20 ATEF200271M050DSPAAE000
860080778019SPEC
7 files 270 µF 63 5000 -55 °C up to +105 °C 1400 170.1 8 5 13 20 ATEI200271M063DSPACE000860082
860080374011SPEC
7 files 330 µF 16 3000 -55 °C up to +105 °C 740 52.8 12 3.5 8 11.5 ATEE115331M016DSPA7C000860080
860080274009SPEC
7 files 330 µF 10 3000 -55 °C up to +105 °C 540 33 14 3.5 8 11.5 ATEE115331M010DSPA7C000
860080474012SPEC
7 files 330 µF 25 3000 -55 °C up to +105 °C 990 82.5 10 3.5 8 16 ATEE160331M025DSPA7C000
860080574014SPEC
7 files 330 µF 35 3000 -55 °C up to +105 °C 1210 115.5 9 3.5 8 20 ATEE200331M035DSPA7C000860081
860080475013SPEC
7 files 330 µF 25 5000 -55 °C up to +105 °C 1010 82.5 10 5 10 12.5 ATEF125331M025DSPA9E000
860080575015SPEC
7 files 330 µF 35 5000 -55 °C up to +105 °C 1400 115.5 9 5 10 16 ATEF160331M035DSPAAE000860081
860080675017SPEC
7 files 330 µF 50 5000 -55 °C up to +105 °C 1850 165 8 5 10 25 ATEF250331M050DSPAAE000
860080775020SPEC
7 files 330 µF 63 5000 -55 °C up to +105 °C 1750 207.9 8 5 10 30 ATEF300331M063DSPAAE000860082
860080778021SPEC
7 files 330 µF 63 5000 -55 °C up to +105 °C 1870 207.9 8 5 13 25 ATEI250331M063DSPACE000860082
860080274010SPEC
7 files 390 µF 10 3000 -55 °C up to +105 °C 620 39 14 3.5 8 11.5 ATEE115391M010DSPA7C000
860080374012SPEC
7 files 390 µF 16 3000 -55 °C up to +105 °C 790 62.4 12 3.5 8 16 ATEE160391M016DSPA7C000860080
860080475014SPEC
7 files 390 µF 25 5000 -55 °C up to +105 °C 1050 97.5 10 5 10 12.5 ATEF125391M025DSPA9E000
860080575016SPEC
7 files 390 µF 35 5000 -55 °C up to +105 °C 1550 136.5 9 5 10 20 ATEF200391M035DSPAAE000860081
860080678018SPEC
7 files 390 µF 50 5000 -55 °C up to +105 °C 1910 195 8 5 13 20 ATEI200391M050DSPACE000
860080778022SPEC
7 files 390 µF 63 5000 -55 °C up to +105 °C 1920 245.7 8 5 13 25 ATEI250391M063DSPACE000860082
860080274011SPEC
7 files 470 µF 10 3000 -55 °C up to +105 °C 750 47 14 3.5 8 11.5 ATEE115471M010DSPA7C000
860080374013SPEC
7 files 470 µF 16 3000 -55 °C up to +105 °C 990 75.2 12 3.5 8 16 ATEE160471M016DSPA7C000860080
860080474015SPEC
7 files 470 µF 25 3000 -55 °C up to +105 °C 1260 117.5 10 3.5 8 20 ATEE200471M025DSPA7C000
860080375014SPEC
7 files 470 µF 16 5000 -55 °C up to +105 °C 1000 75.2 12 5 10 12.5 ATEF125471M016DSPA9E000860080
860080475016SPEC
7 files 470 µF 25 5000 -55 °C up to +105 °C 1415 117.5 10 5 10 16 ATEF160471M025DSPAAE000
860080575017SPEC
7 files 470 µF 35 5000 -55 °C up to +105 °C 1850 164.5 9 5 10 20 ATEF200471M035DSPAAE000860081
860080678019SPEC
7 files 470 µF 50 5000 -55 °C up to +105 °C 2000 235 8 5 13 20 ATEI200471M050DSPACE000
860080778023SPEC
7 files 470 µF 63 5000 -55 °C up to +105 °C 2225 296.1 8 5 13 30 ATEI300471M063DSPACE000860082
860080780024SPEC
7 files 470 µF 63 5000 -55 °C up to +105 °C 1970 296.1 8 7.5 16 21 ATEK210471M063DSPAEE000860082
860080274012SPEC
7 files 560 µF 10 3000 -55 °C up to +105 °C 870 56 14 3.5 8 16 ATEE160561M010DSPA7C000
860080374015SPEC
7 files 560 µF 16 3000 -55 °C up to +105 °C 1070 89.6 12 3.5 8 20 ATEE200561M016DSPA7C000860080
860080475017SPEC
7 files 560 µF 25 5000 -55 °C up to +105 °C 1450 140 10 5 10 20 ATEF200561M025DSPAAE000
860080575018SPEC
7 files 560 µF 35 5000 -55 °C up to +105 °C 2040 196 9 5 10 25 ATEF250561M035DSPAAE000860081
860080678020SPEC
7 files 560 µF 50 5000 -55 °C up to +105 °C 2150 280 8 5 13 20 ATEI200561M050DSPACE000
860080780025SPEC
7 files 560 µF 63 5000 -55 °C up to +105 °C 2350 352.8 8 7.5 16 25 ATEK250561M063DSPAEE000860082
860080374016SPEC
7 files 680 µF 16 3000 -55 °C up to +105 °C 1120 108.8 12 3.5 8 20 ATEE200681M016DSPA7C000860080
860080274013SPEC
7 files 680 µF 10 3000 -55 °C up to +105 °C 1010 68 14 3.5 8 20 ATEE200681M010DSPA7C000
860080375017SPEC
7 files 680 µF 16 5000 -55 °C up to +105 °C 1280 108.8 12 5 10 16 ATEF160681M016DSPAAE000860080
860080475018SPEC
7 files 680 µF 25 5000 -55 °C up to +105 °C 1570 170 10 5 10 20 ATEF200681M025DSPAAE000
860080578019SPEC
7 files 680 µF 35 5000 -55 °C up to +105 °C 2260 238 9 5 13 20 ATEI200681M035DSPACE000860081
860080678021SPEC
7 files 680 µF 50 5000 -55 °C up to +105 °C 2490 340 8 5 13 25 ATEI250681M050DSPACE000
860080780026SPEC
7 files 680 µF 63 5000 -55 °C up to +105 °C 2600 428.4 8 7.5 16 31.5 ATEK315681M063DSPADE000860082
860080274014SPEC
7 files 820 µF 10 3000 -55 °C up to +105 °C 1030 82 14 3.5 8 20 ATEE200821M010DSPA7C000
860080375018SPEC
7 files 820 µF 16 5000 -55 °C up to +105 °C 1400 131.2 12 5 10 20 ATEF200821M016DSPAAE000860080
860080475019SPEC
7 files 820 µF 25 5000 -55 °C up to +105 °C 1910 205 10 5 10 25 ATEF250821M025DSPAAE000
860080578020SPEC
7 files 820 µF 35 5000 -55 °C up to +105 °C 2630 287 9 5 13 25 ATEI250821M035DSPACE000860081
860080678022SPEC
7 files 820 µF 50 5000 -55 °C up to +105 °C 2770 410 8 5 13 30 ATEI300821M050DSPACE000
860080680023SPEC
7 files 820 µF 50 5000 -55 °C up to +105 °C 2960 410 8 7.5 16 25 ATEK250821M050DSPAEE000
860080780027SPEC
7 files 820 µF 63 5000 -55 °C up to +105 °C 2650 516.6 8 7.5 16 31.5 ATEK315821M063DSPADE000860082
860080274015SPEC
7 files 1000 µF 10 3000 -55 °C up to +105 °C 1220 100 14 3.5 8 20 ATEE200102M010DSPA7C000
860080275016SPEC
7 files 1000 µF 10 5000 -55 °C up to +105 °C 1400 100 14 5 10 16 ATEF160102M010DSPAAE000
860080375019SPEC
7 files 1000 µF 16 5000 -55 °C up to +105 °C 1840 160 12 5 10 20 ATEF200102M016DSPAAE000860080
860080478020SPEC
7 files 1000 µF 25 5000 -55 °C up to +105 °C 2340 250 10 5 13 20 ATEI200102M025DSPACE000
860080578021SPEC
7 files 1000 µF 35 5000 -55 °C up to +105 °C 2780 350 9 5 13 25 ATEI250102M035DSPACE000860081
860080680024SPEC
7 files 1000 µF 50 5000 -55 °C up to +105 °C 3000 500 8 7.5 16 25 ATEK250102M050DSPAEE000
860080780028SPEC
7 files 1000 µF 63 5000 -55 °C up to +105 °C 2780 630 8 7.5 16 35.5 ATEK355102M063DSPADE000860082
860080781029SPEC
7 files 1000 µF 63 5000 -55 °C up to +105 °C 3230 630 8 7.5 18 31.5 ATEL315102M063DSPAEE000860082
860080275017SPEC
7 files 1200 µF 10 5000 -55 °C up to +105 °C 1560 120 14 5 10 20 ATEF200122M010DSPAAE000
860080375020SPEC
7 files 1200 µF 16 5000 -55 °C up to +105 °C 1920 192 12 5 10 25 ATEF250122M016DSPAAE000860080
860080478021SPEC
7 files 1200 µF 25 5000 -55 °C up to +105 °C 2390 300 10 5 13 20 ATEI200122M025DSPACE000
860080578022SPEC
7 files 1200 µF 35 5000 -55 °C up to +105 °C 2950 420 9 5 13 30 ATEI300122M035DSPACE000860081
860080580023SPEC
7 files 1200 µF 35 5000 -55 °C up to +105 °C 3150 420 9 7.5 16 25 ATEK250122M035DSPAEE000860081
860080275018SPEC
7 files 1500 µF 10 5000 -55 °C up to +105 °C 1670 150 14 5 10 20 ATEF200152M010DSPAAE000
860080375021SPEC
7 files 1500 µF 16 5000 -55 °C up to +105 °C 2050 240 12 5 10 25 ATEF250152M016DSPAAE000860080
860080378022SPEC
7 files 1500 µF 16 5000 -55 °C up to +105 °C 2200 240 12 5 13 20 ATEI200152M016DSPACE000860080
860080478022SPEC
7 files
