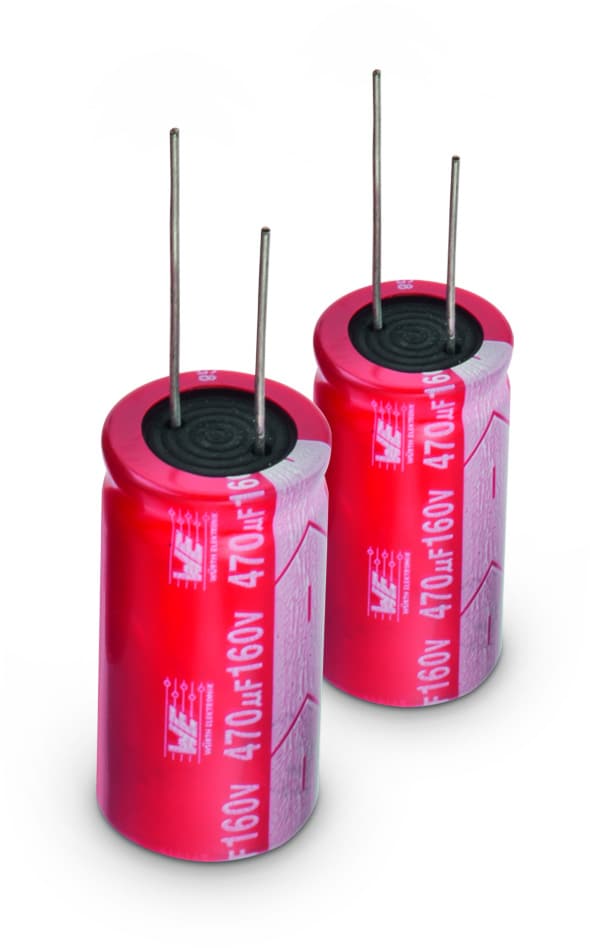

WCAP-ATG8 Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-ATG8 (rev22a).zip
|
5.6 KB

Characteristics

General purpose product series with max. operating temperature of +85 °C
Wide range of capacitance value
Mounting style: THT Radial
Recommended soldering: Wave soldering

Applications

Filtering
Smoothing
Energy storage
Coupling
e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Application Notes

ANP071 Aluminum Electrolytic vs. Aluminum Polymer Capacitor and how its benefits are used properly
PDF
ANP109 Impedance Spectra of Different Capacitor Technologies
PDF
ANP117 Impact of output capacitor on feedback loop stability of a power supply
PDF
ANP125 Acoustic Effect of Harmonic Distortions caused by Aluminum Electrolytic Capacitors
PDF
SN008 Expected Lifetime of Aluminum Electrolytic and Aluminum Polymer Capacitor
PDF
SN019 Afraid of aging? The effects of time on electrolytic capacitors
PDF

Products

All

⌀ 5 mm

⌀ 6.3 mm

⌀ 8 mm

⌀ 10 mm

⌀ 13 mm

⌀ 16 mm

⌀ 18 mm

⌀ 22 mm

Reset all

Filter article data

show article in 8 product lines

article in 8 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (DC))	Endurance(h)	I_RIPPLE(mA)	I_Leak(µA)	DF(%)	Pitch(mm)	Ø D(mm)	L(mm)	Packaging	Design Kit
860010672004	0.47 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance0.47 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current7.5 mA	Leakage Current3 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010772004	0.47 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance0.47 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current8 mA	Leakage Current3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011373001	0.47 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance0.47 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current12 mA	Leakage Current5.64 µA	Dissipation Factor15 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860013
860010672005	1 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current17 mA	Leakage Current3 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010772005	1 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current17 mA	Leakage Current3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011373002	1 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current20 mA	Leakage Current12 µA	Dissipation Factor15 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860013
860010672006	2.2 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current28 mA	Leakage Current3 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010772006	2.2 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current31 mA	Leakage Current3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011374003	2.2 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current32 mA	Leakage Current26.4 µA	Dissipation Factor15 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860013
860010672007	3.3 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current39 mA	Leakage Current3 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010772007	3.3 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current39 mA	Leakage Current3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011374004	3.3 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current45 mA	Leakage Current39.6 µA	Dissipation Factor15 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860013
860010472001	4.7 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current34 mA	Leakage Current3 µA	Dissipation Factor14 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010672008	4.7 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current46 mA	Leakage Current3 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010572001	4.7 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current44 mA	Leakage Current3 µA	Dissipation Factor12 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010772008	4.7 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current50 mA	Leakage Current3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011374005	4.7 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current55 mA	Leakage Current56.4 µA	Dissipation Factor15 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860013
860010372001	10 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current44 mA	Leakage Current3 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010472002	10 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current50 mA	Leakage Current3 µA	Dissipation Factor14 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010672009	10 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current72 mA	Leakage Current5 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010572002	10 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current66 mA	Leakage Current3.5 µA	Dissipation Factor12 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010772009	10 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current77 mA	Leakage Current6.3 µA	Dissipation Factor9 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011375006	10 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current100 mA	Leakage Current120 µA	Dissipation Factor15 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860013
860010372002	22 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current83 mA	Leakage Current3.52 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010472003	22 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current94 mA	Leakage Current5.5 µA	Dissipation Factor14 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010672010	22 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current110 mA	Leakage Current11 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010272001	22 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current66 mA	Leakage Current3 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010572003	22 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current108 mA	Leakage Current7.7 µA	Dissipation Factor12 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010773010	22 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current127 mA	Leakage Current13.86 µA	Dissipation Factor9 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011378007	22 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current190 mA	Leakage Current264 µA	Dissipation Factor15 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860013
860010372003	33 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current84 mA	Leakage Current5.28 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010472004	33 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current105 mA	Leakage Current8.25 µA	Dissipation Factor14 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010672011	33 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current132 mA	Leakage Current16.5 µA	Dissipation Factor10 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010272002	33 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current88 mA	Leakage Current3.3 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010572004	33 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current121 mA	Leakage Current11.55 µA	Dissipation Factor12 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010773011	33 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current149 mA	Leakage Current20.79 µA	Dissipation Factor9 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011378008	33 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current230 mA	Leakage Current396 µA	Dissipation Factor15 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit 860013
860010372004	47 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current132 mA	Leakage Current7.52 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010472005	47 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current132 mA	Leakage Current11.75 µA	Dissipation Factor14 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010272003	47 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current105 mA	Leakage Current4.7 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010572005	47 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current143 mA	Leakage Current16.45 µA	Dissipation Factor12 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010673012	47 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current165 mA	Leakage Current23.5 µA	Dissipation Factor10 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010773012	47 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current198 mA	Leakage Current29.61 µA	Dissipation Factor9 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860012
860011380009	47 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current270 mA	Leakage Current564 µA	Dissipation Factor15 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860013
860010372005	68 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current149 mA	Leakage Current10.88 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010272004	68 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current132 mA	Leakage Current6.8 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010473006	68 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current176 mA	Leakage Current17 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010573006	68 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current198 mA	Leakage Current23.8 µA	Dissipation Factor12 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010674013	68 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current220 mA	Leakage Current34 µA	Dissipation Factor10 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010774013	68 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current253 mA	Leakage Current42.84 µA	Dissipation Factor9 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860012
860011380010	68 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current410 mA	Leakage Current816 µA	Dissipation Factor15 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860013
860011381011	68 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_860011381011 (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current380 mA	Leakage Current816 µA	Dissipation Factor15 %	Pitch7.5 mm	Diameter18 mm	Length25 mm	PackagingAmmopack	Design Kit 860013
860010372006	100 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current176 mA	Leakage Current16 µA	Dissipation Factor16 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010272005	100 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current198 mA	Leakage Current10 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010473007	100 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current209 mA	Leakage Current25 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010573007	100 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current231 mA	Leakage Current35 µA	Dissipation Factor12 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860011
860010674014	100 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current286 mA	Leakage Current50 µA	Dissipation Factor10 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010775014	100 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current330 mA	Leakage Current63 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit 860012
860011381012	100 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x31.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx810xx (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current440 mA	Leakage Current1200 µA	Dissipation Factor15 %	Pitch7.5 mm	Diameter18 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860013
860010272006	120 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current209 mA	Leakage Current12 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010373007	120 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current231 mA	Leakage Current19.2 µA	Dissipation Factor16 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010473008	120 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current253 mA	Leakage Current30 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010674015	120 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current319 mA	Leakage Current60 µA	Dissipation Factor10 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010574008	120 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current275 mA	Leakage Current42 µA	Dissipation Factor12 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860011
860010775015	120 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current396 mA	Leakage Current75.6 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860012
860011381013	120 µF, 400 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x41x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx81xxx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance120 µF	Rated Voltage400 V (DC)	Endurance 2000	Ripple Current520 mA	Leakage Current1440 µA	Dissipation Factor15 %	Pitch7.5 mm	Diameter18 mm	Length41 mm	PackagingTray	Design Kit 860013
860010272007	150 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_5x11x2x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x720xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current231 mA	Leakage Current15 µA	Dissipation Factor19 %	Pitch2 mm	Diameter5 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010373008	150 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current253 mA	Leakage Current24 µA	Dissipation Factor16 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010473009	150 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current275 mA	Leakage Current37.5 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010574009	150 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current308 mA	Leakage Current52.5 µA	Dissipation Factor12 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860011
860010675016	150 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current363 mA	Leakage Current75 µA	Dissipation Factor10 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit –
860010775016	150 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current462 mA	Leakage Current94.5 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860012
860010373009	180 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current275 mA	Leakage Current28.8 µA	Dissipation Factor16 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010473010	180 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current280 mA	Leakage Current45 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010273008	180 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current253 mA	Leakage Current18 µA	Dissipation Factor19 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010574010	180 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current352 mA	Leakage Current63 µA	Dissipation Factor12 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860011
860010675017	180 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current418 mA	Leakage Current90 µA	Dissipation Factor10 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit –
860010775017	180 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance180 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current528 mA	Leakage Current113.4 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860012
860010373010	220 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current308 mA	Leakage Current35.2 µA	Dissipation Factor16 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit 860010
860010473011	220 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current310 mA	Leakage Current55 µA	Dissipation Factor14 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010273009	220 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current294 mA	Leakage Current22 µA	Dissipation Factor19 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010574011	220 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current385 mA	Leakage Current77 µA	Dissipation Factor12 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860011
860010675018	220 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current468 mA	Leakage Current110 µA	Dissipation Factor10 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit –
860010775018	220 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current550 mA	Leakage Current138.6 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860012
860010273010	330 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current363 mA	Leakage Current33 µA	Dissipation Factor19 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010374011	330 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current407 mA	Leakage Current52.8 µA	Dissipation Factor16 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860010
860010474012	330 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current451 mA	Leakage Current82.5 µA	Dissipation Factor14 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010575012	330 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current528 mA	Leakage Current115.5 µA	Dissipation Factor12 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit 860011
860010675019	330 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current649 mA	Leakage Current165 µA	Dissipation Factor10 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010775019	330 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current759 mA	Leakage Current207.9 µA	Dissipation Factor9 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit 860012
860010273011	470 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_6.3x11x2.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx730xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current418 mA	Leakage Current47 µA	Dissipation Factor19 %	Pitch2.5 mm	Diameter6.3 mm	Length11 mm	PackagingAmmopack	Design Kit –
860010374012	470 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current517 mA	Leakage Current75.2 µA	Dissipation Factor16 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit 860010
860010474013	470 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current561 mA	Leakage Current117.5 µA	Dissipation Factor14 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010575013	470 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current693 mA	Leakage Current164.5 µA	Dissipation Factor12 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860011
860010675020	470 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current828 mA	Leakage Current235 µA	Dissipation Factor10 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010778020	470 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current968 mA	Leakage Current296.1 µA	Dissipation Factor9 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860012
860010274012	560 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current506 mA	Leakage Current56 µA	Dissipation Factor19 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010375013	560 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current572 mA	Leakage Current89.6 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit 860010
860010475014	560 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current693 mA	Leakage Current140 µA	Dissipation Factor14 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010575014	560 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current847 mA	Leakage Current196 µA	Dissipation Factor12 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit 860011
860010678021	560 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current902 mA	Leakage Current280 µA	Dissipation Factor10 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010778021	560 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current1056 mA	Leakage Current352.8 µA	Dissipation Factor9 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit 860012
860010274013	680 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x11.5x3.5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx740xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current572 mA	Leakage Current68 µA	Dissipation Factor19 %	Pitch3.5 mm	Diameter8 mm	Length11.5 mm	PackagingAmmopack	Design Kit –
860010374014	680 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x16x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x7401x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current640 mA	Leakage Current108.8 µA	Dissipation Factor16 %	Pitch3.5 mm	Diameter8 mm	Length16 mm	PackagingAmmopack	Design Kit 860010
860010375015	680 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current682 mA	Leakage Current108.8 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit 860010
860010475015	680 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current792 mA	Leakage Current170 µA	Dissipation Factor14 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010575015	680 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current891 mA	Leakage Current238 µA	Dissipation Factor12 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit 860011
860010678022	680 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current1056 mA	Leakage Current340 µA	Dissipation Factor10 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010780022	680 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance680 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current1265 mA	Leakage Current428.4 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860012
860010275014	820 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current671 mA	Leakage Current82 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit –
860010375016	820 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current803 mA	Leakage Current131.2 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860010
860010475016	820 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current891 mA	Leakage Current205 µA	Dissipation Factor14 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010578016	820 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1045 mA	Leakage Current287 µA	Dissipation Factor12 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860011
860010678023	820 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current1287 mA	Leakage Current410 µA	Dissipation Factor10 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010780023	820 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance820 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current1430 mA	Leakage Current516.6 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860012
860010274015	1000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_8x16x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_860010x7401x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current725 mA	Leakage Current100 µA	Dissipation Factor19 %	Pitch3.5 mm	Diameter8 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010275016	1000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x12.5x5x0 (rev1).igs \| 4.8 MB STP Download_STP_860010x7501x (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current726 mA	Leakage Current100 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length12.5 mm	PackagingAmmopack	Design Kit –
860010375017	1000 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current869 mA	Leakage Current160 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860010
860010475017	1000 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1050 mA	Leakage Current250 µA	Dissipation Factor14 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010578017	1000 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1265 mA	Leakage Current350 µA	Dissipation Factor12 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860011
860010678024	1000 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current1485 mA	Leakage Current500 µA	Dissipation Factor10 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010780024	1000 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current1540 mA	Leakage Current630 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860012
860010375018	1200 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current979 mA	Leakage Current192 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit 860010
860010275017	1200 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current902 mA	Leakage Current120 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010478018	1200 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1155 mA	Leakage Current300 µA	Dissipation Factor14 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010578018	1200 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1375 mA	Leakage Current420 µA	Dissipation Factor12 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860011
860010680025	1200 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current1617 mA	Leakage Current600 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010780025	1200 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1200 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current1837 mA	Leakage Current756 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860012
860010275018	1500 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x16x5x0 (rev1).igs \| 4.8 MB STP Download_STP_86001xx750xx (rev1).stp \| 1.9 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1001 mA	Leakage Current150 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length16 mm	PackagingAmmopack	Design Kit –
860010375019	1500 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current1100 mA	Leakage Current240 µA	Dissipation Factor16 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit 860010
860010478019	1500 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1353 mA	Leakage Current375 µA	Dissipation Factor14 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010578019	1500 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1570 mA	Leakage Current525 µA	Dissipation Factor12 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit 860011
860010680026	1500 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current1848 mA	Leakage Current750 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010780026	1500 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1500 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current2090 mA	Leakage Current945 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860012
860010275019	1800 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1089 mA	Leakage Current180 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010378020	1800 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current1298 mA	Leakage Current288 µA	Dissipation Factor16 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860010
860010478020	1800 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1496 mA	Leakage Current450 µA	Dissipation Factor14 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010580020	1800 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1749 mA	Leakage Current630 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860011
860010680027	1800 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current2112 mA	Leakage Current900 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010780027	1800 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1800 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current2255 mA	Leakage Current1134 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860012
860010275020	2200 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_10x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_860010x750xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1210 mA	Leakage Current220 µA	Dissipation Factor19 %	Pitch5 mm	Diameter10 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010378021	2200 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current1485 mA	Leakage Current352 µA	Dissipation Factor16 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860010
860010478021	2200 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1705 mA	Leakage Current550 µA	Dissipation Factor14 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010580021	2200 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current1870 mA	Leakage Current770 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860011
860010680028	2200 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current2310 mA	Leakage Current1100 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010781028	2200 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2200 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current2475 mA	Leakage Current1386 µA	Dissipation Factor9 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860012
860010378022	2700 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current1716 mA	Leakage Current432 µA	Dissipation Factor16 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860010
860010278021	2700 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1419 mA	Leakage Current270 µA	Dissipation Factor19 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010480022	2700 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1804 mA	Leakage Current675 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010580022	2700 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current2178 mA	Leakage Current945 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860011
860010681029	2700 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x31.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx810xx (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current2420 mA	Leakage Current1350 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter18 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010783029	2700 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2700 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current2860 mA	Leakage Current1701 µA	Dissipation Factor9 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit 860012
860010378023	3300 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current1750 mA	Leakage Current528 µA	Dissipation Factor16 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit 860010
860010278022	3300 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1540 mA	Leakage Current330 µA	Dissipation Factor19 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010480023	3300 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current1870 mA	Leakage Current825 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010580023	3300 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current2365 mA	Leakage Current1155 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860011
860010681030	3300 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current2750 mA	Leakage Current1650 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010783030	3300 µF, 63 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3300 µF	Rated Voltage63 V (DC)	Endurance 2000	Ripple Current3080 mA	Leakage Current2079 µA	Dissipation Factor9 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit 860012
860010278023	3900 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x20x5x0 (rev1).igs \| 4.9 MB STP Download_STP_86001xx780xx (rev1).stp \| 2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3900 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1760 mA	Leakage Current390 µA	Dissipation Factor19 %	Pitch5 mm	Diameter13 mm	Length20 mm	PackagingAmmopack	Design Kit –
860010380024	3900 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3900 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2002 mA	Leakage Current624 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860010
860010480024	3900 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3900 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current2343 mA	Leakage Current975 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010581024	3900 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x31.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx810xx (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3900 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current2640 mA	Leakage Current1365 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter18 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860011
860010681031	3900 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x41x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx81xxx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3900 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current2871 mA	Leakage Current1950 µA	Dissipation Factor10 %	Pitch7.5 mm	Diameter18 mm	Length41 mm	PackagingTray	Design Kit –
860010278024	4700 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_13x25x5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx78xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4700 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current1980 mA	Leakage Current470 µA	Dissipation Factor19 %	Pitch5 mm	Diameter13 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010380025	4700 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4700 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2310 mA	Leakage Current752 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit 860010
860010480025	4700 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4700 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current2640 mA	Leakage Current1175 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010581025	4700 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4700 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current2860 mA	Leakage Current1645 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860011
860010683032	4700 µF, 50 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4700 µF	Rated Voltage50 V (DC)	Endurance 2000	Ripple Current3355 mA	Leakage Current2350 µA	Dissipation Factor10 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit –
860010280025	5600 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance5600 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current2189 mA	Leakage Current560 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010380026	5600 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance5600 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2453 mA	Leakage Current896 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860010
860010481026	5600 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x31.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx810xx (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance5600 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current2816 mA	Leakage Current1400 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter18 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010581026	5600 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x41x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx81xxx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance5600 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current2915 mA	Leakage Current1960 µA	Dissipation Factor12 %	Pitch7.5 mm	Diameter18 mm	Length41 mm	PackagingTray	Design Kit 860011
860010280026	6800 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x25x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx800xx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance6800 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current2475 mA	Leakage Current680 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter16 mm	Length25 mm	PackagingAmmopack	Design Kit –
860010380027	6800 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance6800 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2805 mA	Leakage Current1088 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit 860010
860010481027	6800 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance6800 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current2970 mA	Leakage Current1700 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010583027	6800 µF, 35 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance6800 µF	Rated Voltage35 V (DC)	Endurance 2000	Ripple Current3630 mA	Leakage Current2380 µA	Dissipation Factor12 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit 860011
860010280027	8200 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x31.5x7.5x0 (rev1).igs \| 5.2 MB STP Download_STP_860010x8002x (rev1).stp \| 2.2 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance8200 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current2541 mA	Leakage Current820 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter16 mm	Length31.5 mm	PackagingAmmopack	Design Kit –
860010380028	8200 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance8200 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2893 mA	Leakage Current1312 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860010
860010481028	8200 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance8200 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current2981 mA	Leakage Current2050 µA	Dissipation Factor14 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010280028	10000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_16x35.5x7.5x0 (rev1).igs \| 5.1 MB STP Download_STP_86001xx80xxx (rev1).stp \| 2.1 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current2640 mA	Leakage Current1000 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter16 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010381029	10000 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10000 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current2970 mA	Leakage Current1600 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860010
860010483029	10000 µF, 25 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10000 µF	Rated Voltage25 V (DC)	Endurance 2000	Ripple Current3960 mA	Leakage Current2500 µA	Dissipation Factor14 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit –
860010381030	12000 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance12000 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current3058 mA	Leakage Current1920 µA	Dissipation Factor16 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit 860010
860010281029	12000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance12000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current3025 mA	Leakage Current1200 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010281030	15000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x35.5x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_860010x810xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance15000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current3310 mA	Leakage Current1500 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter18 mm	Length35.5 mm	PackagingAmmopack	Design Kit –
860010383031	15000 µF, 16 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance15000 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current3905 mA	Leakage Current2400 µA	Dissipation Factor16 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit 860010
860010281031	18000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_18x41x7.5x0 (rev1).igs \| 5.3 MB STP Download_STP_86001xx81xxx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance18000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current3410 mA	Leakage Current1800 µA	Dissipation Factor19 %	Pitch7.5 mm	Diameter18 mm	Length41 mm	PackagingTray	Design Kit –
860010283032	22000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x41x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010x830xx (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current4092 mA	Leakage Current2200 µA	Dissipation Factor19 %	Pitch10 mm	Diameter22 mm	Length41 mm	PackagingTray	Design Kit –
860010283033	33000 µF, 10 V (DC), 2000	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-ATG8 (rev23a).IntLib \| 7.9 MB CDS Cadence_WCAP-ATG8 (rev22a).zip \| 25.9 MB EAG Eagle_WCAP-ATG8 (rev20a).lbr \| 226.3 KB KIC KiCad_WCAP-ATG8 (rev25b).zip \| 9.4 MB ZUK CadStar_WCAP-ATG8 (rev19a).zip \| 18.6 KB CAD files ZIP IGS IGS_WCAP-ATG8_22x51x10x0 (rev1).igs \| 5.4 MB STP Download_STP_860010283033 (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WCAP-ATG8 (rev22a).zip \| 31 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33000 µF	Rated Voltage10 V (DC)	Endurance 2000	Ripple Current4620 mA	Leakage Current3300 µA	Dissipation Factor19 %	Pitch10 mm	Diameter22 mm	Length51 mm	PackagingTray	Design Kit –
