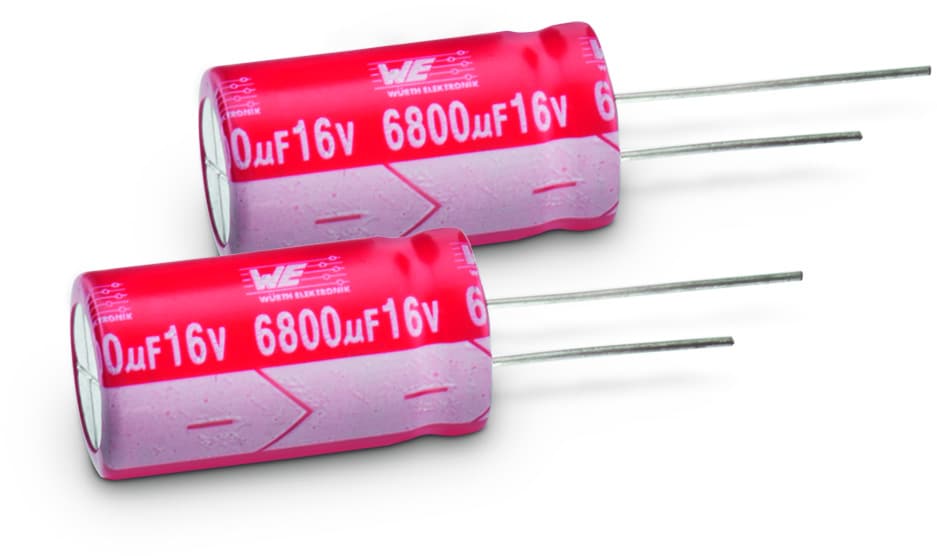

WCAP-ATG5 Aluminum Electrolytic Capacitors | Passive Components

LTSpice files

LT
LTSpice_WCAP-ATG5 (rev21a).zip
|
6.2 KB

Characteristics

General purpose product series with max. operating temperature of +105 °C
Mounting style: THT Radial
Capacitance range: 0.1 µF ‒ 18000 µF
Capacitance tolerance: ±20 %
Operating temperature:
-40 °C up to +105 °C for UR < 400 V(DC)
-25 °C up to +105 °C for UR ≥ 400 V(DC)
Endurance: 2000 h @ +105 °C
Dimensions (DxL) in mm: 5.0 x 11.0 up to 22.0 x 31.0
Recommended soldering: Wave soldering

Applications

Filtering
Smoothing
Energy storage
Coupling
e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Application Notes

Products

	Order Code	Datasheet	Simulation	Downloads	C	V_R (V (DC))	Endurance (h)	Operating Temperature	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Technical Reference	Design Kit
