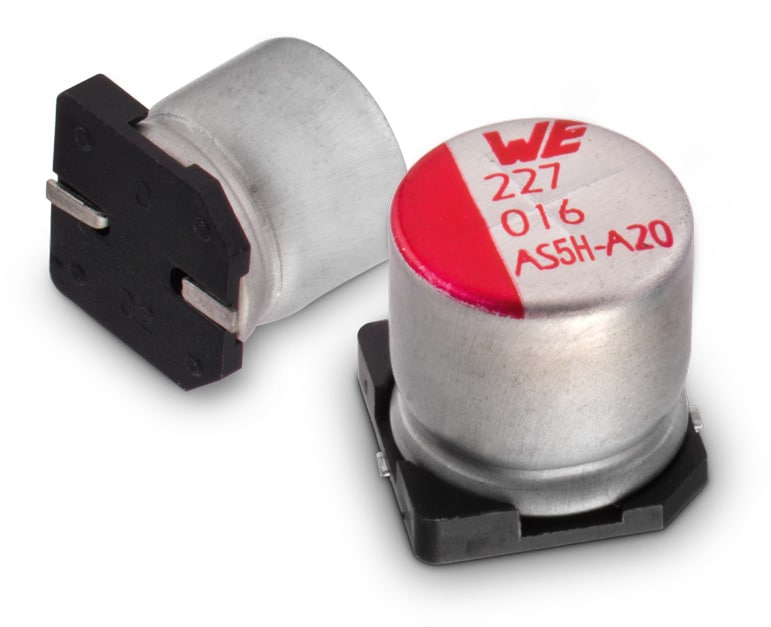

WCAP-AS5H Aluminum Electrolytic Capacitors

Size	L (mm)	W (mm)	Mount
⌀ 4 mm	5.5	4.3	V-Chip SMT
⌀ 5 mm	5.5	5.3	V-Chip SMT
⌀ 6.3 mm	-	6.6	V-Chip SMT
⌀ 8 mm	10.5	8.3	V-Chip SMT
⌀ 10 mm	10.5	10.3	V-Chip SMT

LTSpice files

LT
LTSpice_WCAP-AS5H (rev22a).zip
|
3 KB

Characteristics

Long life product series
Mounting style: V-Chip SMT
Capacitance range: 0.1 µF ‒ 1000 µF
Capacitance tolerance: ±20 %
Voltage range (UR): 6.3 ‒ 50 V(DC)
Operating temperature: -40 °C up to +105 °C
Endurance: 5000 h @ +105 °C
Dimensions (DxL) in mm: 4.0 x 5.5 up to 10.0 x 10.5
Recommended soldering: Reflow soldering

Applications

Long life applications (industry, medical)
Input and output capacitor for switched-mode power supply
Filtering
Smoothing
e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
