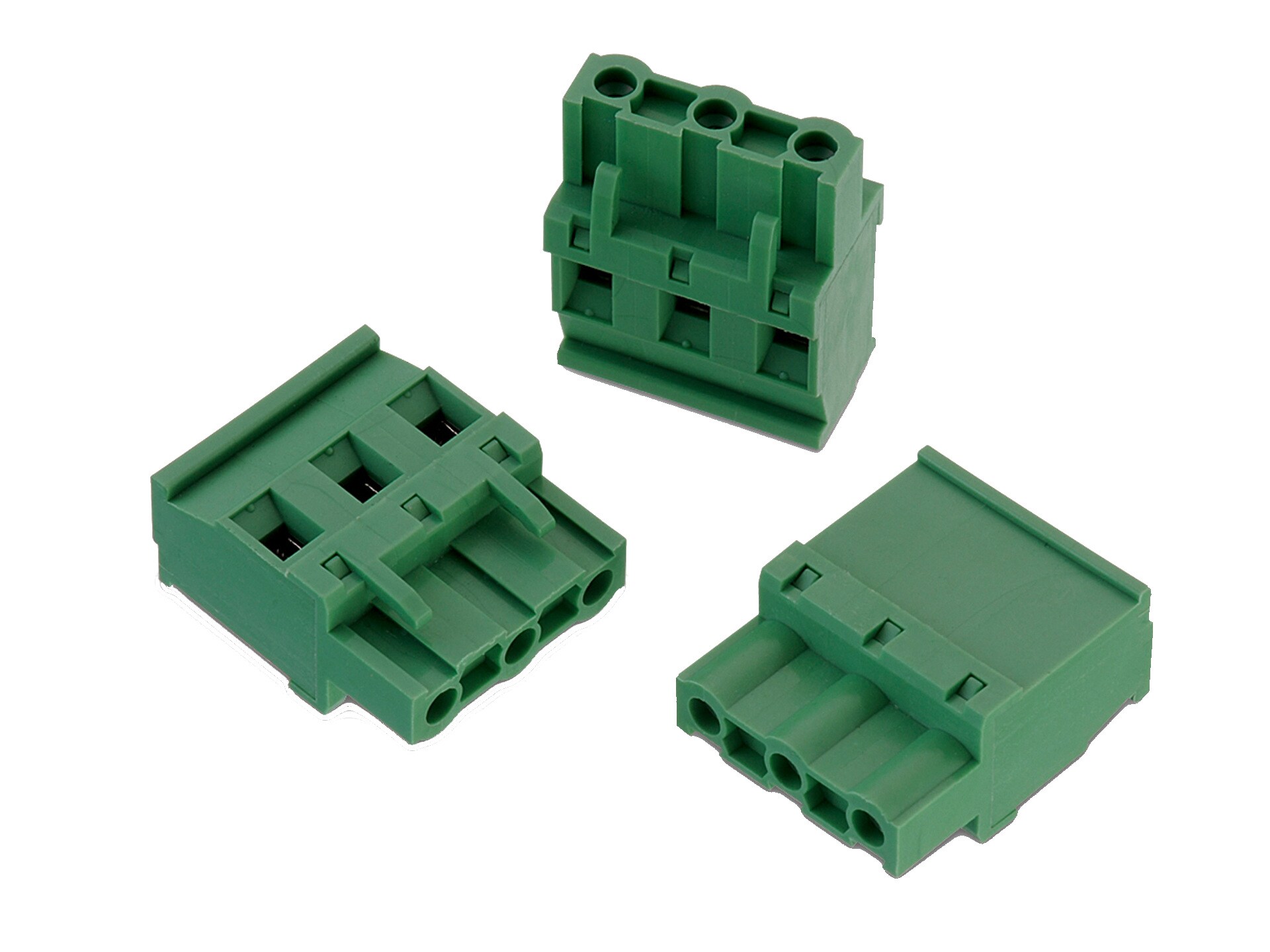

WR-TBL Series 3524 - 7.62 mm Horizontal w. Hook on Wire Side

Kind Properties
Pitch7.62 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus15 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples
691352410002
STE 3D IGS 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15691001
691352410003
STE 3D IGS 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410004
STE 3D IGS 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410005
STE 3D IGS 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410006
STE 3D IGS 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410007
IGE STE 3D 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410008
STE 3D IGS 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691352410012
IGE STE 3D 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
Order Code Data­sheet
691352410002
691352410003
691352410004
691352410005
691352410006
691352410007
691352410008
691352410012
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
