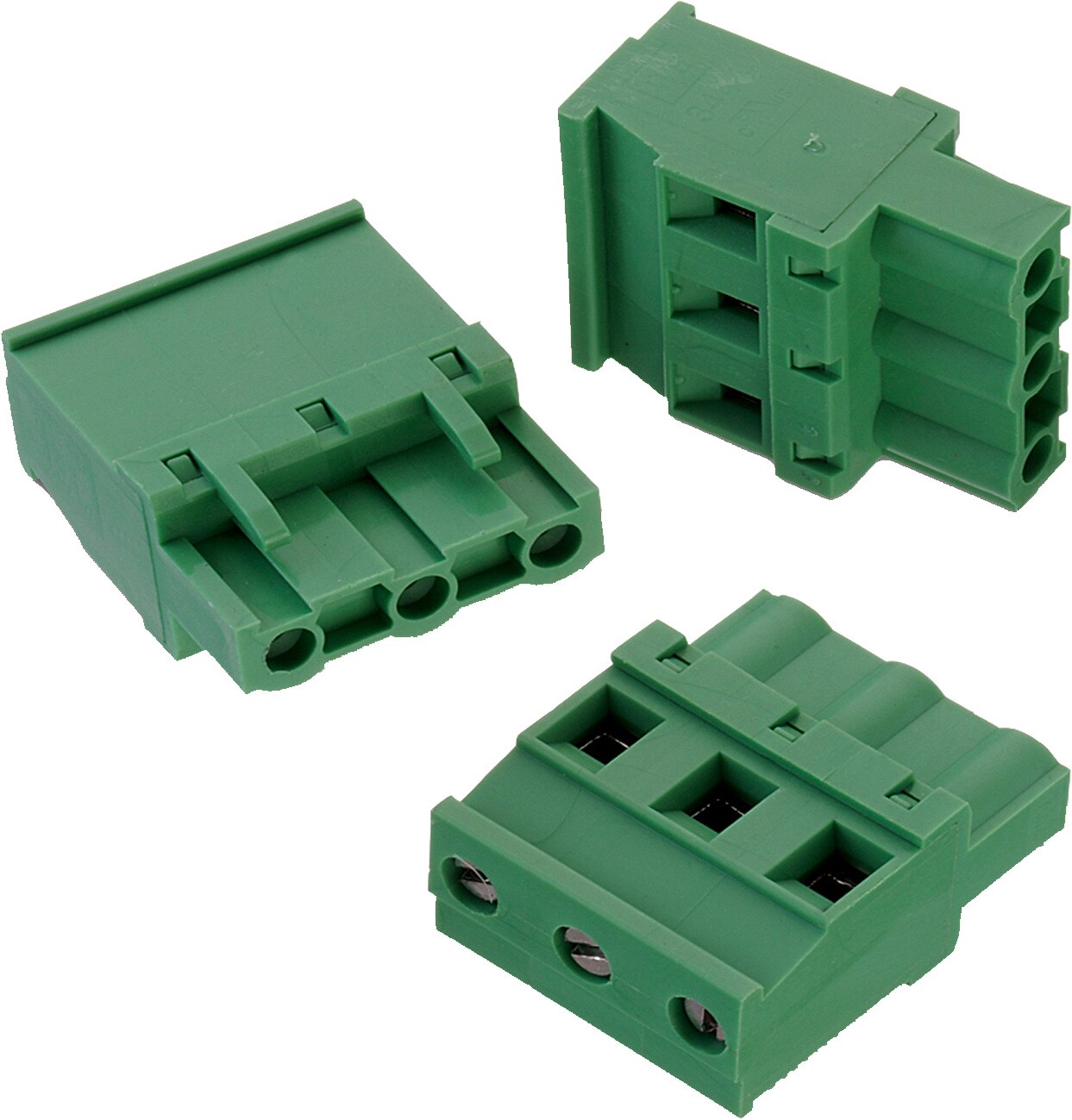

WR-TBL Series 3444 - 7.62 mm Horizontal w. Hook on Back Side

Kind Properties
Pitch7.62 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus15 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Samples
691344410002
STE 3D IGS 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410003
STE 3D IGS 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410004
STE 3D IGS 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410005
STE 3D IGS 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410006
STE 3D IGS 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410007
IGE STE 3D 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410008
STE 3D IGS 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
691344410012
IGE STE 3D 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 15
Order Code Data­sheet
691344410002
691344410003
691344410004
691344410005
691344410006
691344410007
691344410008
691344410012
