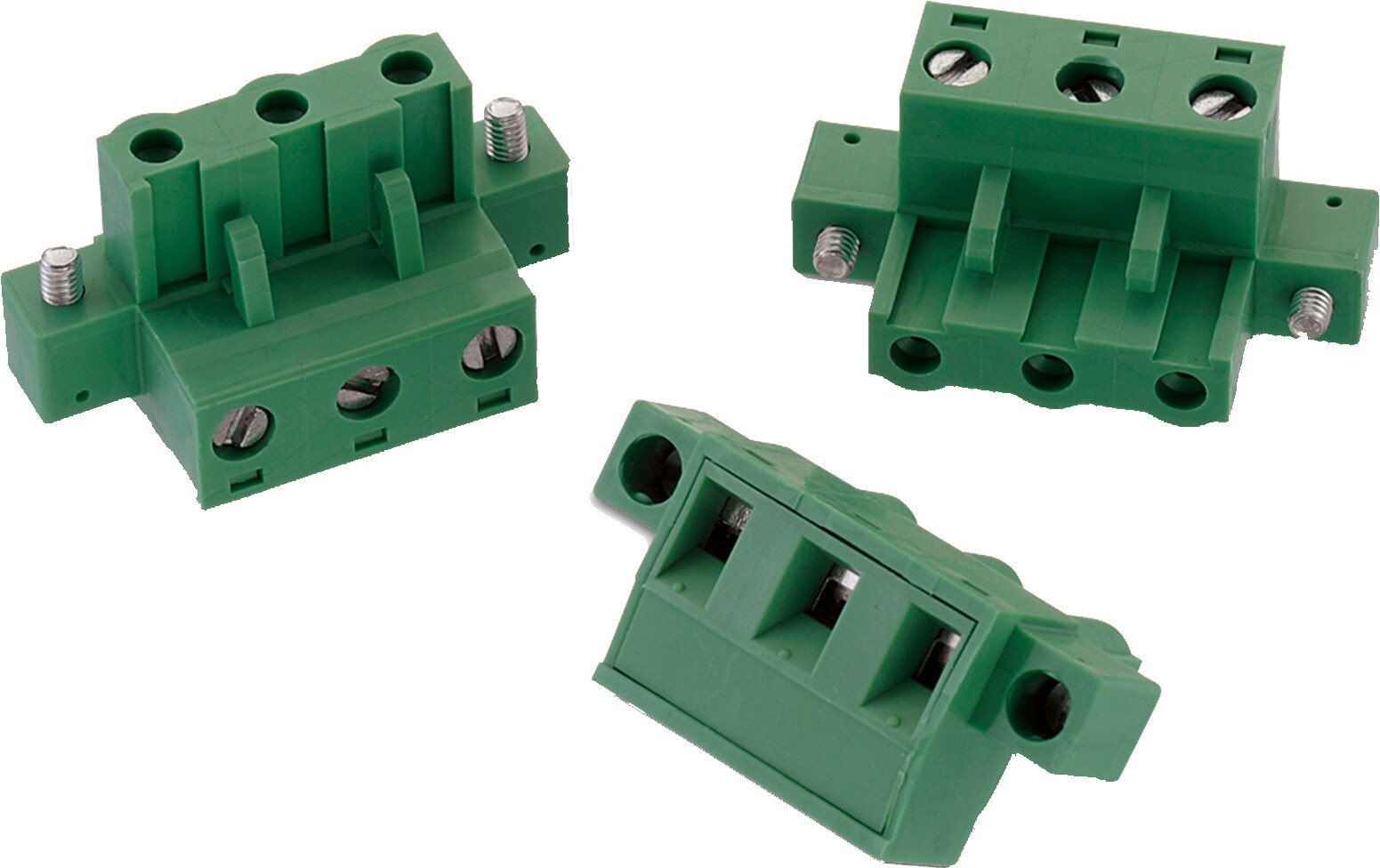

WR-TBL Series 3404 - 7.62 mm Vertical with Flanges

Kind Properties
Pitch7.62 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C; -40 °C up to +105
ComplianceRoHS
Electrical Properties
IR cULus20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length7 up to 8 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691340400002SPEC
3 files 2 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400003SPEC
3 files 3 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400004SPEC
3 files 4 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400005SPEC
3 files 5 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400006SPEC
3 files 6 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400007SPEC
3 files 7 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400008SPEC
3 files 8 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340400012SPEC
3 files 12 Pluggable Cable No Vertical 12 to 24 (AWG) 3.31 to 0.205 (mm²)
Order Code Data­sheet
691340400002SPEC
691340400003SPEC
691340400004SPEC
691340400005SPEC
691340400006SPEC
691340400007SPEC
691340400008SPEC
691340400012SPEC
