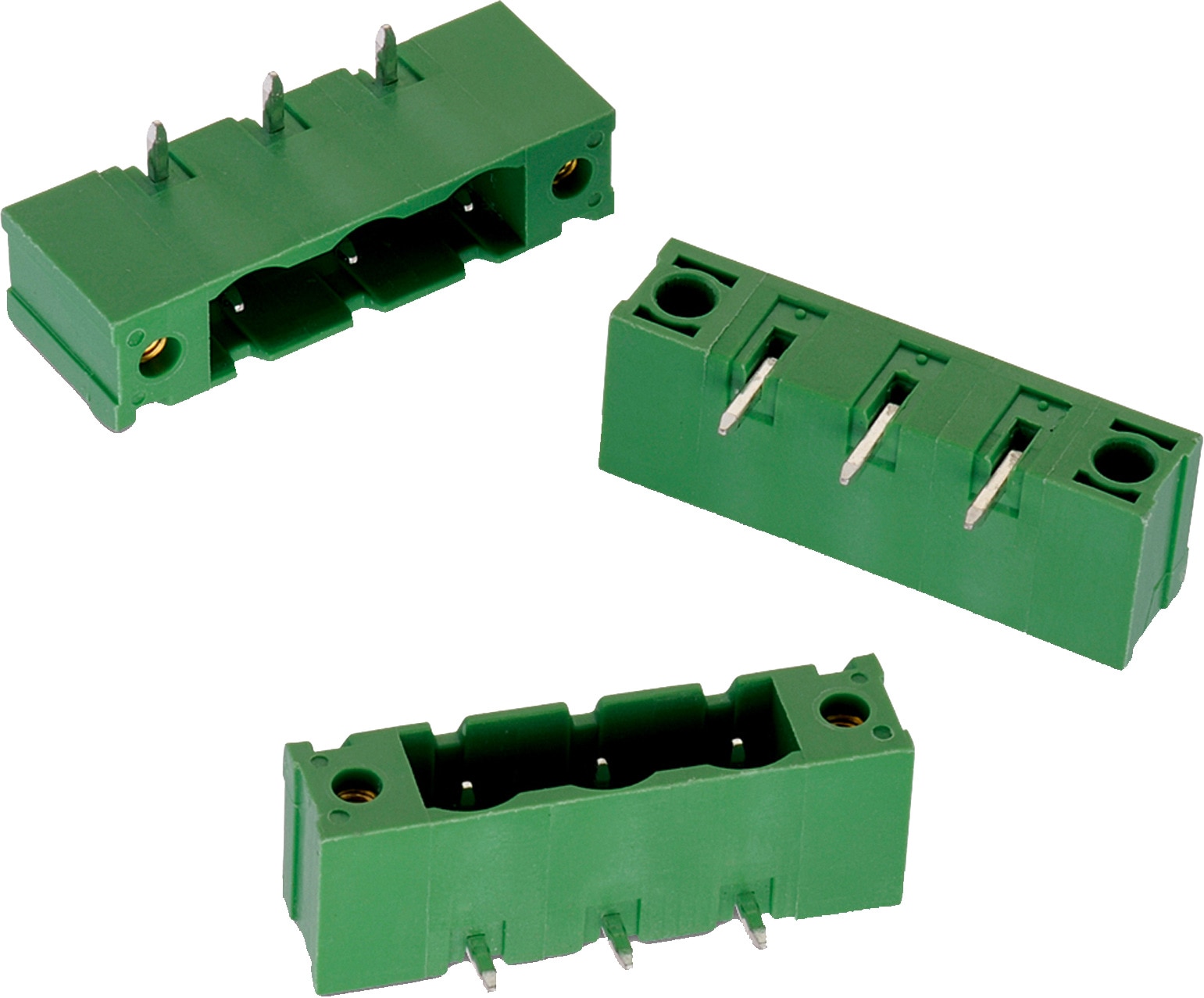

WR-TBL Series 3174 - 7.62 mm Close Horizontal PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	7.62 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V
Withstanding Voltage	1600 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type
691317410002	2, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410002_1 (rev1).pdf \| 161.5 KB IGS 691317410002 (rev1).igs \| 1.1 MB STP 691317410002 (rev1).stp \| 419.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410003	3, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410003_1 (rev1).pdf \| 185.5 KB IGS 691317410003 (rev1).igs \| 1.3 MB STP 691317410003 (rev1).stp \| 497.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410004	4, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410004_1 (rev1).pdf \| 205.1 KB IGS 691317410004 (rev1).igs \| 1.5 MB STP 691317410004 (rev1).stp \| 575.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410005	5, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410005_1 (rev1).pdf \| 223.5 KB IGS 691317410005 (rev1).igs \| 1.7 MB STP 691317410005 (rev1).stp \| 655.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410006	6, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410006_1 (rev1).pdf \| 247 KB IGS 691317410006 (rev1).igs \| 1.9 MB STP 691317410006 (rev1).stp \| 736.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410007	7, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691317410007 (rev1).pdf \| 269.3 KB IGS Downloads_IGES_691317410007 (rev1).iges \| 2.1 MB STP Downloads_STP_691317410007 (rev1).stp \| 817.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410008	8, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691317410008_1 (rev1).pdf \| 301.3 KB IGS 691317410008 (rev1).igs \| 2.4 MB STP 691317410008 (rev1).stp \| 897.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal
691317410012	12, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691317410012 (rev1).pdf \| 362.6 KB IGS Downloads_IGES_691317410012 (rev1).iges \| 3.2 MB STP Downloads_STP_691317410012 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
