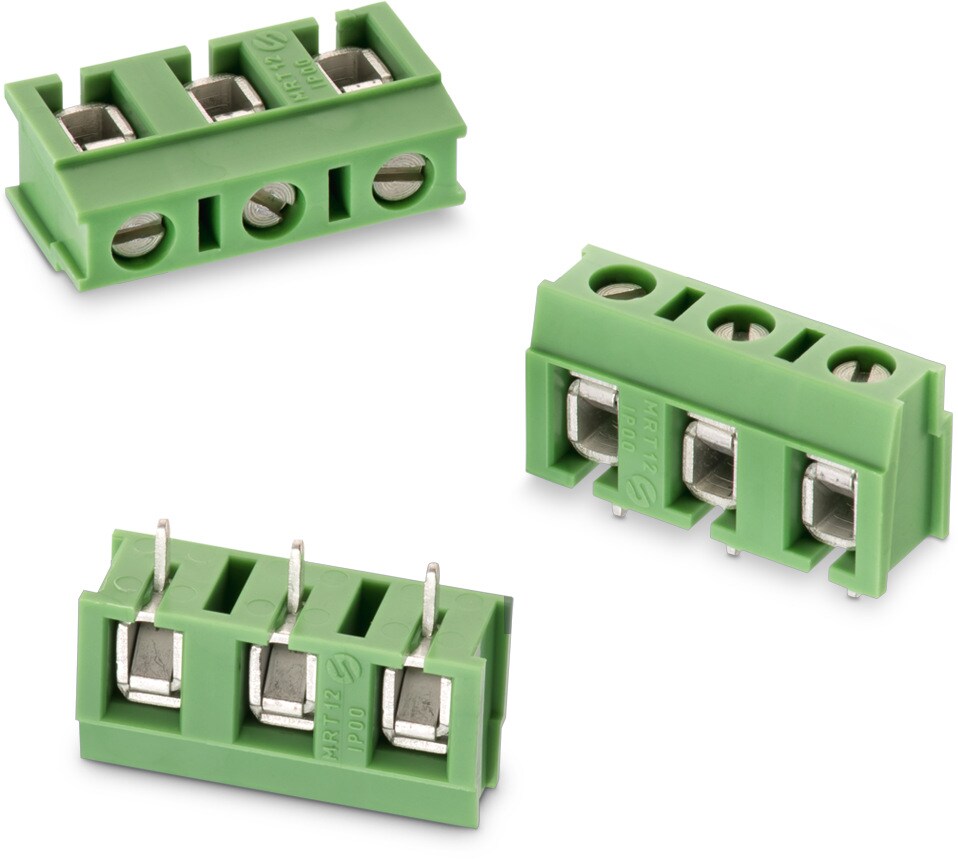

WR-TBL Series 1379 - Wire Protector 7.50mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +110 °C
Compliance	Lead free / RoHS
Pitch	7.5 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel over Tin
Contact Type	Stamped
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R	16 A
I_R[cULus]	16 A
I_R[VDE]	24 A
Working Voltage	300 V (AC); 750 V (AC)
Working Voltage [UL]	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [UL]	1600 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	20 mΩ
R_C [UL]	20 mΩ
R_C [cULus]	20 mΩ
R_C [VDE]	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
cULus Approval	E150931
UL Approval	E150931 CAT N: MRT12 (7)
VDE Approval	40021397
VDE Approval	40021397 TYPE: MRT12

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691137910002	SPEC2, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691137910002 (rev1).pdf \| 140.2 KB IGS Download_IGES_691137910002 (rev1).iges \| 1.9 MB STP Download_STP_691137910002 (rev1).stp \| 664 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins2	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit –	–Check availability
	691137910003	SPEC3, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691137910003 (rev1).pdf \| 182.6 KB IGS Download_IGES_691137910003 (rev1).iges \| 2.5 MB STP Download_STP_691137910003 (rev1).stp \| 854.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins3	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit 691001	–Check availability
	691137910004	SPEC4, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691137910004 (rev1).pdf \| 220.8 KB IGS Downloads_IGES_691137910004 (rev1).iges \| 3 MB STP Download_STP_691137910004 (rev1).stp \| 1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins4	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit –	–Check availability
	691137910005	SPEC5, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691137910005 (rev1).pdf \| 261.6 KB IGS Download_IGES_691137910005 (rev1).iges \| 3.6 MB STP Download_STP_691137910005 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins5	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit –	–Check availability
	691137910006	SPEC6, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 691137910006_1 (rev1).pdf \| 298.8 KB IGS 691137910006 (rev1).iges \| 4.2 MB STP 691137910006 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins6	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit –	–Check availability
	691137910008	SPEC8, Wire Protector, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Wire Protector (rev26a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Wire-Protector (rev22a).lbr \| 845.2 KB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691137910008 (rev1).pdf \| 372.2 KB IGS Download_IGES_691137910008 (rev1).iges \| 5.3 MB STP Download_STP_691137910008 (rev1).stp \| 1.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins8	ApplicationWire Protector	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal Cable Entry	Wire Section 30 to 12 (AWG) 0.05 to 3.31 (mm²)	Design Kit –	–Check availability
