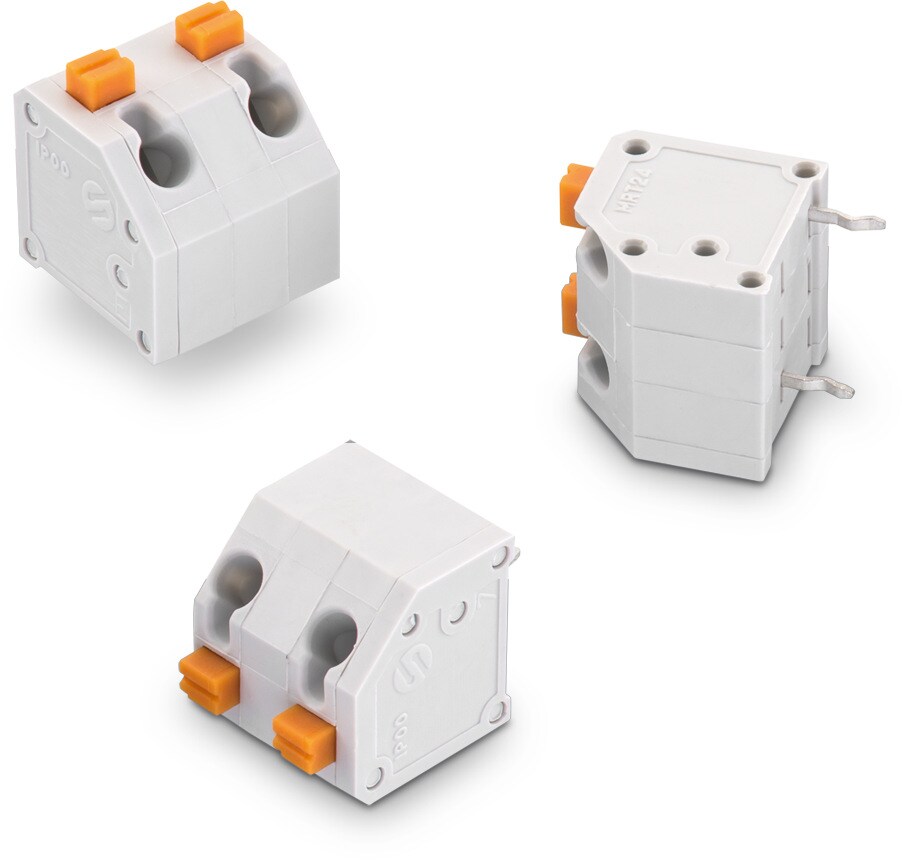

WR-TBL Series 4122 - 7.00 mm Screwless 45° Entry | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	7 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Phosphor Bronze
Contact Plating	Tin
Wire Guard Material	Phosphor Bronze with Tin

Electrical Properties
I_R[cULus]	4 A
I_R[VDE]	4 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	750 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	7 (mm)

Wire Properties
Solid Wire Section (AWG)	16 to 30 (AWG)
Solid Wire Section (Metric)	1.31 to 0.05 (mm²)
Stranded Wire Section (AWG)	16 to 30 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.05 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40013441 Type MRT24

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691412220002	2, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220002 (rev1).pdf \| 128.3 KB IGS 691412220002 (rev1).iges \| 1.6 MB STP 691412220002 (rev1).stp \| 363.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit 691001
691412220003	3, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220003 (rev1).pdf \| 128.6 KB IGS 691412220003 (rev1).iges \| 1.6 MB STP 691412220003 (rev1).stp \| 364.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220004	4, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220004 (rev1).pdf \| 129 KB IGS 691412220004 (rev1).iges \| 1.6 MB STP 691412220004 (rev1).stp \| 366 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220005	5, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220005 (rev1).pdf \| 129.4 KB IGS 691412220005 (rev1).iges \| 1.6 MB STP 691412220005 (rev1).stp \| 367.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220006	6, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220006 (rev1).pdf \| 129.8 KB IGS 691412220006 (rev1).iges \| 1.6 MB STP 691412220006 (rev1).stp \| 368.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220007	7, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220007 (rev1).pdf \| 130.2 KB IGS 691412220007 (rev1).iges \| 1.6 MB STP 691412220007 (rev1).stp \| 370.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220008	8, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220008 (rev1).pdf \| 130.6 KB IGS 691412220008 (rev1).iges \| 1.6 MB STP 691412220008 (rev1).stp \| 371.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220009	9, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220009 (rev1).pdf \| 130.9 KB IGS 691412220009 (rev1).iges \| 1.6 MB STP 691412220009 (rev1).stp \| 373 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220010	10, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220010 (rev1).pdf \| 131.3 KB IGS 691412220010 (rev1).iges \| 1.6 MB STP 691412220010 (rev1).stp \| 374.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220011	11, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220011 (rev1).pdf \| 131.7 KB IGS 691412220011 (rev1).iges \| 1.6 MB STP 691412220011 (rev1).stp \| 375.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
691412220012	12, Screwless, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Spring-Clamp (rev23b).lbr CAD files ZIP 3D 691412220012 (rev1).pdf \| 132.1 KB IGS 691412220012 (rev1).iges \| 1.6 MB STP 691412220012 (rev1).stp \| 377.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	Type45°	Wire Section 16 to 30 (AWG) 1.31 to 0.05 (mm²)	Design Kit –
